Bosch HGS 55/8

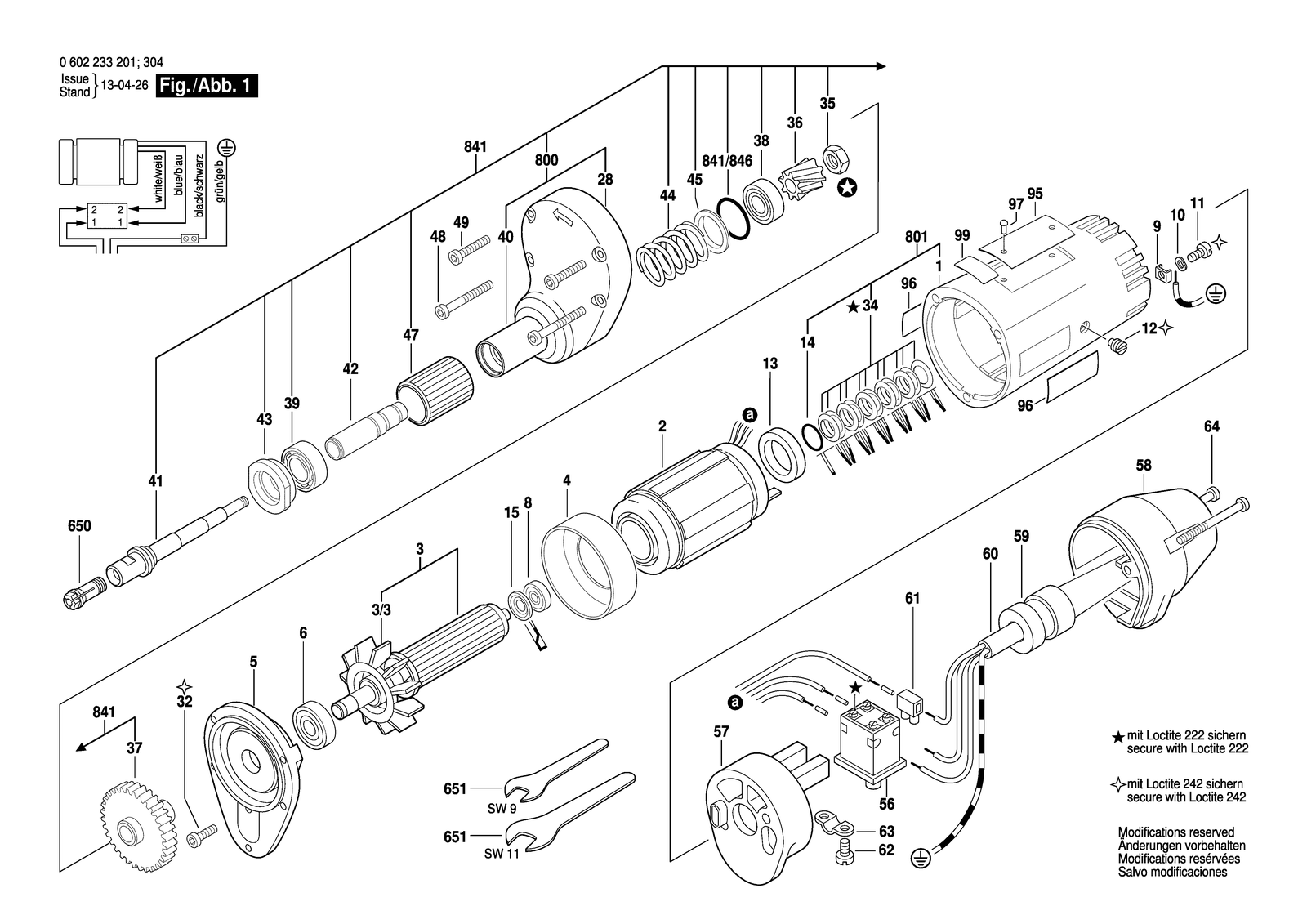

Bosch HGS 55/8 straight grinders: exploded parts diagram, 1 sheet, 111 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HGS 55/8: 111 positions on 1 sheet
Bosch HGS 55/8 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102058 | Motor Housing |
| 1 | 3605102026 | Motor Housing |
| 1 | 3605102058 | Motor Housing |
| 10 | 3600150006 | Spring Washer Ø4,2 MM |
| 10 | 3600150006 | Spring Washer Ø4,2 MM |
| 11 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 11 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 12 | 3603402000 | Set screw |
| 12 | 3603402000 | Set screw |
| 13 | 1600209011 | Seal Ring |
| 13 | 1600209011 | Seal Ring |
| 14 | 3600210039 | O-Ring 12,0X2,25 MM |
| 14 | 3600206002 | Rubber Ring 6MM,Ø12XØ16,4X3MM |
| 14 | 3600210039 | O-Ring 12,0X2,25 MM |
| 15 | 3600202008 | Intermediate Ring |
| 15 | 3600202008 | Intermediate Ring |
| 2 | 1604229200 | Stator 265V/200HZ, 200V/150HZ |
| 2 | 1604229201 | Stator 200V/300HZ,135V/200HZ |
| 2 | 1604229202 | Stator 72V/200HZ,110V/300HZ |
| 2 | 1604229201 | Stator 200V/300HZ,135V/200HZ |
| 2 | 1604229203 | Stator 72V/300HZ |
| 2 | 1604229205 | Stator 42V/300HZ |
| 28 | 3605806108 | Gear Housing |
| 28 | 3605806108 | Gear Housing |
| 3 | 3604080003 | Rotor Without Winding |
| 3 | 3604080003 | Rotor Without Winding |
| 3/3 | 1606610105 | Fan |
| 3/3 | 1606610105 | Fan |
| 32 | 2910141122 | Hex Socket Head Cap Screw DIN 912-M 4X12-8.8 |
| 32 | 2910141122 | Hex Socket Head Cap Screw DIN 912-M 4X12-8.8 |
| 34 | 3600150013 | Disc Spring |
| 34 | 3600150013 | Disc Spring |
| 35 | 3603300001 | Hex Nut |
| 35 | 3603300001 | Hex Nut |
| 36 | 3606320004 | Cylindrical Gear |
| 36 | 3606320005 | Cylindrical Gear Z=17 |
| 37 | 3606330005 | Cylindrical Gear |
| 37 | 3606330004 | Cylindrical Gear Z=46 |
| 38 | 3600900008 | Groove ball bearing |
| 38 | 3600900008 | Groove ball bearing |
| 39 | 3600900007 | Groove ball bearing |
| 39 | 3600900007 | Groove ball bearing |
| 4 | 1600502005 | Air-Deflector Ring |
| 4 | 1600502005 | Air-Deflector Ring |
| 40 | 3600328030 | Bearing Sleeve |
| 40 | 3600328030 | Bearing Sleeve |
| 41 | 3603054001 | Grinding Spindle |
| 41 | 3603054001 | Grinding Spindle |
| 42 | 3600328031 | Spacer Sleeve |
| 42 | 3600328031 | Spacer Sleeve |
| 43 | 3603344017 | Threaded Ring |
| 43 | 3603344017 | Threaded Ring |
| 44 | 3604617003 | Compression Spring |
| 44 | 3604617003 | Compression Spring |
| 45 | 3600120003 | Adaptor plate |
| 45 | 3600120003 | Adaptor plate |
| 47 | 3600409002 | Protection Sleeve |
| 47 | 3600409002 | Protection Sleeve |
| 48 | 2910141131 | Hex Socket Head Cap Screw DIN 912-M 4X22-8.8 |
| 48 | 2910141131 | Hex Socket Head Cap Screw DIN 912-M 4X22-8.8 |
| 49 | 2910141136 | Hex Socket Head Cap Screw DIN 912-M 4X35-8.8 |
| 49 | 2910141136 | Hex Socket Head Cap Screw DIN 912-M 4X35-8.8 |
| 5 | 3605820059 | Bearing Flange |
| 5 | 3605820059 | Bearing Flange |
| 56 | 3607200001 | Switch |
| 56 | 3607200001 | Switch |
| 57 | 3600099004 | Connection Housing |
| 57 | 3600099004 | Connection Housing |
| 58 | 3605500074 | Sealing cap |
| 58 | 3605500074 | Sealing cap |
| 59 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 59 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 6 | 1900905017 | Groove ball bearing 9X24X7 |
| 6 | 1900905017 | Groove ball bearing 9X24X7 |
| 60 | 3604462052 | Pvc-Insulated Cable |
| 60 | 3604421002 | Elec. Cable W/Connection |
| 60 | 3604462052 | Pvc-Insulated Cable |
| 61 | 1901091012 | Socket-Terminal Strip 1X1,5 MM/2 |
| 61 | 1901091012 | Socket-Terminal Strip 1X1,5 MM/2 |
| 62 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 62 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 63 | 1601302014 | Fastening Clamp |
| 63 | 1601302014 | Fastening Clamp |
| 64 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 64 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 650 | 2608570019 | Collet Ø3,0 MM |
| 650 | 2608570019 | Collet Ø3,0 MM |
| 651 | 1907950503 | Single-Head Eng. Wrench DIN 894 SW 9 |
| 651 | 1907950505 | Single-Head Eng. Wrench DIN 894 SW11 |
| 651 | 1907950503 | Single-Head Eng. Wrench DIN 894 SW 9 |
| 651 | 1907950505 | Single-Head Eng. Wrench DIN 894 SW11 |
| 8 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 8 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 800 | 3605806052 | Spindle Bearing |
| 800 | 3605806052 | Spindle Bearing |
| 801 | 3605102028 | Motor Housing |
| 801 | 3605102028 | Motor Housing |
| 841 | 3607031178 | Grinding Spindle |
| 841 | 3607031179 | Grinding Spindle |
| 841/846 | 3607010027 | O-Ring 2 Piece |
| 841/846 | 3607010027 | O-Ring 2 Piece |
| 9 | 3601321001 | Clamping Saddle |
| 9 | 3601321001 | Clamping Saddle |
| 95 | 3601106053 | Nameplate |
| 95 | 3601106053 | Nameplate |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 97 | 3603133000 | Grooved Nail |
| 97 | 3603133000 | Grooved Nail |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
