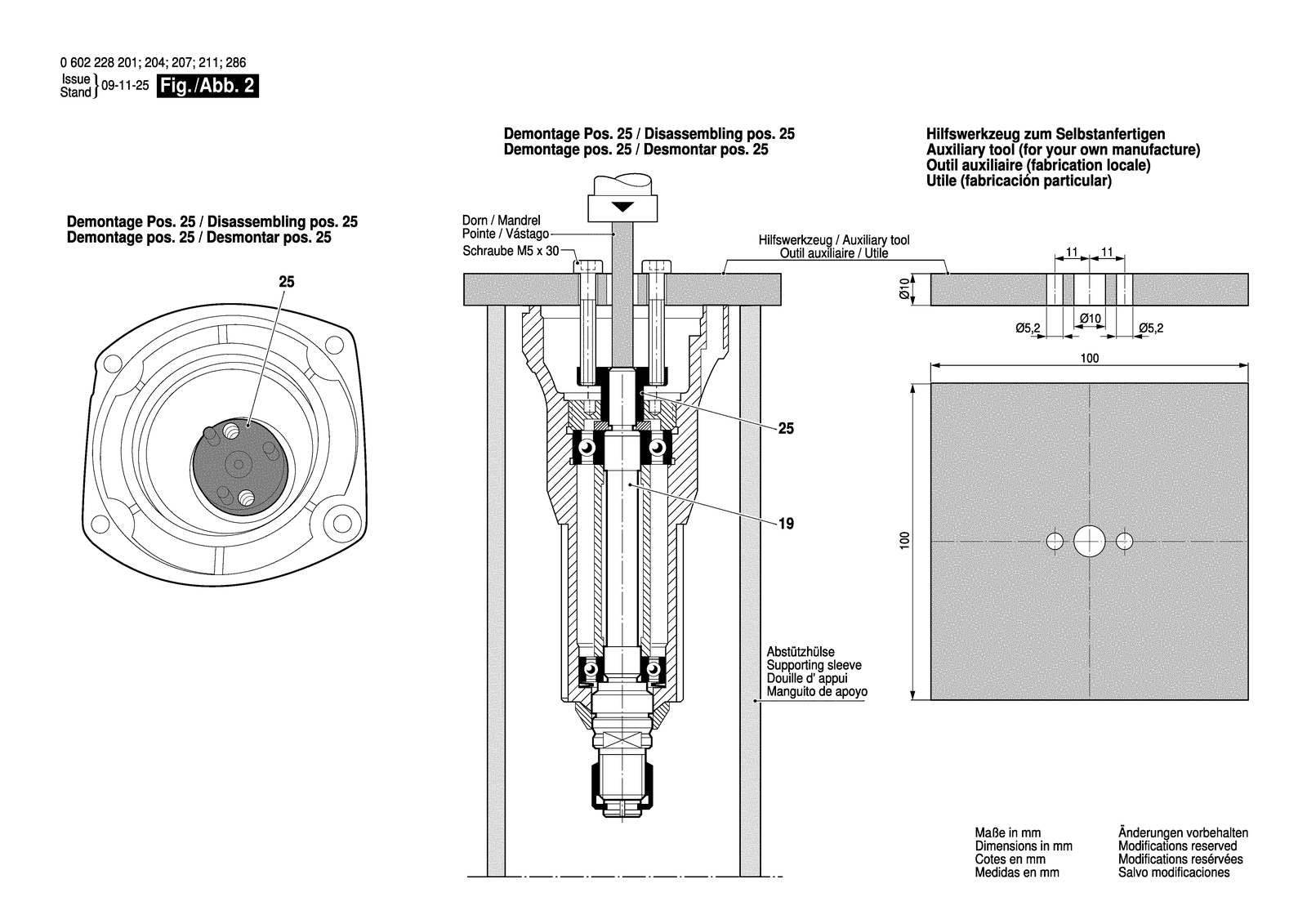

Bosch HGS 55/50
Bosch HGS 55/50 hf straight grinder: exploded parts diagram, 2 sheets, 96 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HGS 55/50: 96 positions on 2 sheets
Bosch HGS 55/50 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102058 | Motor Housing |
| 1 | 3605102058 | Motor Housing |
| 11 | 3600099004 | Connection Housing |
| 11 | 3600099004 | Connection Housing |
| 12 | 3604462001 | Elec. Cable W/Connection |
| 12 | 3604462052 | Pvc-Insulated Cable |
| 12 | 3604462052 | Pvc-Insulated Cable |
| 13 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 13 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 14 | 1601302014 | Fastening Clamp |
| 14 | 1601302014 | Fastening Clamp |
| 15 | 3605500074 | Sealing cap |
| 15 | 3605500074 | Sealing cap |
| 16 | 3607200001 | Switch |
| 16 | 3607200001 | Switch |
| 17 | 3600905038 | Groove ball bearing |
| 17 | 3600905038 | Groove ball bearing |
| 18 | 3605806121 | Spindle Bearing |
| 18 | 3605806121 | Spindle Bearing |
| 19 | 1603523082 | Grinding Spindle |
| 19 | 1603523082 | Grinding Spindle |
| 2 | 1600209011 | Seal Ring |
| 2 | 1600209011 | Seal Ring |
| 20 | 1600550008 | Disc Spring |
| 20 | 1600550008 | Disc Spring |
| 21 | 1600300083 | Spacer Bushing |
| 21 | 1600300083 | Spacer Bushing |
| 22 | 1600103027 | Shim washer |
| 22 | 1600103027 | Shim washer |
| 23 | 1900905201 | Groove ball bearing 12X32X10 |
| 23 | 1900905201 | Groove ball bearing 12X32X10 |
| 24 | 1603344053 | Threaded Ring |
| 24 | 1603344053 | Threaded Ring |
| 25 | 1600320028 | Carrier |
| 25 | 1600320028 | Carrier |
| 26 | 1606442000 | Carrier |
| 26 | 1606442000 | Carrier |
| 27 | 2608570129 | Collet Ø 6 MM |
| 27 | 2608570129 | Collet Ø 6 MM |
| 28 | 3601106053 | Nameplate |
| 28 | 3601106053 | Nameplate |
| 29 | 3603133000 | Grooved Nail |
| 29 | 3603133000 | Grooved Nail |
| 3 | 1604229200 | Stator 265V/200HZ, 200V/150HZ |
| 3 | 1604229201 | Stator 200V/300HZ,135V/200HZ |
| 3 | 1604229202 | Stator 72V/200HZ,110V/300HZ |
| 3 | 1604229203 | Stator 72V/300HZ |
| 3 | 1604229204 | Stator 220V/360HZ |
| 3 | 1604229201 | Stator 200V/300HZ,135V/200HZ |
| 31 | 3601321001 | Clamping Saddle |
| 31 | 3601321001 | Clamping Saddle |
| 32 | 3600150006 | Spring Washer Ø4,2 MM |
| 32 | 3600150006 | Spring Washer Ø4,2 MM |
| 33 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 33 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 34 | 3600150013 | Disc Spring |
| 34 | 3600150013 | Disc Spring |
| 35 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 35 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 36 | 2910141136 | Hex Socket Head Cap Screw DIN 912-M 4X35-8.8 |
| 36 | 2910141136 | Hex Socket Head Cap Screw DIN 912-M 4X35-8.8 |
| 37 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 37 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 4 | 1600502005 | Air-Deflector Ring |
| 4 | 1600502005 | Air-Deflector Ring |
| 42 | 3600250007 | Protective Ring |
| 42 | 3600250007 | Protective Ring |
| 45 | 3603402000 | Set screw |
| 45 | 3603402000 | Set screw |
| 46 | 1901091012 | Socket-Terminal Strip 1X1,5 MM/2 |
| 46 | 1901091012 | Socket-Terminal Strip 1X1,5 MM/2 |
| 47 | 3603342009 | Round Nut |
| 47 | 3603342009 | Round Nut |
| 5 | 3604080003 | Rotor Without Winding |
| 5 | 3604080003 | Rotor Without Winding |
| 56 | 3604477008 | End Splice |
| 56 | 3604477008 | End Splice |
| 6 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 6 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 650 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 650 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 7 | 3600210039 | O-Ring 12,0X2,25 MM |
| 7 | 3600210039 | O-Ring 12,0X2,25 MM |
| 8 | 1900905017 | Groove ball bearing 9X24X7 |
| 8 | 1900905017 | Groove ball bearing 9X24X7 |
| 800 | 2608570084 | Collet Ø 6 MM |
| 800 | 2608570084 | Collet Ø 6 MM |
| 801 | 3605102028 | Motor Housing |
| 818 | 3607031854 | Grinding Spindle |
| 818 | 3607031854 | Grinding Spindle |
| 9 | 3605820058 | Bearing Flange |
| 9 | 3605820058 | Bearing Flange |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
