Makita HG6531C: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita HG6531C: 18 positions on 1 sheet

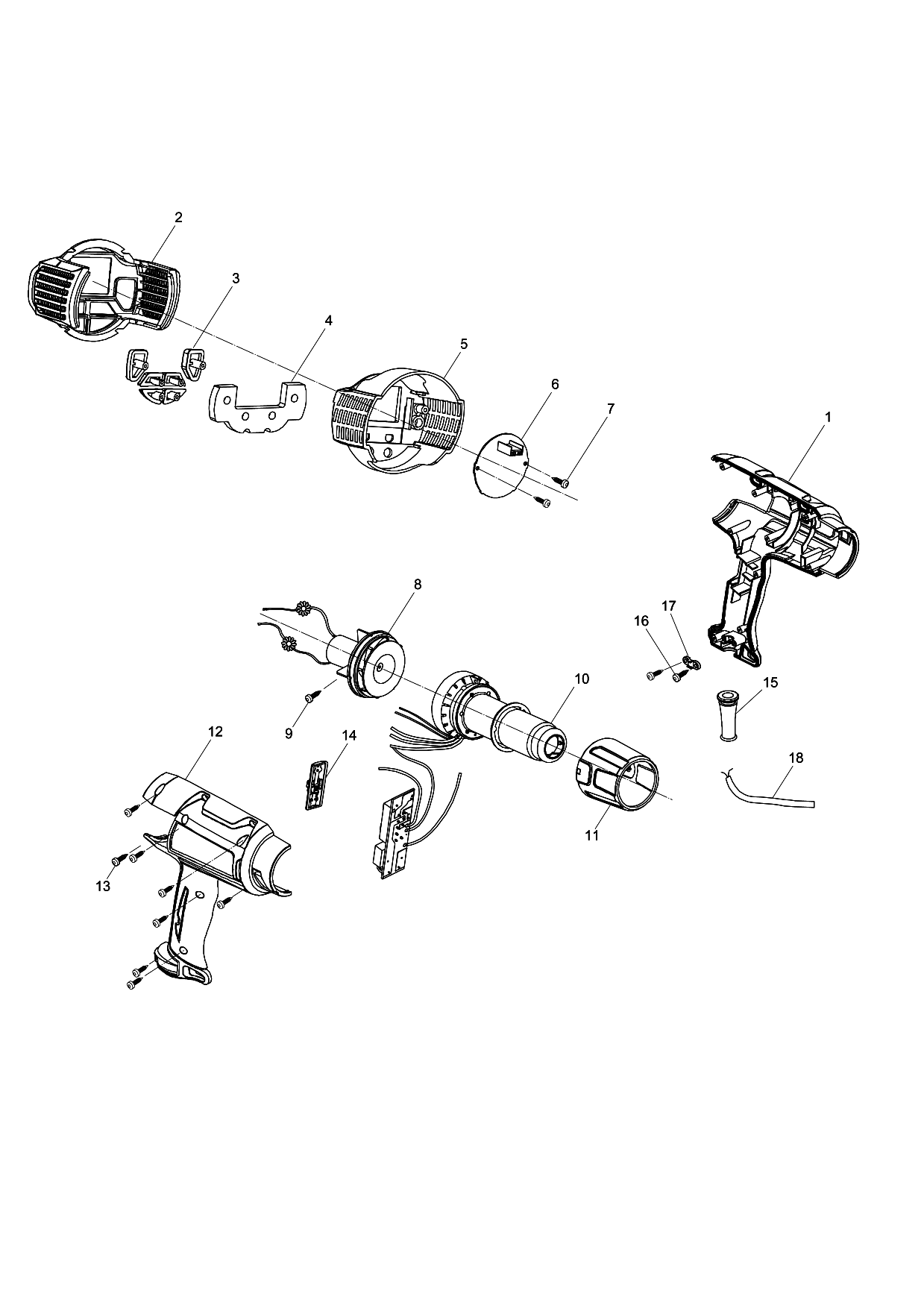

Sheet 1: Makita HG6531C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | PR00000015 | Makita PR00000015 LEFT CLAMSHELL, HG6031V |
| 2 | PR00000068 | Makita PR00000068 BACK COVER, HG6530V |
| 3 | PR00000069 | Makita PR00000069 BUTTONS, HG6530V |
| 4 | PR00000070 | Makita PR00000070 STICKY SPONGE, HG6530V |
| 5 | PR00000071 | Makita PR00000071 BACK INNER COVER, HG6530V |
| 6 | PR00000086 | Makita PR00000086 PCB-EU, HG6531C |
| 7 | PR00000020 | |
| 8 | PR00000088 | Makita PR00000088 MOTOR ASSEMBLY- EU, HG6531C |
| 9 | PR00000007 | |
| 10 | PR00000090 | Makita PR00000090 HEATING ELEMENT, HG6531C |
| 11 | PR00000010 | Makita PR00000010 FRONT COVER, HG6030 |
| 12 | PR00000023 | |
| 13 | PR00000004 | |
| 14 | PR00000005 | Makita PR00000005 SWITCH COVER, HG6030 |
| 15 | PR00000008 | |
| 16 | PR00000007 | |
| 17 | PR00000006 | |
| 18 | PR00000044 |
