Bosch HDI 246

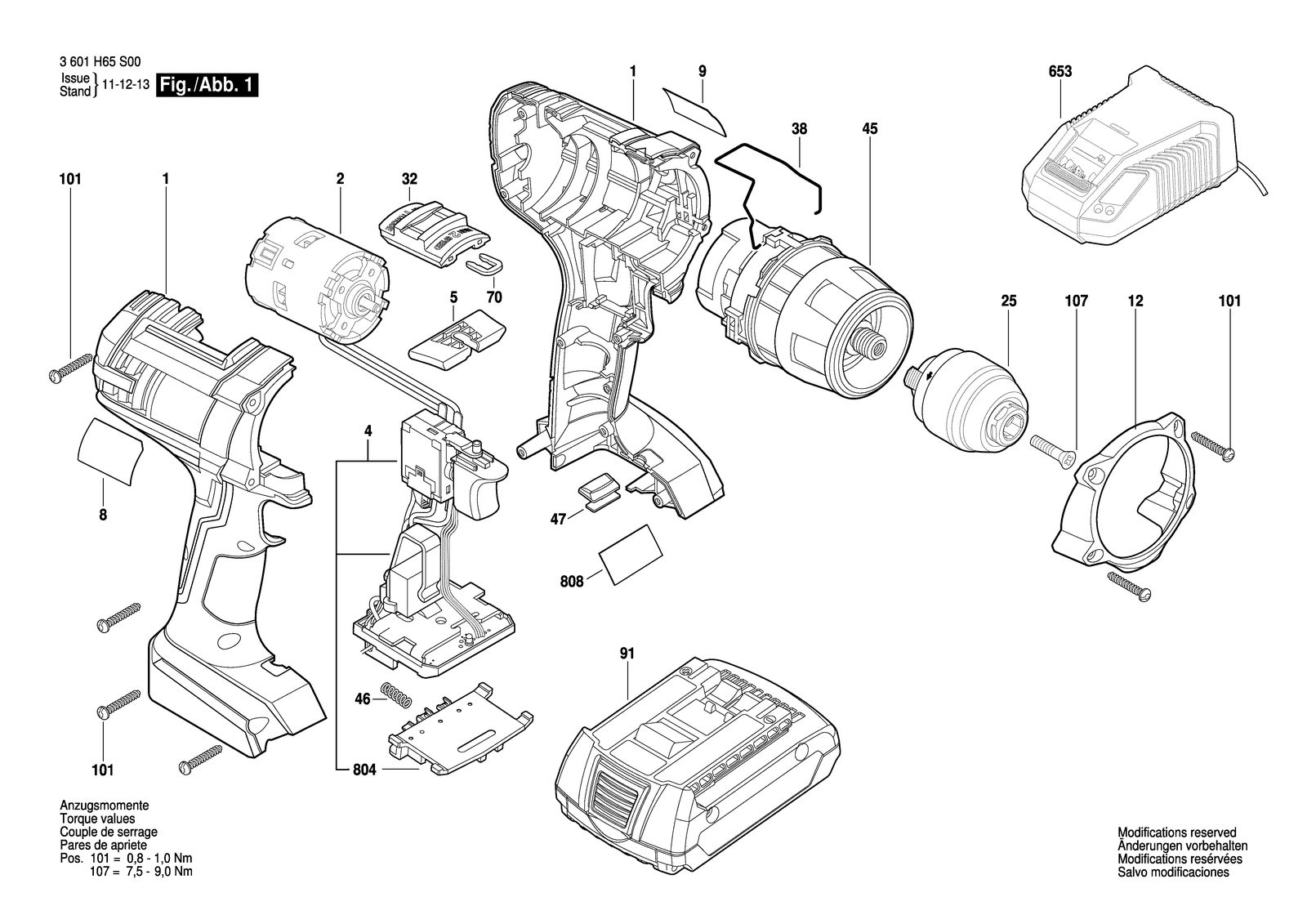

Bosch HDI 246 cordless drill driver: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HDI 246: 20 positions on 1 sheet
Bosch HDI 246 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101076 | Housing Section |
| 101 | 2609110353 | Torx Oval-Head Screw |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 12 | 2609111024 | Front Cap |
| 2 | 1607022608 | DC motor 14,4V |
| 25 | 2609111104 | Keyless Chuck |
| 32 | 2609101100 | Adjusting lever |
| 38 | 2609111021 | Switch Spring |
| 4 | 1607233535 | Electronics Module |
| 45 | 2609199317 | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 47 | 2609101350 | Lens |
| 5 | 2609101099 | Adjusting lever |
| 653 | 2607225645 | Fast Charger EU 230/7,2-24V,1H |
| 70 | 2609110537 | Clip |
| 8 | 2609133432 | Manufacturer's nameplate HDI 246 |
| 804 | 1609280474 | Contact retainer |
| 808 | 2609133442 | Nameplate |
| 9 | 2609133431 | Manufacturer's nameplate HDI 246 |
| 91 | 2607337019 | Slide-In Accu Package 054392 SB 14V 4,0AH-B Scm |
