Bosch HDI 220

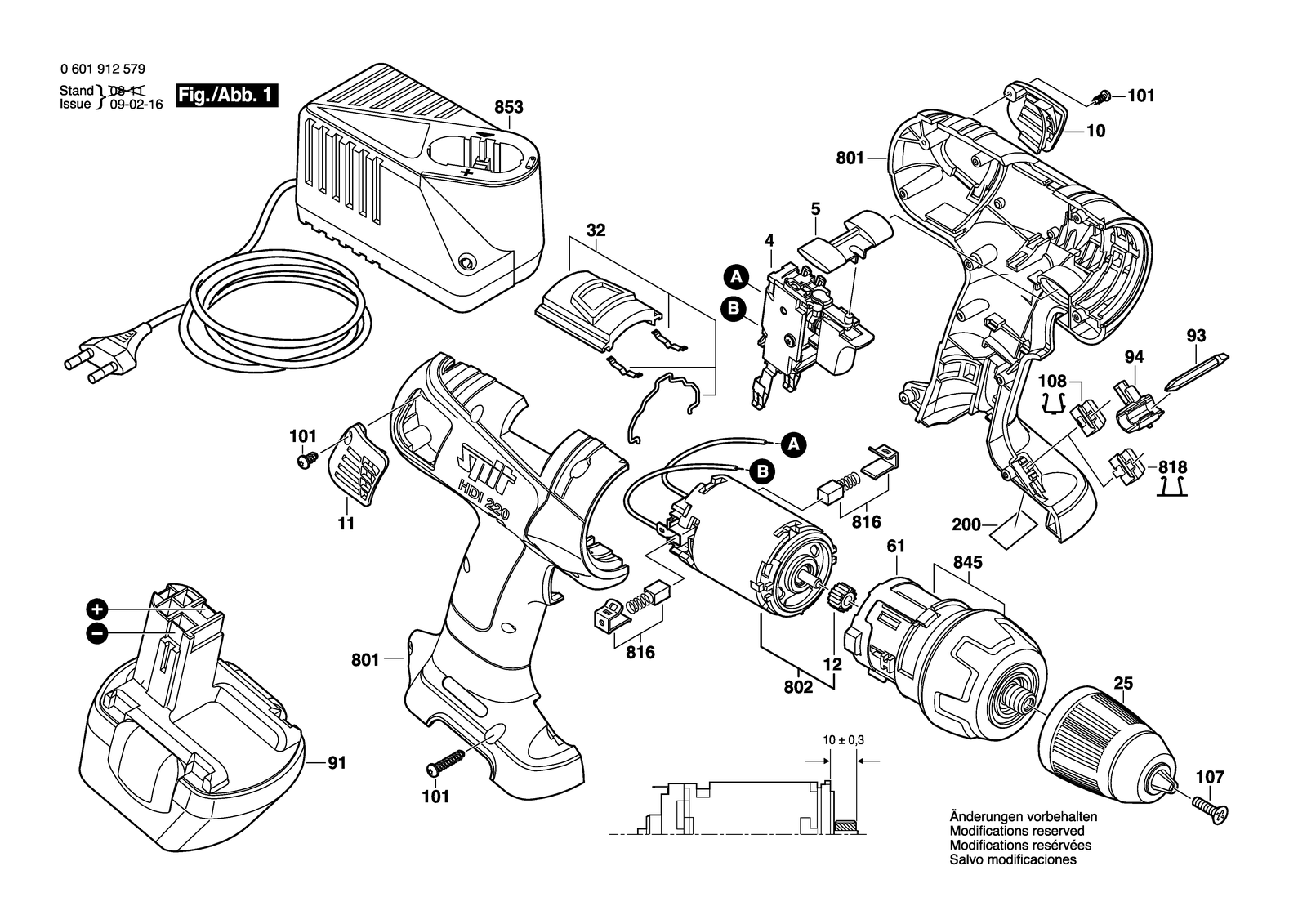

Bosch HDI 220 batt-oper screwdriver: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HDI 220: 22 positions on 1 sheet
Bosch HDI 220 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2600508051 | Cover Black |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 108 | 2604690035 | Spring Element |
| 11 | 2600508052 | Cover Black |
| 12 | 2606316222 | Pinion |
| 200 | 2601116528 | Reference Plate |
| 25 | 2608572202 | Keyless Chuck |
| 32 | 2601099135 | Adjusting Slide Black |
| 4 | 2607200484 | On-Off Switch |
| 5 | 2601099134 | Adjusting Slide Black |
| 61 | 2608040190 | Support |
| 801 | 2605105952 | Housing Section Orange |
| 802 | 2607022863 | DC motor 12V |
| 816 | 2607034904 | Carbon-Brush Set |
| 818 | 2604690026 | Spring Element |
| 845 | 2606200931 | Planetary Gear Train |
| 853 | 2607225005 | Fast Charger GB 230/7,2-14,4V,1H |
| 853 | 2607225401 | Fast Charger EU 230/7,2-24V,1H |
| 91 | 2607335609 | Slide-In Accu Package 12V,2,0AH,NICD |
| 93 | 2608521018 | Screwdriver Blade |
| 94 | 2608040208 | Auxiliary Support |
