Bosch HDH181

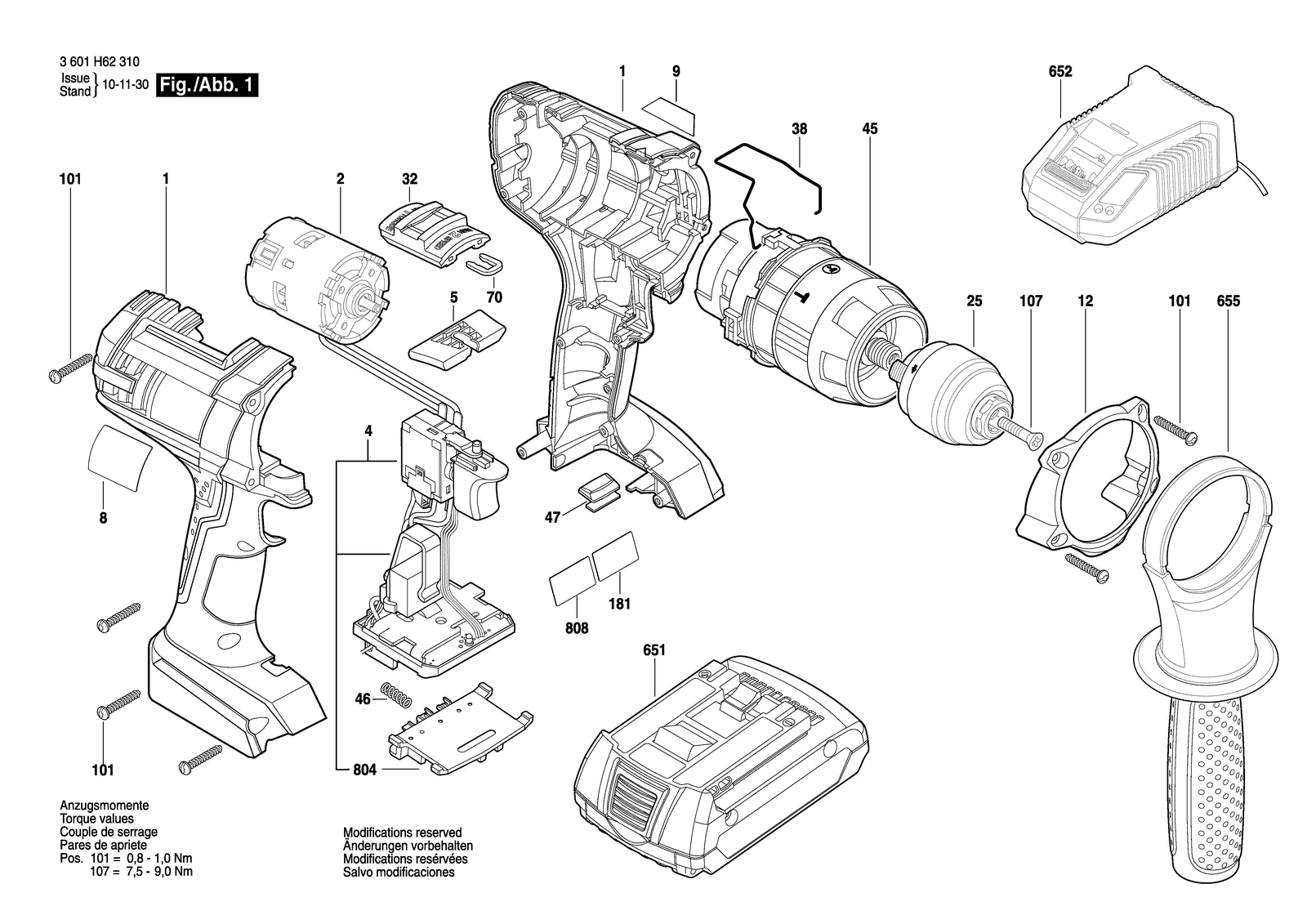

Bosch HDH181 cordl perc screwdr: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HDH181: 21 positions on 1 sheet
Bosch HDH181 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100874 | Housing Section |
| 101 | 2609110353 | Torx Oval-Head Screw |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 12 | 2609111024 | Front Cap |
| 181 | 2609133086 | Reference Plate |
| 2 | 1607022609 | DC motor 18V |
| 25 | 2609111104 | Keyless Chuck |
| 32 | 2609100878 | Adjusting lever |
| 38 | 2609111021 | Switch Spring |
| 4 | 1607233442 | Electronics Module |
| 45 | 2609199316 | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 47 | 2609101350 | Lens |
| 5 | 2609100877 | Adjusting lever |
| 651 | 2607336819 | Battery Pack Usa BAT620 18V 4,0AH |
| 655 | 2602025158 | Auxiliary Handle |
| 70 | 2609110537 | Clip |
| 8 | 2609133085 | Warning Plate |
| 804 | 1609280478 | Contact retainer |
| 808 | 2609132942 | Nameplate |
| 9 | 2609132940 | Nameplate Lithium-Ion 18V |
