Bosch HDC300 dust extraction: exploded parts diagram, 1 sheet, 14 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HDC300: 14 positions on 1 sheet

Bosch HDC300 parts list (1 sheet)

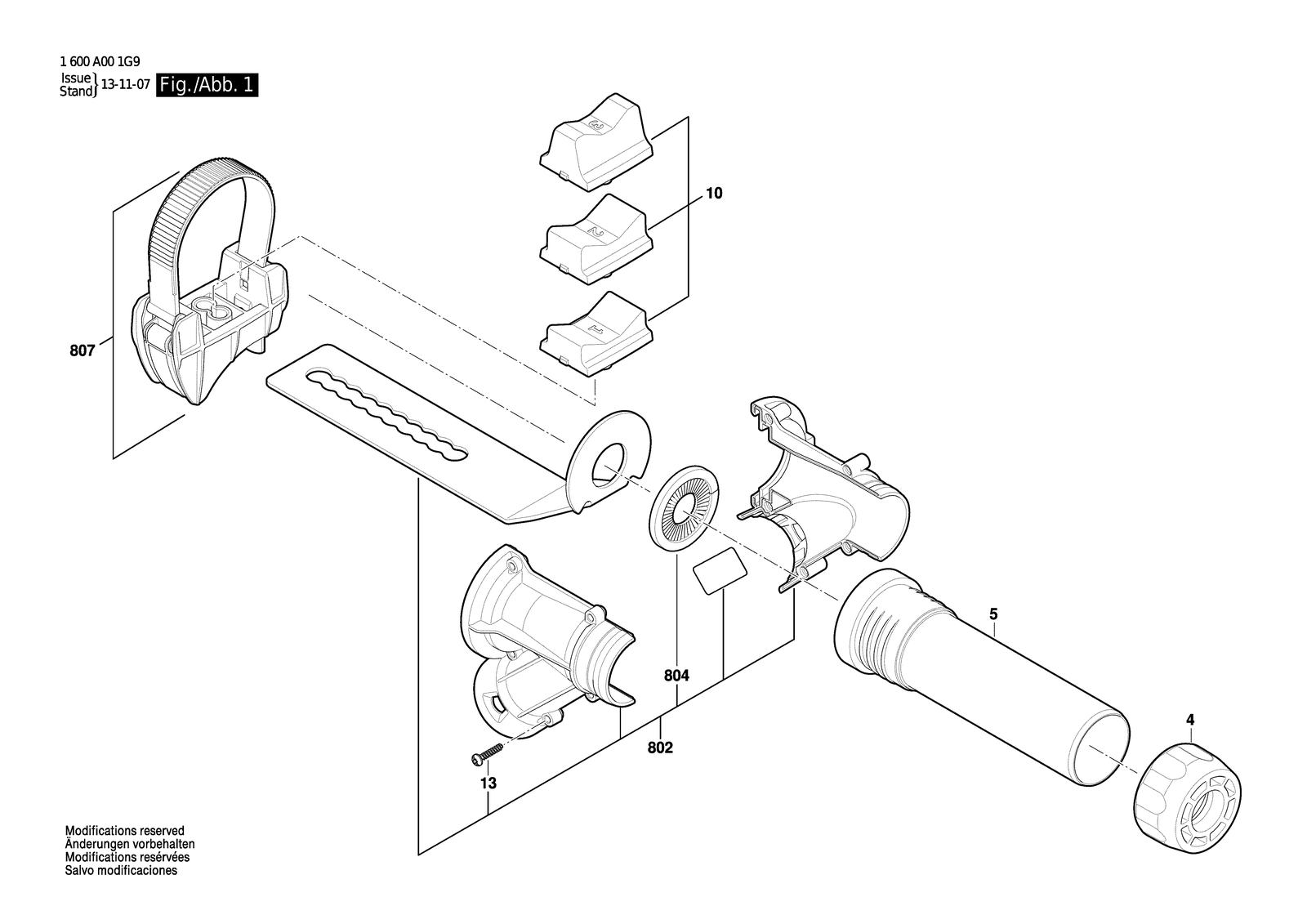

Bosch HDC300 parts diagram, sheet 1
No.Part numberPart name
101600A001W1V-Block
101600A001W1V-Block
132603490023Torx Oval-Head Screw 4X20
132603490023Torx Oval-Head Screw 4X20
41600A0021YSleeve
41600A0021YSleeve
51600A001LZTube
51600A001LZTube
802161580625THousing
802161580625WHousing
8041600A001LXBrush Bar
8041600A001LXBrush Bar
8071600A001R9Support clamp
8071600A001R9Support clamp
