Bosch HD 21-2

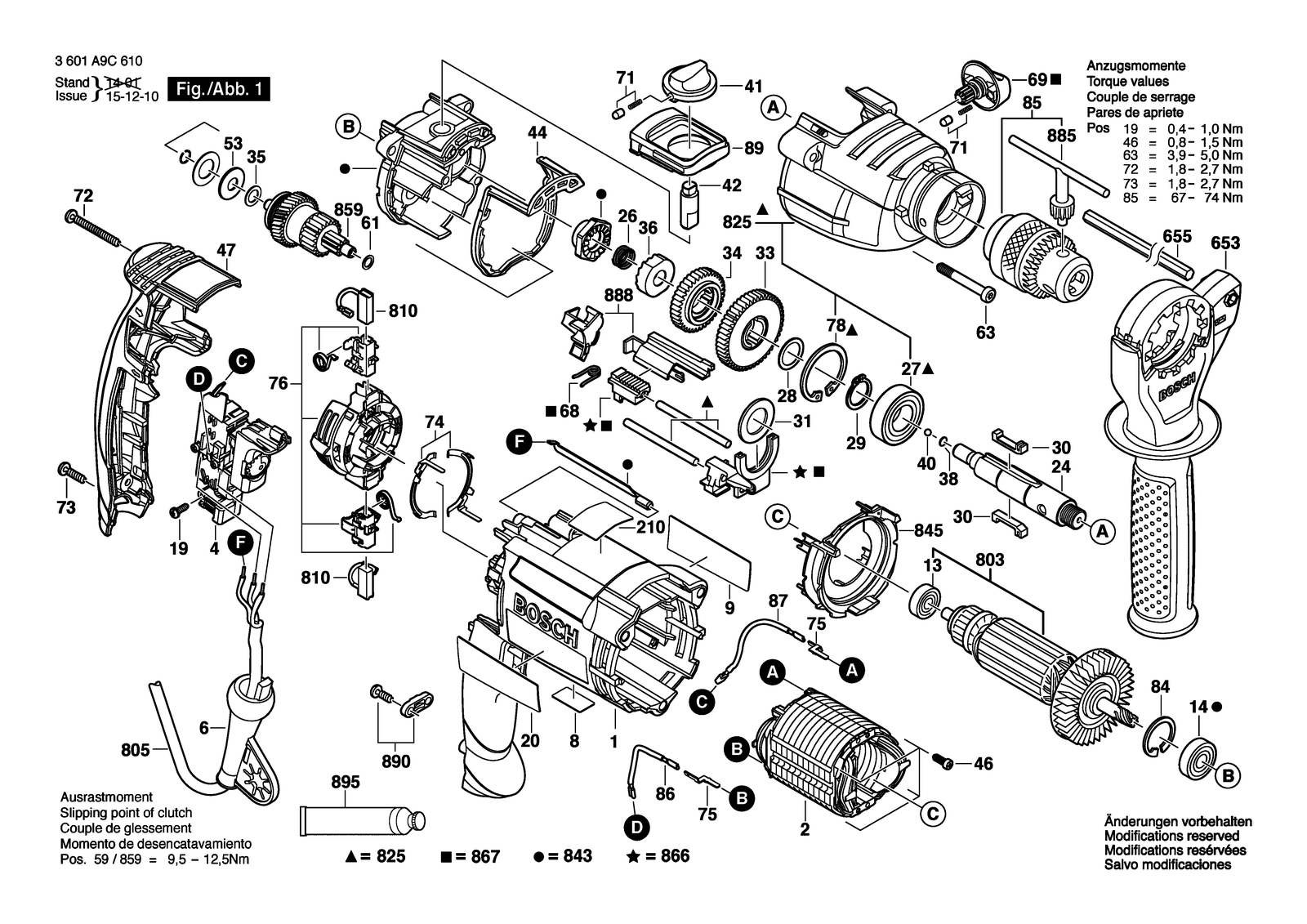

Bosch HD 21-2 percussion drill: exploded parts diagram, 1 sheet, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HD 21-2: 65 positions on 1 sheet
Bosch HD 21-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105143 | Motor Housing Dark Blue |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 19 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 2 | 2604220728 | Field 120-127V |
| 20 | 2601115964 | Warning Plate |
| 210 | 2601115906 | Reference Plate Anti-Rotation |
| 24 | 2606135148 | Drilling Spindle |
| 26 | 2604616013 | Compression Spring |
| 27 | 1900905163 | Groove ball bearing 17X35X10 |
| 28 | 2600100695 | Shim 0,5 MM |
| 29 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 30 | 2602300032 | Flat Key |
| 31 | 2600101671 | Retaining Washer |
| 33 | 2606317086 | Cylindrical Gear |
| 34 | 2606317098 | Cylindrical Gear |
| 35 | 2600101047 | Shim 0,3 MM |
| 36 | 2600190105 | Catch Disk |
| 38 | 2600000021 | Shim washer 1,0 MM |
| 38 | 2600000030 | Shim washer 1,35 MM |
| 38 | 2600000031 | Shim washer 1,7 MM |
| 4 | 2607200672 | Switch |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 40 | 2603230007 | Ball 5,25 MM |
| 41 | 2602026168 | Rotary Knob Black |
| 42 | 2603120064 | Control Shaft |
| 44 | 2601015091 | Seal |
| 46 | 2603435086 | Tapping Screw |
| 47 | 2605132071 | Housing Cover Dark Blue |
| 53 | 2600550008 | Disc Spring |
| 6 | 2600707074 | Grommet |
| 61 | 2600100607 | Shim 0,3 MM |
| 63 | 2603435085 | Headless Screw |
| 653 | 2602025184 | Auxiliary Handle Black |
| 655 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 68 | 2604616014 | Compression Spring |
| 69 | 2602026117 | Rotary Knob Black |
| 71 | 2600590006 | Ratchet Cap |
| 72 | 2603490027 | Torx Oval-Head Screw 4X40 |
| 73 | 2603490022 | Screw 4X16 |
| 74 | 2601324062 | Switch Contact |
| 75 | 2601099260 | Contact |
| 76 | 1614336061 | Brush Plate |
| 78 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 8 | 2601115963 | Nameplate |
| 803 | 2604011402 | Armature 120-127V |
| 805 | 2604460911 | Power supply cord Usa/cnd 4,15 3X0,82 SJ 18/3 |
| 810 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 825 | 2605806882 | Gear Housing |
| 84 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 843 | 2605700949 | Bearing Bracket |
| 845 | 2600148016 | Air-Deflector Ring |
| 85 | 2608571060 | Key Chuck |
| 859 | 2606309942 | Transmission |
| 86 | 1614448014 | Connecting Cable L=80 MM |
| 866 | 2602033018 | Adjusting Slide |
| 867 | 2606308925 | Toothed rack |
| 87 | 1600A014ZP | Connecting Cable L=170 |
| 885 | 2607950007 | Chuck Wrench SG2 |
| 888 | 2601328900 | Holding Plate Black |
| 89 | 2605510206 | Lens Black |
| 890 | 2607001305 | Fastening parts kit |
| 895 | 3605430003 | Grease Tube Albida |
| 9 | 2601115961 | Manufacturer's nameplate HD21-2 |
