Bosch HD 19-2D

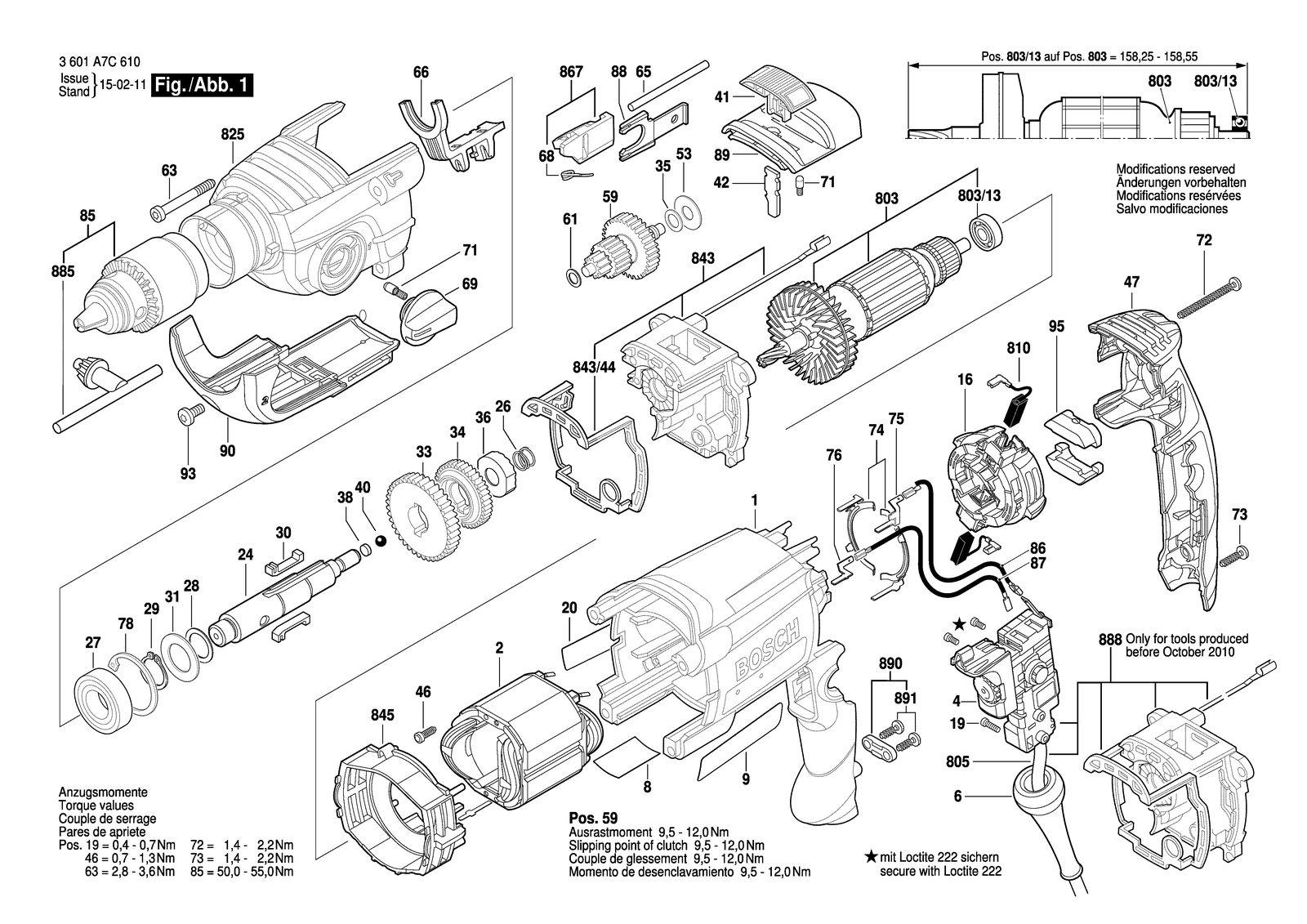

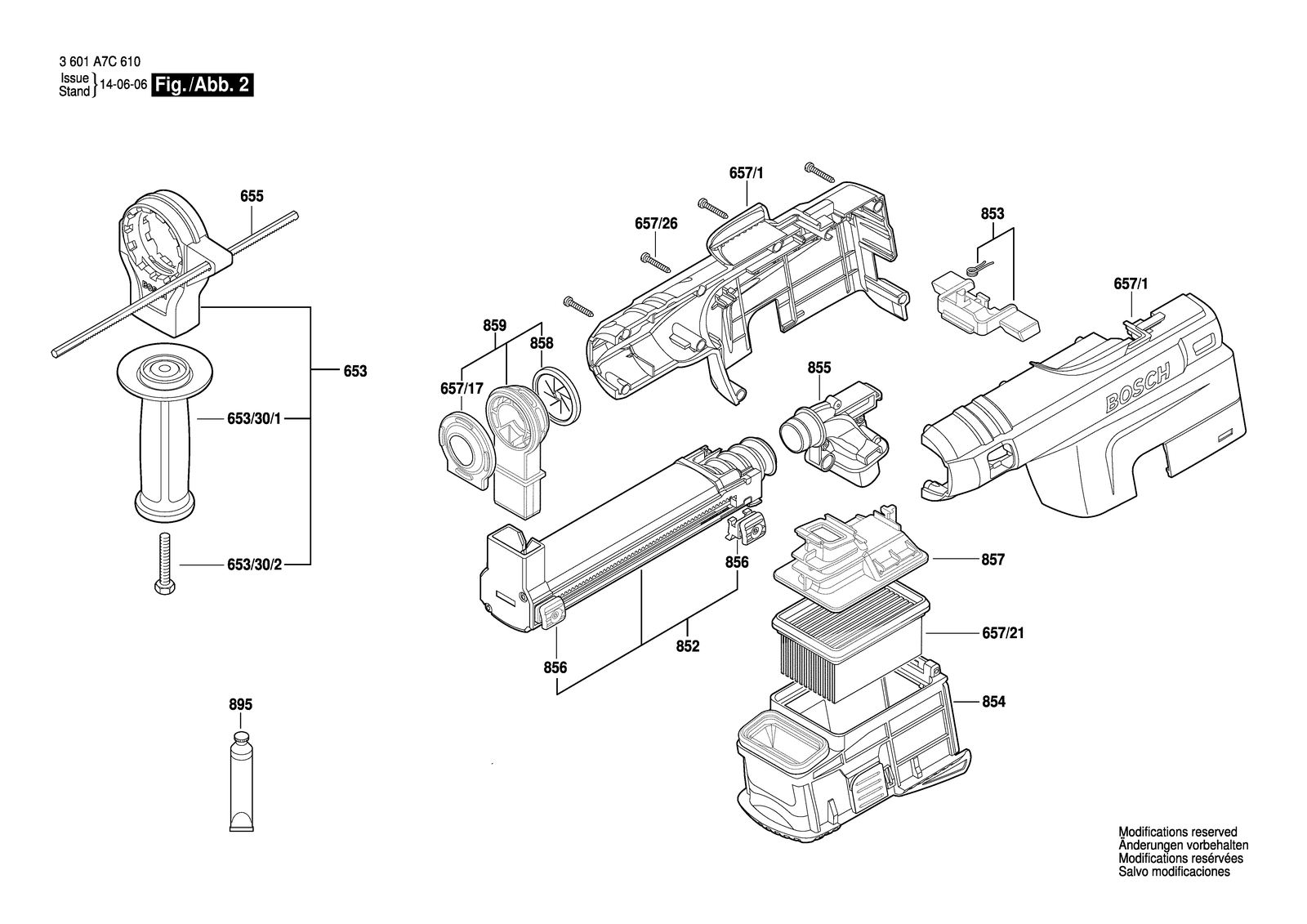

Bosch HD 19-2D percussion drill: exploded parts diagram, 2 sheets, 83 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HD 19-2D: 83 positions on 2 sheets
Bosch HD 19-2D parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1618B00A05 | Motor Housing |
| 16 | 2604337121 | Brush Plate |
| 19 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 2 | 2604220732 | Field 110-120V |
| 20 | 2601115550 | Reference Plate |
| 24 | 2606135138 | Drilling Spindle |
| 26 | 2604616006 | Compression Spring |
| 27 | 1900905163 | Groove ball bearing 17X35X10 |
| 28 | 2600100695 | Shim 0,5 MM |
| 29 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 30 | 2602300032 | Flat Key |
| 31 | 2600101671 | Retaining Washer |
| 33 | 2606317084 | Cylindrical Gear |
| 34 | 2606317098 | Cylindrical Gear |
| 35 | 2600101047 | Shim 0,3 MM |
| 36 | 2600190105 | Catch Disk |
| 38 | 2600000021 | Shim washer 1,0 MM |
| 38 | 2600000030 | Shim washer 1,35 MM |
| 38 | 2600000031 | Shim washer 1,7 MM |
| 4 | 2607200657 | On-Off Switch |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 40 | 2603230007 | Ball 5,25 MM |
| 41 | 1618B00800 | Slide Switch |
| 42 | 2601074008 | Pressure Plate |
| 46 | 1613435007 | Thread-forming tap. Screw DIN 7981-ST3,5X9,5-F |
| 47 | 2605132067 | Housing Cover Dark Blue |
| 53 | 2600550008 | Disc Spring |
| 59 | 2606309933 | Transmission |
| 6 | 2600707074 | Grommet |
| 61 | 2600100607 | Shim 0,3 MM |
| 63 | 2603435085 | Headless Screw |
| 65 | 2603105200 | Straight Pin |
| 653 | 2602025175 | Auxiliary Handle Black |
| 653/30/1 | 2602025180 | Handle Black |
| 653/30/2 | 2911061252 | Hex Screw M8X45 |
| 655 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 657/1 | 2605190836 | Housing Black |
| 657/17 | 2600591030 | Seal |
| 657/21 | 1619P04479 | Filter |
| 657/26 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 66 | 2605510266 | Bulb Shield Black |
| 68 | 2604616014 | Compression Spring |
| 69 | 2602026157 | Rotary Knob Black |
| 71 | 2600590006 | Ratchet Cap |
| 72 | 2603490027 | Torx Oval-Head Screw 4X40 |
| 73 | 2603490022 | Screw 4X16 |
| 74 | 2601324062 | Switch Contact |
| 75 | 2601099259 | Contact |
| 76 | 2601099260 | Contact |
| 78 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 8 | 2601115697 | Nameplate |
| 803 | 2604011916 | Armature 120V |
| 803/13 | 2600905103 | Groove ball bearing 7X19X6 |
| 805 | 2604460911 | Power supply cord Usa/cnd 4,15 3X0,82 SJ 18/3 |
| 810 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 825 | 2605806884 | Gear Housing |
| 843 | 2605807143 | Bearing Bracket |
| 843/44 | 2601015099 | Seal |
| 845 | 2600148012 | Air Guide Plate |
| 85 | 2608571065 | Key Chuck |
| 852 | 2605719902 | Guide Tube |
| 853 | 2605700947 | Locking Device |
| 854 | 1619P06105 | Dust container |
| 855 | 2605730900 | Connection Part |
| 856 | 2605110902 | Push-Button |
| 857 | 2605700948 | Sealing Block |
| 858 | 1619P04548 | Friction Ring 5 Piece |
| 859 | 2605730901 | Dust Cap |
| 86 | 2604448331 | Connecting Cable |
| 867 | 2602033900 | Link Guide Black |
| 87 | 2604448330 | Connecting Cable 72 MM |
| 88 | 1618B00808 | Holding Plate |
| 885 | 2607950007 | Chuck Wrench SG2 |
| 888 | 2607030903 | Bearing Bracket |
| 89 | 2605510266 | Bulb Shield Black |
| 890 | 2607001305 | Fastening parts kit |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 895 | 3605430003 | Grease Tube Albida |
| 9 | 2601115696 | Manufacturer's nameplate HD19-2D |
| 90 | 2605510282 | Bulb Shield Black |
| 93 | 2914491411 | Thread-forming tap. Screw |
| 95 | 2601329118 | Clip Black |
