Bosch HD 18-2

Bosch HD 18-2 percussion drill: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HD 18-2: 45 positions on 1 sheet

Bosch HD 18-2 parts list (1 sheet)

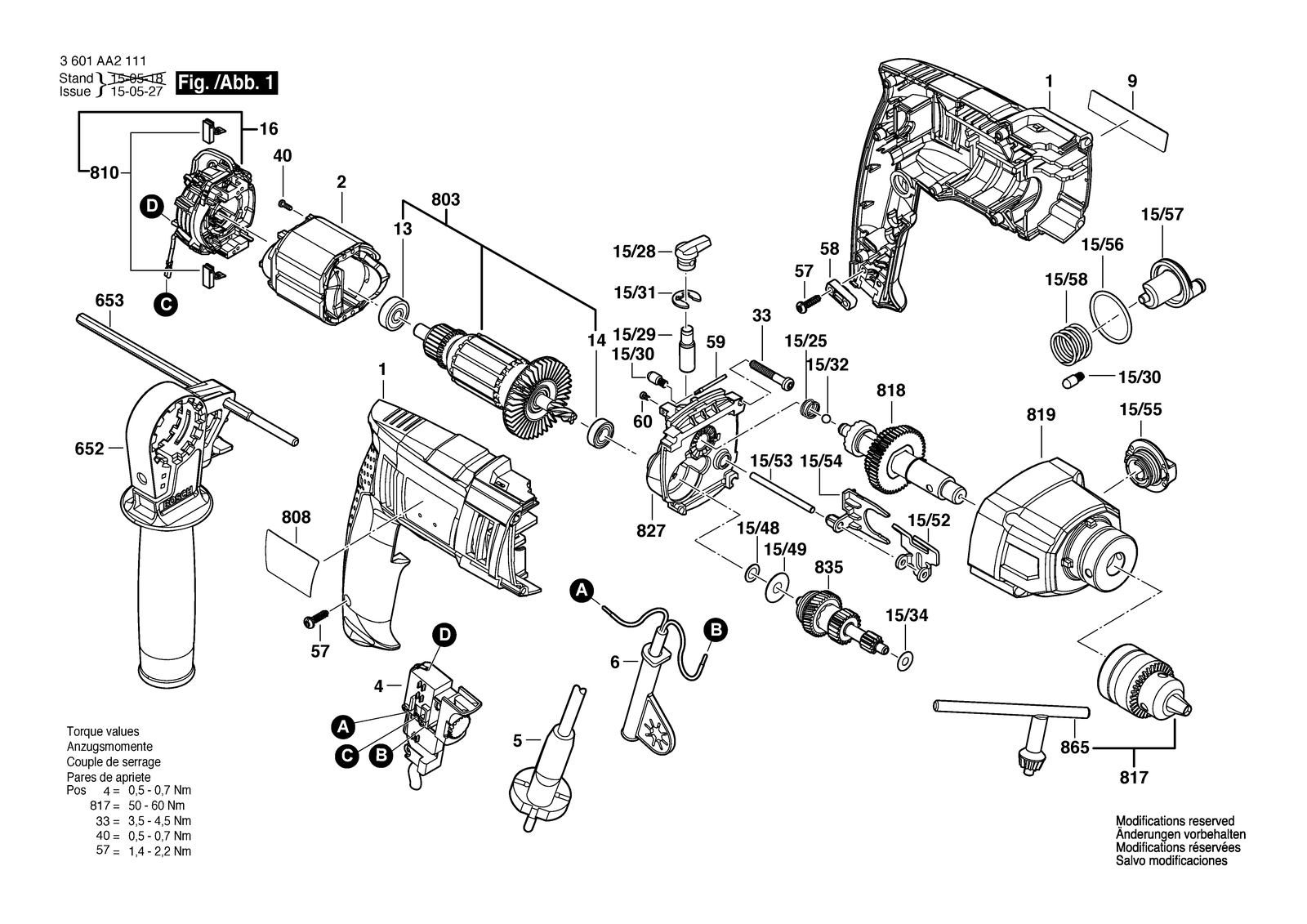

Bosch HD 18-2 parts diagram, sheet 1
No.Part numberPart name
12609101034Motor Housing
131900905020Groove ball bearing DIN 625 627-2Z/C3
141900905021Groove ball bearing 9X24X7
15/252604616006Compression Spring
15/282609100939Knob
15/292609111330Control Shaft
15/302600590006Ratchet Cap
15/312916080912Locking washer
15/321903230010Ball DIN 5401-5,5MM-III-ST
15/342609111487Shim
15/482600101047Shim 0,3 MM
15/492600550008Disc Spring
15/522609111907Adjusting Slide
15/532609111220Slide Pin
15/542609101436Holding Plate
15/552609101419Rotary Knob
15/562600206025O-Ring
15/572609111893Link Guide
15/582604651026Coiled Spring
161600A00C4DBrush Plate
161600A013C5Brush Plate
21619PS0987Field
22609120636Field 120V
332609111383Headless Screw
41607200272Switch
402910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
52604460267Power supply cord Usa/cdn/sam 4,15M 3 X 0,82MM SJ 18
572603490022Screw 4X16
581611035005Cable Clip
592609120450Grounding Cable
62600707060Grommet Ø11,6-Ø12,5X84 MM
602918040046Screw
6522609199430Auxiliary Handle
6532603001009Depth-Gauge
8031619PS1249Armature set
8081619P21391Nameplate
8082609136363Nameplate
8102609120658Carbon Brush
8172609112171Chuck
8182609199446Drilling Spindle
8192609199450Gear Housing
8272609199830Bearing Flange
8352609199447Transmission
8652607950007Chuck Wrench SG2
92609133448Manufacturer's nameplate HD 18-2
