Bosch HC60-PR 7

Bosch HC60-PR 7 hedge trimmer: exploded parts diagram, 2 sheets, 40 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HC60-PR 7: 40 positions on 2 sheets

Bosch HC60-PR 7 parts list (2 sheets)

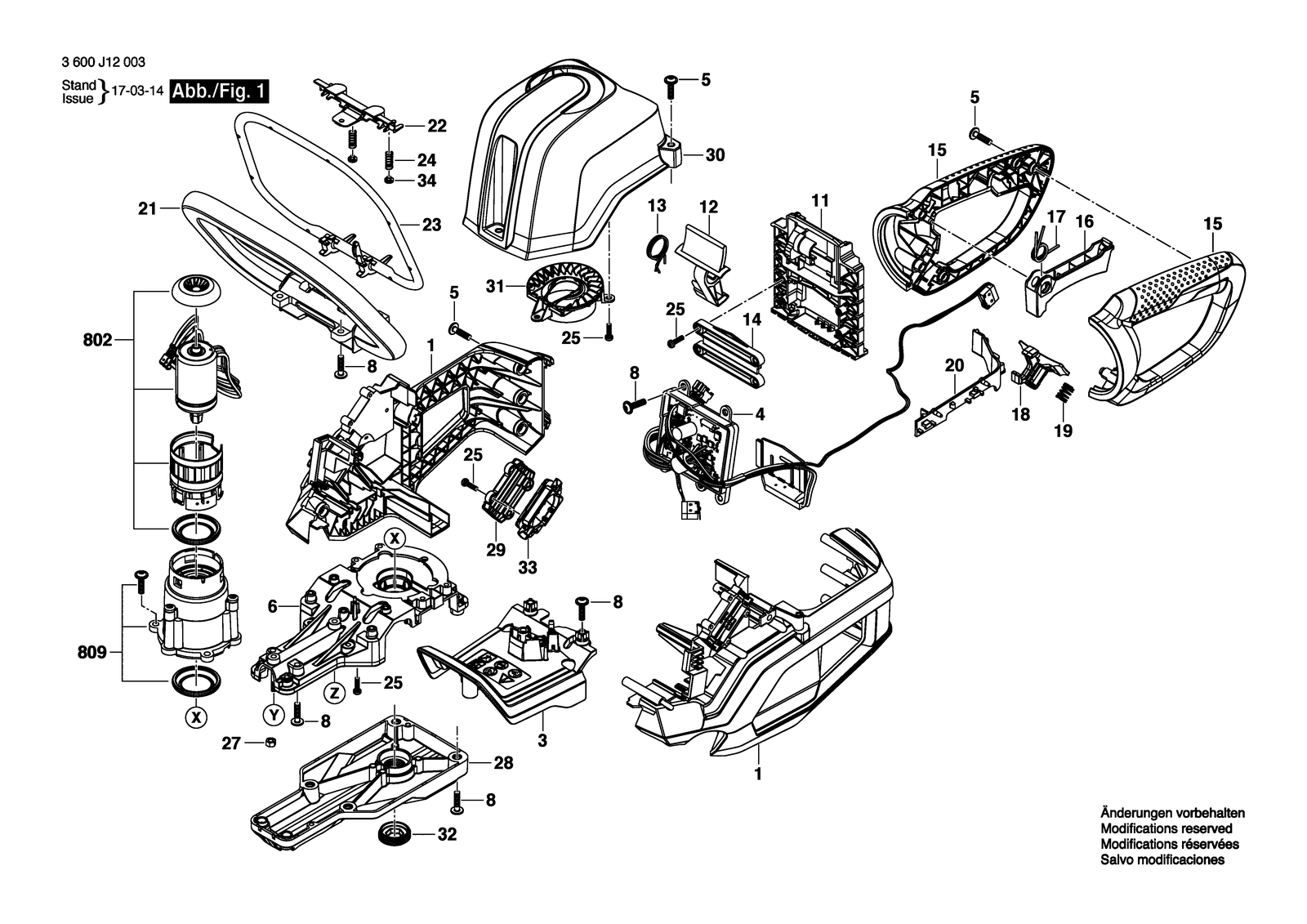

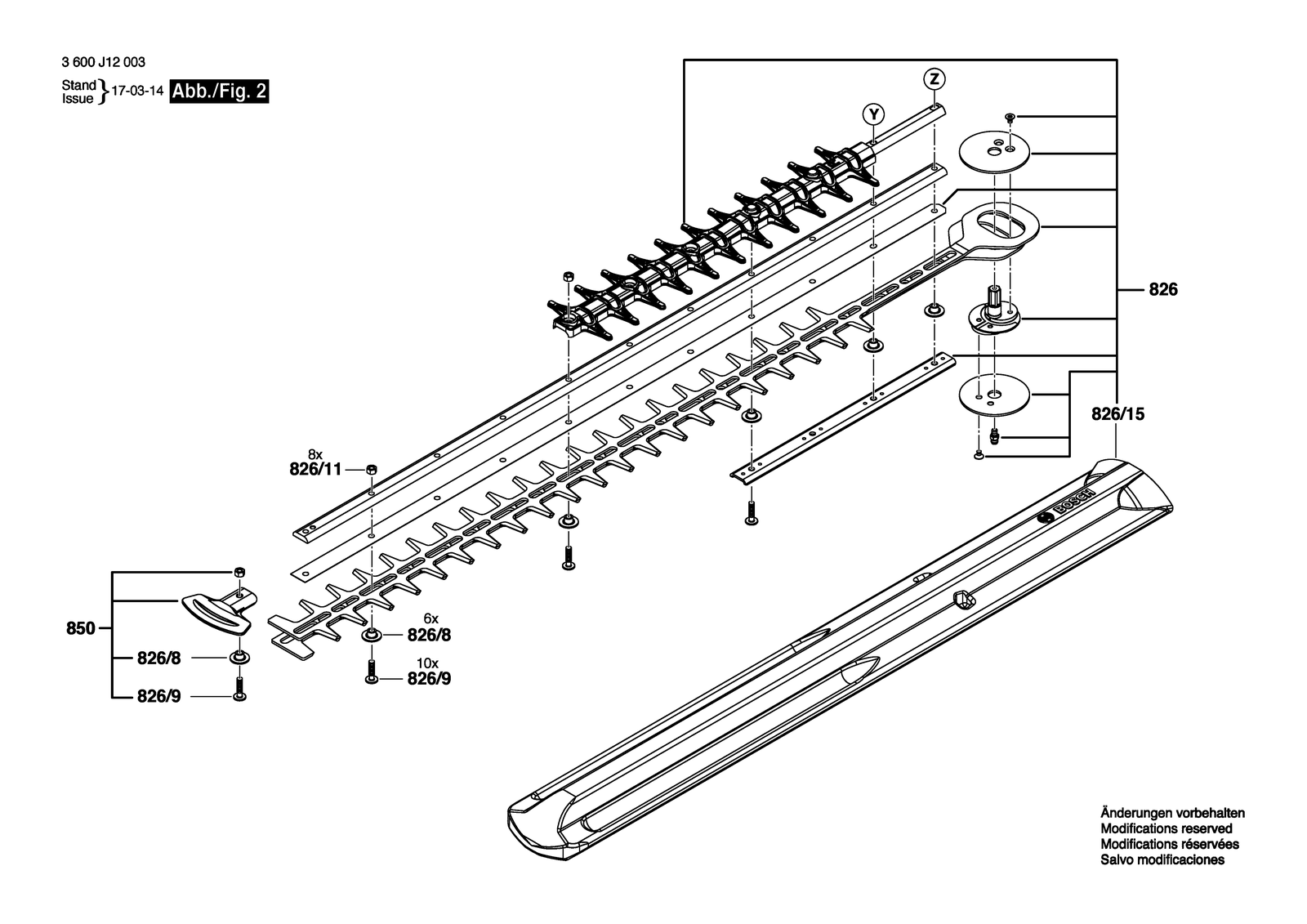

Bosch HC60-PR 7 parts diagram, sheet 1Bosch HC60-PR 7 parts diagram, sheet 2
No.Part numberPart name
1F016L76801Housing
11F016L76241Battery Plate
12F016L76242Release Lever
13F016L76289Torsion Spring
14F016L76311Retaining Plate
15F016L76761Handle
16F016L76593Trigger
17F016L76738Torsion Spring
18F016L76592Catch Slide
191604616022Compression Spring
20F016L76730Wire Retainer
21F016L76767Handle
22F016L76787Support bracket
23F016L76733Switch Segment
24F016L76788Compression Spring
25F016L76373Screw M4 X14
272609003491Hex Nut
28F016L76732Base Plate
29F016L76737Sealing Cover
3F016L76599Guard
30F016L77611Cover
31F016L76759Fan Cover
32F016L76735Cap Seal
33F016L76561Cable Gland
342605190587Thrust Member
41607233576Electronics Module
5F016L76187Screw M5X20 Plastic
6F016L76755Chassis
8F016L76058Screw M5X20
802F016104586Drive Assembly
809F016104588Gear Box
826F016105043Knife Pro R 60 CM
826F016105044Knife 60 R
826F016105045Knife 70 T / 70 CM
826/11F016L76408Nut
826/15F016L77610Knife Guard 60 R
826/15F016L77613Knife Guard 70 T
826/8F016L76572Spacer Bushing
826/91613414026Torx socket button screw
850F016104938Protector
