Bosch HBM 57/2

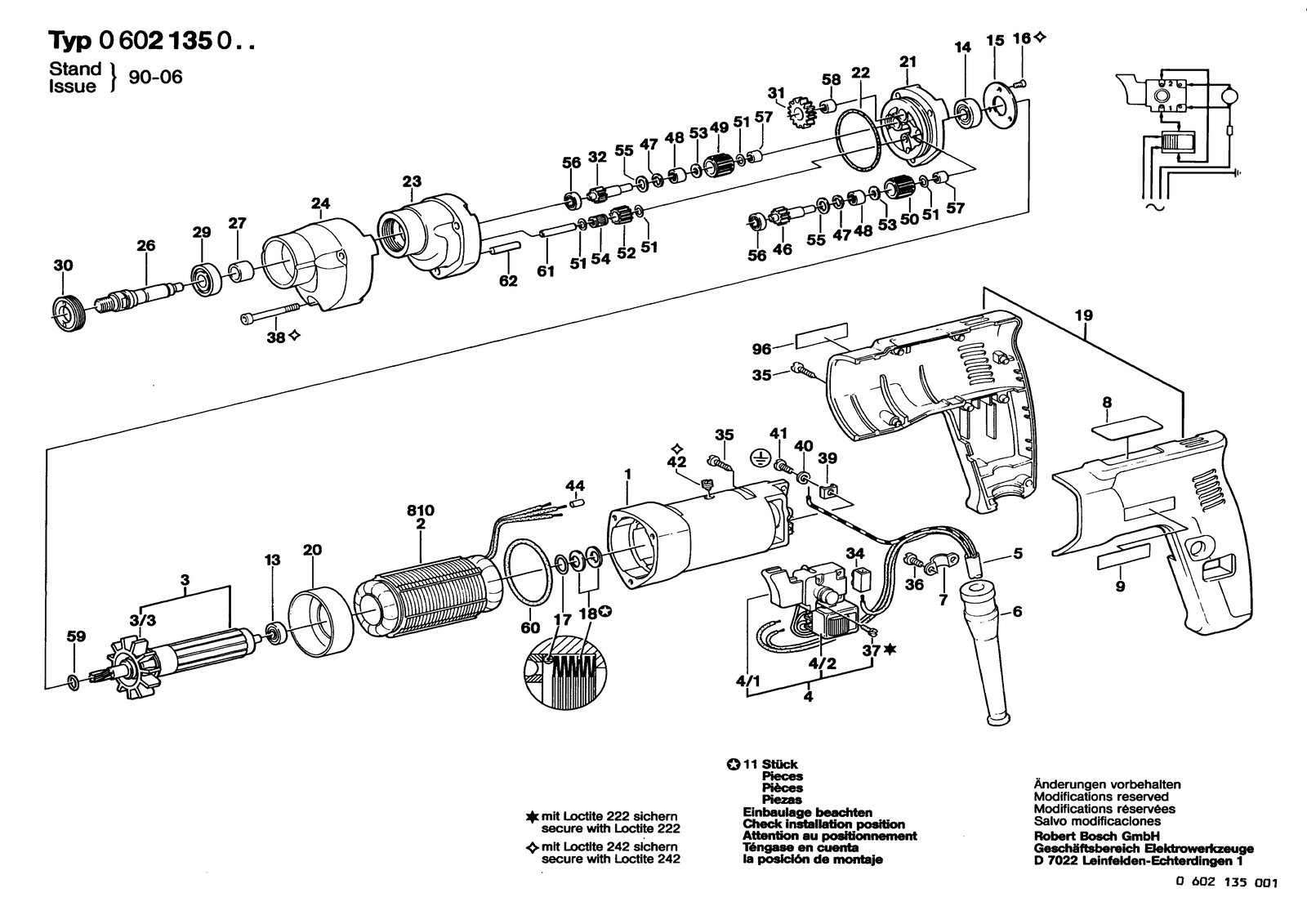

Bosch HBM 57/2 drill: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HBM 57/2: 59 positions on 1 sheet
Bosch HBM 57/2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102034 | Motor Housing |
| 13 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 14 | 1610905011 | Groove ball bearing 9X24X7 |
| 15 | 3600190012 | Retaining Washer |
| 16 | 2910780050 | Countersunk-Head Screw DIN 963-M3X8-8.8 |
| 17 | 3600210039 | O-Ring 12,0X2,25 MM |
| 18 | 3600150013 | Disc Spring |
| 19 | 3605132036 | Handle |
| 20 | 1600502005 | Air-Deflector Ring |
| 21 | 3605820016 | Bearing Housing |
| 22 | 1610210022 | O-Ring 48,0X2,0 MM |
| 23 | 3605106039 | Gear Housing |
| 24 | 3605108096 | Insulating Housing |
| 26 | 3603124012 | Drilling Spindle |
| 27 | 3600290015 | Spacer Bushing |
| 29 | 1600900042 | Groove ball bearing |
| 3 | 3604080021 | Rotor |
| 3/3 | 1606610105 | Fan |
| 30 | 3603344013 | Threaded Ring Lefthand Threads M 28X1 MM |
| 31 | 3606319007 | Cylindrical Gear Z=32 |
| 32 | 3606311000 | Spindle With Gear Z=15 |
| 34 | 1901091012 | Socket-Terminal Strip 1X1,5 MM/2 |
| 35 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 36 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 37 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 38 | 2910141138 | Hex Socket Head Cap Screw M 4X40 DIN 912-8.8 |
| 39 | 3601321001 | Clamping Saddle |
| 4 | 3607200020 | Switch |
| 4/1 | 3607200003 | Switch |
| 4/2 | 3607200019 | Switch |
| 40 | 3600150006 | Spring Washer Ø4,2 MM |
| 41 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 42 | 3603402000 | Set screw |
| 44 | 3604477008 | End Splice |
| 46 | 3606311001 | Spindle With Gear Z=20 |
| 47 | 3600100024 | Support Disc |
| 48 | 3600929009 | Clutch Shell |
| 49 | 3606319009 | Cylindrical Gear Z=27 |
| 5 | 3604462050 | Elec. Cable W/Connection |
| 50 | 3606319008 | Cylindrical Gear Z=24 |
| 51 | 3600100003 | Plain Washer |
| 52 | 3606319010 | Cylindrical Gear Z=17 |
| 53 | 3600100023 | Support Disc |
| 54 | 3600910000 | Needle-Roller Assembly |
| 55 | 3600100025 | Plain Washer 8X14X0,5 |
| 56 | 1900900232 | Groove ball bearing 5X16X5 |
| 57 | 1600910012 | Needle bearing |
| 58 | 1610910064 | Needle bearing |
| 59 | 1600210045 | O-Ring 8,0X1,0 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 3600210017 | O-Ring 53,0X2,0 MM |
| 61 | 3603201045 | Needle Roller |
| 62 | 2917500122 | Straight Pin 4H 8X20 DIN 7 |
| 7 | 1601302014 | Fastening Clamp |
| 8 | 3601106053 | Nameplate |
| 810 | 3604229005 | Stator 265V/200HZ |
| 810 | 3604229006 | Stator 135V/200HZ,200V/300HZ |
| 810 | 3604229007 | Stator 72V/200HZ |
| 9 | 1601110483 | Manufacturer's nameplate |
