Bosch HBH 12

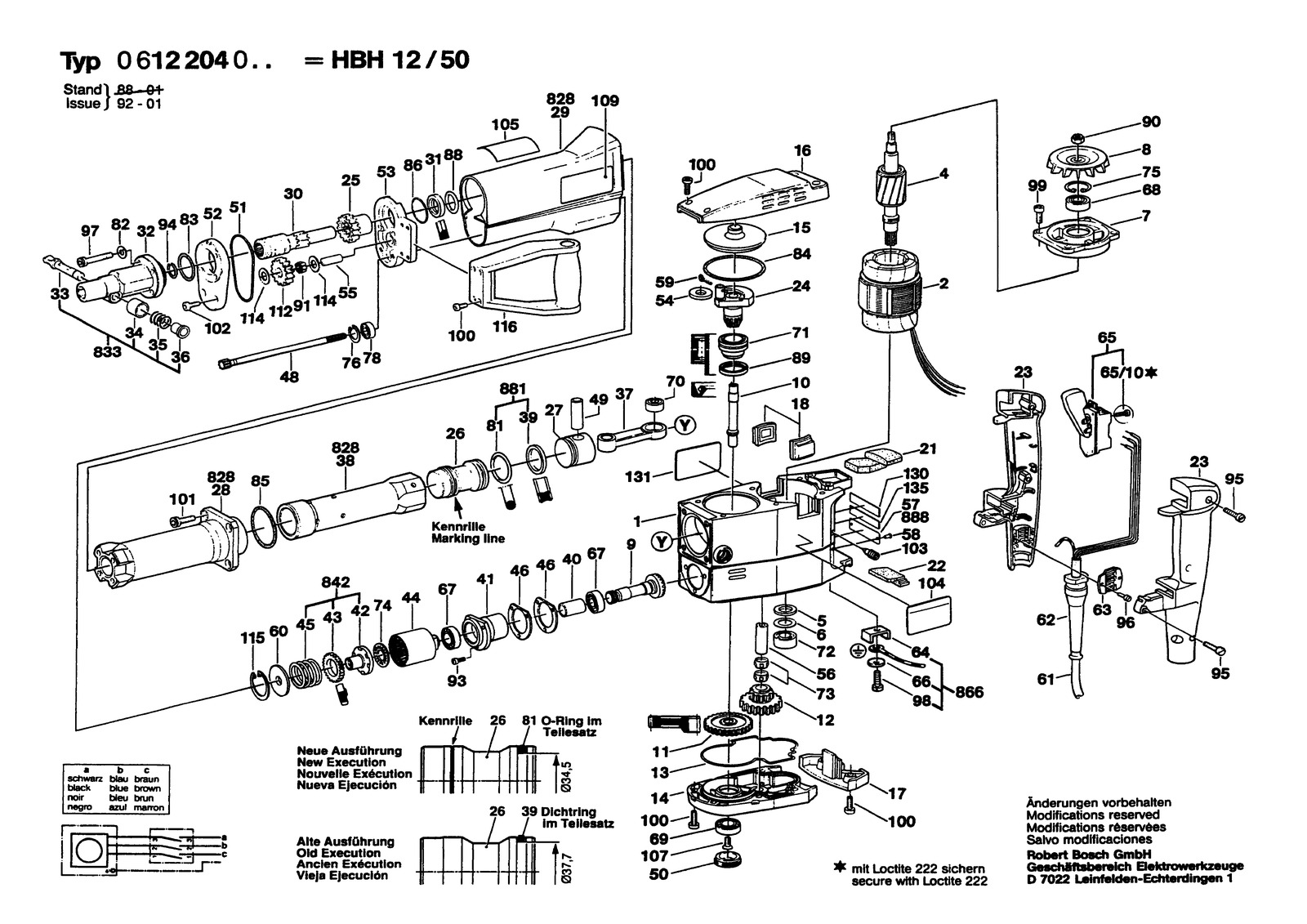

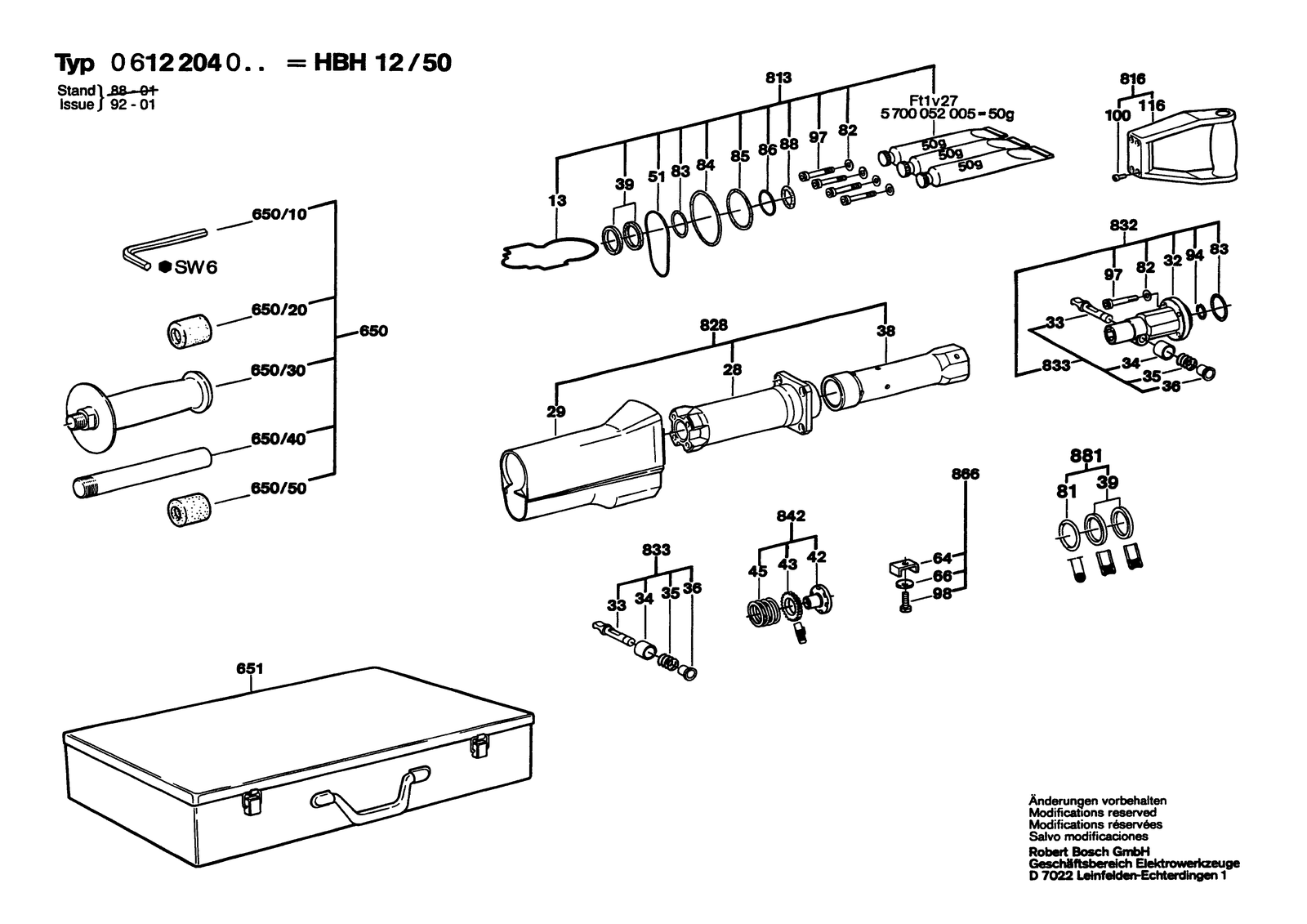

Bosch HBH 12 rotary hammer: exploded parts diagram, 2 sheets, 106 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch HBH 12: 106 positions on 2 sheets
Bosch HBH 12 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615106048 | Motor Housing |
| 10 | 1613159007 | Wheel Shaft |
| 100 | 2910141201 | Hex Socket Head Cap Screw DIN 912-M6X20-8.8 |
| 101 | 2910141244 | Hex Socket Head Cap Screw DIN 912-M8X25-8.8 |
| 102 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 103 | 2912081238 | Set screw DIN 915-M8X16-45H |
| 104 | 1611110492 | Manufacturer's nameplate |
| 105 | 1611110493 | Reference Plate |
| 107 | 2910540238 | Countersunk-Head Screw M 8X16 DIN 7991-8.8 |
| 109 | 1611110489 | Reference Plate |
| 11 | 1616317035 | Cylindrical Gear Z=40 |
| 112 | 1616317027 | Cylindrical Gear Z=31 |
| 114 | 1600101641 | Shim Thick 0,3 MM |
| 115 | 2916660020 | Spring retaining ring DIN 472-45X1,75MM |
| 12 | 1616328024 | Cylindrical Gear Z=46/26 |
| 13 | 1611015023 | Sealing Frame |
| 130 | 1601110265 | Reference Plate |
| 131 | 1611110488 | Manufacturer's nameplate |
| 135 | 1611110387 | Reference Plate |
| 14 | 1615808050 | Gear Cover |
| 15 | 1615500168 | Sealing cap |
| 16 | 1615500276 | Fan Cover |
| 17 | 1615500261 | Switch Cover |
| 18 | 1615500282 | Sealing cap |
| 2 | 1614229154 | Stator 250V/200HZ |
| 2 | 1614229156 | Stator 115V/200HZ |
| 21 | 1612392001 | Rubber Plate |
| 22 | 1612392000 | Rubber Plate |
| 23 | 1615133025 | Handle Black |
| 24 | 1616110029 | Eccentric Cog Wheel Z=36 |
| 25 | 1616490024 | Carrier Z=11/31 |
| 26 | 1618710058 | Striker |
| 27 | 1618700047 | Hammer Piston |
| 29 | 1615190019 | Protective Tube Blue |
| 30 | 1618598100 | Bit holder Z=12 |
| 31 | 3606100101 | Stop Disc |
| 37 | 1612001029 | Connecting Rod |
| 4 | 1614080024 | Rotor Without Winding |
| 40 | 1610400020 | Spacer Sleeve |
| 41 | 1615801022 | Bushing |
| 44 | 1616409005 | Clutch Element SW22 |
| 45 | 1614619006 | Compression Spring |
| 46 | 1610134004 | Shim Ø40,2XØ60X0,3 MM |
| 48 | 1613060009 | Toothed Shaft Z= 8/8 |
| 49 | 1610300058 | Piston Pin |
| 5 | 1610108012 | Sealing disk |
| 50 | 1613465003 | Screw Plug |
| 51 | 1610210048 | Seal Ring |
| 52 | 1615806066 | Gear Housing |
| 53 | 1615806064 | Gear Housing |
| 54 | 1610113005 | Cover Disc Ø12XØ26X2,0 MM |
| 55 | 1610300052 | Bearing bolt |
| 56 | 1610300057 | Bearing bolt |
| 58 | 2917721034 | Round-Head Grooved Pin 2X6 DIN 1476-ST |
| 59 | 1904681350 | Split Pin 3,2X18 DIN 94-ST |
| 6 | 1610102013 | Shim Thick 1,0 MM |
| 60 | 1610101010 | Cover Disc Thick 2,0 MM |
| 61 | 1614462078 | Power supply cord 5M 4 X 1,0MM |
| 62 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 63 | 1611302013 | Fastening Clamp |
| 65 | 1617200024 | On-Off Switch |
| 650 | 1617000051 | Parts Set |
| 650/10 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 650/20 | 1610508014 | Protective Cap |
| 650/30 | 160202509Z | Auxiliary Handle |
| 650/30 | 16020250A1 | Auxiliary Handle |
| 650/40 | 1610762003 | Fastening Rod M18 /M14 |
| 650/50 | 1610508013 | Protective Cap |
| 651 | 1615438107 | Carrying Case |
| 67 | 1900905163 | Groove ball bearing 17X35X10 |
| 68 | 1610905001 | Groove ball bearing 10X32X12 |
| 69 | 1900900302 | Groove ball bearing 12X32X10 |
| 7 | 1615805066 | Bearing Flange |
| 70 | 1610910049 | Needle-Roller Bearing |
| 71 | 1610910060 | Needle-Roller Bearing |
| 72 | 1610910007 | Needle-Roller Bearing |
| 73 | 1610913001 | Needle-Roller Assembly |
| 74 | 1600920000 | Thrust Needle Rim |
| 75 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 76 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 78 | 1900905159 | Groove ball bearing 10X26X8 |
| 8 | 1616610045 | Fan |
| 816 | 1617000101 | Parts Set |
| 82 | 2916690007 | Spring Lock Washer DIN 128-A8-FST |
| 828 | 1617000916 | Parts Set |
| 83 | 1900210136 | O-Ring 35X2,5MM |
| 832 | 1617000100 | Tool Holder Set |
| 833 | 1617000014 | Locking Bolt Set |
| 84 | 1900210160 | O-Ring 70X3 MM |
| 842 | 1617000091 | Parts Set |
| 85 | 1900210152 | O-Ring 55X3 MM |
| 86 | 1900210130 | O-Ring 30X2 MM |
| 866 | 1617000156 | Clamping Saddle |
| 88 | 1610210042 | O-Ring 22,0X6,0 MM |
| 881 | 1617000172 | Seal Kit |
| 888 | 160111A3H3 | Nameplate |
| 89 | 2916740053 | Shaft Seal A 30X42X7 DIN 3760 |
| 9 | 1616333016 | Bevel Gear Z=28 |
| 90 | 2915061005 | Hex Nut DIN 985-M8-8 |
| 91 | 1610913006 | Needle-Roller Assembly |
| 93 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 94 | 2916601012 | Retaining ring DIN 9045-24 |
| 95 | 2914201506 | Oval-Head Screw 4X18 Mm,torx T20 |
| 96 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 97 | 1613414007 | Hex Socket Head Cap Screw M 8X50 MM |
| 99 | 2910141201 | Hex Socket Head Cap Screw DIN 912-M6X20-8.8 |
