Bosch H26-MLS
Bosch H26-MLS rotary hammer 2 kg: exploded parts diagram, 2 sheets, 94 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

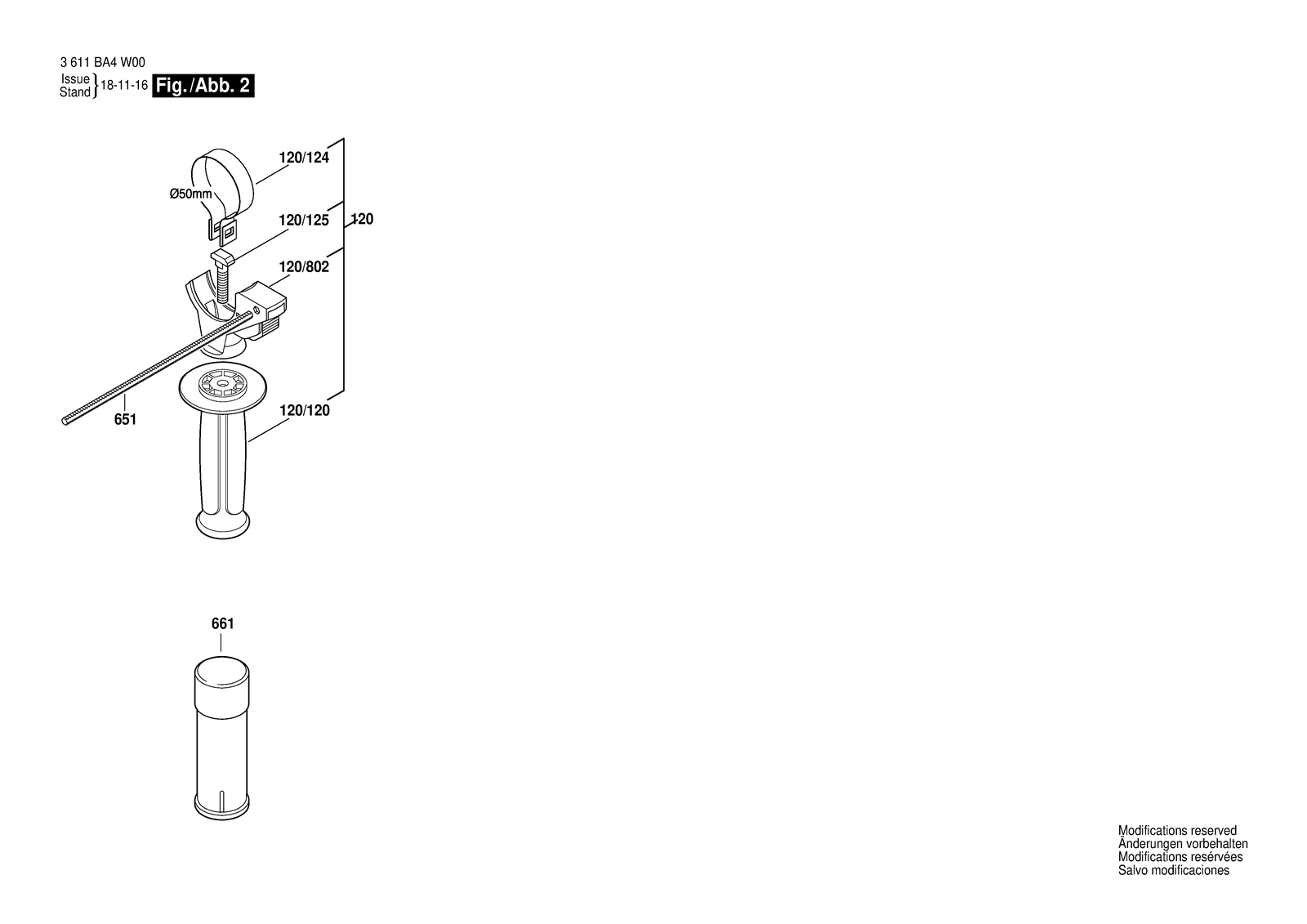

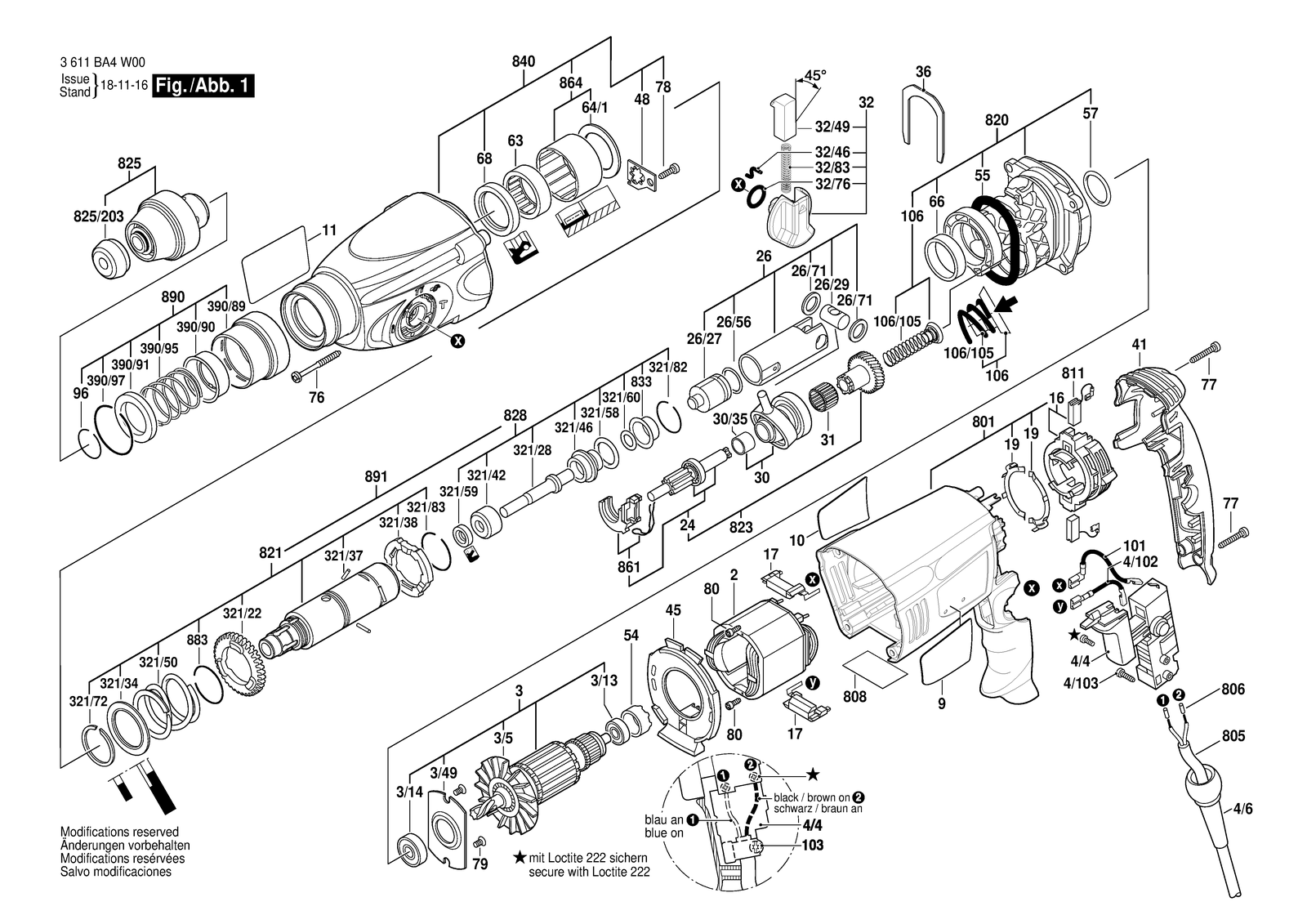

All parts of Bosch H26-MLS: 94 positions on 2 sheets
Bosch H26-MLS parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 160111C2RR | Manufacturer's nameplate |
| 101 | 1614449014 | Connecting Cable |
| 106 | 1614611022 | Plain bearing |
| 106/105 | 1614611021 | Compression Spring |
| 11 | 1611110X17 | Reference Plate |
| 120 | 160202507F | Auxiliary Handle |
| 120/120 | 1612025083 | Auxiliary Handle Black |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 120/802 | 16170006DF | Support clamp |
| 16 | 1614336061 | Brush Plate |
| 17 | 1614465011 | Suppression Filter |
| 19 | 1611329024 | Switch Contact |
| 2 | 1614220117 | Field 230V |
| 24 | 16170006EJ | Toothed Shaft |
| 26 | 1600A01U34 | Hammer Piston |
| 26/27 | 1610311018 | Striker |
| 26/29 | 1613105012 | Piston Pin |
| 26/56 | 1610210187 | O-Ring |
| 26/71 | 1610101011 | Shim washer Thick 1,2 MM |
| 3 | 1614010709 | Armature 230V |
| 3/13 | 1610905025 | Groove ball bearing 7X19X6 |
| 3/14 | 1610905048 | Groove ball bearing 9X24X7 |
| 3/49 | 1615700044 | End Shield |
| 3/5 | 1616610094 | Fan |
| 30 | 1600A01U33 | Drive bearing |
| 30/35 | 1610202024 | Plain bearing |
| 31 | 1610913016 | Needle-Roller Assembly |
| 32 | 1612026118 | Clamp Handle Black |
| 32/46 | 1614690002 | Driver Pin |
| 32/49 | 1612026035 | Switch Button Red |
| 32/76 | 1610210046 | O-Ring 10,5X2,7 MM |
| 32/83 | 1614611006 | Compression Spring |
| 321/22 | 1616312004 | Cylindrical Gear |
| 321/28 | 1613124082 | Striker Pin |
| 321/34 | 1610190067 | Supporting Disc |
| 321/37 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 321/38 | 1600A008AG | Catch Disk |
| 321/42 | 1610290099 | Thrust Ring |
| 321/46 | 1610390066 | Guide Bushing |
| 321/50 | 1614611020 | Compression Spring |
| 321/58 | 1610210178 | O-Ring |
| 321/59 | 1600A009VC | Shaft Seal |
| 321/60 | 1610210176 | O-Ring 9,0X3,5 MM |
| 321/72 | 1604601027 | Retaining ring |
| 321/82 | 1614601034 | Retaining ring |
| 321/83 | 1604601028 | Retaining ring A22 DIN 7993 |
| 36 | 1611016003 | Holding Plate |
| 390/89 | 1610499059 | Guide Sleeve |
| 390/90 | 1610590016 | Collar Sleeve |
| 390/91 | 1610200033 | Backup ring |
| 390/95 | 1614643016 | Compression Spring |
| 390/97 | 1614601047 | Retaining ring |
| 4/102 | 1614449015 | Connecting Cable |
| 4/103 | 1613435034 | Lens Head Screw 3X10 St |
| 4/4 | 1617200545 | Switch |
| 4/6 | 1600703034 | Grommet Ø7,3-Ø8,6X66 MM |
| 41 | 1615500369 | Housing Cover Black |
| 45 | 1610522013 | Air-Deflector Ring |
| 48 | 1611098008 | Tab Washer |
| 54 | 1610502016 | Rubber Bushing |
| 55 | 1610290226 | Seal Ring 53,0X7,0 MM |
| 57 | 1610210068 | O-Ring 24,0X2,5 MM |
| 63 | 1610910063 | Needle bearing Ø30XØ37X12 MM |
| 64/1 | 1610190060 | Supporting Disc |
| 651 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 66 | 1610202021 | Plain bearing |
| 661 | 1615439012 | Oil Spray Tin |
| 68 | 1610283036 | Rotary shaft lip seal |
| 76 | 160343000A | Thread-forming tap. Screw |
| 77 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 78 | 2603490022 | Screw 4X16 |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 80 | 1613435043 | Screw |
| 801 | 1617000V68 | Motor Housing Black |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 806 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 808 | 160111A3HD | Nameplate |
| 811 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 820 | 16170006DX | Intermediate Flange |
| 821 | 1617000V42 | Pipe |
| 823 | 1617000579 | Toothed Shaft |
| 825 | 1617000895 | Tool Holding Fixture |
| 825/203 | 1610508047 | Protective Cap |
| 828 | 1617000V43 | Striker Pin |
| 833 | 1610590014 | Holding Jacket |
| 840 | 1607000V65 | Armature 120V |
| 861 | 1615820097 | Switching Element |
| 864 | 1617000A07 | Supporting Disc |
| 883 | 1604601028 | Retaining ring A22 DIN 7993 |
| 890 | 1617000V41 | Guide Sleeve |
| 891 | 16170006CS | Hammer Pipe |
| 9 | 160111C0EX | Manufacturer's nameplate |
| 96 | 1614601046 | Retaining ring |
