Bosch GWX 18V-8

Bosch GWX 18V-8 cordless angle grinder: exploded parts diagram, 2 sheets, 44 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWX 18V-8: 44 positions on 2 sheets

Bosch GWX 18V-8 parts list (2 sheets)

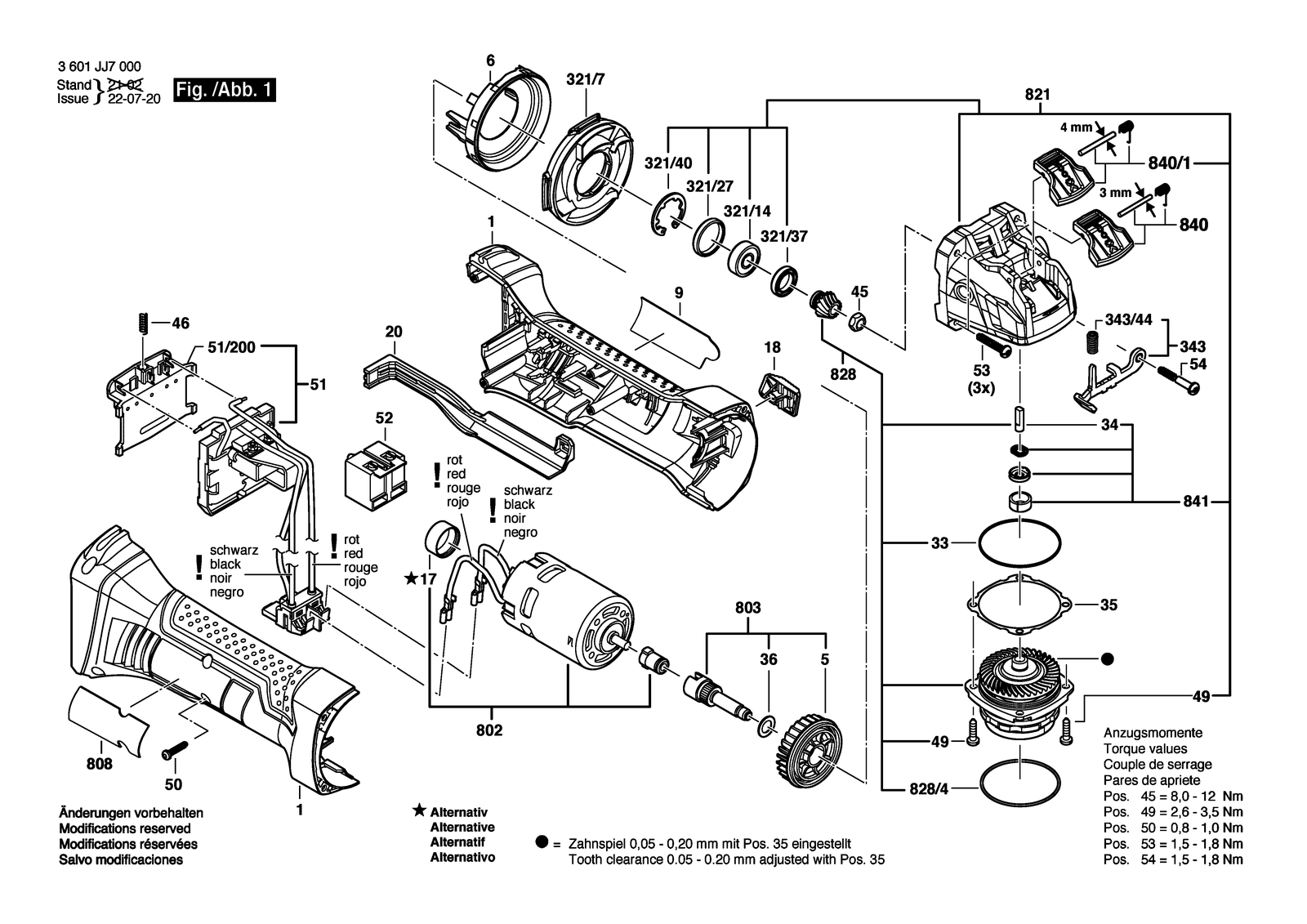

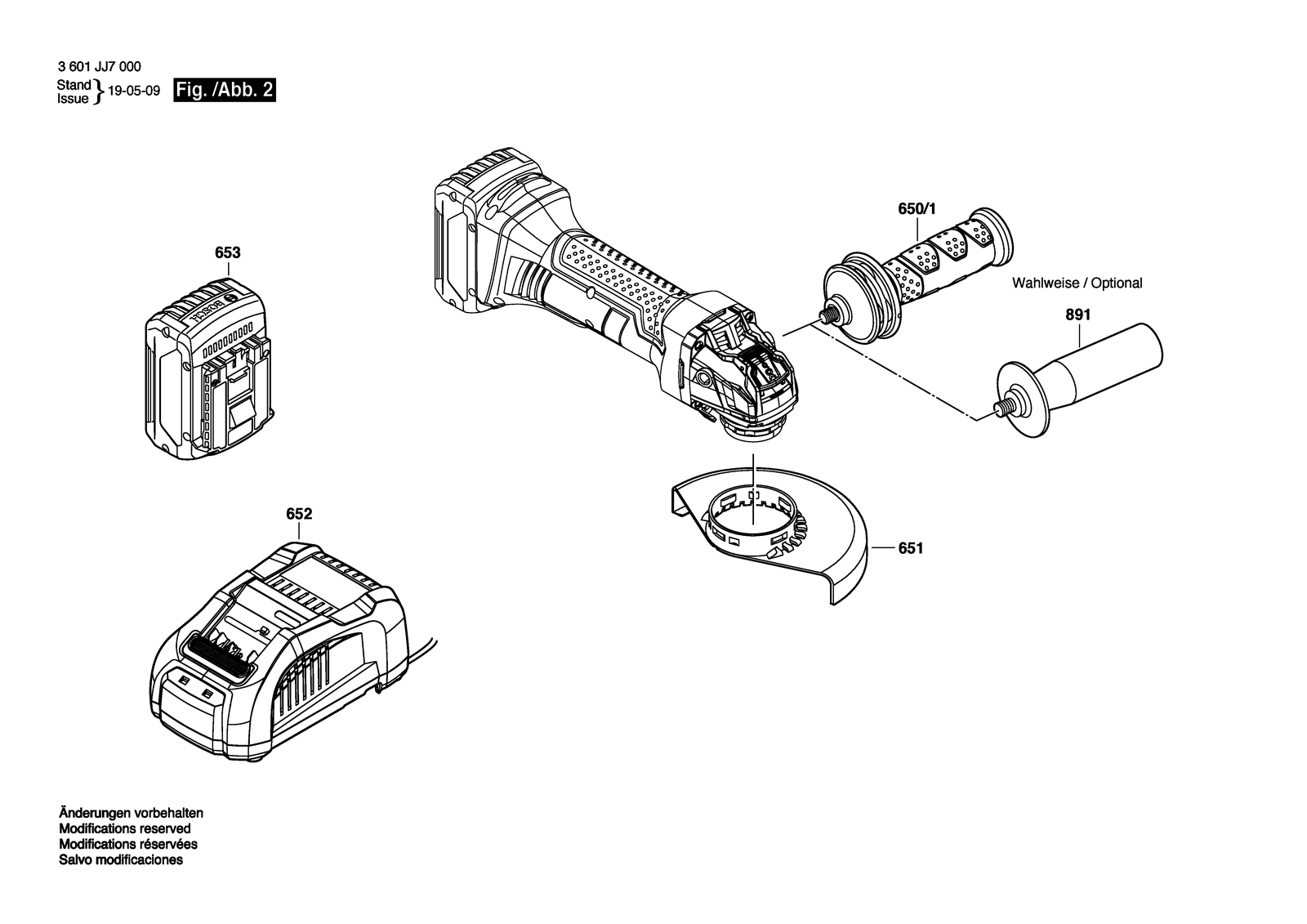

Bosch GWX 18V-8 parts diagram, sheet 1Bosch GWX 18V-8 parts diagram, sheet 2
No.Part numberPart name
116051082L0Motor Housing
171600A001PYCover
181602025071Switch Button
201602319023Adjusting Slide
321/141600905032Groove ball bearing 8X22X7
321/271600206025Rubber Ring
321/371600A00P17Holder
321/401600119011Retaining clip
321/7160059105NAir Distributor
331600210035O-Ring 46,0X1,1 MM
341600A012X9Braking Element
3431607000742Catch Lever
343/441604611042Compression Spring
351600136013Shim Thick 0,1 MM
351600136014Shim Thick 0,2 MM
351600136015Shim Thick 0,3 MM
361610100023Washer
451603300016Hex Nut M7, SW10
461609280477Compression Spring
49160343508XThread-forming tap. Screw M4X16-ST W/ Precote 85-3
5160661016EFan
501603435071Thread-forming tap. Screw
511607233340Electronics Module
51/2001609280478Contact retainer
522607202071On-Off Switch
531603435078Torx Oval-Head Screw
541603414026Torx Oval-Head Screw 4X30
61600591047Air-Deflector Ring
650/116020250A0Auxiliary Handle
6511600A025XRProtective Cover
6522607226251Fast Charger EU GAL 18V-40, 230V/10,8V – 18V
6522607226263Fast Charger Rok GAL 18V-40
6532607337069Battery Pack Bbs Mr, 18V, 5,0 AH 48 S
8021607000DG5DC motor
8031607000CA5Bevel Gear Shaft
808160111A70YNameplate
8211607000E9ZGear Housing
8281607000DG6Parts Set
828/43600210109O-Ring 47,0X1,5 MM
8401607000D5XParts Set
840/11607000EA6Lever
8411607000D5ZParts Set
891160202509TAuxiliary Handle
9160111C31EManufacturer's nameplate
