Bosch GWX 18V-7

Bosch GWX 18V-7 cordless angle grinder: exploded parts diagram, 2 sheets, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWX 18V-7: 46 positions on 2 sheets

Bosch GWX 18V-7 parts list (2 sheets)

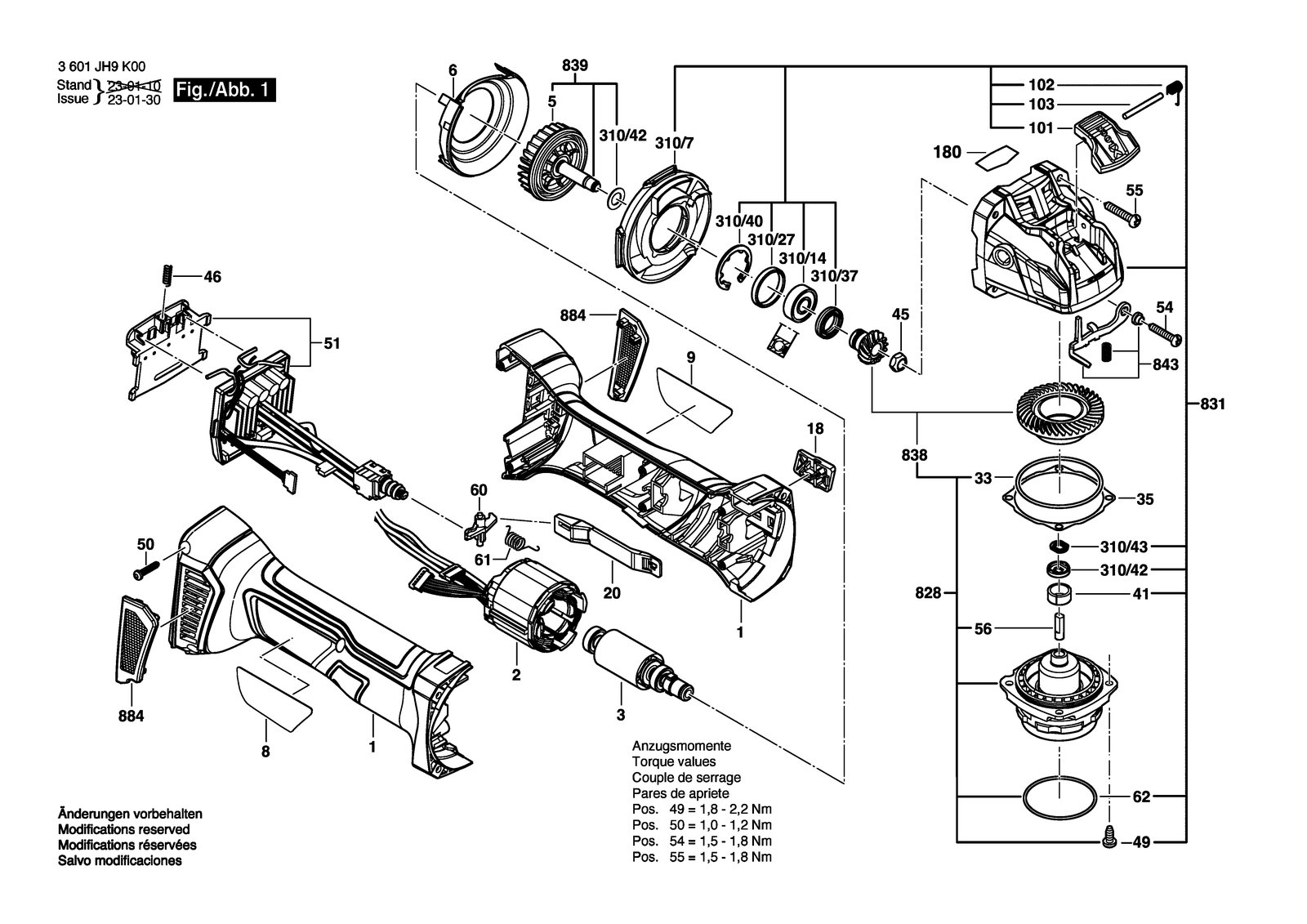

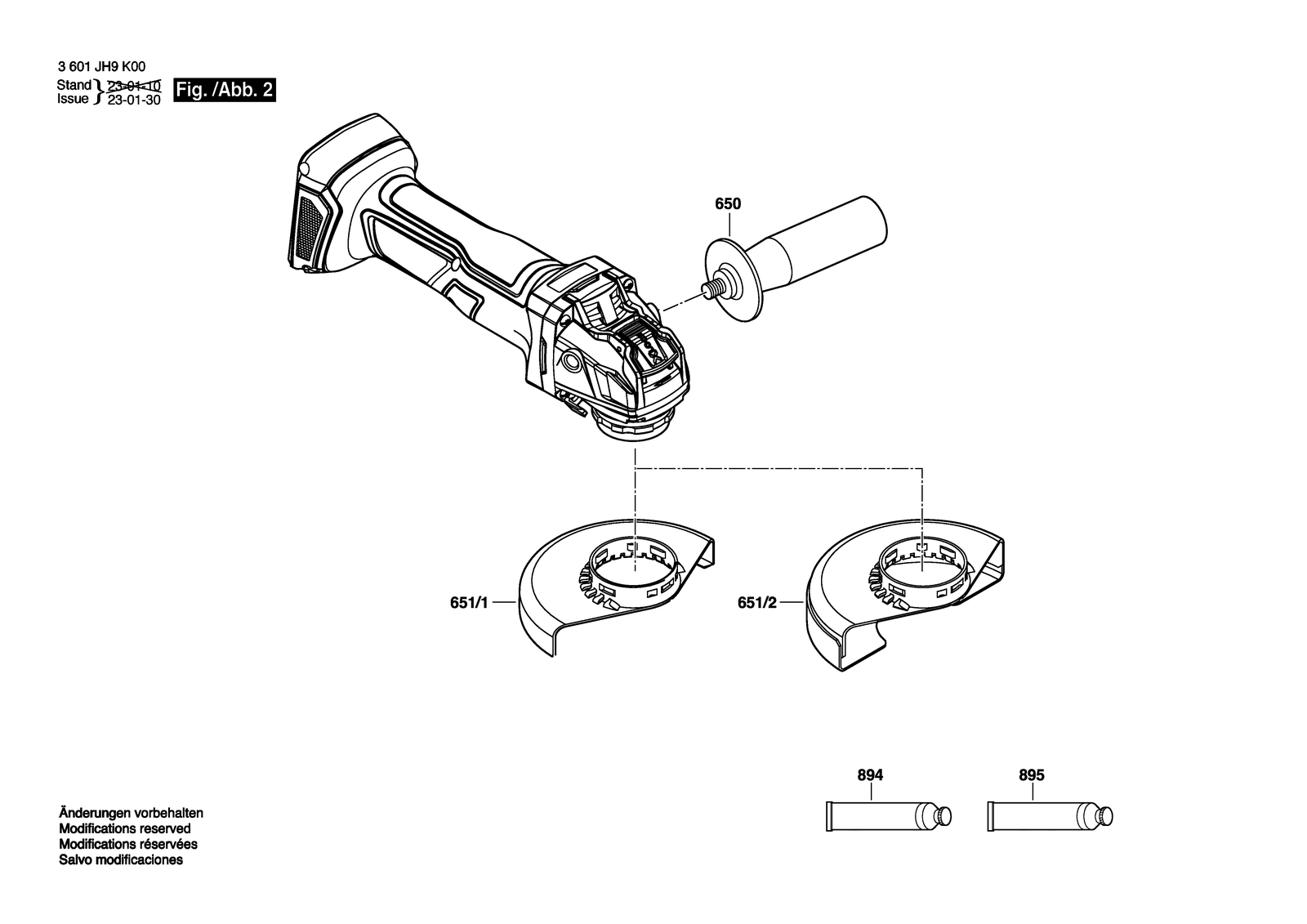

Bosch GWX 18V-7 parts diagram, sheet 1Bosch GWX 18V-7 parts diagram, sheet 2
No.Part numberPart name
11619P21140Motor Housing
1011619P21148Lever
1021600A012V3Torsion Spring
1031600A012V4Straight Pin
181619P21143Switch Handle
1801619P17774Sticker
21600A01A6NStator
201619P15050Adjusting Slide
31600A024BMRotor
310/141619P09955Groove ball bearing
310/271600206025Rubber Ring
310/371600A00P17Holder
310/401600119011Retaining clip
310/421600A01Z23Retaining Washer
310/431600A01MB5Profile gasket
310/71619P16508Air Distributor
331619P14427O-Ring
351600136013Shim Thick 0,1 MM
351600136014Shim Thick 0,2 MM
411600A012V6Plain bearing
451619P17544Hex Nut
461609280477Compression Spring
49160343508XThread-forming tap. Screw M4X16-ST W/ Precote 85-3
51619P16641Fan
502609110201Torx Flat-Head Screw 3X16
511600A01NC3Electronics Module
542603490025Torx Oval-Head Screw 4X30
551619P01066Torx Oval-Head Screw 4X25
561600A012X9Braking Element
61619P16509Air-Deflector Ring
601619P15795Reverse-Transfer Lever
611619P15806Torsion Spring
623600210109O-Ring 47,0X1,5 MM
650160202509TAuxiliary Handle
651/11605510384Protective Cover Ø 125 MM
651/21600A0293KProtective Cover
81619P18507Nameplate
8281619P16951Bearing Flange
8311619P18043Gear Housing
8381619P16953Gear Unit
8391607000CA5Bevel Gear Shaft
8431607000742Catch Lever
8841607000CA9Filter Unit
8941615430020Grease Tube 225 Ml
8951605430003Grease Tube 225 Ml
91619P21142Manufacturer's nameplate
