Bosch GWX 18V-15 SC

Bosch GWX 18V-15 SC cordless angle grinder: exploded parts diagram, 2 sheets, 44 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWX 18V-15 SC: 44 positions on 2 sheets

Bosch GWX 18V-15 SC parts list (2 sheets)

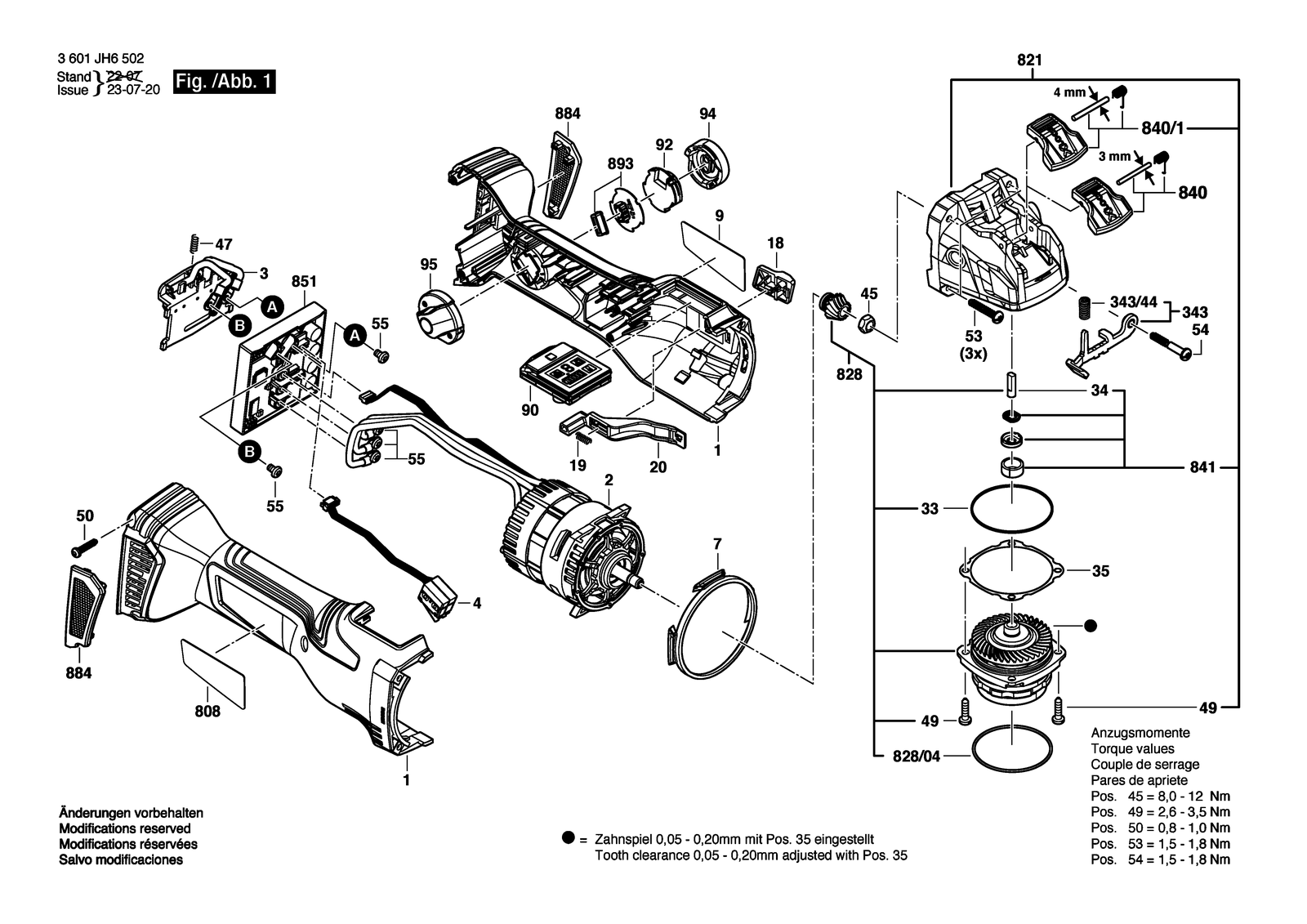

Bosch GWX 18V-15 SC parts diagram, sheet 1Bosch GWX 18V-15 SC parts diagram, sheet 2
No.Part numberPart name
116051082J3Motor Housing
181600A016PWSwitch Handle
19160461203MCompression Spring
21607022661DC motor
201600A016PXSwitch Slide
31600A024C4Contact Plate
331600210035O-Ring 46,0X1,1 MM
341600A012X9Braking Element
3431607000742Catch Lever
343/441604611042Compression Spring
351600136013Shim Thick 0,1 MM
351600136014Shim Thick 0,2 MM
351600136015Shim Thick 0,3 MM
41600A016JCSwitch Unit
451603300016Hex Nut M7, SW10
471609280477Compression Spring
492914491410Thread-forming tap. Screw M4X16
501603435071Thread-forming tap. Screw
531603435078Torx Oval-Head Screw
541603414026Torx Oval-Head Screw 4X30
55160343003TScrew
650/116020250A0Auxiliary Handle
6511600A025XRProtective Cover
6521600A01US1Fast Charger
6522607225921Charger EU GAL 1880 CV 230/14,4-18V
6531607A350ATBattery Pack GBA 18V 8.0AH Procore Scm
6531607A350LRBattery Pack GBA 18V 5.5 Ah XL Procore Scm
71600A016U4Cover Ring
808160111A9C2Nameplate
8211607000EA4Gear Housing
8281607000D8ABearing Flange
828/043600210109O-Ring 47,0X1,5 MM
8401607000D5XParts Set
840/11607000EA6Lever
8411607000D5ZParts Set
8511607000DK3Electronic Module
8521600A021MHProtective Cover
8841607000CA9Filter Unit
8931607000D91Electronics Module
9160111C2SGManufacturer's nameplate
9016072335LNElectronic Module
921600A013WFElectronics Module
9416055002FACover
951600A019TYDust-Protection Cover
