Bosch GWX 18V-10 P
Bosch GWX 18V-10 P cordless angle grinder: exploded parts diagram, 2 sheets, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

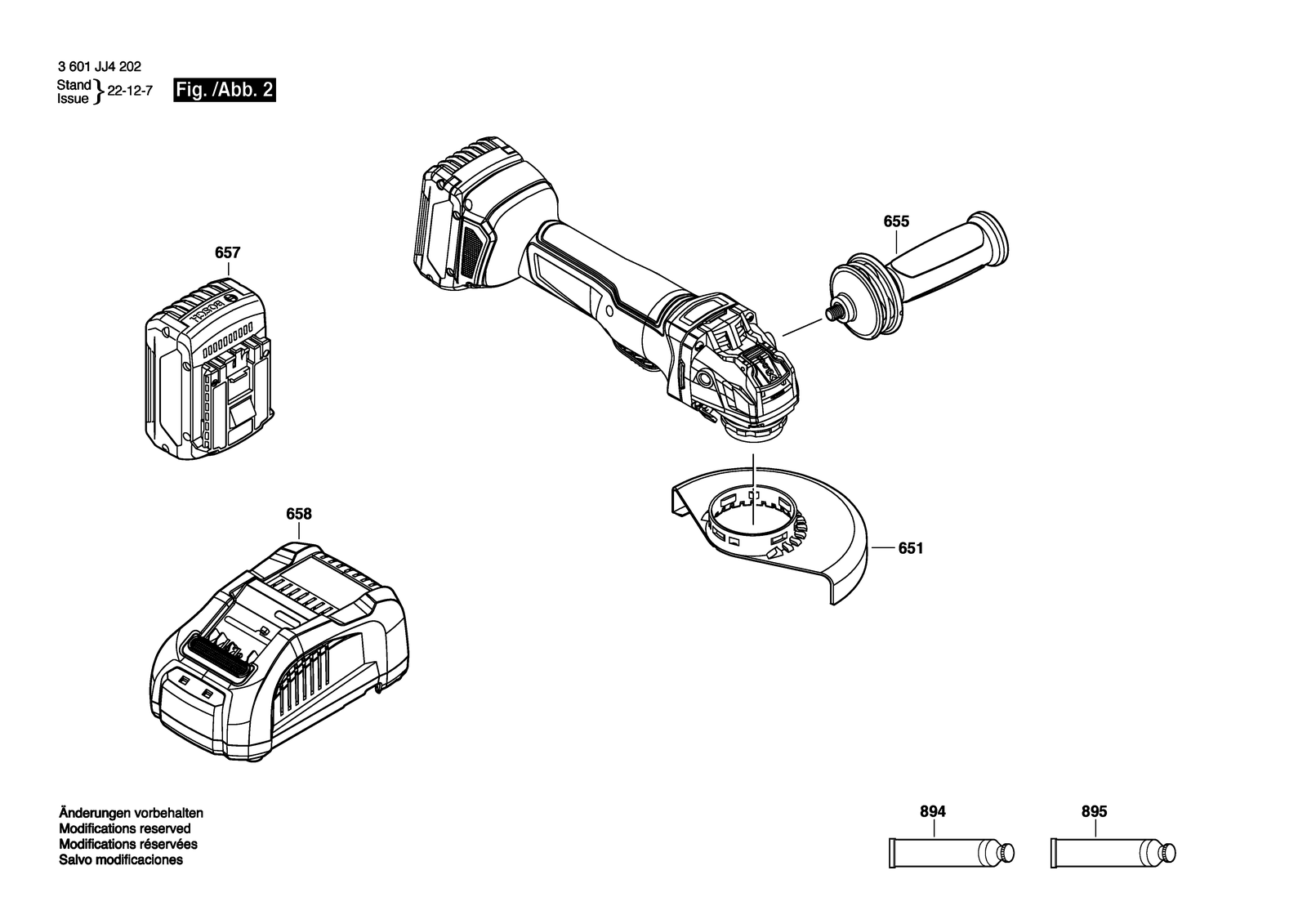

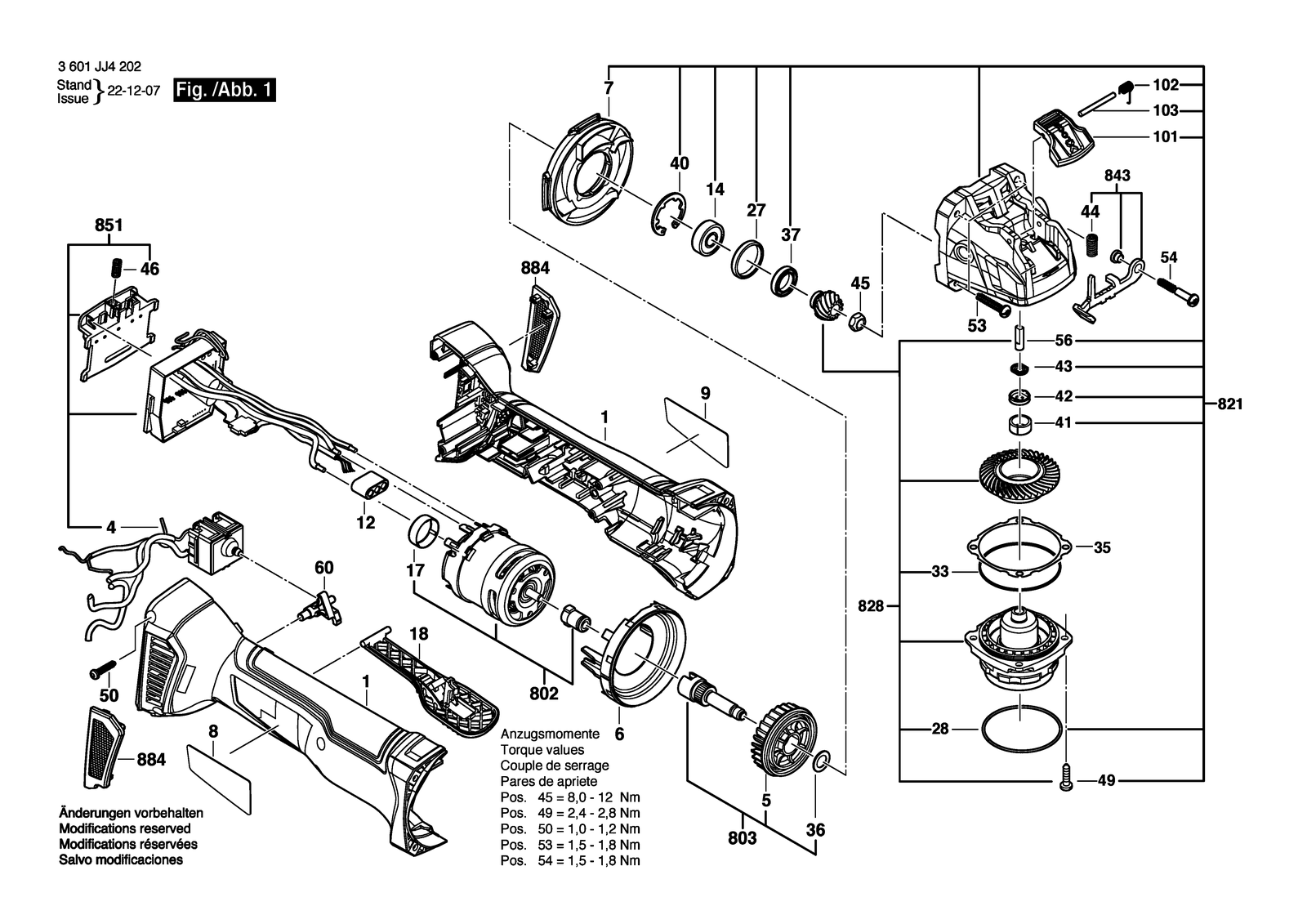

All parts of Bosch GWX 18V-10 P: 60 positions on 2 sheets
Bosch GWX 18V-10 P parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P16703 | Motor Housing |
| 101 | 1600A016PJ | Lever |
| 102 | 1600A012V3 | Torsion Spring |
| 103 | 1600A012V4 | Straight Pin |
| 12 | 1600A00RK2 | Ferrite |
| 14 | 1619P09955 | Groove ball bearing |
| 17 | 1600100P12 | Cover |
| 18 | 1600A00R9F | Switch-Pawl |
| 27 | 1600206025 | Rubber Ring |
| 28 | 3600210109 | O-Ring 47,0X1,5 MM |
| 33 | 1619P14427 | O-Ring |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 36 | 1610100023 | Washer |
| 37 | 1600A00P17 | Holder |
| 4 | 2607202328 | Switch |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600A012V6 | Plain bearing |
| 42 | 1600A012V7 | Retaining Washer |
| 43 | 1600A01MB5 | Profile gasket |
| 44 | 1604611042 | Compression Spring |
| 45 | 1619P17544 | Hex Nut |
| 46 | 1609280477 | Compression Spring |
| 49 | 160343508X | Thread-forming tap. Screw M4X16-ST W/ Precote 85-3 |
| 5 | 1619P16641 | Fan |
| 50 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 53 | 1619P01066 | Torx Oval-Head Screw 4X25 |
| 54 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 56 | 1600A012X9 | Braking Element |
| 56 | 1600A021AR | Braking Element |
| 6 | 1619P16509 | Air-Deflector Ring |
| 60 | 1600A00R9L | Reverse-Transfer Lever |
| 651 | 1600A00XK9 | Protective Cover |
| 651 | 1600A025XR | Protective Cover |
| 655 | 16020250A0 | Auxiliary Handle |
| 657 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 657 | 1617S019K0 | Battery Pack |
| 657 | 2607336815 | Battery Pack Bbs MR 18V, 4,0AH, 47 S |
| 657 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 658 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 658 | 2607225929 | Fast Charger Mex GAL 1880 CV 115/14,4-18V |
| 658 | 2607225935 | Charger Br GAL 1880 CV 220V/14,4-18V |
| 658 | 2607225939 | Fast Charger Br GAL 1880 CV 127/14,4-18V |
| 658 | 2607225941 | Charger Ar GAL 1880 CV 220V/14,4-18V |
| 658 | 2607226251 | Fast Charger EU GAL 18V-40, 230V/10,8V – 18V |
| 7 | 1619P16508 | Air Distributor |
| 8 | 1619P17522 | Nameplate |
| 8 | 1619P17524 | Nameplate |
| 8 | 1619P17808 | Nameplate |
| 802 | 1607000CA4 | Motor |
| 803 | 1607000CA5 | Bevel Gear Shaft |
| 821 | 1619P16949 | Gear Housing |
| 828 | 1619P17887 | Bearing Flange |
| 843 | 1607000742 | Catch Lever |
| 851 | 1607000DS8 | Electronics Module |
| 884 | 1607000CA9 | Filter Unit |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 895 | 1605430003 | Grease Tube 225 Ml |
| 9 | 1619P17525 | Manufacturer's nameplate |
