Bosch GWX 18V-10

Bosch GWX 18V-10 cordless angle grinder: exploded parts diagram, 2 sheets, 45 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWX 18V-10: 45 positions on 2 sheets

Bosch GWX 18V-10 parts list (2 sheets)

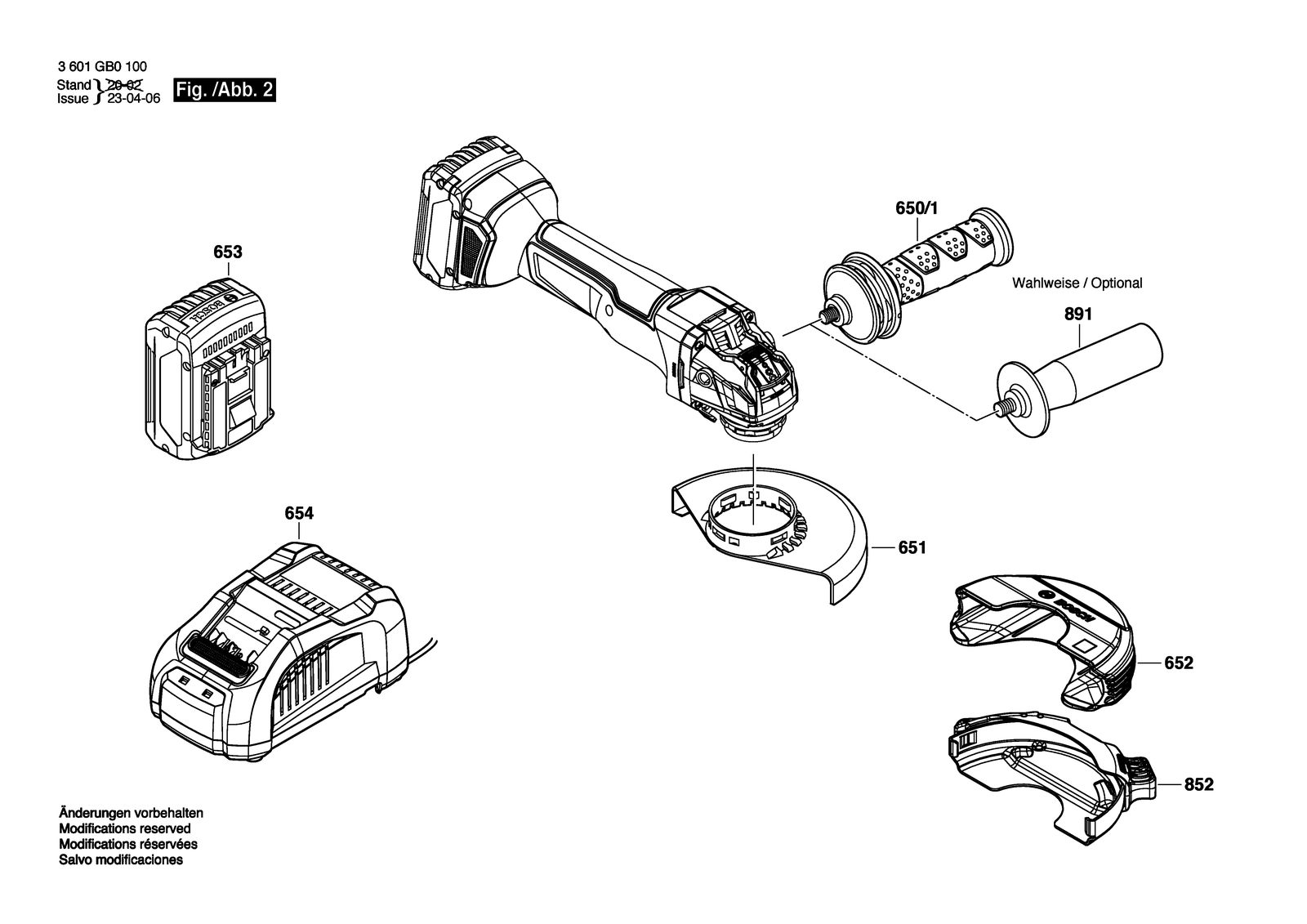

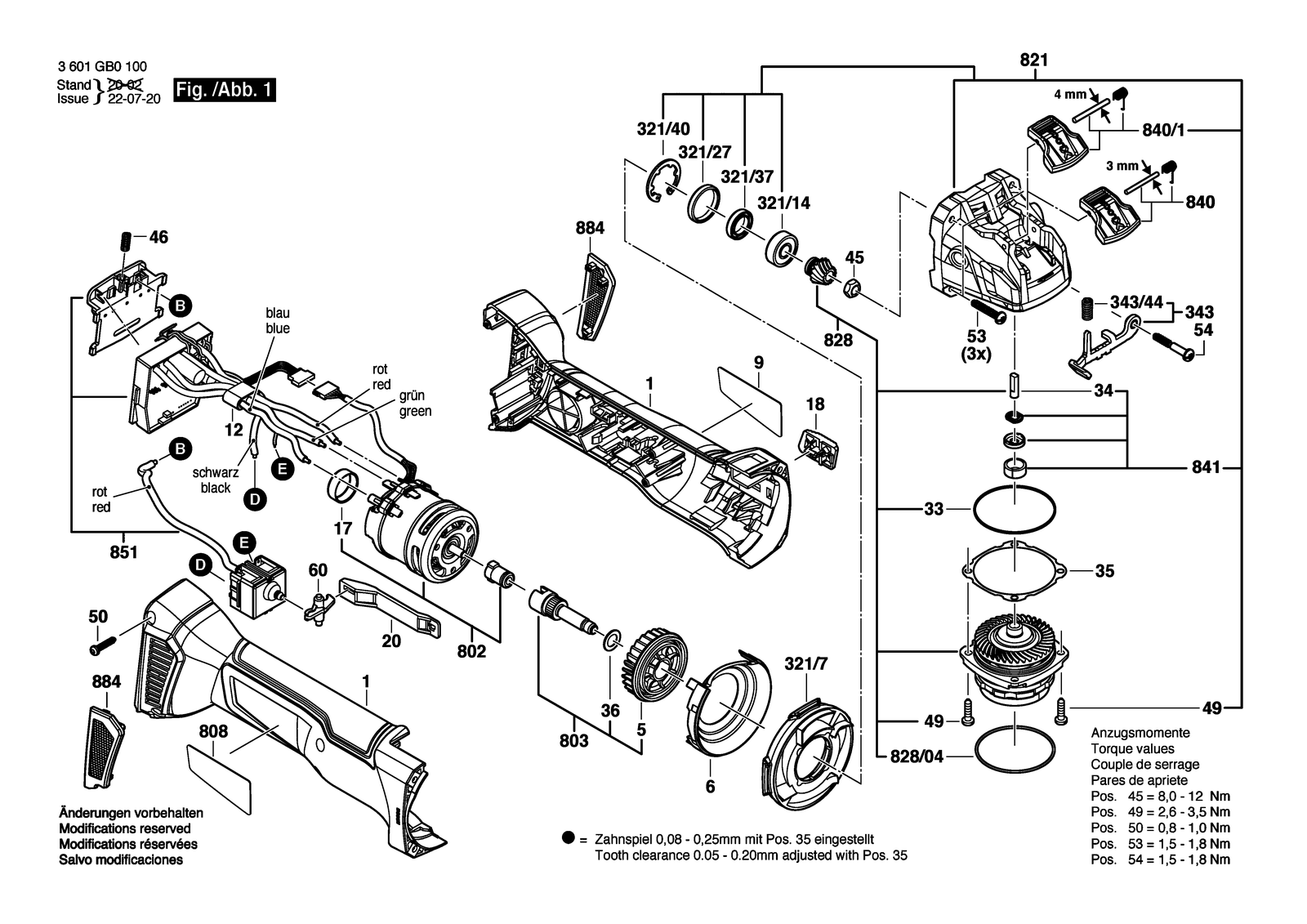

Bosch GWX 18V-10 parts diagram, sheet 1Bosch GWX 18V-10 parts diagram, sheet 2
No.Part numberPart name
11619P15334Motor Housing
121600A00RK2Ferrite
171600100P12Cover
181600A016PWSwitch Handle
201600A00P14Adjusting Slide
321/141600905032Groove ball bearing 8X22X7
321/271600206025Rubber Ring
321/371600A00P17Holder
321/401600119011Retaining clip
321/7160059105NAir Distributor
331600210035O-Ring 46,0X1,1 MM
341600A012X9Braking Element
3431607000742Catch Lever
343/441604611042Compression Spring
351600136013Shim Thick 0,1 MM
351600136014Shim Thick 0,2 MM
351600136015Shim Thick 0,3 MM
351600136020Shim Thick 0,15 MM
361610100023Washer
451603300016Hex Nut M7, SW10
461609280477Compression Spring
49160343508XThread-forming tap. Screw M4X16-ST W/ Precote 85-3
5160661016EFan
501603435071Thread-forming tap. Screw
531603435078Torx Oval-Head Screw
541603414026Torx Oval-Head Screw 4X30
61600591065Air-Deflector Ring
601600A00P18Reverse-Transfer Lever
650/1160202509TAuxiliary Handle
6511600A025XRProtective Cover
6521600A021MHProtective Cover
8021607000CA4Motor
8031607000CA5Bevel Gear Shaft
808160111A9BYNameplate
8211607000E9ZGear Housing
8281607000D5JParts Set
828/043600210109O-Ring 47,0X1,5 MM
8401607000D5XParts Set
840/11607000EA6Lever
8411607000D5ZParts Set
8511607000DS8Electronics Module
8521600A02059Protective Cover
8841607000CA9Filter Unit
89116020250A0Auxiliary Handle
9160111C3FKManufacturer's nameplate
