Bosch GWX 10-45 E
Bosch GWX 10-45 E angle grinder: exploded parts diagram, 2 sheets, 55 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

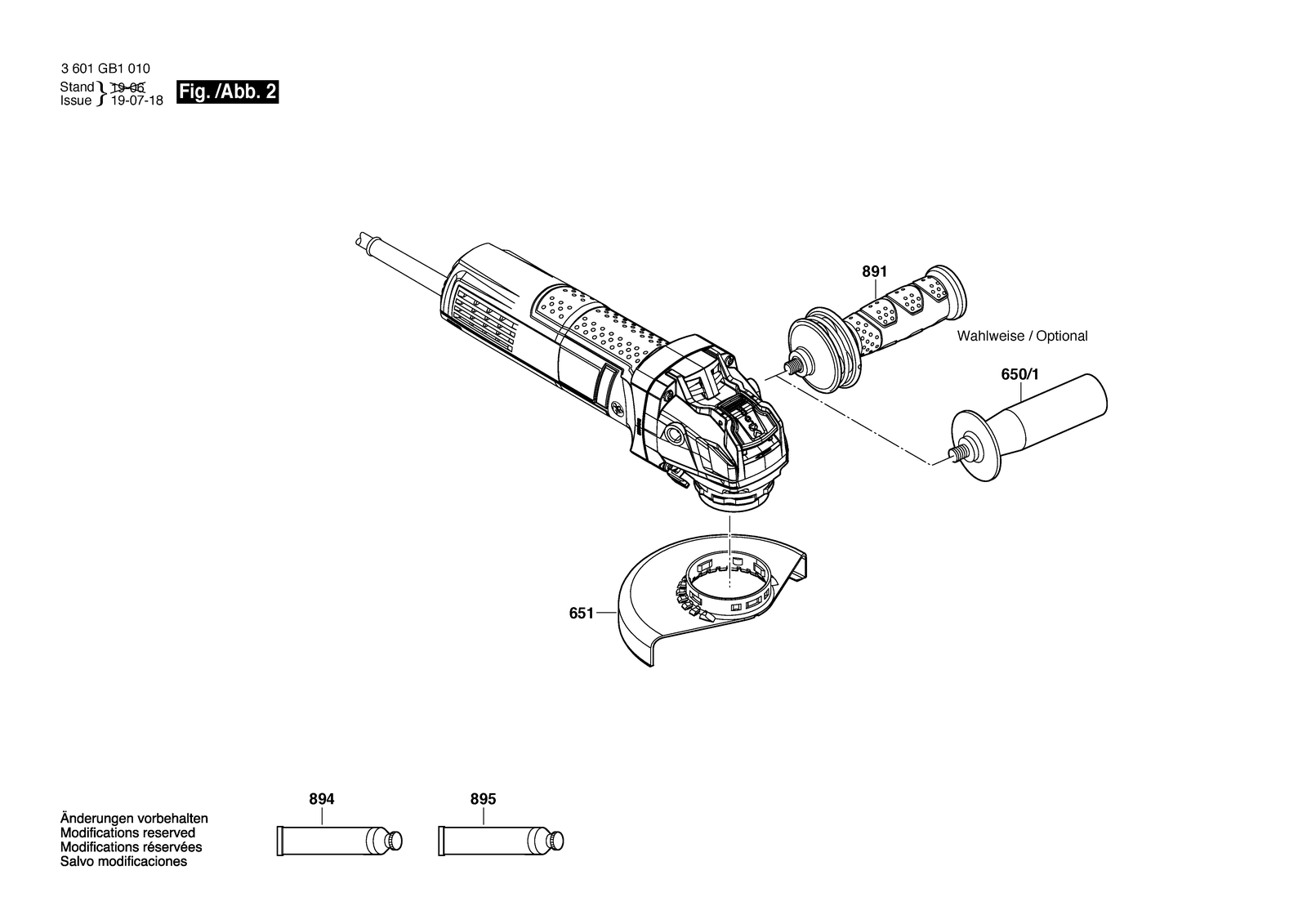

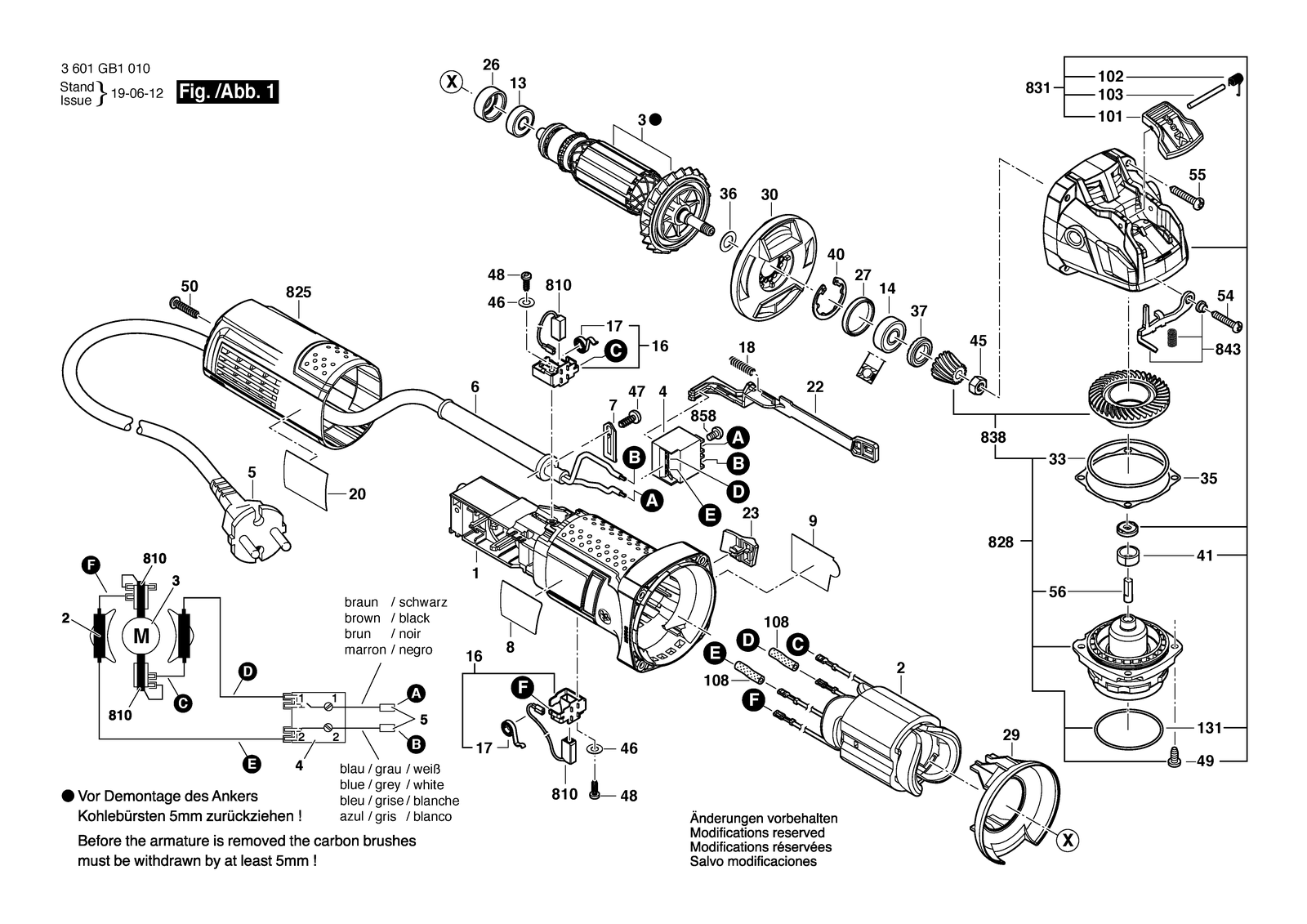

All parts of Bosch GWX 10-45 E: 55 positions on 2 sheets
Bosch GWX 10-45 E parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P10959 | Motor Housing |
| 101 | 1600A016PJ | Lever |
| 102 | 1600A012V3 | Torsion Spring |
| 103 | 1600A012V4 | Straight Pin |
| 108 | 1619P02866 | Shrinkable Tube |
| 13 | 1619P08829 | Groove ball bearing |
| 131 | 3600210109 | O-Ring 47,0X1,5 MM |
| 14 | 1619P13103 | Groove ball bearing |
| 16 | 1619P01811 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1619P11487 | Compression Spring |
| 2 | 1619P14676 | Field 110V |
| 20 | 1619P11107 | Warning Plate |
| 22 | 1619P10968 | Adjusting Slide |
| 23 | 1619P13541 | Switch Button |
| 26 | 1600502023 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1619P10970 | Air-Deflector Ring |
| 3 | 1604010BP7 | Armature |
| 30 | 1619P14769 | Air Distributor |
| 33 | 1619P02820 | O-Ring 44,0X1,0 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 36 | 1619P00987 | Washer |
| 37 | 1600290016 | Rotary shaft lip seal |
| 4 | 160720031Y | Switch |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600A012V6 | Plain bearing |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 46 | 1619P13814 | Shim |
| 47 | 2609110052 | Special Screw |
| 48 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 49 | 160343508X | Thread-forming tap. Screw M4X16-ST W/ Precote 85-3 |
| 5 | 2604460122 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 54 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 55 | 1619P01066 | Torx Oval-Head Screw 4X25 |
| 56 | 1600A012X9 | Braking Element |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 650/1 | 1602025027 | Auxiliary Handle M10 |
| 651 | 1600A00XK8 | Protective Cover 115 MM |
| 7 | 1601302017 | Fastening Clamp |
| 8 | 1619P15084 | Nameplate |
| 810 | 1619P11715 | Carbon-Brush Set |
| 825 | 1619P15592 | Housing Cover |
| 828 | 1619P15214 | Parts Set |
| 831 | 1619P15213 | Gear Housing |
| 838 | 1619P15458 | Set Of Gears |
| 843 | 1607000742 | Catch Lever |
| 858 | 2910641081 | Oval-Head Screw DIN7985-M3,5X5-4.8-H |
| 891 | 16020250A0 | Auxiliary Handle |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 895 | 1605430003 | Grease Tube 225 Ml |
| 9 | 1619P14964 | Manufacturer's nameplate GWX10-45 E |
