Bosch GWS 9-45
Bosch GWS 9-45 angle grinder: exploded parts diagram, 2 sheets, 52 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

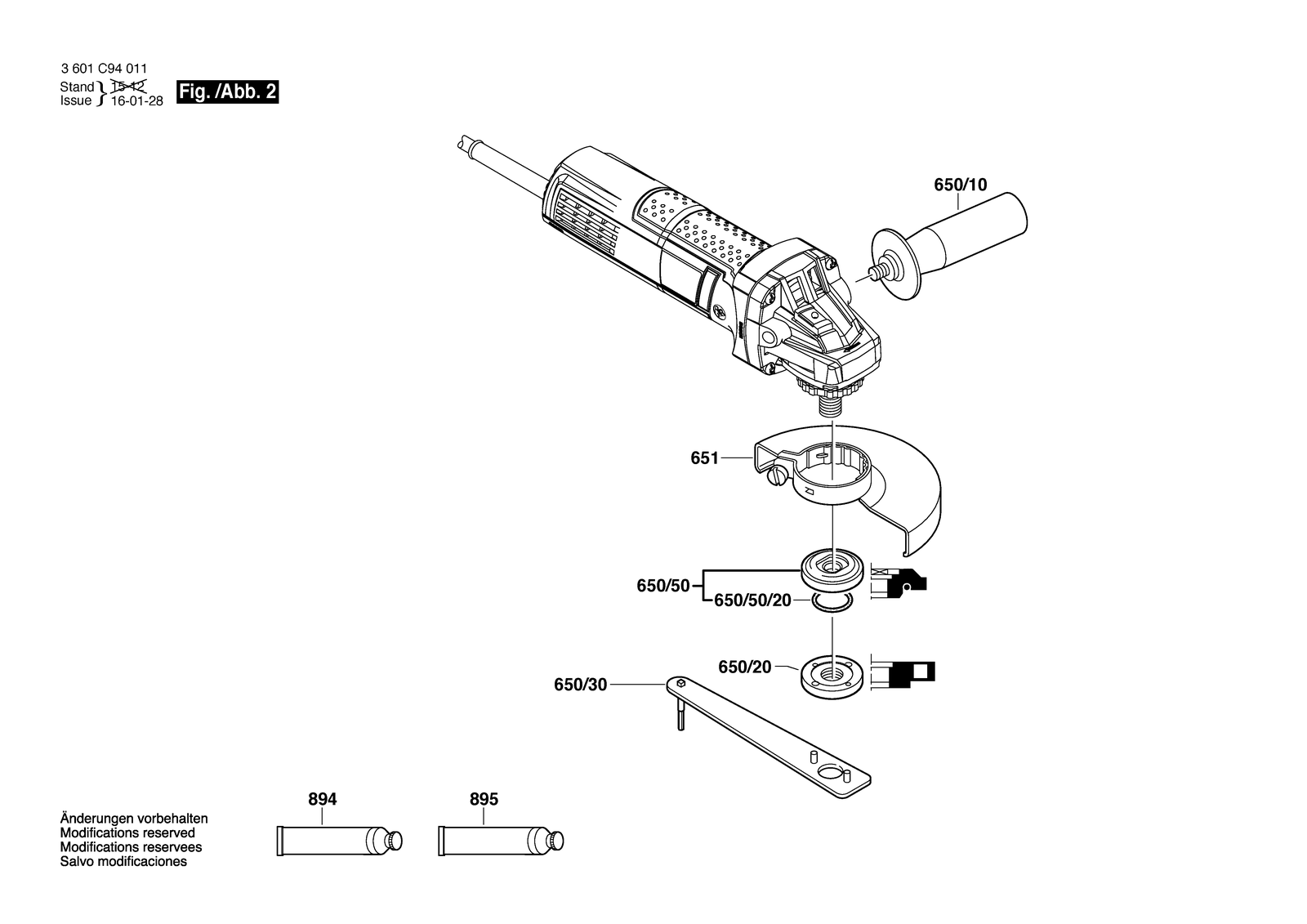

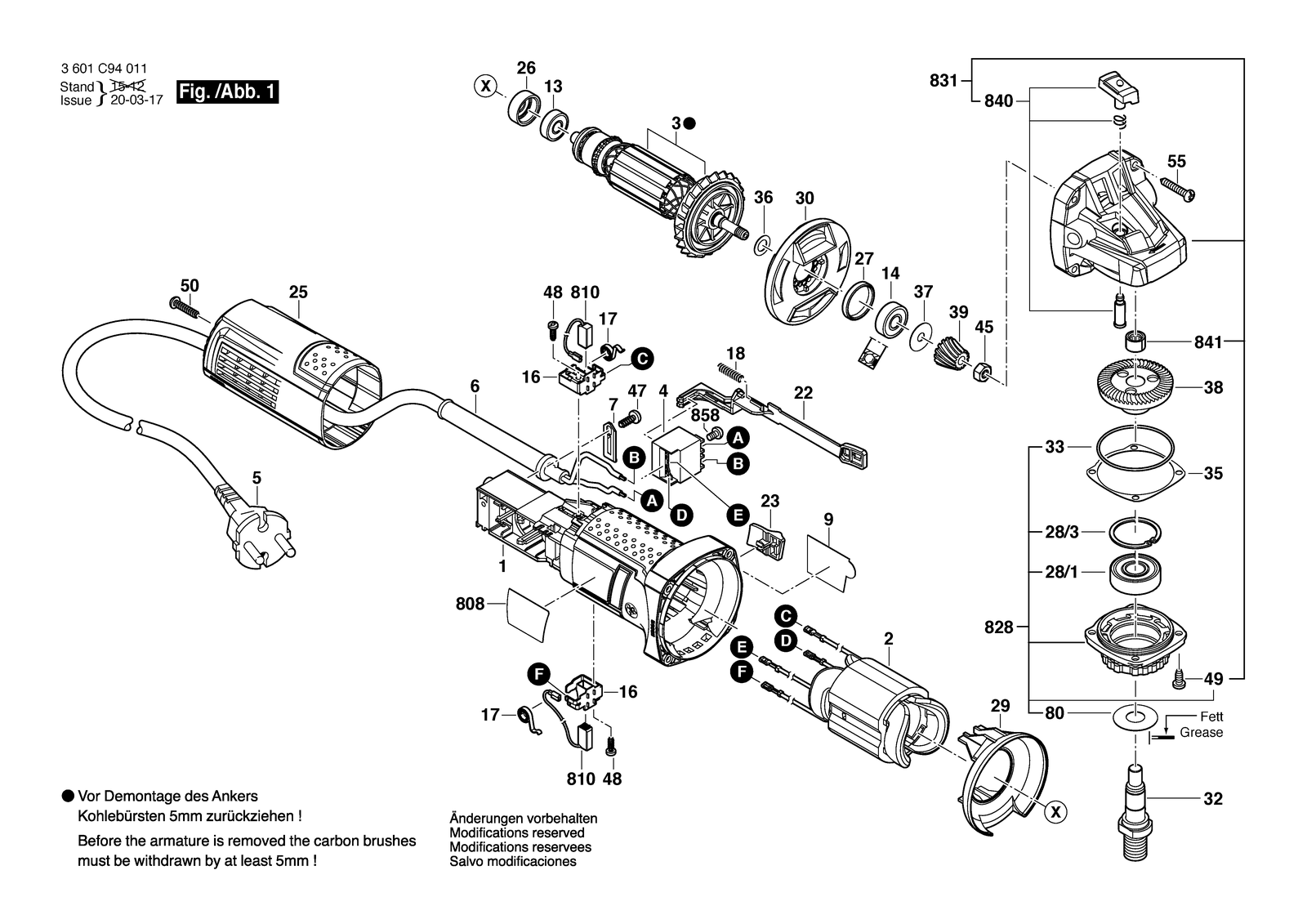

All parts of Bosch GWS 9-45: 52 positions on 2 sheets
Bosch GWS 9-45 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P10958 | Motor Housing |
| 13 | 1619P14660 | Groove ball bearing |
| 14 | 1619P13103 | Groove ball bearing |
| 16 | 1619P01811 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1619P11487 | Compression Spring |
| 2 | 1619P10948 | Field 127V |
| 22 | 1619P10967 | Adjusting Slide |
| 23 | 1619P13541 | Switch Button |
| 25 | 1619P14146 | Housing Cover |
| 26 | 1600502023 | Intermediate Ring |
| 27 | 1600502025 | Backup ring |
| 28/1 | 1619P07440 | Ball Bearing |
| 28/3 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 29 | 1619P10970 | Air-Deflector Ring |
| 3 | 1619P21037 | Armature |
| 30 | 1619P14139 | Air Distributor |
| 32 | 3603523503 | Grinding Spindle 5/8" |
| 33 | 1619P02820 | O-Ring 44,0X1,0 MM |
| 35 | 1619P02821 | Shim 0,1 MM |
| 35 | 1619P02822 | Shim 0,2 MM |
| 36 | 1619P00987 | Washer |
| 37 | 1600100033 | Cover Disc |
| 38 | 1619P02823 | Crown Gear |
| 39 | 1619P02825 | Bevel Gear |
| 4 | 160720031Y | Switch |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 47 | 2609110052 | Special Screw |
| 48 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 5 | 2604460122 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 55 | 1619P01066 | Torx Oval-Head Screw 4X25 |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 650/10 | 1602025027 | Auxiliary Handle M10 |
| 650/20 | 3603340503 | Round Nut 5/8" |
| 650/30 | 1619P08927 | Pin-Type Face-Wrench |
| 650/50 | 1605703140 | Clamping-Flange |
| 650/50/20 | 1600210253 | O-Ring |
| 651 | 1619P07575 | Protective Guard Ø 115 MM |
| 7 | 1601302017 | Fastening Clamp |
| 80 | 1619P09390 | Cover Disc |
| 808 | 1619P11059 | Nameplate |
| 810 | 1619P11715 | Carbon-Brush Set |
| 828 | 1619P07451 | Bearing Flange |
| 831 | 1619P12186 | Gear Housing |
| 840 | 1619P12188 | Push Button |
| 841 | 1600200029 | Plain bearing |
| 858 | 2910641081 | Oval-Head Screw DIN7985-M3,5X5-4.8-H |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 895 | 1605430003 | Grease Tube 225 Ml |
| 9 | 1619P11144 | Manufacturer's nameplate |
