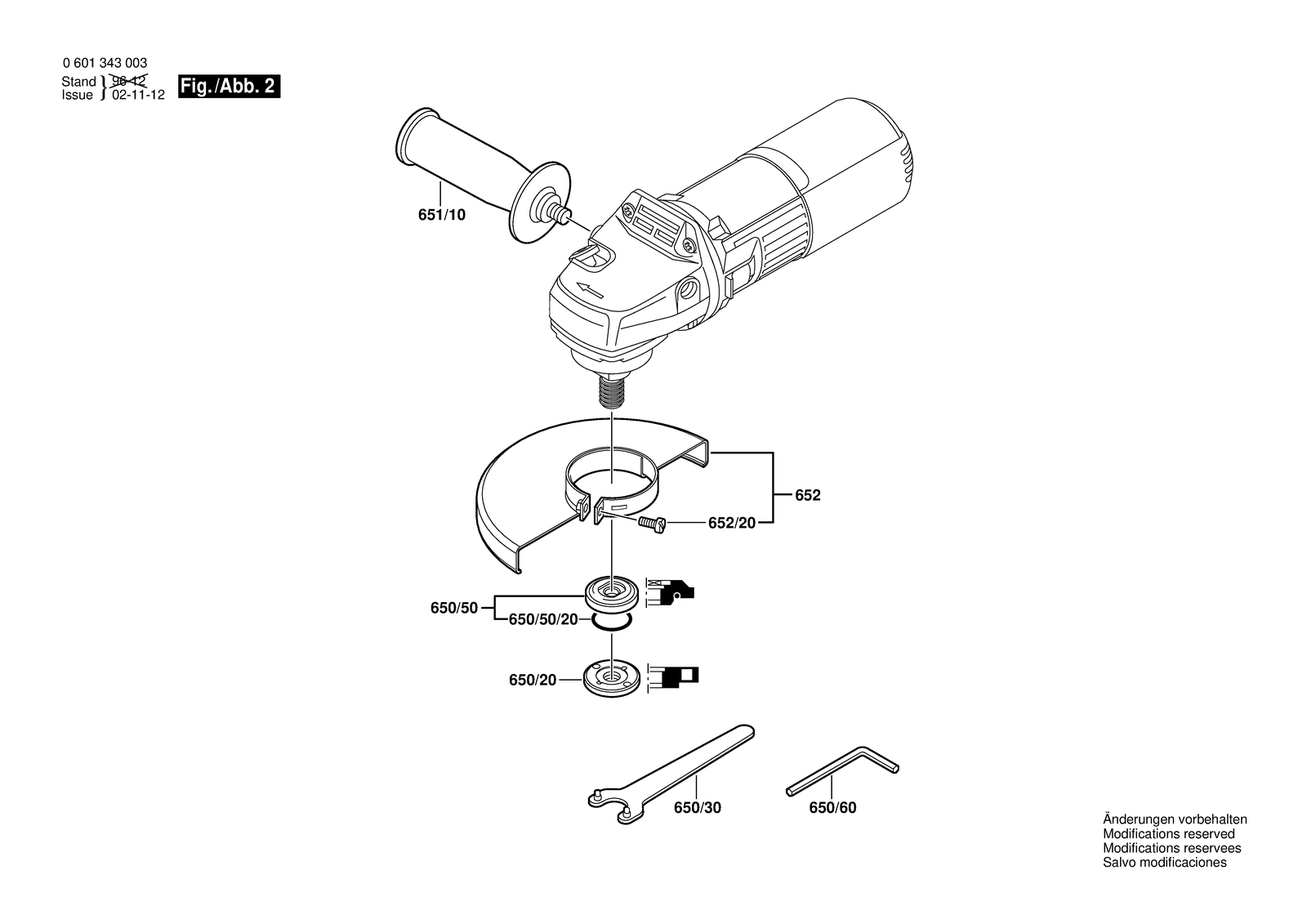

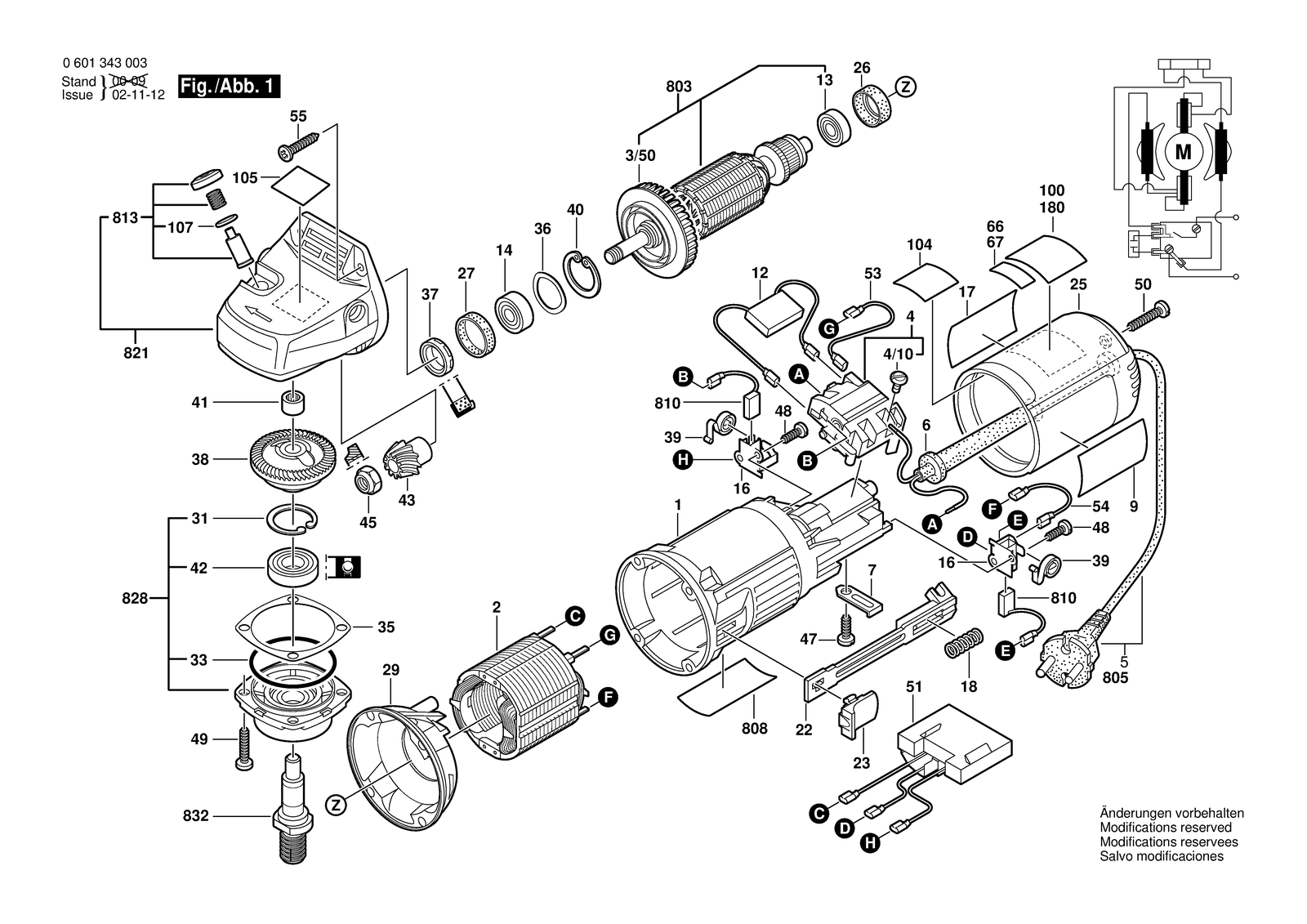

All parts of Bosch GWS 9-125 CS: 89 positions on 2 sheets
Bosch GWS 9-125 CS parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16051082CC | Motor Housing |
| 100 | 1601110378 | Reference Plate |
| 104 | 1601008003 | Insulating Plate |
| 105 | 1601110240 | Reference Plate |
| 105 | 1601110470 | Reference Plate |
| 107 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 12 | 1607328029 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1900905018 | Ball Bearing 7X22X7 |
| 16 | 1600A003G4 | Brush Holder |
| 16 | 2601323022 | Brush Holder |
| 17 | 1601110608 | Manufacturer's nameplate |
| 18 | 1604611026 | Compression Spring |
| 180 | 3601119137 | Warning Plate Caution |
| 2 | 1604220220 | Field 220-230V |
| 2 | 1604220221 | Field 100V |
| 2 | 1604220222 | Field 110-120V |
| 2 | 1604220223 | Field 240V |
| 22 | 1602319002 | Adjusting Slide |
| 23 | 1602026057 | Switch Handle Black |
| 25 | 1600508006 | Housing Cover Black |
| 26 | 1600502020 | Rubber Bushing |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1601328005 | Air-Deflector Ring |
| 3/50 | 1606610121 | Fan |
| 31 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 33 | 3600210124 | O-Ring Red 46,0X1,1 MM |
| 35 | 1600136010 | Shim Thick 0,2 MM |
| 35 | 1600136011 | Shim Thick 0,3 MM |
| 35 | 1600136012 | Shim Thick 0,1 MM |
| 36 | 1600150011 | Spring Washer |
| 37 | 1600290016 | Rotary shaft lip seal |
| 38 | 1606333601 | Crown Gear Z=36 |
| 39 | 1604652013 | Spiral Spring |
| 4 | 1607200086 | On-Off Switch |
| 4/10 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 40 | 2916660009 | Spring retaining ring DIN 472-25X1,2MM |
| 41 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 42 | 1600905006 | Groove ball bearing 12X32X10 |
| 43 | 1606333242 | Bevel Gear Z=11 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 48 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 49 | 1603435026 | Thread-forming tap. Screw |
| 5 | 1604460034 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460148 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460149 | Power supply cord J 2,5M 2 X 1,25MM Pvc |
| 5 | 1604460152 | Power supply cord I 2,65M 2 X 1,0MM H05VV-F |
| 5 | 1604460190 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05RN-F |
| 5 | 1604460205 | Power supply cord GB 110V 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 3604460049 | Power supply cord |
| 50 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 51 | 1607233013 | Speed governor 230V |
| 51 | 1607233014 | Speed governor 100V |
| 51 | 1607233015 | Speed governor 110-115V |
| 51 | 1607233016 | Speed governor 240V |
| 53 | 1604448005 | Connecting Cable White L=95 MM |
| 54 | 1604448006 | Connecting Cable White L=40 MM |
| 55 | 2912401021 | Tapping Screw DIN7981-ST3,9X22-C-Z |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 650/20 | 1603345043 | Round Nut M14 |
| 650/30 | 1607950052 | Pin-Type Face-Wrench |
| 650/50 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/50/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 650/60 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 651/10 | 1602025027 | Auxiliary Handle M10 |
| 651/10 | 160202509T | Auxiliary Handle |
| 652 | 1600A0136N | Protective Cover |
| 652/20 | 2910022197 | Socket head cap screw DIN 84-M 6X16-8.8 |
| 652/20 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 66 | 1601110449 | Nameplate Caution |
| 67 | 1601110358 | Reference Plate Caution |
| 7 | 1601302017 | Fastening Clamp |
| 803 | 1604010248 | Armature With Fan 220-230V |
| 803 | 1604010249 | Armature With Fan 100V |
| 803 | 1604010250 | Armature With Fan 110-120V |
| 803 | 1604010251 | Armature With Fan 240V |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014116 | Carbon-Brush Set |
| 810 | 1607014128 | Carbon Brush |
| 813 | 1607000253 | Push-Button Black |
| 821 | 1605806480 | Gear Housing |
| 828 | 1607000936 | Bearing Flange |
| 832 | 1607000D6A | Grinding Spindle |
| 9 | 1601110607 | Manufacturer's nameplate |
| 9 | 1601110718 | Manufacturer's nameplate |
