Bosch GWS 9-125
Bosch GWS 9-125 angle grinder: exploded parts diagram, 2 sheets, 199 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

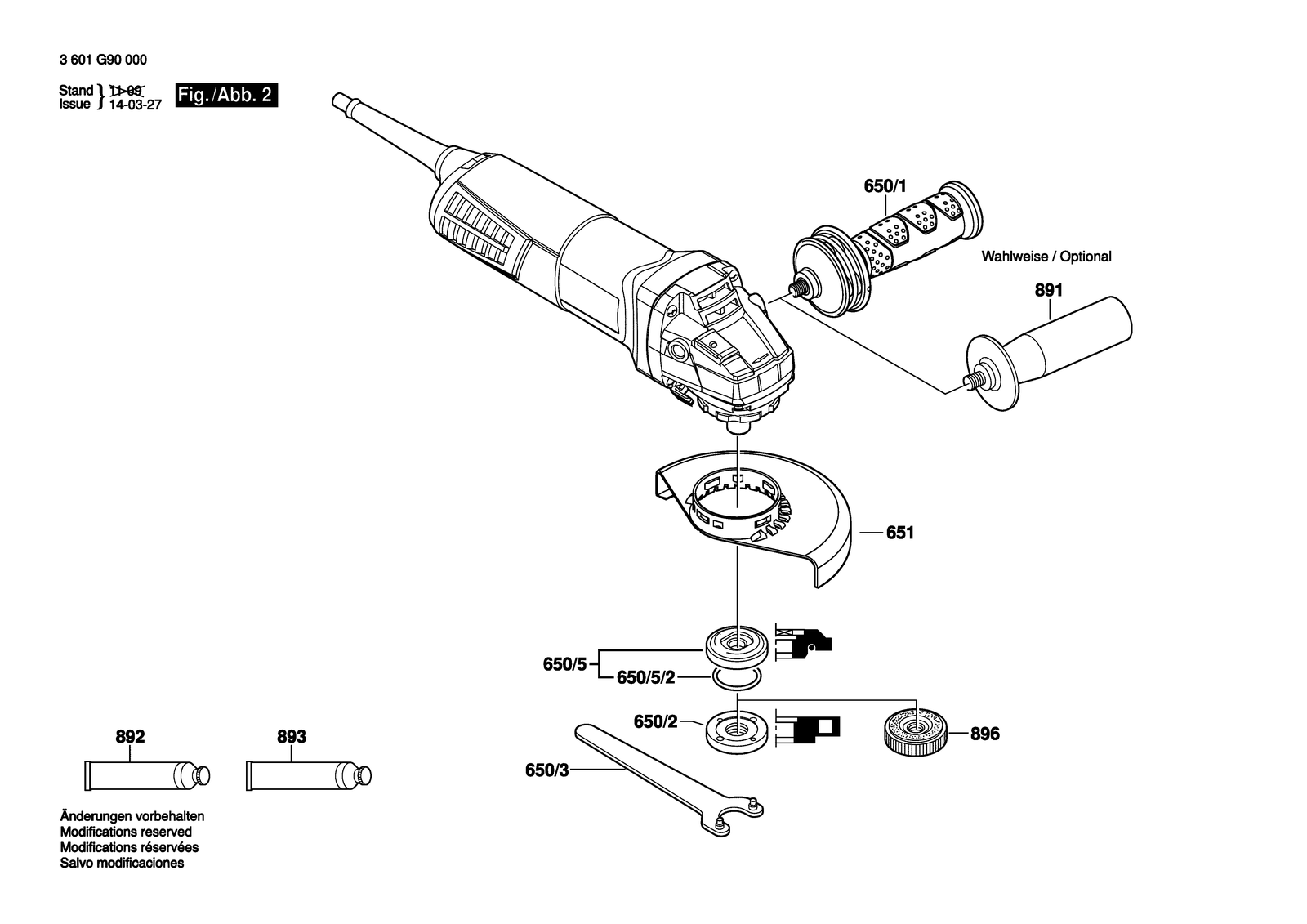

All parts of Bosch GWS 9-125: 199 positions on 2 sheets
Bosch GWS 9-125 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 105 | 1601008005 | Insulating Plate |
| 105 | 1601008005 | Insulating Plate |
| 105 | 1601008005 | Insulating Plate |
| 12 | 1607328074 | Suppression Capacitor |
| 12 | 1607328074 | Suppression Capacitor |
| 12 | 1607328074 | Suppression Capacitor |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 2 | 1604220471 | Field 110V |
| 2 | 1607000F04 | Field |
| 2 | 1607000F04 | Field |
| 2 | 1604220474 | Field 110V |
| 2 | 1607000F06 | Field |
| 24 | 1605500279 | Cover |
| 24 | 1605500279 | Cover |
| 24 | 1605500279 | Cover |
| 25 | 1605500278 | Housing Cover |
| 25 | 1605500278 | Housing Cover |
| 25 | 1605500278 | Housing Cover |
| 26 | 1600502023 | Intermediate Ring |
| 26 | 1600502023 | Intermediate Ring |
| 26 | 1600502023 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 3/13 | 2600905032 | Ball Bearing 7X19X6 |
| 3/13 | 2600905032 | Ball Bearing 7X19X6 |
| 3/13 | 2600905032 | Ball Bearing 7X19X6 |
| 30 | 1600591050 | Air Distributor |
| 30 | 1600591050 | Air Distributor |
| 30 | 1600591050 | Air Distributor |
| 301/1 | 1605108287 | Motor Housing |
| 301/1 | 1605108287 | Motor Housing |
| 301/1 | 1605108288 | Motor Housing |
| 301/17 | 1604652021 | Spiral Spring |
| 301/17 | 1604652021 | Spiral Spring |
| 301/17 | 1604652021 | Spiral Spring |
| 301/18 | 1602026088 | Switch Handle |
| 301/18 | 1602026088 | Switch Handle |
| 301/18 | 1602026088 | Switch Handle |
| 301/19 | 1604611026 | Compression Spring |
| 301/19 | 1604611026 | Compression Spring |
| 301/19 | 1604611026 | Compression Spring |
| 301/20 | 1602319010 | Adjusting Slide Black |
| 301/20 | 1602319010 | Adjusting Slide Black |
| 301/20 | 1602319011 | Adjusting Slide |
| 301/48 | 1613435034 | Lens Head Screw 3X10 St |
| 301/48 | 1613435034 | Lens Head Screw 3X10 St |
| 301/48 | 1613435034 | Lens Head Screw 3X10 St |
| 32 | 1607000D6A | Grinding Spindle |
| 32 | 1607000D6A | Grinding Spindle |
| 32 | 1607000D6A | Grinding Spindle |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 343 | 1607000742 | Catch Lever |
| 343 | 1607000742 | Catch Lever |
| 343 | 1607000742 | Catch Lever |
| 343/44 | 1604611042 | Compression Spring |
| 343/44 | 1604611042 | Compression Spring |
| 343/44 | 1604611042 | Compression Spring |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 4 | 1607200086 | On-Off Switch |
| 4 | 1607200086 | On-Off Switch |
| 4 | 1607200086 | On-Off Switch |
| 40 | 1600119011 | Retaining clip |
| 40 | 1600119011 | Retaining clip |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600200029 | Plain bearing |
| 41 | 1600200029 | Plain bearing |
| 41 | 1600200029 | Plain bearing |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 5 | 1604460205 | Power supply cord GB 110V 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460157 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460244 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 3604460062 | Power supply cord I 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460205 | Power supply cord GB 110V 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460157 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460244 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 52 | 1604448013 | Connecting Cable White L=90 MM |
| 52 | 1604448013 | Connecting Cable White L=90 MM |
| 52 | 1604448013 | Connecting Cable White L=90 MM |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 55 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 55 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 55 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 6 | 1600703043 | Grommet |
| 6 | 1600703043 | Grommet |
| 650/1 | 16020250A0 | Auxiliary Handle |
| 650/1 | 16020250A0 | Auxiliary Handle |
| 650/1 | 16020250A0 | Auxiliary Handle |
| 650/2 | 1603345043 | Round Nut M14 |
| 650/2 | 1603345043 | Round Nut M14 |
| 650/2 | 1603345043 | Round Nut M14 |
| 650/3 | 1607950052 | Pin-Type Face-Wrench |
| 650/3 | 1607950052 | Pin-Type Face-Wrench |
| 650/3 | 1607950052 | Pin-Type Face-Wrench |
| 650/5 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/5 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/5 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/5/2 | 1600210039 | O-Ring 20,35X1,78 MM |
| 650/5/2 | 1600210039 | O-Ring 20,35X1,78 MM |
| 650/5/2 | 1600210039 | O-Ring 20,35X1,78 MM |
| 651 | 1600A00XK8 | Protective Cover 115 MM |
| 651 | 1600A025XR | Protective Cover |
| 651 | 1600A025XR | Protective Cover |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1601302017 | Fastening Clamp |
| 80 | 1619P09390 | Cover Disc |
| 80 | 1619P09390 | Cover Disc |
| 80 | 1619P09390 | Cover Disc |
| 803 | 1607000V49 | Armature With Fan 230V |
| 803 | 1607000V50 | Armature With Fan 110V |
| 803 | 1607000V49 | Armature With Fan 230V |
| 803 | 1607000V51 | Armature With Fan 230V |
| 803 | 1607000V52 | Armature With Fan 110V |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 806 | 1600703043 | Grommet |
| 806 | 1600703043 | Grommet |
| 806 | 1600703043 | Grommet |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607000V53 | Carbon-Brush Set |
| 810 | 1607000V53 | Carbon-Brush Set |
| 810 | 1607000V53 | Carbon-Brush Set |
| 816 | 1607000V54 | Brush Holder |
| 816 | 1607000V54 | Brush Holder |
| 816 | 1607000V54 | Brush Holder |
| 818 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 818 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 818 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 821 | 1607000V55 | Gear Housing |
| 821 | 1607000V55 | Gear Housing |
| 821 | 1607000V55 | Gear Housing |
| 828 | 1607000D6C | Bearing Flange |
| 828 | 1607000D6C | Bearing Flange |
| 828 | 1607000D6C | Bearing Flange |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 835 | 1606610132 | Fan |
| 835 | 1606610132 | Fan |
| 835 | 1606610132 | Fan |
| 838 | 1607000D4Y | Gear Unit |
| 838 | 1607000D4Y | Gear Unit |
| 838 | 1607000D4Y | Gear Unit |
| 840 | 1607000V41 | Push-Button |
| 840 | 1607000V41 | Push-Button |
| 840 | 1607000V41 | Push-Button |
| 891 | 160202509T | Auxiliary Handle |
| 891 | 160202509T | Auxiliary Handle |
| 891 | 160202509T | Auxiliary Handle |
| 892 | 1605430003 | Grease Tube 225 Ml |
| 892 | 1605430003 | Grease Tube 225 Ml |
| 893 | 1615430020 | Grease Tube 225 Ml |
| 893 | 1615430020 | Grease Tube 225 Ml |
| 896 | 1600A016PP | Fast Locking Flange |
| 896 | 1600A016PP | Fast Locking Flange |
| 896 | 1600A016PP | Fast Locking Flange |
| 9 | 1601118L02 | Manufacturer's nameplate GWS 9-115 |
| 9 | 1601118L03 | Manufacturer's nameplate |
| 9 | 1601118L04 | Manufacturer's nameplate GWS 11-125 |
