Bosch GWS 9-115
Bosch GWS 9-115 angle grinder: exploded parts diagram, 2 sheets, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

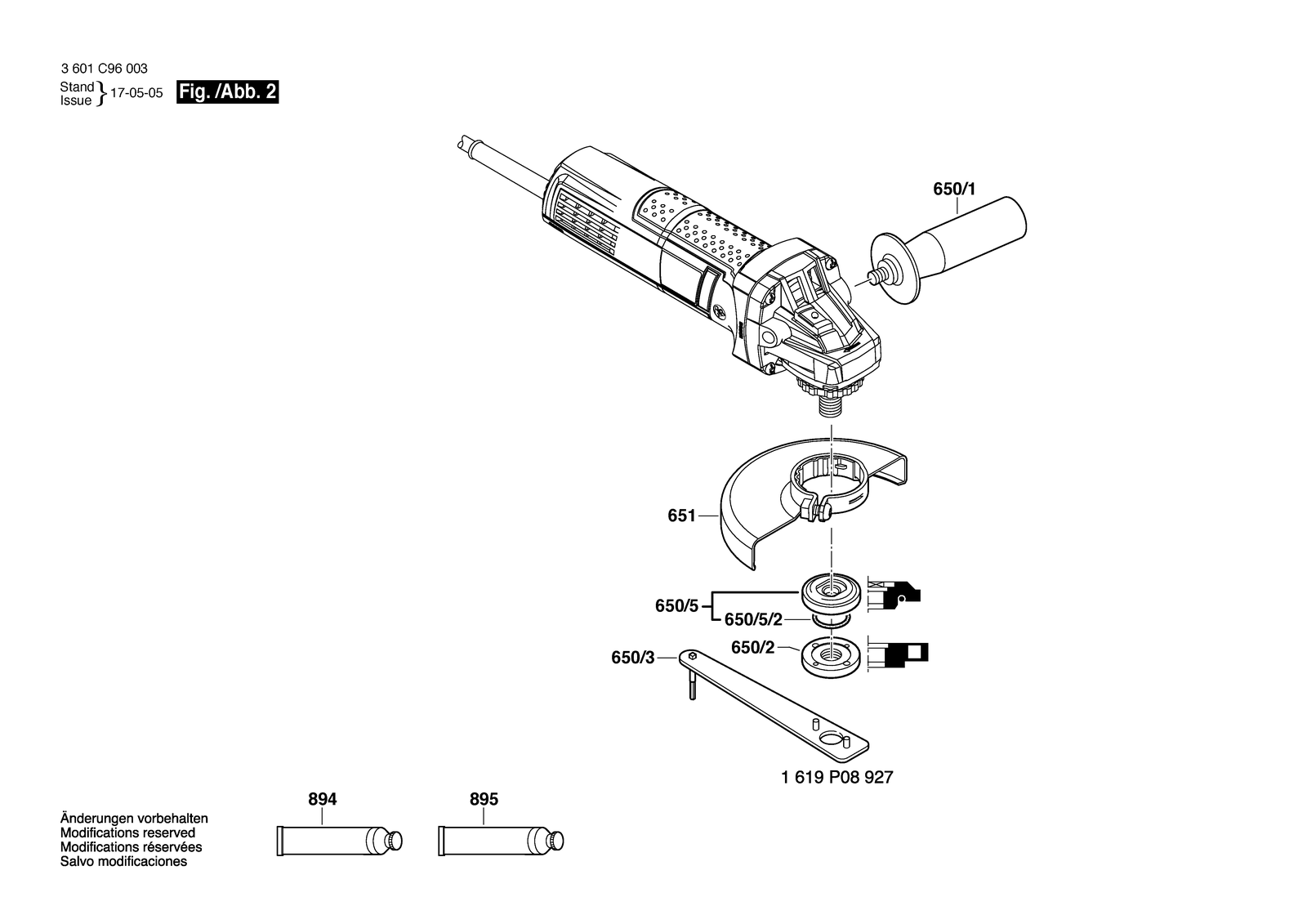

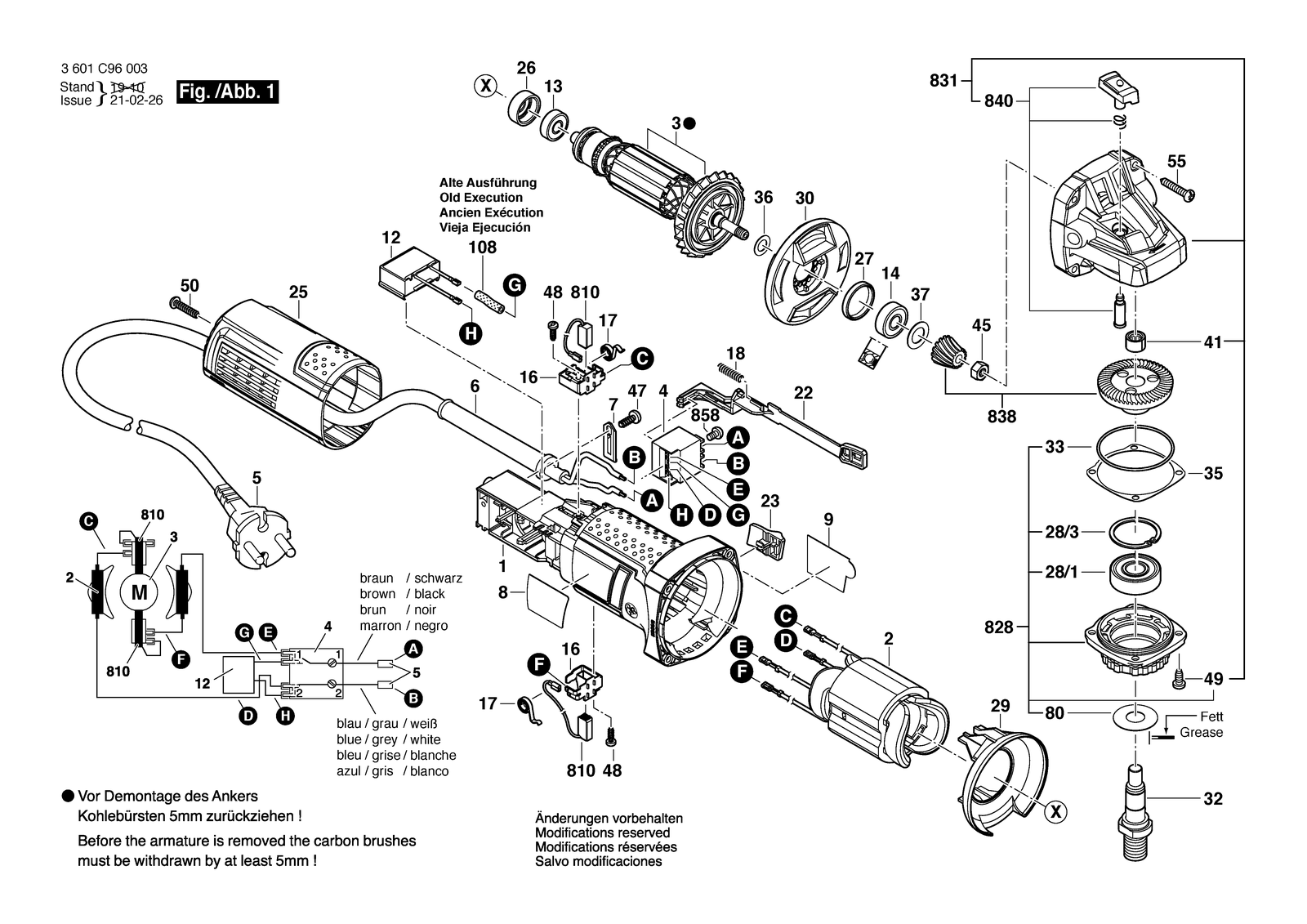

All parts of Bosch GWS 9-115: 58 positions on 2 sheets
Bosch GWS 9-115 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P10959 | Motor Housing |
| 108 | 1619P02866 | Shrinkable Tube |
| 12 | 1619P15041 | Suppression Filter |
| 13 | 1619P08829 | Groove ball bearing |
| 14 | 1619P13103 | Groove ball bearing |
| 16 | 1619P01811 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1619P11487 | Compression Spring |
| 2 | 160422059G | Field |
| 22 | 1619P10968 | Adjusting Slide |
| 23 | 1619P10969 | Switch Button |
| 25 | 1619P13558 | Housing Cover |
| 26 | 1600502023 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 28/1 | 1619P07440 | Ball Bearing |
| 28/3 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 29 | 1619P10970 | Air-Deflector Ring |
| 3 | 1604010BN1 | Armature |
| 30 | 1619P14139 | Air Distributor |
| 32 | 1619P06419 | Grinding Spindle M 14, SW 17 |
| 33 | 1619P02820 | O-Ring 44,0X1,0 MM |
| 35 | 1619P02821 | Shim 0,1 MM |
| 35 | 1619P02822 | Shim 0,2 MM |
| 36 | 1619P00987 | Washer |
| 37 | 1600100033 | Cover Disc |
| 4 | 1607200326 | Switch |
| 41 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 47 | 2609110052 | Special Screw |
| 48 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 5 | 1604460312 | Power supply cord EU 2,65M 2 X 0,75MM H05 W-f |
| 5 | 16044607AC | Power supply cord |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 55 | 1619P01066 | Torx Oval-Head Screw 4X25 |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 650/1 | 160202509T | Auxiliary Handle |
| 650/2 | 1603345043 | Round Nut M14 |
| 650/3 | 1619P08927 | Pin-Type Face-Wrench |
| 650/5 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/5/2 | 1600210039 | O-Ring 20,35X1,78 MM |
| 651 | 1600A00XU6 | Protective Cover Silver Ø115 MM |
| 651 | 1600A00XU7 | Protective Cover Silver Ø125 MM |
| 7 | 1601302017 | Fastening Clamp |
| 8 | 1619P31872 | Nameplate |
| 8 | 1619P31873 | Nameplate |
| 8 | 1619P31882 | Nameplate |
| 80 | 1619P09390 | Cover Disc |
| 810 | 1619P11715 | Carbon-Brush Set |
| 828 | 1619P07451 | Bearing Flange |
| 831 | 1619P12186 | Gear Housing |
| 838 | 1619P14111 | Set Of Gears |
| 840 | 1619P12188 | Push Button |
| 858 | 2910641081 | Oval-Head Screw DIN7985-M3,5X5-4.8-H |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 895 | 1605430003 | Grease Tube 225 Ml |
| 9 | 1619P11142 | Manufacturer's nameplate GWS 9-115 |
| 9 | 1619P11146 | Manufacturer's nameplate GWS 9-125 |
