Bosch GWS 800

Bosch GWS 800 angle grinder: exploded parts diagram, 2 sheets, 45 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 800: 45 positions on 2 sheets

Bosch GWS 800 parts list (2 sheets)

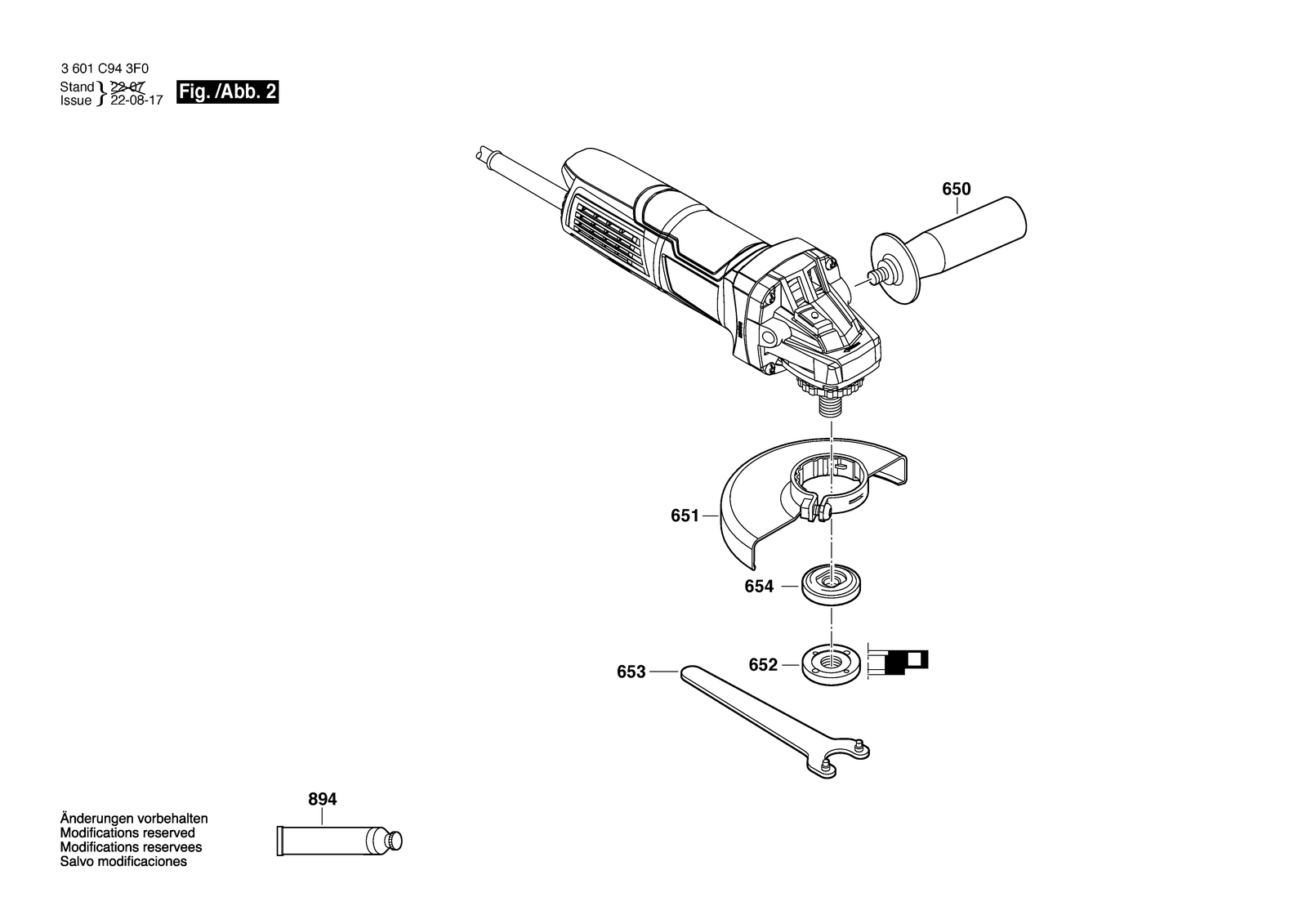

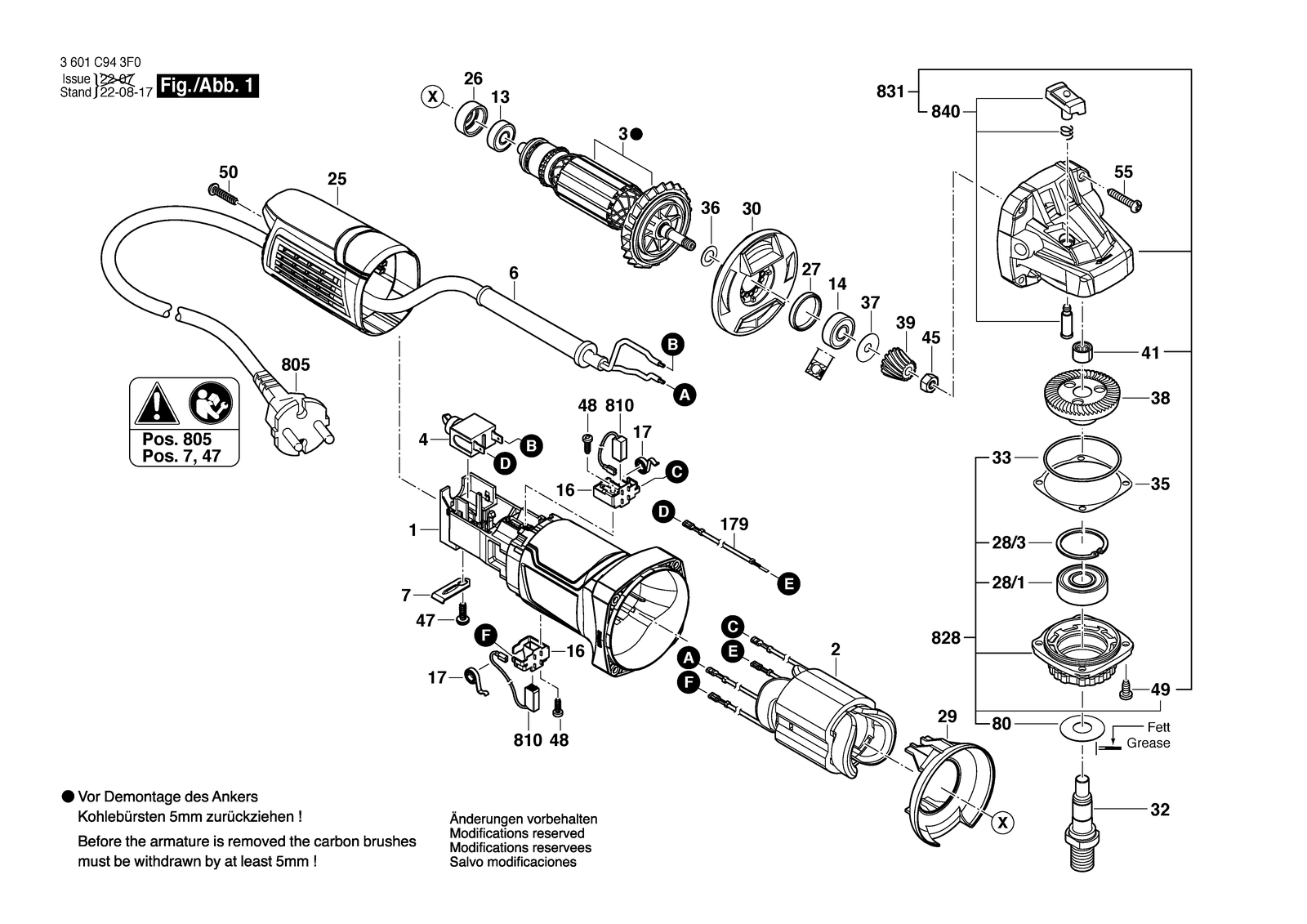

Bosch GWS 800 parts diagram, sheet 1Bosch GWS 800 parts diagram, sheet 2
No.Part numberPart name
11619P10962Motor Housing
131619P14660Groove ball bearing
141619P13103Groove ball bearing
161619P01811Brush Holder
171604652013Spiral Spring
1791619P11856Connection Cable
2160422059EField
251619P10966Housing Cover
261600502023Intermediate Ring
271600206025Rubber Ring
28/11619P07440Ball Bearing
28/32916660013Retaining clip DIN 472-32X1,2 MM
291619P10970Air-Deflector Ring
31604010BN7Armature
301619P14139Air Distributor
321603523111Grinding Spindle M10, SW12
331619P02820O-Ring 44,0X1,0 MM
351619P02821Shim 0,1 MM
351619P02822Shim 0,2 MM
361619P00987Washer
371600100033Cover Disc
381619P02823Crown Gear
391619P02825Bevel Gear
4160720038GSwitch
411600200029Plain bearing
452915011007Hex Nut DIN 934-M6-8-A
472609110052Special Screw
481619P00220Torx Oval-Head Screw 3X10
491619P12666Thread-forming tap. Screw
501619P00105Torx Oval-Head Screw 4X20
551619P01066Torx Oval-Head Screw 4X25
6F002G31081Grommet
650F002G30042Auxiliary Handle
6511600A00XU5Protective Cover Silver Ø100 MM
6521619P09976Round Nut With 2 Holes
6531600A00F93Pin-Type Face-Wrench
6541619P12159Clamping-Flange Ø22,3XØ42 MM
71601302017Fastening Clamp
801619P09390Cover Disc
80516044607A4Power supply cord
8101619P11715Carbon-Brush Set
8281619P07451Bearing Flange
8311619P12186Gear Housing
8401619P12188Push Button
8941615430020Grease Tube 225 Ml
