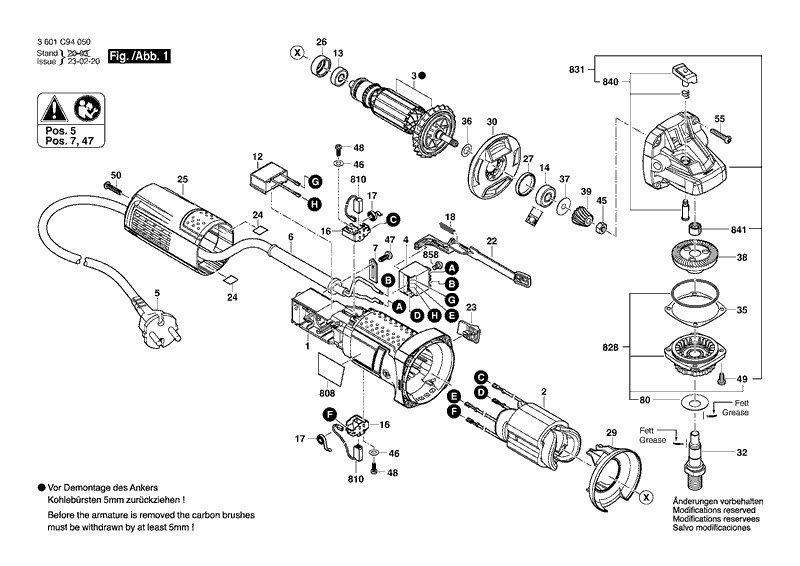

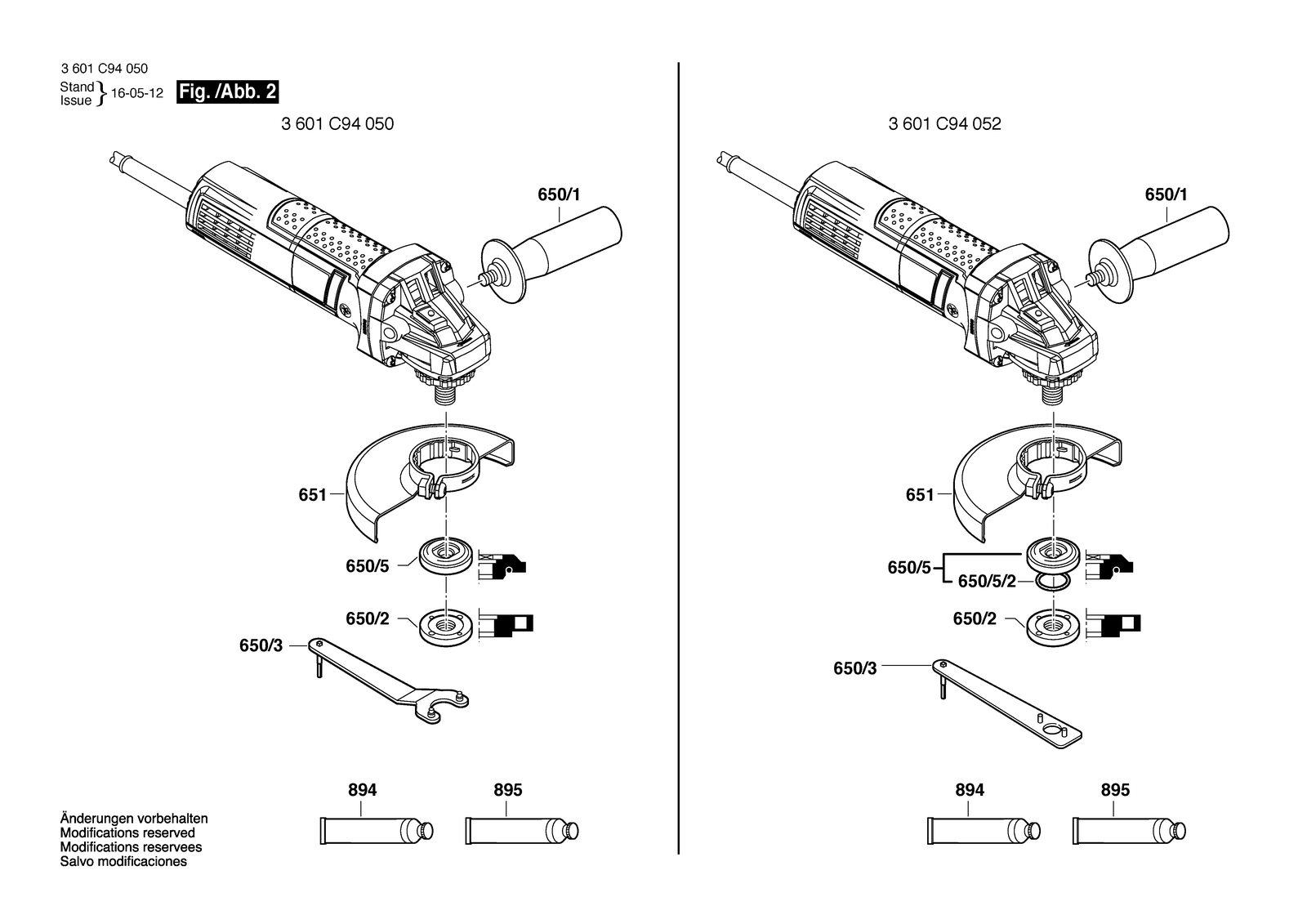

Bosch GWS 750 angle grinder: exploded parts diagram, 2 sheets, 57 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 750: 57 positions on 2 sheets
Bosch GWS 750 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P10958 | Motor Housing |
| 12 | 1619P15040 | Suppression Filter |
| 13 | 1619P14660 | Groove ball bearing |
| 14 | 1619P13103 | Groove ball bearing |
| 16 | 1619P01811 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1619P11487 | Compression Spring |
| 2 | 1619P10948 | Field 127V |
| 22 | 1619P10967 | Adjusting Slide |
| 23 | 1619P10969 | Switch Button |
| 24 | 1619P14145 | Housing Cover |
| 25 | 1619P10963 | Housing Cover |
| 26 | 1600502023 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1619P10970 | Air-Deflector Ring |
| 3 | 1604010BN0 | Armature |
| 3 | 1619P10947 | Armature |
| 30 | 1619P14139 | Air Distributor |
| 32 | 1603523111 | Grinding Spindle M10, SW12 |
| 32 | 1619P06419 | Grinding Spindle M 14, SW 17 |
| 35 | 1619P02821 | Shim 0,1 MM |
| 35 | 1619P02822 | Shim 0,2 MM |
| 36 | 1619P00987 | Washer |
| 37 | 1600100033 | Cover Disc |
| 38 | 1619P02823 | Crown Gear |
| 39 | 1619P02825 | Bevel Gear |
| 4 | 160720031Y | Switch |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 46 | 1619P13814 | Shim |
| 47 | 2609110052 | Special Screw |
| 48 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 49 | 1619P12666 | Thread-forming tap. Screw |
| 5 | 1604460275 | Power supply cord J 2,5M 2 X 1,25MM Pvc |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 55 | 1619P01066 | Torx Oval-Head Screw 4X25 |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 650/1 | 160202509T | Auxiliary Handle |
| 650/2 | 1603345043 | Round Nut M14 |
| 650/2 | 1619P09976 | Round Nut With 2 Holes |
| 650/3 | 1619P08927 | Pin-Type Face-Wrench |
| 650/3 | 1619P08928 | Pin-Type Face-Wrench |
| 650/5 | 1605703112 | Clamping-Flange Ø15/20 MM |
| 650/5 | 1605703117 | Clamping-Flange Ø22XØ42 Mm+o-Ring |
| 650/5/2 | 1600210039 | O-Ring 20,35X1,78 MM |
| 651 | 1600A00XU5 | Protective Cover Silver Ø100 MM |
| 651 | 1600A00XU7 | Protective Cover Silver Ø125 MM |
| 7 | 1619P00499 | Fastening Clamp |
| 80 | 1619P09390 | Cover Disc |
| 808 | 1619P17532 | Nameplate |
| 810 | 1619P11715 | Carbon-Brush Set |
| 828 | 1619P07452 | Bearing Flange |
| 831 | 1619P12186 | Gear Housing |
| 840 | 1619P12188 | Push Button |
| 841 | 1600200029 | Plain bearing |
| 858 | 2910641081 | Oval-Head Screw DIN7985-M3,5X5-4.8-H |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 895 | 1605430003 | Grease Tube 225 Ml |
