Bosch GWS 720

Bosch GWS 720 angle grinder: exploded parts diagram, 2 sheets, 100 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 720: 100 positions on 2 sheets

Bosch GWS 720 parts list (2 sheets)

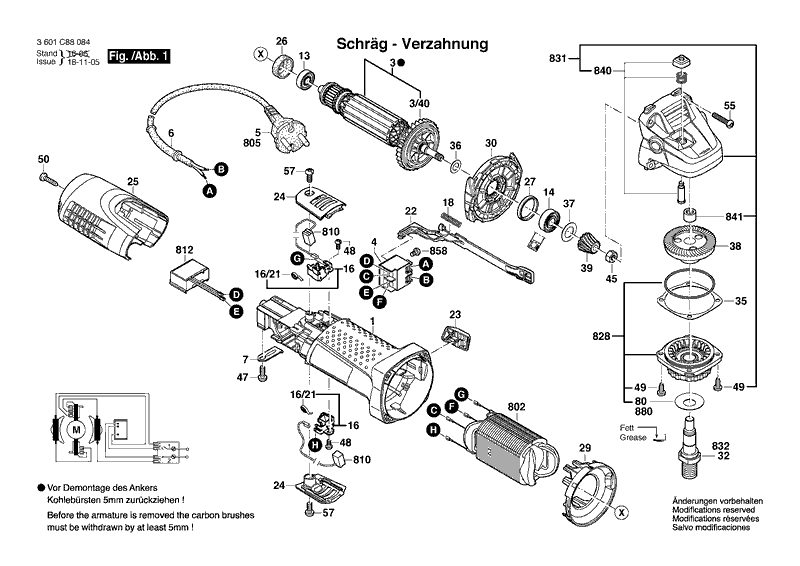

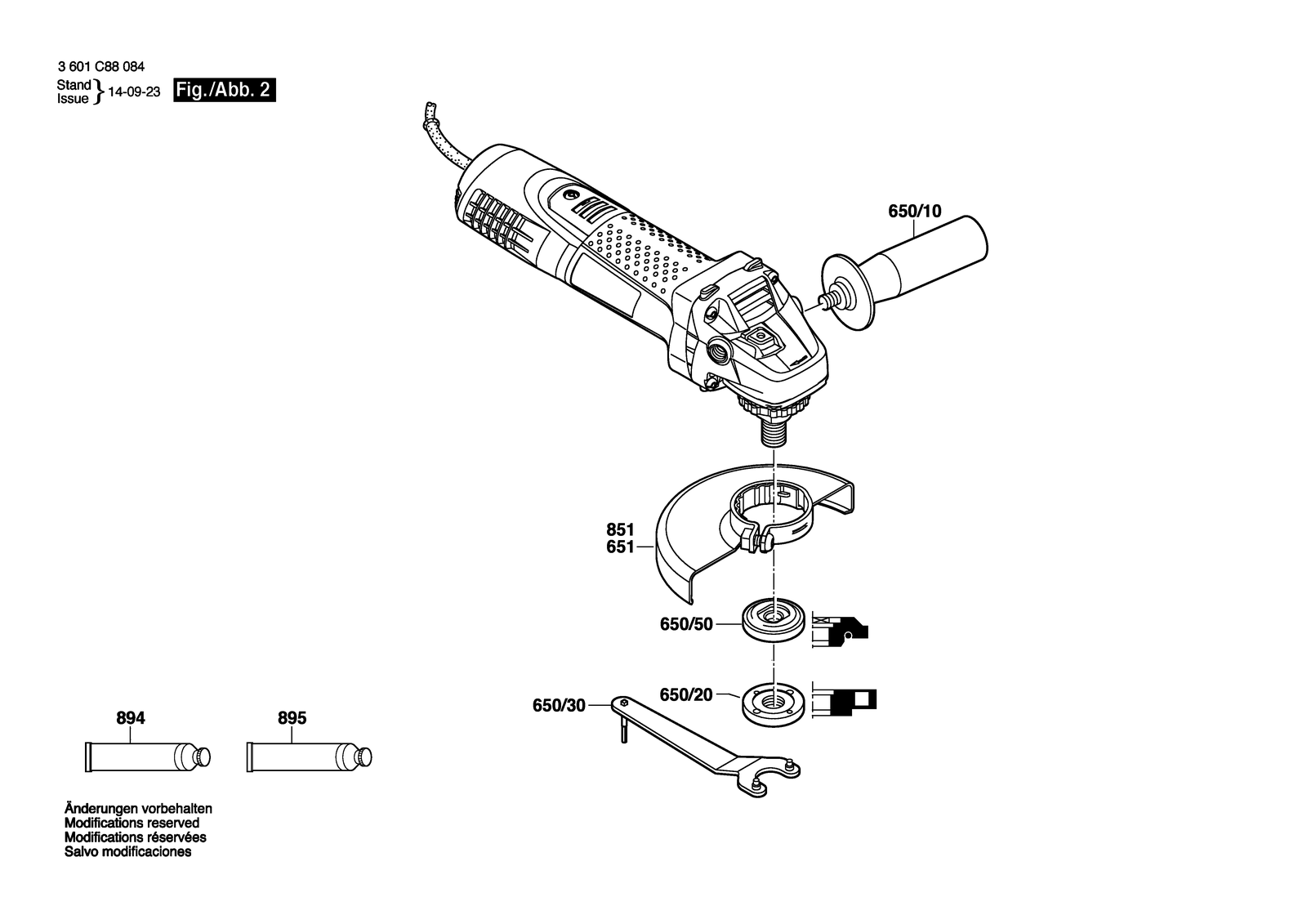

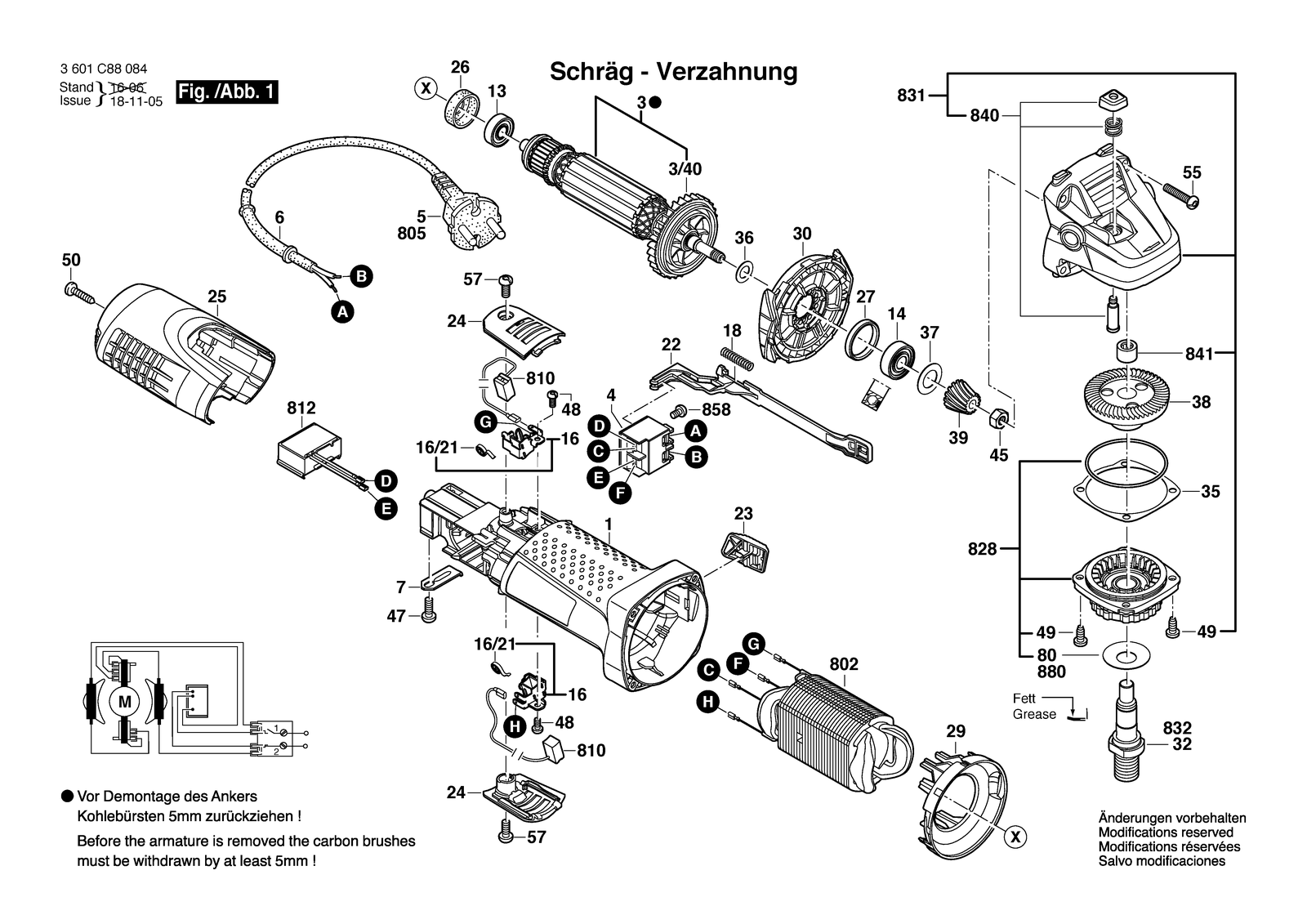

Bosch GWS 720 parts diagram, sheet 1Bosch GWS 720 parts diagram, sheet 2
No.Part numberPart name
11619P09415Motor Housing
11619P09415Motor Housing
131619P00456Ball Bearing 7X19X6 MM
131619P00456Ball Bearing 7X19X6 MM
141619P00455Ball Bearing
141619P00455Ball Bearing
161619P02845Brush Holder
161619P02845Brush Holder
16/211619P02809Spiral Spring
16/211619P02809Spiral Spring
181604611031Compression Spring
181604611031Compression Spring
221619P02811Adjusting Slide
221619P02811Adjusting Slide
231619P10838Switch Button
231619P10838Switch Button
241619P02828Brush-Cover
241619P02828Brush-Cover
251619P02843Housing Cover
251619P02843Housing Cover
261600502023Intermediate Ring
261600502023Intermediate Ring
271600206025Rubber Ring
271600206025Rubber Ring
291619P02818Air-Deflector Ring
291619P02818Air-Deflector Ring
31604010BK2Armature
31604010BK2Armature
3/401619P02801Fan
3/401619P02801Fan
301619P02819Air Distributor
301619P02819Air Distributor
321619P20124Grinding Spindle
321619P20124Grinding Spindle
351619P02821Shim 0,1 MM
351619P02822Shim 0,2 MM
351619P02821Shim 0,1 MM
351619P02822Shim 0,2 MM
361619P00987Washer
361619P00987Washer
371600100033Cover Disc
371600100033Cover Disc
381619P02823Crown Gear
381619P02823Crown Gear
391619P02825Bevel Gear
391619P02825Bevel Gear
41607200146Switch
41607200146Switch
452915011007Hex Nut DIN 934-M6-8-A
452915011007Hex Nut DIN 934-M6-8-A
472609110052Special Screw
472609110052Special Screw
481619P02849Torx Oval-Head Screw 3X8
481619P02849Torx Oval-Head Screw 3X8
491603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
491603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
51604460263Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
51604460263Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
501619P00105Torx Oval-Head Screw 4X20
501619P00105Torx Oval-Head Screw 4X20
551619P01066Torx Oval-Head Screw 4X25
551619P01066Torx Oval-Head Screw 4X25
571619P02848Torx Oval-Head Screw 4X12
571619P02848Torx Oval-Head Screw 4X12
62600703012Grommet Ø6,5-Ø6,9X95 MM
62600703012Grommet Ø6,5-Ø6,9X95 MM
650/101619P10681Auxiliary Handle
650/101619P10681Auxiliary Handle
650/201619P09976Round Nut With 2 Holes
650/201619P09976Round Nut With 2 Holes
650/301619P08928Pin-Type Face-Wrench
650/301619P08928Pin-Type Face-Wrench
650/501605703113Clamping-Flange M10, 16-20 MM
650/501605703113Clamping-Flange M10, 16-20 MM
6511600A00XU5Protective Cover Silver Ø100 MM
6511600A00XU5Protective Cover Silver Ø100 MM
71601302017Fastening Clamp
71601302017Fastening Clamp
801619P09390Cover Disc
801619P09390Cover Disc
8021619P07239Field 220-230V
8021619P07239Field 220-230V
8101619P02870Carbon-Brush Set
8101619P02870Carbon-Brush Set
8121619P07240Suppression Capacitor
8121619P07240Suppression Capacitor
8281619P07452Bearing Flange
8281619P07452Bearing Flange
8311619P02872Gear Housing
8311619P02872Gear Housing
8401619P02873Push-Button
8401619P02873Push-Button
8411600910018Needle bearing Ø8XØ12X8 MM
8411600910018Needle bearing Ø8XØ12X8 MM
8582910641081Oval-Head Screw DIN7985-M3,5X5-4.8-H
8582910641081Oval-Head Screw DIN7985-M3,5X5-4.8-H
8941615430020Grease Tube 225 Ml
8941615430020Grease Tube 225 Ml
8951605430003Grease Tube 225 Ml
8951605430003Grease Tube 225 Ml
