Bosch GWS 7-115
Bosch GWS 7-115 angle grinder: exploded parts diagram, 2 sheets, 89 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

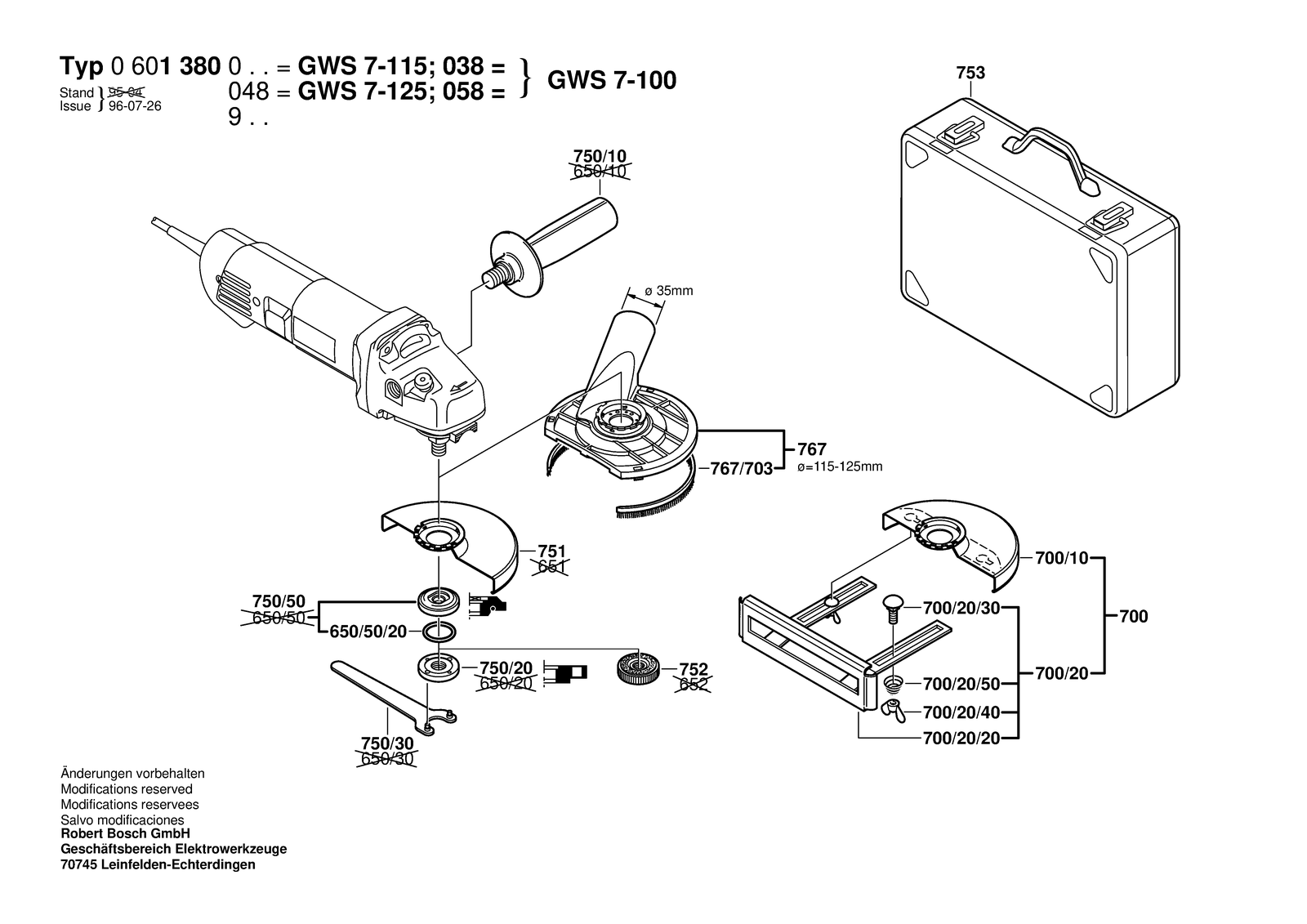

All parts of Bosch GWS 7-115: 89 positions on 2 sheets
Bosch GWS 7-115 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108161 | Motor Housing Blue |
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 16 | 1604336030 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1602319013 | Switch-Pawl Black |
| 19 | 1604611024 | Compression Spring |
| 2 | 1604220305 | Field 100V |
| 2 | 1604220458 | Field |
| 2 | 1604220586 | Field |
| 20 | 1602319007 | Shift-Lever Knob Black |
| 21 | 1605806451 | Gear Housing |
| 25 | 1605500169 | Housing Cover Blue |
| 26 | 1600206036 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591013 | Air-Deflector Ring |
| 3/50 | 1606610129 | Fan |
| 30 | 1600591014 | Air-Deflector Ring |
| 31 | 1601290007 | Clamping Spring |
| 32 | 1603523098 | Grinding Spindle M10, SW12 |
| 32 | 1607000D6A | Grinding Spindle |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 37 | 1600290016 | Rotary shaft lip seal |
| 4 | 1607200120 | Switch |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 49 | 1603435026 | Thread-forming tap. Screw |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460134 | Power supply cord J 4,2M 2 X 1,25MM Gummi |
| 5 | 1604460171 | Power supply cord It/br 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460190 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05RN-F |
| 5 | 1604460205 | Power supply cord GB 110V 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460400 | Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F |
| 50 | 1603435037 | Plastic-Cutting Screw |
| 55 | 1603415005 | Oval-Head Screw |
| 56 | 1603435044 | Plastic-Cutting Screw |
| 57 | 1603429002 | Socket head cap screw M3,5X7 MM |
| 6 | 1600703030 | Grommet Ø6,4-Ø7,2X67 MM |
| 6 | 1600703031 | Grommet Ø7,3-Ø8,6X67 MM |
| 6 | 1600703032 | Grommet Ø8,7-Ø9,5X67 MM |
| 650/50/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 7 | 1601302017 | Fastening Clamp |
| 700 | 2607001188 | Parts Set Ø 125 MM |
| 700 | 2607001189 | Guide Block |
| 700/10 | 2605510101 | Protective Cover Ø 125MM |
| 700/10 | 2605510102 | Protective Cover Ø 115MM |
| 700/20 | 1608135004 | Guide Block |
| 700/20/30 | 2910281158 | Round-Head Bolt DIN 603-M 5X16 |
| 700/20/40 | 2915191105 | Wing Nut M 5 DIN 315-G-5 |
| 700/20/50 | 1604643004 | Compression Spring |
| 750/10 | 160202509T | Auxiliary Handle |
| 750/20 | 1603340016 | Round Nut M10 |
| 750/20 | 1603340040 | Clamping Nut M14 |
| 750/30 | 1607950040 | Pin-Type Face-Wrench |
| 750/30 | 1607950043 | Pin-Type Face-Wrench |
| 750/50 | 1600501067 | Clamping-Flange Ø10,1XØ3 MM |
| 750/50 | 1605703099 | Clamping-Flange Ø22,2X42 MM |
| 751 | 2605510104 | Protective Cover Silver Ø 125MM |
| 751 | 2605510105 | Protective Cover Silver Ø 115MM |
| 752 | 1600A016PP | Fast Locking Flange |
| 753 | 1605438089 | Carrying Case |
| 767 | 2605510107 | Suction Hood Ø115-125MM |
| 767/703 | 2605730036 | Brush |
| 80 | 1619P09390 | Cover Disc |
| 803 | 1604010478 | Armature With Fan 100V |
| 803 | 1604010479 | Armature With Fan 100-115V |
| 803 | 1604010623 | Armature 230-240V |
| 804 | 1607200120 | Switch |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014176 | Carbon-Brush Set |
| 816 | 1604336030 | Brush Holder |
| 821 | 1605806451 | Gear Housing |
| 821/010 | 1607000253 | Push-Button Black |
| 828 | 1605805079 | Bearing Flange Black |
| 838 | 1607000D4Y | Gear Unit |
| 9 | 1601110917 | Manufacturer's nameplate |
| 9 | 1601118141 | Manufacturer's nameplate |
| 9 | 1601118142 | Manufacturer's nameplate |
| 9 | 1601118143 | Manufacturer's nameplate |
| 9 | 3601119137 | Warning Plate Caution |
