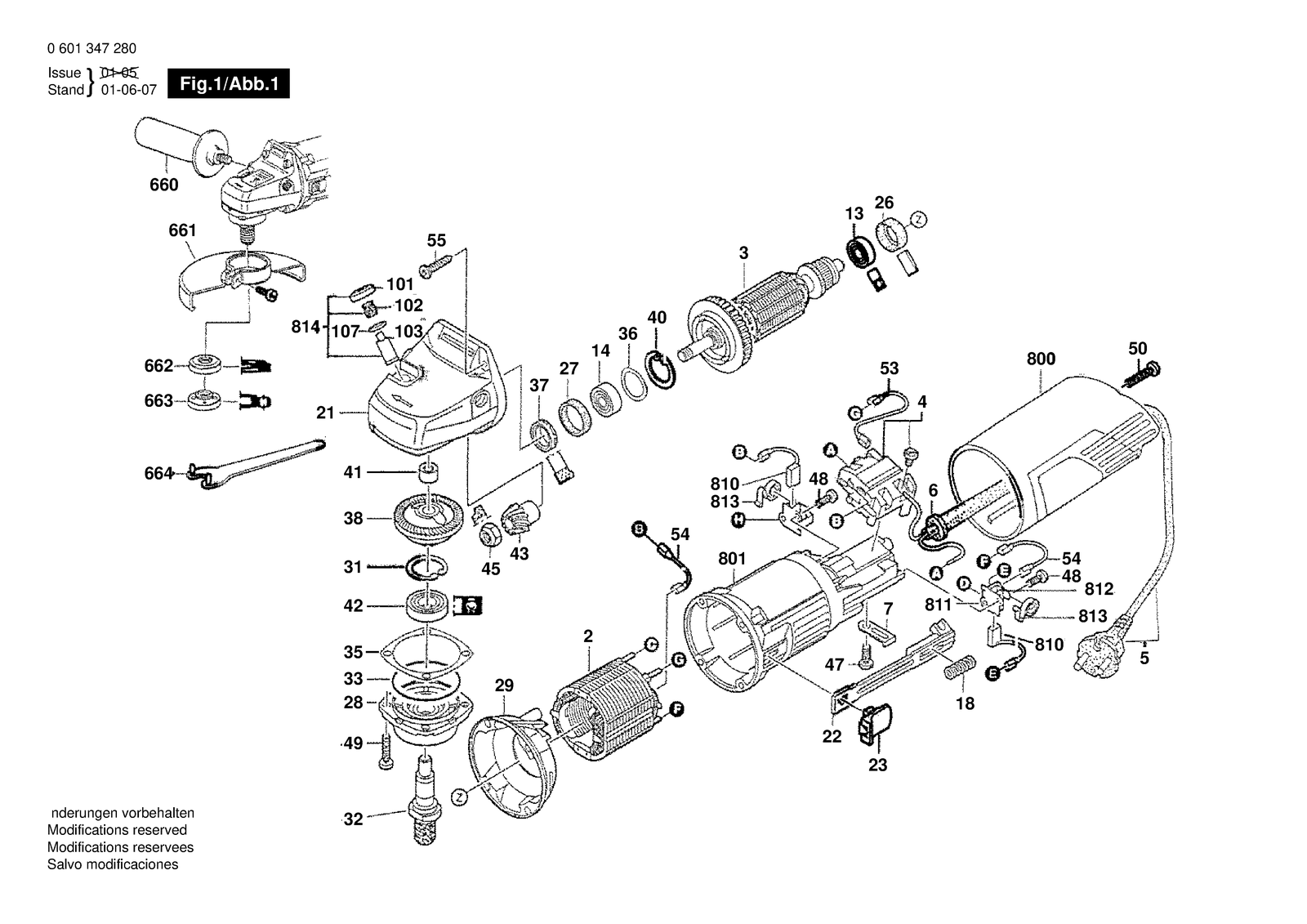

Bosch GWS 7-115 angle grinder: exploded parts diagram, 1 sheet, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 7-115: 58 positions on 1 sheet
Bosch GWS 7-115 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | F000635039 | Push-Button |
| 102 | 1604611025 | Compression Spring |
| 103 | 1603123031 | Detent Pin |
| 107 | 1600210034 | O-Ring 4,0X1,0 MM |
| 13 | 1600900024 | Groove ball bearing DIN 607-2Z-C3 |
| 14 | 1900905029 | Ball Bearing 8X22X7 |
| 18 | 1604611026 | Compression Spring |
| 2 | F000600056 | Pole Shoe 127V |
| 2 | F000600060 | Pole Shoe 220V |
| 21 | F000635465 | Gear Housing |
| 22 | 1602319002 | Adjusting Slide |
| 23 | 1602026057 | Switch Handle Black |
| 26 | 1600502020 | Rubber Bushing |
| 27 | 1600206025 | Rubber Ring |
| 28 | F000635317 | Bearing Flange |
| 29 | 1601328005 | Air-Deflector Ring |
| 3 | F000600057 | Armature 127V |
| 3 | F000600061 | Armature 220V |
| 31 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 32 | 1607000D6A | Grinding Spindle |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 35 | 1600136010 | Shim Thick 0,2 MM |
| 35 | 1600136011 | Shim Thick 0,3 MM |
| 35 | 1600136012 | Shim Thick 0,1 MM |
| 36 | 1600150011 | Spring Washer |
| 37 | 1600290016 | Rotary shaft lip seal |
| 38 | 1606333601 | Crown Gear Z=36 |
| 4 | 1607200086 | On-Off Switch |
| 40 | 2916660009 | Spring retaining ring DIN 472-25X1,2MM |
| 41 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 42 | 1900905275 | Groove ball bearing |
| 43 | 1606333242 | Bevel Gear Z=11 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2910211218 | Tapping Screw DIN 7971-ST3,9X13-C |
| 48 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 49 | 9618086615 | Socket head cap screw M 4X12 MM |
| 5 | F000609051 | Power supply cord LAM 2,00M 2 X 0,75MM H05 Vvf |
| 5 | F000609071 | Power supply cord BR 2,00M 2 X 0,75MM H05 Vvf |
| 5 | F000609073 | Power supply cord SAM 2,00M 2 X 1,00MM H05 Vvf |
| 5 | F000609188 | Power supply cord AR 2,00M 2 X 0,75MM H05 Vvf |
| 50 | 9618087100 | Tapping Screw 4X20 MM |
| 53 | 9618086927 | Connecting Cable |
| 54 | 9618086928 | Connecting Cable |
| 55 | 9618087100 | Tapping Screw 4X20 MM |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 660 | 1602025026 | Auxiliary Handle M10 |
| 661 | 1605510118 | Protective Cover Ø 115 MM (4 1/2") |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 663 | 1603345043 | Round Nut M14 |
| 664 | 1619P08927 | Pin-Type Face-Wrench |
| 7 | 1601302017 | Fastening Clamp |
| 800 | F000600101 | Housing Cover |
| 801 | F000600044 | Motor Housing |
| 810 | F000611029 | Carbon-Brush Set |
| 811 | F000612048 | Brush Holder |
| 813 | 1604652013 | Spiral Spring |
| 814 | 1607000162 | Parts Set |
