Bosch GWS 6-115

Bosch GWS 6-115 un-hd eltrn.angle grinder: exploded parts diagram, 1 sheet, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 6-115: 49 positions on 1 sheet

Bosch GWS 6-115 parts list (1 sheet)

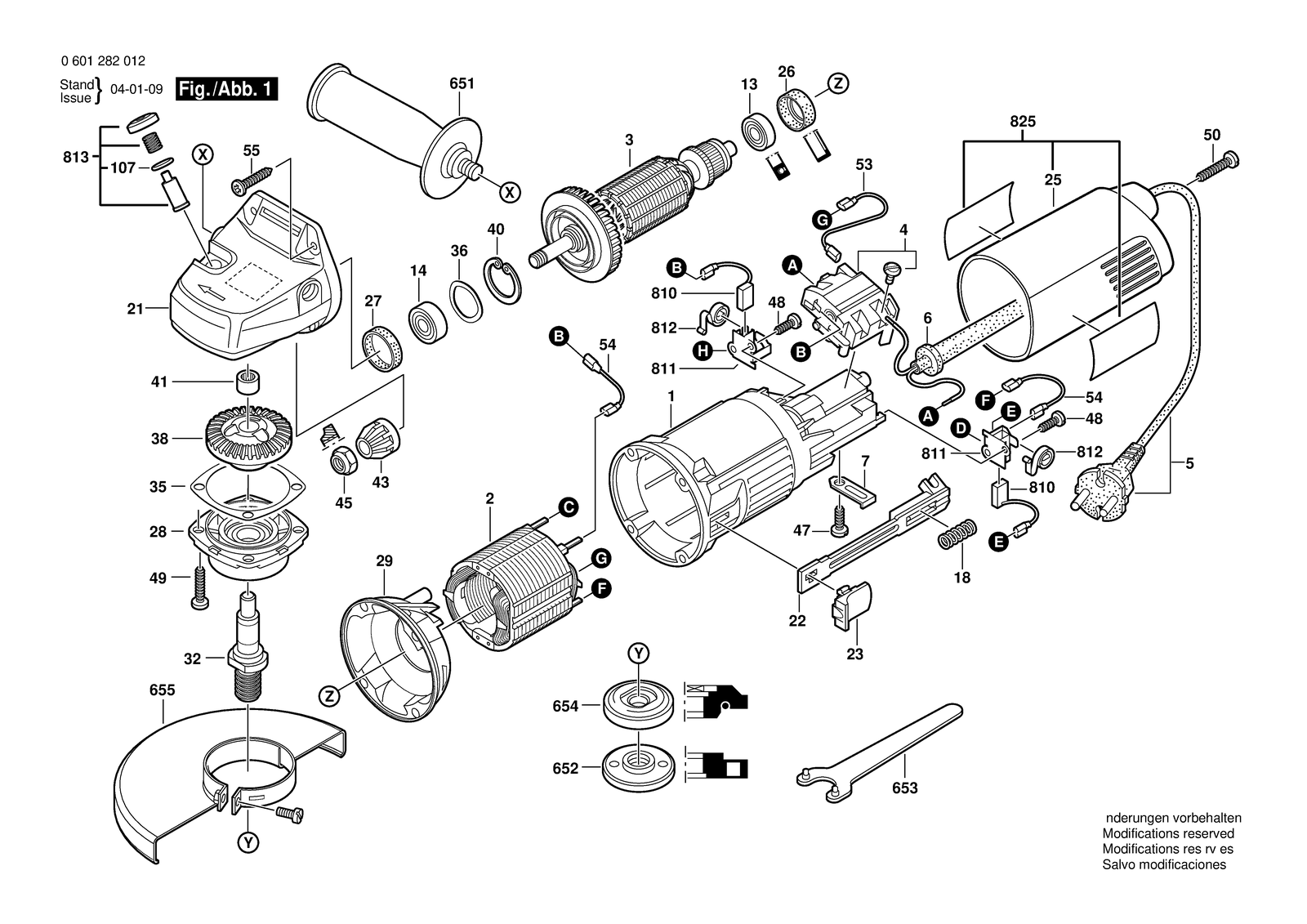

Bosch GWS 6-115 parts diagram, sheet 1
No.Part numberPart name
1F000600044Motor Housing
1071600210034O-Ring 4,0X1,0 MM
131600900024Groove ball bearing DIN 607-2Z-C3
141900905029Ball Bearing 8X22X7
181604611026Compression Spring
2F000600056Pole Shoe 127V
2F000600060Pole Shoe 220V
21F000635465Gear Housing
221602319002Adjusting Slide
231602026057Switch Handle Black
261600502020Rubber Bushing
271600206025Rubber Ring
281605805061Bearing Flange
291601328005Air-Deflector Ring
3F000600057Armature 127V
3F000600061Armature 220V
321607000D6AGrinding Spindle
351600136010Shim Thick 0,2 MM
351600136011Shim Thick 0,3 MM
351600136012Shim Thick 0,1 MM
361600150011Spring Washer
381606333606Crown Gear Z=36
41607200086On-Off Switch
402916660009Spring retaining ring DIN 472-25X1,2MM
411600910018Needle bearing Ø8XØ12X8 MM
431606333605Bevel Gear Z=11
451603300016Hex Nut M7, SW10
472910211218Tapping Screw DIN 7971-ST3,9X13-C
482603490017Torx Oval-Head Screw 3X10
499618086615Socket head cap screw M 4X12 MM
5F000600294Power supply cord AR 2,00M 2 X 1,0MM H07 Rn-F
5F000609051Power supply cord LAM 2,00M 2 X 0,75MM H05 Vvf
5F000609071Power supply cord BR 2,00M 2 X 0,75MM H05 Vvf
509618087100Tapping Screw 4X20 MM
539618086927Connecting Cable
549618086928Connecting Cable
559618087100Tapping Screw 4X20 MM
62600703013Grommet Ø7,6-Ø8,2X95 MM
6511602025026Auxiliary Handle M10
652F000616072Adjusting Nut
6531619P08927Pin-Type Face-Wrench
6542605703014Clamping Flange Ø22,3XØ42 MM
655F000633009Protective Cover
71601302017Fastening Clamp
810F000611029Carbon-Brush Set
811F000612048Brush Holder
8121604652013Spiral Spring
8131607000162Parts Set
825F000601111Housing Cover
