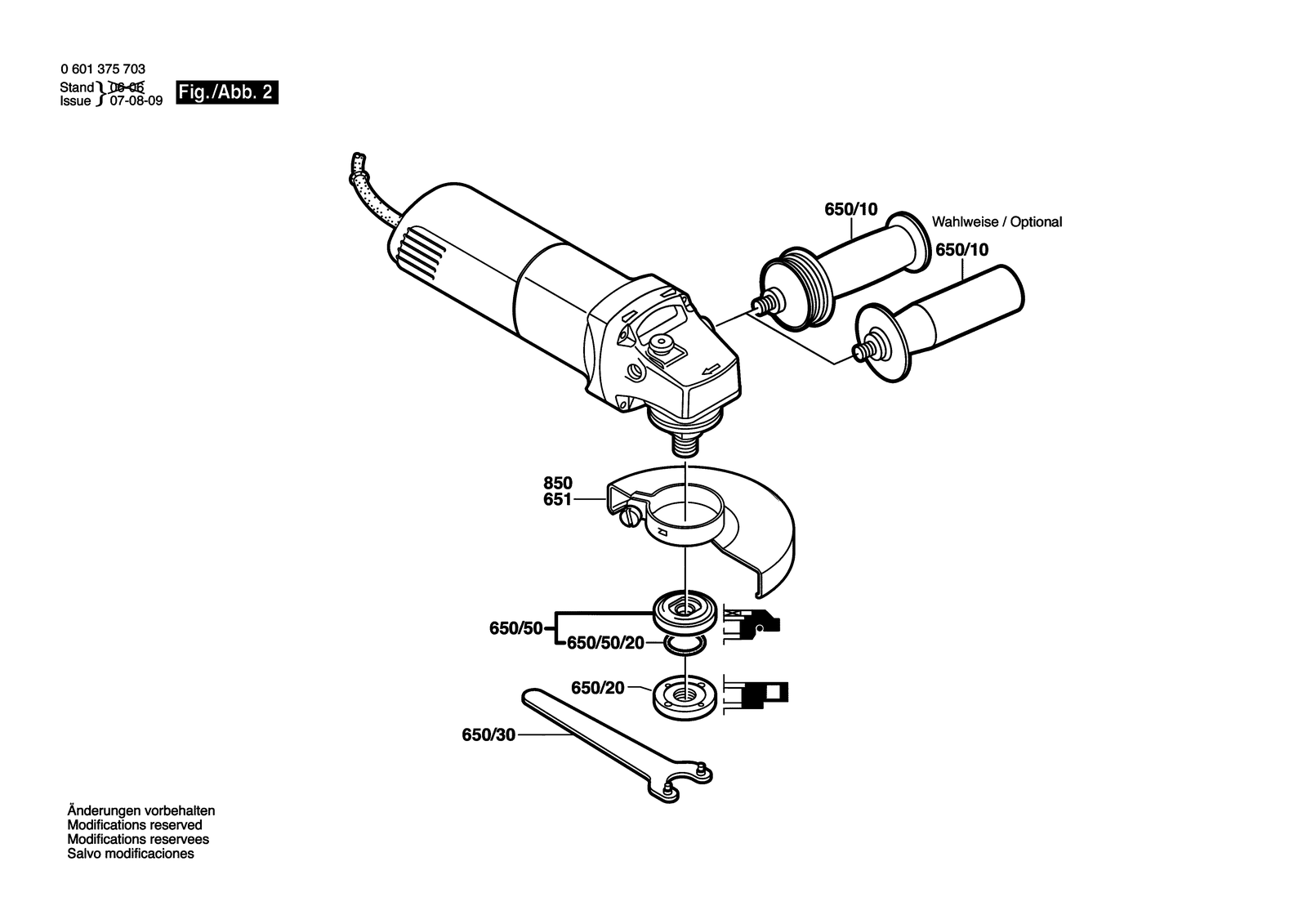

Bosch GWS 6-100 angle grinder: exploded parts diagram, 2 sheets, 136 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 6-100: 136 positions on 2 sheets
Bosch GWS 6-100 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P09772 | Motor Housing |
| 1 | 1619P09772 | Motor Housing |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 13 | 1619P00456 | Ball Bearing 7X19X6 MM |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1619P11240 | Groove ball bearing |
| 14 | 1619P00455 | Ball Bearing |
| 14 | 1619P11240 | Groove ball bearing |
| 16 | 1619P01811 | Brush Holder |
| 16 | 1619P01811 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1604611031 | Compression Spring |
| 18 | 1604611031 | Compression Spring |
| 2 | 1604220328 | Field 220-240V |
| 2 | 1604220328 | Field 220-240V |
| 2 | 1604220329 | Field 100-120V |
| 2 | 1604220330 | Field 110-115V |
| 22 | 1602319009 | Adjusting Slide |
| 22 | 1602319009 | Adjusting Slide |
| 23 | 1602026068 | Switch Handle Black |
| 23 | 1602026068 | Switch Handle Black |
| 25 | 1605500196 | Housing Cover Blue |
| 25 | 1605500196 | Housing Cover Blue |
| 26 | 1600502024 | Intermediate Ring |
| 26 | 1600502023 | Intermediate Ring |
| 26 | 1600502024 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591023 | Air-Deflector Ring |
| 29 | 1600591023 | Air-Deflector Ring |
| 3 | 1604010626 | Armature 220-240V |
| 3 | 1604010626 | Armature 220-240V |
| 3 | 1604010627 | Armature 100-120V |
| 3 | 1604010628 | Armature 110-115V |
| 3/50 | 1606610141 | Fan |
| 3/50 | 1606610141 | Fan |
| 30 | 1600591024 | Air-Deflector Ring |
| 30 | 1600591024 | Air-Deflector Ring |
| 32 | 1603523111 | Grinding Spindle M10, SW12 |
| 33 | 1600210041 | O-Ring 42,0X1,1 MM |
| 33 | 1600210041 | O-Ring 42,0X1,1 MM |
| 35 | 1600136016 | Shim Thick 0,1 MM |
| 35 | 1600136017 | Shim Thick 0,2 MM |
| 35 | 1600136016 | Shim Thick 0,1 MM |
| 35 | 1600136017 | Shim Thick 0,2 MM |
| 37 | 1600100033 | Cover Disc |
| 37 | 1600100033 | Cover Disc |
| 38 | 2609110150 | Conversion Gear |
| 38 | 2609110150 | Conversion Gear |
| 39 | 2609110149 | Pinion |
| 39 | 2609110149 | Pinion |
| 4 | 1607200179 | On-Off Switch |
| 4 | 1607200146 | Switch |
| 4 | 1607200179 | On-Off Switch |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 47 | 2609110052 | Special Screw |
| 47 | 2609110052 | Special Screw |
| 48 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 48 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 49 | 1603435026 | Thread-forming tap. Screw |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 5 | 1604460260 | Power supply cord GB 230V 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460263 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 1604460312 | Power supply cord EU 2,65M 2 X 0,75MM H05 W-f |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 2604460135 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 50 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 50 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 51 | 1607233124 | Speed governor 220-240V |
| 51 | 1607233124 | Speed governor 220-240V |
| 51 | 1607233125 | Speed governor 100-115V |
| 55 | 2910611022 | Tapping Screw DIN 7981-ST3,9X25-C-H |
| 55 | 2910611022 | Tapping Screw DIN 7981-ST3,9X25-C-H |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 650/10 | 160202509T | Auxiliary Handle |
| 650/10 | 160202509T | Auxiliary Handle |
| 650/10 | 16020250A0 | Auxiliary Handle |
| 650/20 | 1603345043 | Round Nut M14 |
| 650/20 | 1603345043 | Round Nut M14 |
| 650/20 | 1619P09976 | Round Nut With 2 Holes |
| 650/20 | 1619P14737 | Round Nut With 2 Holes |
| 650/30 | 1607950052 | Pin-Type Face-Wrench |
| 650/30 | 1619P08927 | Pin-Type Face-Wrench |
| 650/30 | 2609110015 | Pin-Type Face-Wrench |
| 650/50 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/50 | 1605703112 | Clamping-Flange Ø15/20 MM |
| 650/50 | 1605703113 | Clamping-Flange M10, 16-20 MM |
| 650/50 | 1605703115 | Clamping-Flange |
| 650/50 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/50/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 650/50/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 651 | 1605510249 | Protective Cover Ø 115 MM |
| 651 | 1605510249 | Protective Cover Ø 115 MM |
| 651 | 1605510250 | Protective Cover Ø 125 MM |
| 651 | 2609110050 | Protective Guard Ø 115 MM |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1619P00499 | Fastening Clamp |
| 80 | 1619P09390 | Cover Disc |
| 80 | 1619P09390 | Cover Disc |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 808 | 1619P00601 | Nameplate |
| 808 | 1619P00612 | Nameplate |
| 808 | 1619P00620 | Nameplate |
| 808 | 1619P00626 | Nameplate |
| 808 | 1619P00638 | Nameplate |
| 808 | 1619P00759 | Nameplate |
| 808 | 1619P02586 | Nameplate |
| 810 | 1607000483 | Carbon-Brush Set 10 X 1 607 014 145 |
| 810 | 1607014145 | Carbon-Brush Set |
| 810 | 1607000483 | Carbon-Brush Set 10 X 1 607 014 145 |
| 810 | 1607014144 | Carbon-Brush Set |
| 810 | 1607014145 | Carbon-Brush Set |
| 821 | 1605806466 | Gear Housing |
| 821 | 1605806466 | Gear Housing |
| 828 | 1605805090 | Bearing Flange Black |
| 828 | 1605805090 | Bearing Flange Black |
| 832 | 1607000D6A | Grinding Spindle |
| 832 | 1607000D6A | Grinding Spindle |
| 840 | 1607000298 | Push-Button Black |
| 840 | 1607000298 | Push-Button Black |
| 841 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 841 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 850 | 1619P00834 | Protective Guard Ø 115 MM |
| 9 | 1601118467 | Manufacturer's nameplate |
| 9 | 1619P00363 | Manufacturer's nameplate GWS 6-100 E/n |
| 9 | 2609130619 | Manufacturer's nameplate GWS 6-100E |
| 9 | 2609130621 | Manufacturer's nameplate GWS 6-115E |
