Bosch GWS 5-100

Bosch GWS 5-100 angle grinder: exploded parts diagram, 2 sheets, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 5-100: 49 positions on 2 sheets

Bosch GWS 5-100 parts list (2 sheets)

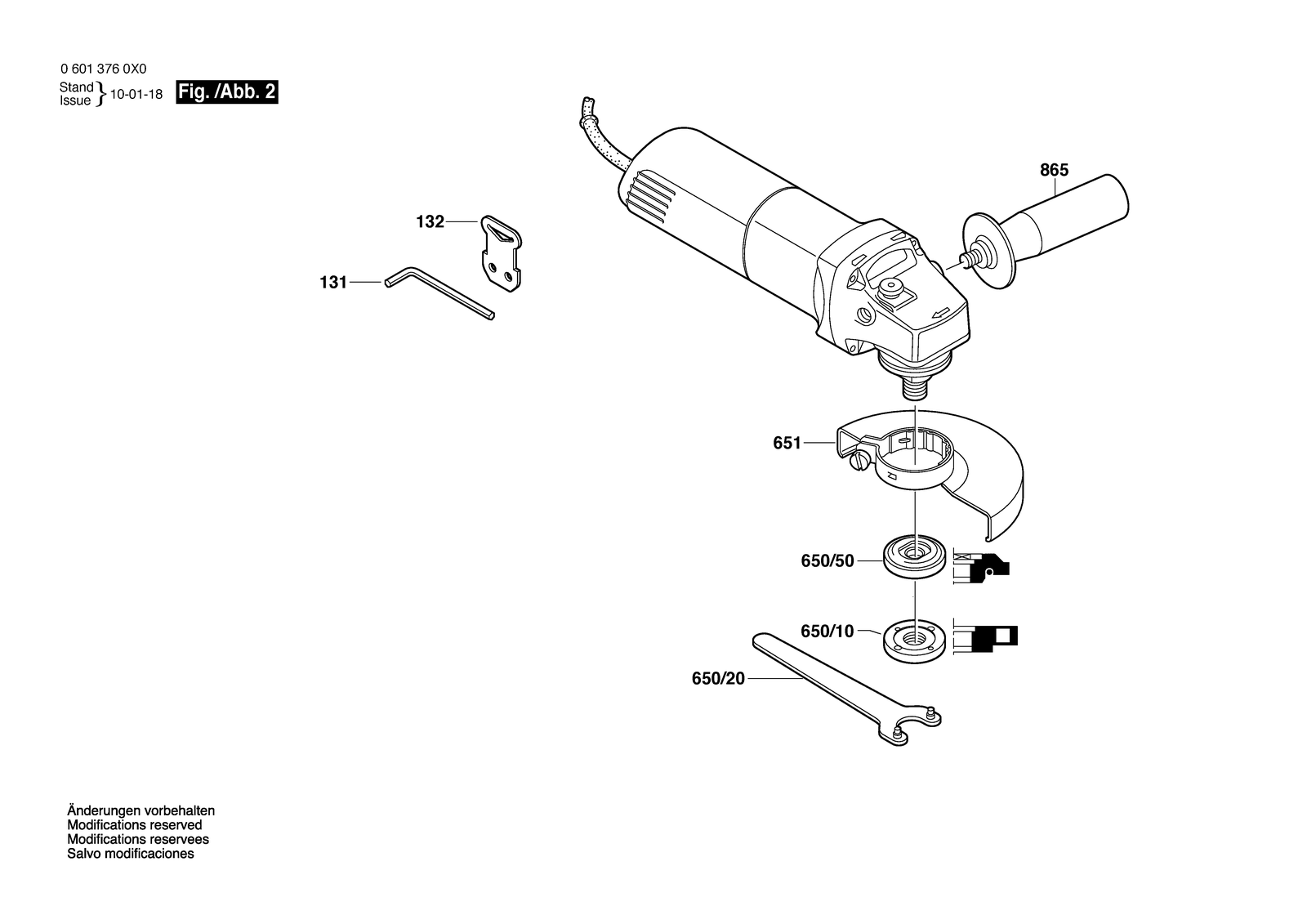

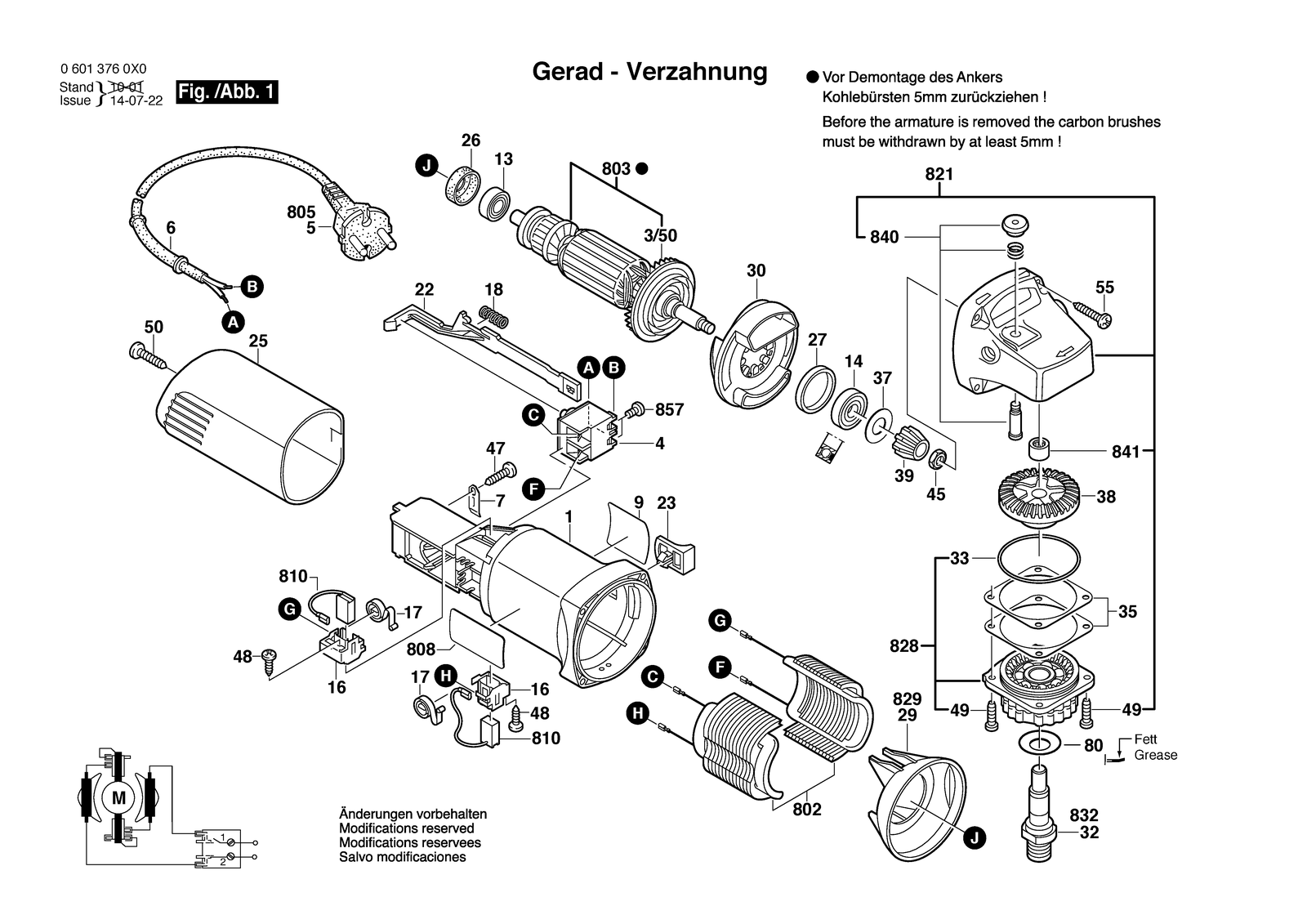

Bosch GWS 5-100 parts diagram, sheet 1Bosch GWS 5-100 parts diagram, sheet 2
No.Part numberPart name
11619P09772Motor Housing
131619P00456Ball Bearing 7X19X6 MM
1311619P01598Hex Screw Driver 4X95
1323602311050Key Holder
141619P00455Ball Bearing
161619P01811Brush Holder
171604652013Spiral Spring
181604611031Compression Spring
221602319009Adjusting Slide
231619P02762Switch Button Black
251605500194Housing Cover Blue
261600502023Intermediate Ring
271600206025Rubber Ring
3/501606610141Fan
301600591024Air-Deflector Ring
321603523111Grinding Spindle M10, SW12
331600210041O-Ring 42,0X1,1 MM
351600136016Shim Thick 0,1 MM
351600136017Shim Thick 0,2 MM
371600100033Cover Disc
382609110150Conversion Gear
392609110149Pinion
41607200179On-Off Switch
452915011007Hex Nut DIN 934-M6-8-A
472609110052Special Screw
481619P00220Torx Oval-Head Screw 3X10
491603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
502910611020Tapping Screw DIN 7981-ST3,9X19-C-H
552910611022Tapping Screw DIN 7981-ST3,9X25-C-H
62600703012Grommet Ø6,5-Ø6,9X95 MM
650/101619P09976Round Nut With 2 Holes
650/202609110015Pin-Type Face-Wrench
650/501605703113Clamping-Flange M10, 16-20 MM
6511619P02838Protective Cover Black Ø 100 MM
71601302017Fastening Clamp
801619P09390Cover Disc
8022609120100Field 230V
8032609120101Armature 230V
8051607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
8081619P08812Nameplate
8101607014145Carbon-Brush Set
8211605806466Gear Housing
8281619P02708Bearing Flange Black
8291600591023Air-Deflector Ring
8401607000298Push-Button Black
8411600910018Needle bearing Ø8XØ12X8 MM
8572910641081Oval-Head Screw DIN7985-M3,5X5-4.8-H
865160202509TAuxiliary Handle
92609130613Manufacturer's nameplate GWS 5-100
