Bosch GWS 5-100

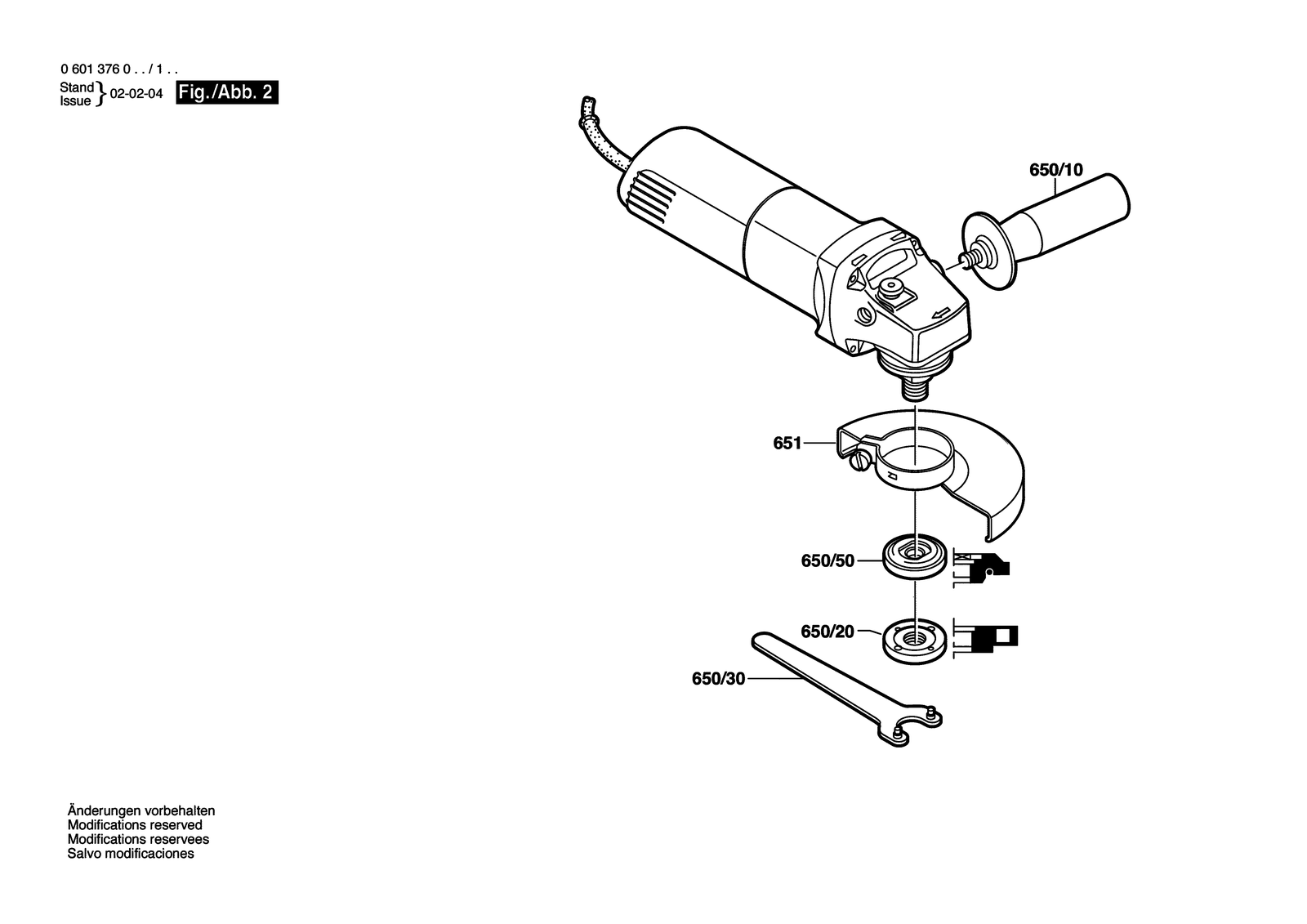

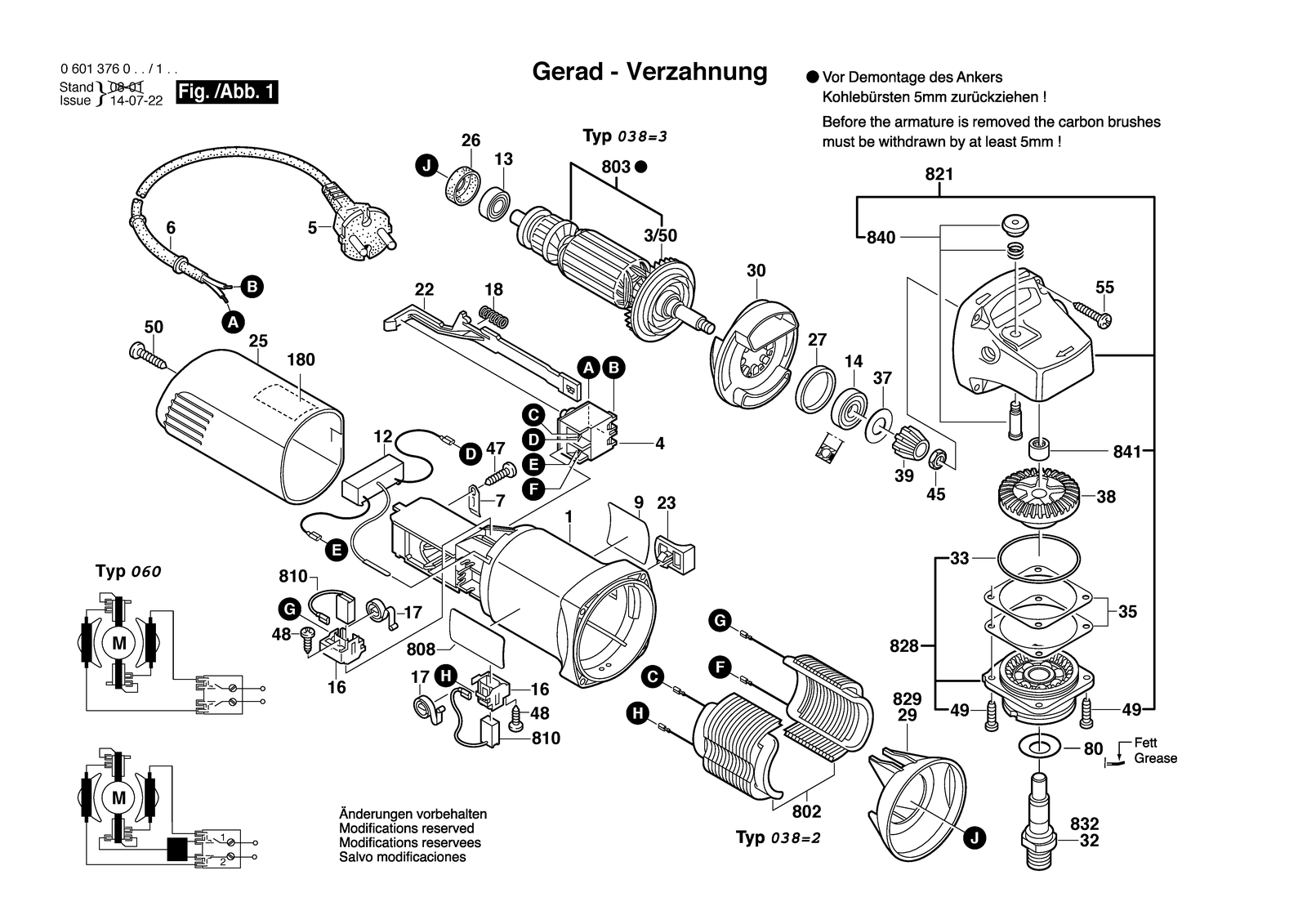

Bosch GWS 5-100 angle grinder: exploded parts diagram, 2 sheets, 106 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 5-100: 106 positions on 2 sheets
Bosch GWS 5-100 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P09772 | Motor Housing |
| 1 | 1619P09772 | Motor Housing |
| 12 | 1619P07647 | Suppression Filter |
| 12 | 1619P07647 | Suppression Filter |
| 13 | 1619P00456 | Ball Bearing 7X19X6 MM |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 13 | 1619P00456 | Ball Bearing 7X19X6 MM |
| 14 | 1619P00455 | Ball Bearing |
| 14 | 1619P11240 | Groove ball bearing |
| 14 | 1619P00455 | Ball Bearing |
| 16 | 1619P01811 | Brush Holder |
| 16 | 1619P01811 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1604611031 | Compression Spring |
| 18 | 1604611031 | Compression Spring |
| 180 | 3601119137 | Warning Plate Caution |
| 22 | 1602319009 | Adjusting Slide |
| 22 | 1602319009 | Adjusting Slide |
| 23 | 1602026068 | Switch Handle Black |
| 23 | 1602026068 | Switch Handle Black |
| 25 | 1605500194 | Housing Cover Blue |
| 25 | 1605500194 | Housing Cover Blue |
| 26 | 1600502023 | Intermediate Ring |
| 26 | 1600502024 | Intermediate Ring |
| 26 | 1600502023 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591023 | Air-Deflector Ring |
| 3/50 | 1606610141 | Fan |
| 3/50 | 1606610141 | Fan |
| 30 | 1600591024 | Air-Deflector Ring |
| 30 | 1600591024 | Air-Deflector Ring |
| 32 | 1603523111 | Grinding Spindle M10, SW12 |
| 33 | 1600210041 | O-Ring 42,0X1,1 MM |
| 33 | 1600210041 | O-Ring 42,0X1,1 MM |
| 35 | 1600136016 | Shim Thick 0,1 MM |
| 35 | 1600136017 | Shim Thick 0,2 MM |
| 35 | 1600136016 | Shim Thick 0,1 MM |
| 35 | 1600136017 | Shim Thick 0,2 MM |
| 37 | 1600100033 | Cover Disc |
| 37 | 1600100033 | Cover Disc |
| 38 | 2609110150 | Conversion Gear |
| 38 | 2609110150 | Conversion Gear |
| 39 | 2609110149 | Pinion |
| 39 | 2609110149 | Pinion |
| 4 | 1607200179 | On-Off Switch |
| 4 | 1607200179 | On-Off Switch |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 47 | 2609110052 | Special Screw |
| 47 | 2609110052 | Special Screw |
| 48 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 48 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 5 | 2604460135 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460145 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 50 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 50 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 55 | 2910611022 | Tapping Screw DIN 7981-ST3,9X25-C-H |
| 55 | 2910611022 | Tapping Screw DIN 7981-ST3,9X25-C-H |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 650/10 | 160202509T | Auxiliary Handle |
| 650/10 | 160202509T | Auxiliary Handle |
| 650/20 | 1619P09976 | Round Nut With 2 Holes |
| 650/20 | 1603345043 | Round Nut M14 |
| 650/30 | 2609110015 | Pin-Type Face-Wrench |
| 650/30 | 1619P08927 | Pin-Type Face-Wrench |
| 650/50 | 1605703112 | Clamping-Flange Ø15/20 MM |
| 650/50 | 1605703113 | Clamping-Flange M10, 16-20 MM |
| 650/50 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 651 | 2609110177 | Protective Guard Ø 100 MM |
| 651 | 1605510252 | Protective Cover Ø 115 MM |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1619P00499 | Fastening Clamp |
| 7 | 1601302017 | Fastening Clamp |
| 80 | 1619P09390 | Cover Disc |
| 80 | 1619P09390 | Cover Disc |
| 802 | 1604220392 | Field 100V |
| 802 | 2609120100 | Field 230V |
| 802 | 2609120100 | Field 230V |
| 803 | 1604010698 | Armature 100V |
| 803 | 2609120101 | Armature 230V |
| 803 | 2609120101 | Armature 230V |
| 808 | 1619P00599 | Nameplate |
| 808 | 1619P00609 | Nameplate |
| 808 | 1619P00998 | Nameplate |
| 808 | 1619P00611 | Nameplate |
| 810 | 1607014144 | Carbon-Brush Set |
| 810 | 1607014145 | Carbon-Brush Set |
| 810 | 1619P07571 | Carbon-Brush Set |
| 821 | 1605806466 | Gear Housing |
| 821 | 1605806466 | Gear Housing |
| 828 | 1605805090 | Bearing Flange Black |
| 828 | 1605805090 | Bearing Flange Black |
| 832 | 1607000D6A | Grinding Spindle |
| 840 | 1607000298 | Push-Button Black |
| 840 | 1607000298 | Push-Button Black |
| 841 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 841 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 9 | 1619P00364 | Manufacturer's nameplate GWS 5-100/N |
| 9 | 2609130613 | Manufacturer's nameplate GWS 5-100 |
| 9 | 2609130641 | Manufacturer's nameplate GWS 5-115 |
