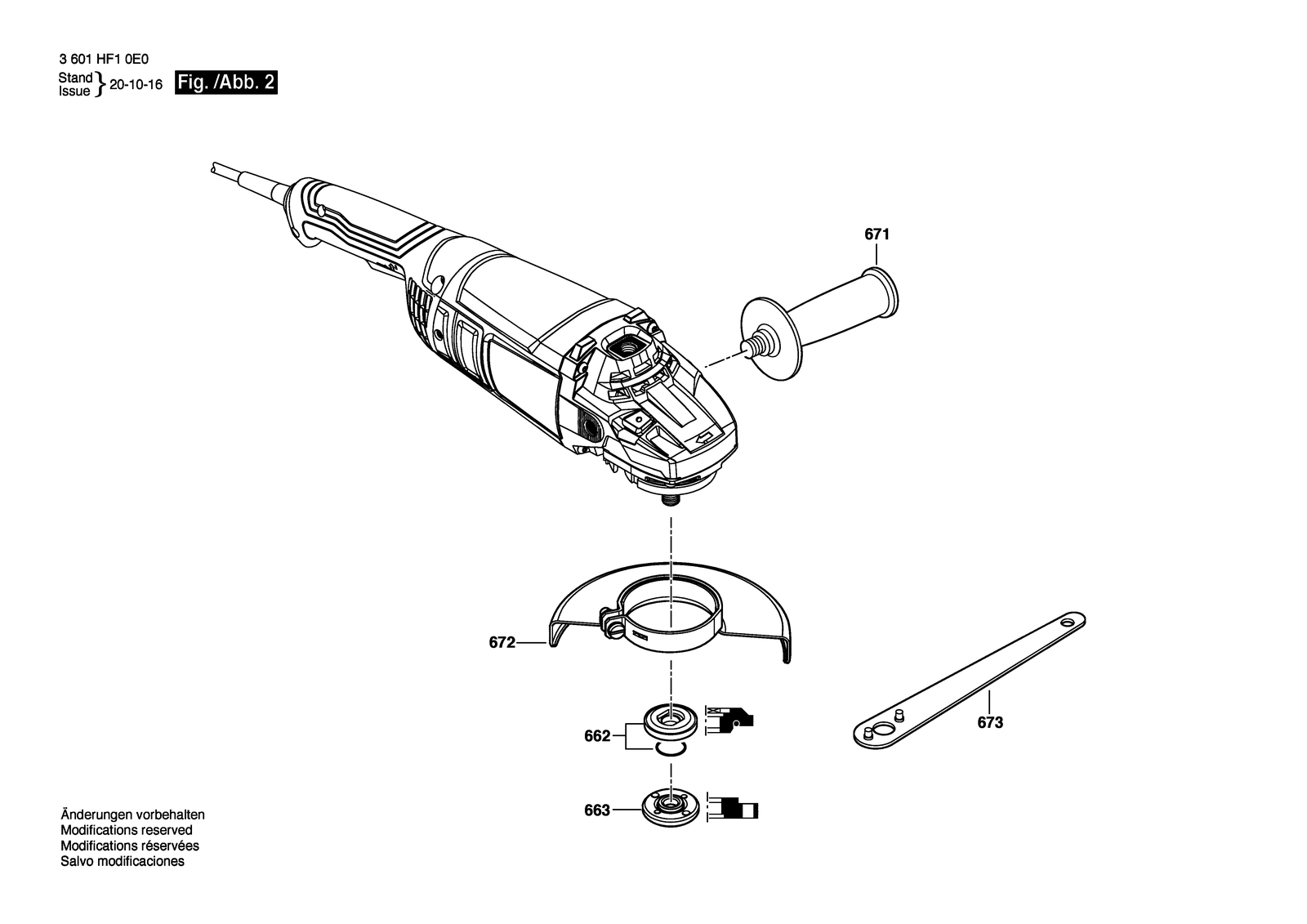

Bosch GWS 25-180 angle grinder: exploded parts diagram, 2 sheets, 380 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 25-180: 380 positions on 2 sheets
Bosch GWS 25-180 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1/2 | 160422058G | Field 127V |
| 1/2 | 160422058H | Field 220V |
| 1/2 | 160422057Z | Field |
| 1/2 | 1604220580 | Field |
| 1/2 | 1604220581 | Field |
| 1/2 | 1604220582 | Field |
| 1/2 | 1604220581 | Field |
| 1/2 | 1604220582 | Field |
| 1/2 | 1604220581 | Field |
| 1/2 | 1604220582 | Field |
| 1/2 | 1604220581 | Field |
| 1/2 | 1604220582 | Field |
| 1/2/8 | 1600A025V9 | Insulation |
| 1/2/8 | 1600A025V9 | Insulation |
| 1/2/8 | 1600A025V9 | Insulation |
| 1/2/8 | 1600A025V9 | Insulation |
| 1/2/8 | 1600A025V9 | Insulation |
| 1/2/8 | 1600A025V9 | Insulation |
| 14 | 9618089480 | Groove ball bearing |
| 14 | 9618089480 | Groove ball bearing |
| 14 | 9618089480 | Groove ball bearing |
| 14 | 9618089480 | Groove ball bearing |
| 14 | 9618089480 | Groove ball bearing |
| 14 | 9618089480 | Groove ball bearing |
| 16 | 1604336047 | Brush Holder |
| 16 | 1604336047 | Brush Holder |
| 16 | 1604336047 | Brush Holder |
| 16 | 1604336047 | Brush Holder |
| 16 | 1604336047 | Brush Holder |
| 16 | 1604336047 | Brush Holder |
| 21 | 16058065XA | Gear Housing |
| 21 | 16058065XA | Gear Housing |
| 21 | 16058065XA | Gear Housing |
| 21 | 16058065XA | Gear Housing |
| 21 | 16058065XA | Gear Housing |
| 21 | 16058065XA | Gear Housing |
| 22/22 | 1605805158 | Bearing Flange |
| 22/22 | 1605805159 | Bearing Flange |
| 22/22 | 1605805158 | Bearing Flange |
| 22/22 | 1605805159 | Bearing Flange |
| 22/22 | 1605805158 | Bearing Flange |
| 22/22 | 1605805158 | Bearing Flange |
| 22/22 | 1605805159 | Bearing Flange |
| 22/22 | 1605805159 | Bearing Flange |
| 22/25 | 160312305W | Grinding Spindle |
| 22/25 | 160312305W | Grinding Spindle |
| 22/25 | 160312306T | Grinding Spindle |
| 22/25 | 160312305W | Grinding Spindle |
| 22/25 | 160312305W | Grinding Spindle |
| 22/25 | 160312306T | Grinding Spindle |
| 22/25 | 160312305W | Grinding Spindle |
| 22/32 | 1600290019 | Retaining snap ring |
| 22/32 | 1600290019 | Retaining snap ring |
| 22/32 | 1600290019 | Retaining snap ring |
| 22/32 | 1600290019 | Retaining snap ring |
| 22/32 | 1600290019 | Retaining snap ring |
| 22/32 | 1600290019 | Retaining snap ring |
| 22/35 | 1600205034 | Felt Washer |
| 22/35 | 1600205034 | Felt Washer |
| 22/35 | 1600205034 | Felt Washer |
| 22/35 | 1600205034 | Felt Washer |
| 22/35 | 1600205034 | Felt Washer |
| 22/35 | 1600205034 | Felt Washer |
| 22/48 | 1600119010 | Spring retaining ring |
| 22/48 | 1600119010 | Spring retaining ring |
| 22/48 | 1600119010 | Spring retaining ring |
| 22/48 | 1600119010 | Spring retaining ring |
| 22/48 | 1600119010 | Spring retaining ring |
| 22/48 | 1600119010 | Spring retaining ring |
| 22/50 | 1600900079 | Groove ball bearing 17 X 40 X 12 |
| 22/50 | 1600900079 | Groove ball bearing 17 X 40 X 12 |
| 22/50 | 1600900079 | Groove ball bearing 17 X 40 X 12 |
| 22/50 | 1600900079 | Groove ball bearing 17 X 40 X 12 |
| 22/50 | 1600900079 | Groove ball bearing 17 X 40 X 12 |
| 22/50 | 1600900079 | Groove ball bearing 17 X 40 X 12 |
| 22/69 | 2916650905 | Spring retaining ring |
| 22/69 | 2916650905 | Spring retaining ring |
| 22/69 | 2916650905 | Spring retaining ring |
| 22/69 | 2916650905 | Spring retaining ring |
| 22/69 | 2916650905 | Spring retaining ring |
| 23 | 1600A01LJ8 | Brush-Cover |
| 23 | 1600A01LJ8 | Brush-Cover |
| 23 | 1600A01LJ8 | Brush-Cover |
| 23 | 1600A01LJ8 | Brush-Cover |
| 23 | 1600A01LJ8 | Brush-Cover |
| 23 | 1600A01LJ8 | Brush-Cover |
| 23/1 | 1600A01LJ9 | Brush-Cover |
| 23/1 | 1600A01LJ9 | Brush-Cover |
| 23/1 | 1600A01LJ9 | Brush-Cover |
| 23/1 | 1600A01LJ9 | Brush-Cover |
| 23/1 | 1600A01LJ9 | Brush-Cover |
| 23/1 | 1600A01LJ9 | Brush-Cover |
| 24 | 160513218U | Handle |
| 24 | 160513218Y | Handle |
| 24 | 160513218Y | Handle |
| 24 | 160513218Y | Handle |
| 24 | 160513218Y | Handle |
| 24 | 160513218Y | Handle |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 3 | 1604010BE5 | Armature |
| 3 | 1604010BE6 | Armature 220V |
| 3 | 1604010BD1 | Armature |
| 3 | 1604010BD2 | Armature |
| 3 | 1604010BD3 | Armature |
| 3 | 1604010BD4 | Armature |
| 3 | 1604010BD3 | Armature |
| 3 | 1604010BD4 | Armature |
| 3 | 1604010BD3 | Armature |
| 3 | 1604010BD4 | Armature |
| 3 | 1604010BD3 | Armature |
| 3 | 1604010BD4 | Armature |
| 3/13 | 1600905011 | Groove ball bearing 8X22X7 |
| 3/13 | 1600905011 | Groove ball bearing 8X22X7 |
| 3/13 | 1600905011 | Groove ball bearing 8X22X7 |
| 3/13 | 1600905011 | Groove ball bearing 8X22X7 |
| 3/13 | 1600905011 | Groove ball bearing 8X22X7 |
| 3/13 | 1600905011 | Groove ball bearing 8X22X7 |
| 30 | 1600A01NE4 | Splash Guard |
| 30 | 1600A01NE4 | Splash Guard |
| 30 | 1600A01NE4 | Splash Guard |
| 30 | 1600A01NE4 | Splash Guard |
| 30 | 1600A01NE4 | Splash Guard |
| 30 | 1600A01NE4 | Splash Guard |
| 31 | 160059107E | Air-Deflector Ring |
| 31 | 160059107E | Air-Deflector Ring |
| 31 | 160059107E | Air-Deflector Ring |
| 31 | 160059107E | Air-Deflector Ring |
| 31 | 160059107E | Air-Deflector Ring |
| 31 | 160059107E | Air-Deflector Ring |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 36 | 1604652019 | Spiral Spring |
| 36 | 1604652019 | Spiral Spring |
| 36 | 1604652019 | Spiral Spring |
| 36 | 1604652019 | Spiral Spring |
| 36 | 1604652019 | Spiral Spring |
| 36 | 1604652019 | Spiral Spring |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | F000616060 | Locating ring |
| 39 | F000616060 | Locating ring |
| 39 | F000616060 | Locating ring |
| 39 | F000616060 | Locating ring |
| 39 | F000616060 | Locating ring |
| 39 | F000616060 | Locating ring |
| 40 | 1600A01L7D | Push-Button |
| 40 | 1600A01L7D | Push-Button |
| 40 | 1600A01L7D | Push-Button |
| 40 | 1600A01L7D | Push-Button |
| 40 | 1600A01L7D | Push-Button |
| 40 | 1600A01L7D | Push-Button |
| 41 | 1604611024 | Compression Spring |
| 41 | 1604611024 | Compression Spring |
| 41 | 1604611024 | Compression Spring |
| 41 | 1604611024 | Compression Spring |
| 41 | 1604611024 | Compression Spring |
| 41 | 1604611024 | Compression Spring |
| 42/29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 42/29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 42/29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 42/29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 42/29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 42/29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 42/42 | 1603123032 | Detent Pin |
| 42/42 | 1603123032 | Detent Pin |
| 42/42 | 1603123032 | Detent Pin |
| 42/42 | 1603123032 | Detent Pin |
| 42/42 | 1603123032 | Detent Pin |
| 42/42 | 1603123032 | Detent Pin |
| 44 | 1600A01E7S | Pickup Clip |
| 44 | 1600A01E7S | Pickup Clip |
| 44 | 1600A01E7S | Pickup Clip |
| 44 | 1600A01E7S | Pickup Clip |
| 44 | 1600A01E7S | Pickup Clip |
| 44 | 1600A01E7S | Pickup Clip |
| 45 | 1600A01M59 | Hex Nut |
| 45 | 1600A01M59 | Hex Nut |
| 45 | 1600A01M59 | Hex Nut |
| 45 | 1600A01M59 | Hex Nut |
| 45 | 1600A01M59 | Hex Nut |
| 45 | 1600A01M59 | Hex Nut |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 47 | 1600119008 | Spring retaining ring |
| 47 | 1600119008 | Spring retaining ring |
| 47 | 1600119008 | Spring retaining ring |
| 47 | 1600119008 | Spring retaining ring |
| 47 | 1600119008 | Spring retaining ring |
| 47 | 1600119008 | Spring retaining ring |
| 51 | F000615110 | Needle-Roller Bearing |
| 51 | F000615110 | Needle-Roller Bearing |
| 51 | F000615110 | Needle-Roller Bearing |
| 51 | F000615110 | Needle-Roller Bearing |
| 51 | F000615110 | Needle-Roller Bearing |
| 51 | F000615110 | Needle-Roller Bearing |
| 60 | 9618086638 | Screw |
| 60 | 9618086638 | Screw |
| 60 | 9618086638 | Screw |
| 60 | 9618086638 | Screw |
| 60 | 9618086638 | Screw |
| 60 | 9618086638 | Screw |
| 61 | F000600217 | Tapping Screw |
| 61 | F000600217 | Tapping Screw |
| 61 | F000600217 | Tapping Screw |
| 61 | F000600217 | Tapping Screw |
| 61 | F000600217 | Tapping Screw |
| 61 | F000600217 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 63 | 160343507U | Thread-forming tap. Screw |
| 63 | 160343507U | Thread-forming tap. Screw |
| 63 | 160343507U | Thread-forming tap. Screw |
| 63 | 160343507U | Thread-forming tap. Screw |
| 63 | 160343507U | Thread-forming tap. Screw |
| 63 | 160343507U | Thread-forming tap. Screw |
| 64 | 9618087099 | Screw 4X16 MM |
| 64 | 9618087099 | Screw 4X16 MM |
| 64 | 9618087099 | Screw 4X16 MM |
| 64 | 9618087099 | Screw 4X16 MM |
| 64 | 9618087099 | Screw 4X16 MM |
| 64 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 662 | 1605703140 | Clamping-Flange |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 662 | 1605703140 | Clamping-Flange |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 662 | 1605703140 | Clamping-Flange |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 662 | 1605703140 | Clamping-Flange |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 663 | 1603345043 | Round Nut M14 |
| 663 | 9618089364 | Adjusting Nut |
| 663 | 1603345043 | Round Nut M14 |
| 663 | 9618089364 | Adjusting Nut |
| 663 | 1603345043 | Round Nut M14 |
| 663 | 9618089364 | Adjusting Nut |
| 663 | 1603345043 | Round Nut M14 |
| 663 | 1603345043 | Round Nut M14 |
| 663 | 9618089364 | Adjusting Nut |
| 663 | 1603345043 | Round Nut M14 |
| 67 | 9618087099 | Screw 4X16 MM |
| 67 | 9618087099 | Screw 4X16 MM |
| 67 | 9618087099 | Screw 4X16 MM |
| 67 | 9618087099 | Screw 4X16 MM |
| 67 | 9618087099 | Screw 4X16 MM |
| 67 | 9618087099 | Screw 4X16 MM |
| 671 | F000635276 | Auxiliary Handle |
| 671 | 160202509Z | Auxiliary Handle |
| 671 | 160202509Z | Auxiliary Handle |
| 671 | 160202509Z | Auxiliary Handle |
| 671 | 160202509Z | Auxiliary Handle |
| 671 | 160202509Z | Auxiliary Handle |
| 672 | 1600A00XL9 | Protective Cover Ø180 MM |
| 672 | 1600A00XM0 | Protective Cover |
| 672 | 1600A00XL9 | Protective Cover Ø180 MM |
| 672 | 1600A00XM0 | Protective Cover |
| 672 | 1600A00XL9 | Protective Cover Ø180 MM |
| 672 | 1600A00XL9 | Protective Cover Ø180 MM |
| 672 | 1600A00XM0 | Protective Cover |
| 672 | 1600A00XM0 | Protective Cover |
| 673 | F000632033 | Pin-Type Face-Wrench |
| 673 | F000632033 | Pin-Type Face-Wrench |
| 673 | F000632033 | Pin-Type Face-Wrench |
| 673 | F000632033 | Pin-Type Face-Wrench |
| 673 | F000632033 | Pin-Type Face-Wrench |
| 673 | F000632033 | Pin-Type Face-Wrench |
| 71 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 71 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 71 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 71 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 71 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 71 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 801 | 16051082LZ | Motor Housing |
| 801 | 16051082NX | Motor Housing |
| 801 | 16051082M0 | Motor Housing |
| 801 | 16051082NY | Motor Housing |
| 801 | 16051082M1 | Motor Housing |
| 801 | 16051082M1 | Motor Housing |
| 801 | 16051082NZ | Motor Housing |
| 801 | 16051082NZ | Motor Housing |
| 802 | 1600A024X4 | Bevel Gear Set |
| 802 | 1600A024X5 | Bevel Gear Set |
| 802 | 1600A024X4 | Bevel Gear Set |
| 802 | 1600A024X5 | Bevel Gear Set |
| 802 | 1600A024X4 | Bevel Gear Set |
| 802 | 1600A024X4 | Bevel Gear Set |
| 802 | 1600A012VU | Bevel Gear Set |
| 802 | 1600A024X5 | Bevel Gear Set |
| 802 | 1600A024X5 | Bevel Gear Set |
| 804 | F000608035 | Switch |
| 804 | F000608328 | On-Off Switch |
| 804 | F000608035 | Switch |
| 804 | F000608328 | On-Off Switch |
| 804 | F000608035 | Switch |
| 804 | F000608328 | On-Off Switch |
| 804 | 160720033M | Switch |
| 804 | F000608035 | Switch |
| 804 | F000608328 | On-Off Switch |
| 805 | F000609180 | Power supply cord |
| 805 | F000609215 | Power supply cord SAM 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609239 | Power supply cord |
| 805 | F000609290 | Power supply cord |
| 805 | F000609180 | Power supply cord |
| 805 | F000609215 | Power supply cord SAM 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609239 | Power supply cord |
| 805 | F000609290 | Power supply cord |
| 805 | F000609180 | Power supply cord |
| 805 | F000609215 | Power supply cord SAM 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609239 | Power supply cord |
| 805 | F000609290 | Power supply cord |
| 805 | F000609180 | Power supply cord |
| 805 | F000609215 | Power supply cord SAM 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609239 | Power supply cord |
| 805 | F000609290 | Power supply cord |
| 805 | 1604460126 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 805 | 1604460348 | Power supply cord GB 230V 4,15M 2 X 1,5MM H07 Rn-F |
| 805 | F000609180 | Power supply cord |
| 805 | F000609215 | Power supply cord SAM 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609239 | Power supply cord |
| 805 | F000609290 | Power supply cord |
| 805 | F000609180 | Power supply cord |
| 805 | F000609215 | Power supply cord SAM 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609239 | Power supply cord |
| 805 | F000609290 | Power supply cord |
| 806 | 160070304H | Grommet |
| 806 | 160070305A | Grommet |
| 806 | 160070304H | Grommet |
| 806 | 160070305A | Grommet |
| 806 | 160070304H | Grommet |
| 806 | 160070305A | Grommet |
| 806 | 160070304H | Grommet |
| 806 | 160070305A | Grommet |
| 806 | 160070304H | Grommet |
| 806 | 160070305A | Grommet |
| 806 | 160070304H | Grommet |
| 810 | F000611090 | Carbon-Brush Set E64 |
| 810 | 1607014190 | Carbon-Brush Set |
| 810 | F000611090 | Carbon-Brush Set E64 |
| 810 | 1607014190 | Carbon-Brush Set |
| 810 | F000611090 | Carbon-Brush Set E64 |
| 810 | 1607014190 | Carbon-Brush Set |
| 810 | F000611090 | Carbon-Brush Set E64 |
| 810 | 1607014190 | Carbon-Brush Set |
| 810 | F000611090 | Carbon-Brush Set E64 |
| 810 | 1607014190 | Carbon-Brush Set |
| 810 | F000611090 | Carbon-Brush Set E64 |
Selected parts0
