Bosch GWS 24-180 LVI

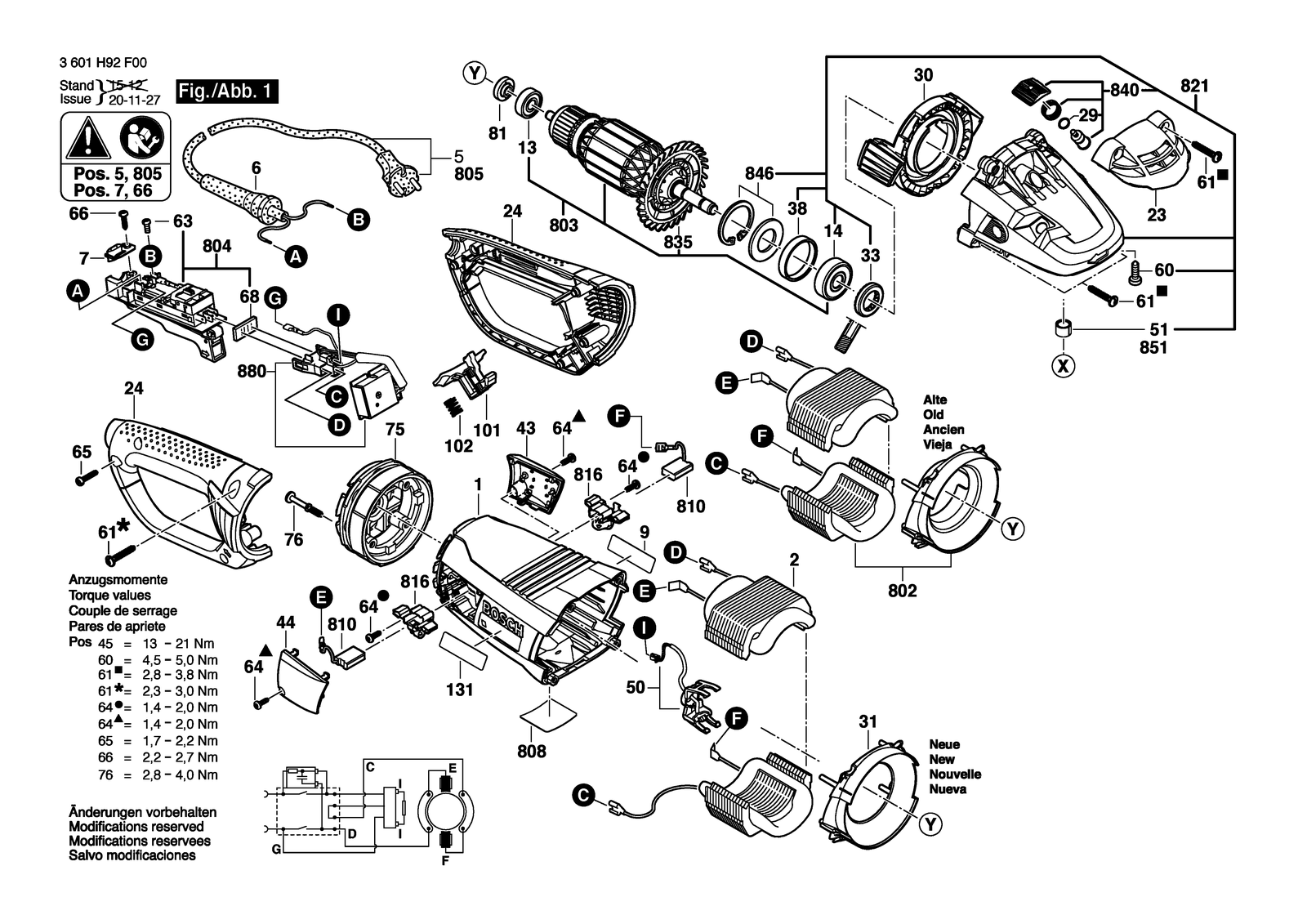

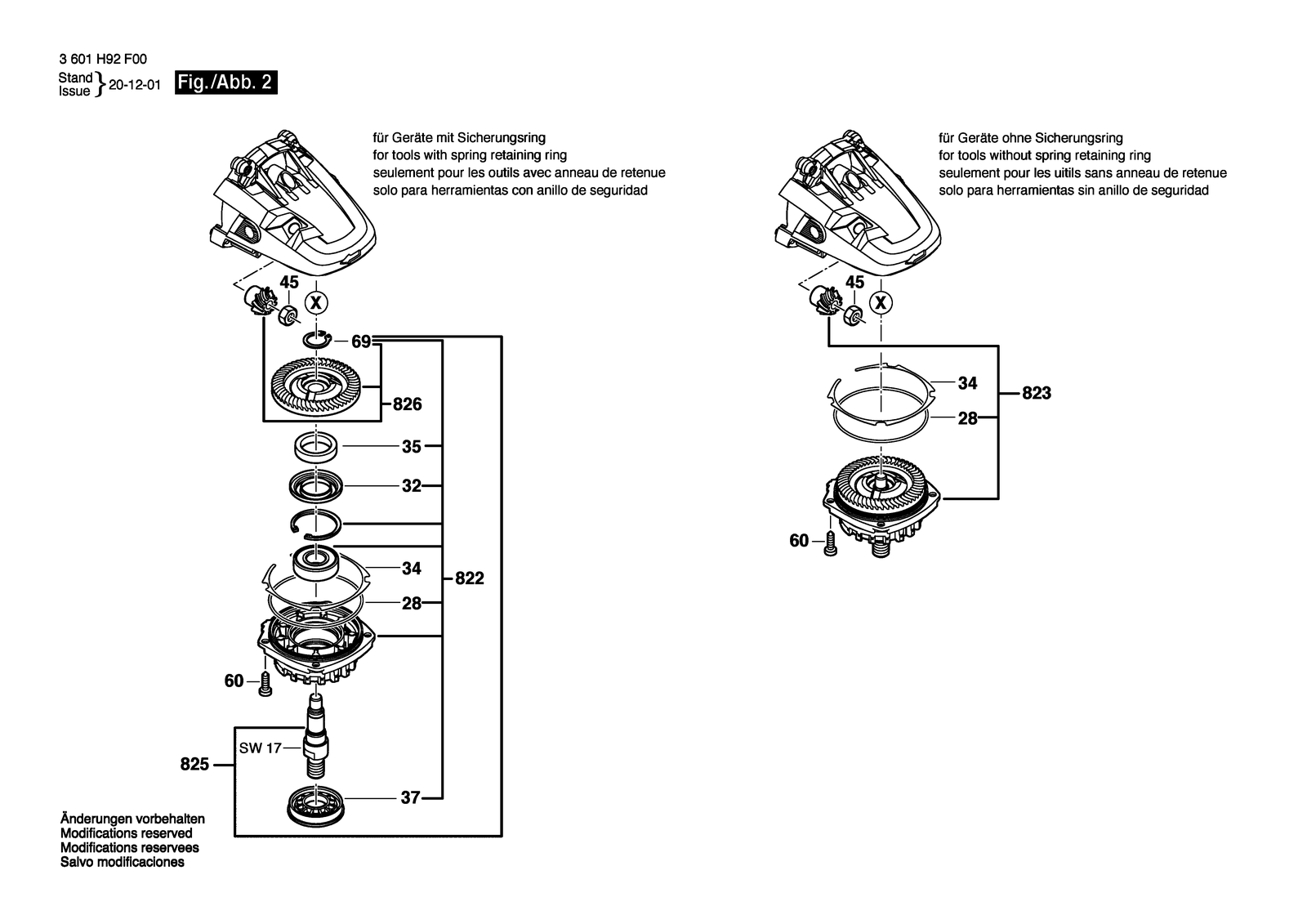

Bosch GWS 24-180 LVI angle grinder: exploded parts diagram, 3 sheets, 584 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 24-180 LVI: 584 positions on 3 sheets
Bosch GWS 24-180 LVI parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108264 | Motor Housing Blue |
| 1 | 1605108264 | Motor Housing Blue |
| 1 | 1605108264 | Motor Housing Blue |
| 1 | 1605108264 | Motor Housing Blue |
| 1 | 1605108264 | Motor Housing Blue |
| 1 | 1605108264 | Motor Housing Blue |
| 1 | 1605108264 | Motor Housing Blue |
| 1 | 1605108264 | Motor Housing Blue |
| 101 | 1601990012 | Catch Slide |
| 101 | 1601990012 | Catch Slide |
| 101 | 1601990012 | Catch Slide |
| 101 | 1601990012 | Catch Slide |
| 101 | 1601990012 | Catch Slide |
| 101 | 1601990012 | Catch Slide |
| 101 | 1601990012 | Catch Slide |
| 101 | 1601990012 | Catch Slide |
| 102 | 1604616022 | Compression Spring |
| 102 | 1604616022 | Compression Spring |
| 102 | 1604616022 | Compression Spring |
| 102 | 1604616022 | Compression Spring |
| 102 | 1604616022 | Compression Spring |
| 102 | 1604616022 | Compression Spring |
| 102 | 1604616022 | Compression Spring |
| 102 | 1604616022 | Compression Spring |
| 13 | 1600905034 | Groove ball bearing 9X26X8 |
| 13 | 1600905034 | Groove ball bearing 9X26X8 |
| 13 | 1600905034 | Groove ball bearing 9X26X8 |
| 13 | 1600905034 | Groove ball bearing 9X26X8 |
| 13 | 1600905034 | Groove ball bearing 9X26X8 |
| 13 | 1600905034 | Groove ball bearing 9X26X8 |
| 13 | 1600905034 | Groove ball bearing 9X26X8 |
| 13 | 1600905034 | Groove ball bearing 9X26X8 |
| 131 | 160111C284 | Manufacturer's nameplate GWS 24-180 LVI |
| 131 | 160111C284 | Manufacturer's nameplate GWS 24-180 LVI |
| 131 | 160111C2UE | Manufacturer's nameplate |
| 131 | 160111C2UE | Manufacturer's nameplate |
| 131 | 1601118V15 | Manufacturer's nameplate |
| 131 | 1601118V15 | Manufacturer's nameplate |
| 131 | 1601118V17 | Manufacturer's nameplate |
| 131 | 1601118V17 | Manufacturer's nameplate |
| 14 | 1600905035 | Groove ball bearing 12X37X12 |
| 14 | 1600905035 | Groove ball bearing 12X37X12 |
| 14 | 1600905035 | Groove ball bearing 12X37X12 |
| 14 | 1600905035 | Groove ball bearing 12X37X12 |
| 14 | 1600905035 | Groove ball bearing 12X37X12 |
| 14 | 1600905035 | Groove ball bearing 12X37X12 |
| 14 | 1600905035 | Groove ball bearing 12X37X12 |
| 14 | 1600905035 | Groove ball bearing 12X37X12 |
| 2 | 160422057G | Field |
| 2 | 160422057G | Field |
| 2 | 160422057G | Field |
| 2 | 1604220541 | Field |
| 2 | 160422057G | Field |
| 2 | 160422057J | Field |
| 2 | 160422057J | Field |
| 2 | 160422057J | Field |
| 2 | 160422057J | Field |
| 23 | 1605500266 | Cover Black |
| 23 | 1605500266 | Cover Black |
| 23 | 1605500266 | Cover Black |
| 23 | 1605500266 | Cover Black |
| 23 | 1605500266 | Cover Black |
| 23 | 1605500266 | Cover Black |
| 23 | 1605500266 | Cover Black |
| 23 | 1605500266 | Cover Black |
| 24 | 160513219J | Handle |
| 24 | 160513219J | Handle |
| 24 | 160513219J | Handle |
| 24 | 160513219J | Handle |
| 24 | 160513219J | Handle |
| 24 | 160513219J | Handle |
| 24 | 160513219J | Handle |
| 24 | 160513219J | Handle |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 30 | 1600591041 | Air Distributor |
| 30 | 1600591041 | Air Distributor |
| 30 | 1600591041 | Air Distributor |
| 30 | 1600591041 | Air Distributor |
| 30 | 1600591041 | Air Distributor |
| 30 | 1600591041 | Air Distributor |
| 30 | 1600591041 | Air Distributor |
| 30 | 1600591041 | Air Distributor |
| 31 | 160059105U | Air-Deflector Ring |
| 31 | 160059105U | Air-Deflector Ring |
| 31 | 160059105U | Air-Deflector Ring |
| 31 | 160059105U | Air-Deflector Ring |
| 31 | 160059105U | Air-Deflector Ring |
| 31 | 160059105U | Air-Deflector Ring |
| 31 | 160059105U | Air-Deflector Ring |
| 31 | 160059105U | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 38 | 1600206037 | Rubber Ring |
| 38 | 1600206037 | Rubber Ring |
| 38 | 1600206037 | Rubber Ring |
| 38 | 1600206037 | Rubber Ring |
| 38 | 1600206037 | Rubber Ring |
| 38 | 1600206037 | Rubber Ring |
| 38 | 1600206037 | Rubber Ring |
| 38 | 1600206037 | Rubber Ring |
| 43 | 1605500264 | Sealing cap Black |
| 43 | 1605500264 | Sealing cap Black |
| 43 | 1605500264 | Sealing cap Black |
| 43 | 1605500264 | Sealing cap Black |
| 43 | 1605500264 | Sealing cap Black |
| 43 | 1605500264 | Sealing cap Black |
| 43 | 1605500264 | Sealing cap Black |
| 43 | 1605500264 | Sealing cap Black |
| 44 | 1605500265 | Sealing cap Black |
| 44 | 1605500265 | Sealing cap Black |
| 44 | 1605500265 | Sealing cap Black |
| 44 | 1605500265 | Sealing cap Black |
| 44 | 1605500265 | Sealing cap Black |
| 44 | 1605500265 | Sealing cap Black |
| 44 | 1605500265 | Sealing cap Black |
| 44 | 1605500265 | Sealing cap Black |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 5 | F000609176 | Power supply cord AR 4,00M 2 X 1,00MM H07 Rnf |
| 5 | 1604460126 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 160446075E | Power supply cord 4 M 2 X1,5MM H07RN-F |
| 5 | 1604460128 | Power supply cord EU 4,15M 2 X 1,5MM H07RN-F |
| 5 | 1604460440 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | F000609176 | Power supply cord AR 4,00M 2 X 1,00MM H07 Rnf |
| 5 | 1604460126 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1604460202 | Power supply cord GB 110V 4,15M 2 X 2,5MM H07 Rn-F |
| 5 | 1604460348 | Power supply cord GB 230V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 160446075E | Power supply cord 4 M 2 X1,5MM H07RN-F |
| 5 | F000609176 | Power supply cord AR 4,00M 2 X 1,00MM H07 Rnf |
| 5 | 1604460126 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 160446075E | Power supply cord 4 M 2 X1,5MM H07RN-F |
| 5 | 1604460440 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | F000609176 | Power supply cord AR 4,00M 2 X 1,00MM H07 Rnf |
| 5 | 160446075E | Power supply cord 4 M 2 X1,5MM H07RN-F |
| 50 | 1607001007 | Rotational Speed Sensor |
| 50 | 1607001007 | Rotational Speed Sensor |
| 50 | 1607001007 | Rotational Speed Sensor |
| 50 | 1607001007 | Rotational Speed Sensor |
| 50 | 1607001007 | Rotational Speed Sensor |
| 50 | 1607001007 | Rotational Speed Sensor |
| 50 | 1607001007 | Rotational Speed Sensor |
| 50 | 1607001007 | Rotational Speed Sensor |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 6 | 1600703037 | Grommet |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 6 | 1600703037 | Grommet |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 6 | 1600703037 | Grommet |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 6 | 1600703037 | Grommet |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 61 | 1603490005 | Torx Oval-Head Screw |
| 61 | 1603490005 | Torx Oval-Head Screw |
| 61 | 1603490005 | Torx Oval-Head Screw |
| 61 | 1603490005 | Torx Oval-Head Screw |
| 61 | 1603490005 | Torx Oval-Head Screw |
| 61 | 1603490005 | Torx Oval-Head Screw |
| 61 | 1603490005 | Torx Oval-Head Screw |
| 61 | 1603490005 | Torx Oval-Head Screw |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 64 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 64 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 64 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 64 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 64 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 64 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 64 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 64 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 65 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 65 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 65 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 65 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 65 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 65 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 65 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 65 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 651 | 1600A01R95 | Protective Cover Ø180 MM |
| 651 | 1605510415 | Protective Cover Ø 180 MM |
| 651 | 1600A01R95 | Protective Cover Ø180 MM |
| 651 | 1600A01R96 | Protective Cover Ø230 MM |
| 651 | 1605510416 | Protective Cover Ø 230 MM |
| 651 | 1600A01R96 | Protective Cover Ø230 MM |
| 651 | 1600A01R95 | Protective Cover Ø180 MM |
| 651 | 1600A01R95 | Protective Cover Ø180 MM |
| 651 | 1600A01R96 | Protective Cover Ø230 MM |
| 651 | 1600A01R96 | Protective Cover Ø230 MM |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 660 | 1602025051 | Auxiliary Handle Black M14 |
| 660 | 1602025051 | Auxiliary Handle Black M14 |
| 660 | 1602025051 | Auxiliary Handle Black M14 |
| 660 | 1602025051 | Auxiliary Handle Black M14 |
| 660 | 1602025051 | Auxiliary Handle Black M14 |
| 660 | 1602025051 | Auxiliary Handle Black M14 |
| 660 | 1602025051 | Auxiliary Handle Black M14 |
| 660 | 1602025051 | Auxiliary Handle Black M14 |
| 68 | 1601006011 | Sealing Plate |
| 68 | 1601006011 | Sealing Plate |
| 68 | 1601006011 | Sealing Plate |
| 68 | 1601006011 | Sealing Plate |
| 68 | 1601006011 | Sealing Plate |
| 68 | 1601006011 | Sealing Plate |
| 68 | 1601006011 | Sealing Plate |
| 68 | 1601006011 | Sealing Plate |
| 69 | 2916650905 | Spring retaining ring |
| 69 | 2916650905 | Spring retaining ring |
| 69 | 2916650905 | Spring retaining ring |
| 69 | 2916650905 | Spring retaining ring |
| 69 | 2916650905 | Spring retaining ring |
| 69 | 2916650905 | Spring retaining ring |
| 69 | 2916650905 | Spring retaining ring |
| 69 | 2916650905 | Spring retaining ring |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 75 | 1600290060 | Damper |
| 75 | 1600290060 | Damper |
| 75 | 1600290060 | Damper |
| 75 | 1600290060 | Damper |
| 75 | 1600290060 | Damper |
| 75 | 1600290060 | Damper |
| 75 | 1600290060 | Damper |
| 75 | 1600290060 | Damper |
| 76 | 1603414025 | Collar Screw |
| 76 | 1603414025 | Collar Screw |
| 76 | 1603414025 | Collar Screw |
| 76 | 1603414025 | Collar Screw |
| 76 | 1603414025 | Collar Screw |
| 76 | 1603414025 | Collar Screw |
| 76 | 1603414025 | Collar Screw |
| 76 | 1603414025 | Collar Screw |
| 802 | 1607000C4L | Assembly |
| 802 | 1607000C4L | Assembly |
| 802 | 1607000C4L | Assembly |
| 802 | 1600A01ZG6 | Field assembly |
| 802 | 1607000C4L | Assembly |
| 802 | 1607000C4M | Assembly |
| 802 | 1607000C4M | Assembly |
| 802 | 1607000C4M | Assembly |
| 802 | 1607000C4M | Assembly |
| 803 | 1604011298 | Armature 230V |
| 803 | 1604011298 | Armature 230V |
| 803 | 1604011298 | Armature 230V |
| 803 | 1604010BG6 | Armature |
| 803 | 1604011298 | Armature 230V |
| 803 | 1604010B06 | Armature 230V |
| 803 | 1604010B06 | Armature 230V |
| 803 | 1604010B06 | Armature 230V |
| 803 | 1604010B06 | Armature 230V |
| 804 | 1607000C14 | On-Off Switch Gray |
| 804 | 1607000C16 | On-Off Switch |
| 804 | 1607000C14 | On-Off Switch Gray |
| 804 | 1607000C16 | On-Off Switch |
| 804 | 1607000C14 | On-Off Switch Gray |
| 804 | 1607000C14 | On-Off Switch Gray |
| 804 | 1607000C16 | On-Off Switch |
| 804 | 1607000C14 | On-Off Switch Gray |
| 804 | 1607000C14 | On-Off Switch Gray |
| 804 | 1607000C16 | On-Off Switch |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 808 | 1601106940 | Nameplate |
| 808 | 1601106940 | Nameplate |
| 808 | 1601106940 | Nameplate |
| 808 | 1601106940 | Nameplate |
| 808 | 1601106940 | Nameplate |
| 808 | 1601106940 | Nameplate |
| 808 | 1601106940 | Nameplate |
| 808 | 1601106940 | Nameplate |
| 81 | 1600190048 | Magnet |
| 81 | 1600190048 | Magnet |
| 81 | 1600190048 | Magnet |
| 81 | 1600190048 | Magnet |
| 81 | 1600190048 | Magnet |
| 81 | 1600190048 | Magnet |
| 81 | 1600190048 | Magnet |
| 81 | 1600190048 | Magnet |
| 810 | 1607000480 | Carbon-Brush Set 10 X 1 607 014 171 |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607000480 | Carbon-Brush Set 10 X 1 607 014 171 |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607000480 | Carbon-Brush Set 10 X 1 607 014 171 |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607014194 | Carbon-Brush Set |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607014171 | Carbon-Brush Set |
| 816 | 1604336053 | Brush Holder |
| 816 | 1604336053 | Brush Holder |
| 816 | 1604336053 | Brush Holder |
| 816 | 1604336053 | Brush Holder |
| 816 | 1604336053 | Brush Holder |
| 816 | 1604336053 | Brush Holder |
| 816 | 1604336053 | Brush Holder |
| 816 | 1604336053 | Brush Holder |
| 821 | 1607000C17 | Gear Housing |
| 821 | 1607000C17 | Gear Housing |
| 821 | 1607000C17 | Gear Housing |
| 821 | 1607000C17 | Gear Housing |
| 821 | 1607000C17 | Gear Housing |
| 821 | 1607000C17 | Gear Housing |
| 821 | 1607000C17 | Gear Housing |
| 821 | 1607000C17 | Gear Housing |
| 822 | 1607000CP1 | Bearing Flange |
| 822 | 1607000CP1 | Bearing Flange |
| 822 | 1607000CP2 | Bearing Flange |
| 822 | 1607000CP2 | Bearing Flange |
| 822 | 1607000CP1 | Bearing Flange |
| 822 | 1607000CP1 | Bearing Flange |
| 822 | 1607000CP2 | Bearing Flange |
| 822 | 1607000CP2 | Bearing Flange |
| 823 | 16058080CX | Bearing Flange |
| 823 | 16058080CX | Bearing Flange |
| 823 | 16058080EC | Bearing Flange |
| 823 | 16058080EC | Bearing Flange |
| 823 | 16058080CX | Bearing Flange |
| 823 | 16058080CX | Bearing Flange |
| 823 | 16058080EC | Bearing Flange |
| 823 | 16058080EC | Bearing Flange |
| 825 | 1607000CU5 | Grinding Spindle |
| 825 | 1607000CU5 | Grinding Spindle |
| 825 | 1607000CU5 | Grinding Spindle |
| 825 | 1607000CU5 | Grinding Spindle |
| 825 | 1607000CU5 | Grinding Spindle |
| 825 | 1607000CU5 | Grinding Spindle |
| 825 | 1607000CU5 | Grinding Spindle |
| 825 | 1607000CU5 | Grinding Spindle |
| 826 | 1600A024YV | Bevel Gear Set |
| 826 | 1600A024YV | Bevel Gear Set |
| 826 | 1600A024YW | Bevel Gear Set |
| 826 | 1600A024YW | Bevel Gear Set |
| 826 | 1600A024YV | Bevel Gear Set |
| 826 | 1600A024YV | Bevel Gear Set |
| 826 | 1600A024YW | Bevel Gear Set |
| 826 | 1600A024YW | Bevel Gear Set |
| 835 | 1606610150 | Fan |
| 835 | 1606610150 | Fan |
| 835 | 1606610150 | Fan |
| 835 | 1606610150 | Fan |
| 835 | 1606610150 | Fan |
| 835 | 1606610150 | Fan |
| 835 | 1606610150 | Fan |
| 835 | 1606610150 | Fan |
| 840 | 1607000431 | Push-Button |
| 840 | 1607000431 | Push-Button |
| 840 | 1607000431 | Push-Button |
| 840 | 1607000431 | Push-Button |
| 840 | 1607000431 | Push-Button |
| 840 | 1607000431 | Push-Button |
| 840 | 1607000431 | Push-Button |
| 840 | 1607000431 | Push-Button |
| 846 | 1607000432 | Retaining Washer |
| 846 | 1607000432 | Retaining Washer |
| 846 | 1607000432 | Retaining Washer |
| 846 | 1607000432 | Retaining Washer |
| 846 | 1607000432 | Retaining Washer |
| 846 | 1607000432 | Retaining Washer |
| 846 | 1607000432 | Retaining Washer |
| 846 | 1607000432 | Retaining Washer |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 880 | 1607233552 | Electronics Module |
| 880 | 1607233552 | Electronics Module |
| 880 | 1607233552 | Electronics Module |
| 880 | 1607233330 | Speed governor |
| 880 | 1607233552 | Electronics Module |
| 880 | 1607233552 | Electronics Module |
| 880 | 1607233552 | Electronics Module |
| 880 | 1607233552 | Electronics Module |
| 880 | 1607233552 | Electronics Module |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 891 | 16020250A1 | Auxiliary Handle |
| 891 | 16020250A1 | Auxiliary Handle |
| 891 | 16020250A1 | Auxiliary Handle |
| 891 | 16020250A1 | Auxiliary Handle |
| 891 | 16020250A1 | Auxiliary Handle |
| 891 | 16020250A1 | Auxiliary Handle |
| 891 | 16020250A1 | Auxiliary Handle |
| 891 | 16020250A1 | Auxiliary Handle |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 893 | 1605703117 | Clamping-Flange Ø22XØ42 Mm+o-Ring |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 893 | 1605703117 | Clamping-Flange Ø22XØ42 Mm+o-Ring |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 894 | 1603345043 | Round Nut M14 |
| 894 | 1603345043 | Round Nut M14 |
| 894 | 1603345043 | Round Nut M14 |
| 894 | 1603345043 | Round Nut M14 |
| 894 | 1603345043 | Round Nut M14 |
| 894 | 1603345043 | Round Nut M14 |
| 894 | 1603345043 | Round Nut M14 |
| 894 | 1603345043 | Round Nut M14 |
| 896 | 1600A016PP | Fast Locking Flange |
| 896 | 1600A016PP | Fast Locking Flange |
| 896 | 1600A016PP | Fast Locking Flange |
| 896 | 1600A016PP | Fast Locking Flange |
| 896 | 1600A016PP | Fast Locking Flange |
| 896 | 1600A016PP | Fast Locking Flange |
| 896 | 1600A016PP | Fast Locking Flange |
| 896 | 1600A016PP | Fast Locking Flange |
| 9 | 160111C283 | Manufacturer's nameplate |
| 9 | 160111C283 | Manufacturer's nameplate |
| 9 | 160111C2U4 | Manufacturer's nameplate |
| 9 | 160111C2U4 | Manufacturer's nameplate |
| 9 | 160111C28F | Manufacturer's nameplate |
| 9 | 160111C28F | Manufacturer's nameplate |
| 9 | 160111C2UA | Manufacturer's nameplate |
| 9 | 160111C2UA | Manufacturer's nameplate |
Selected parts0
