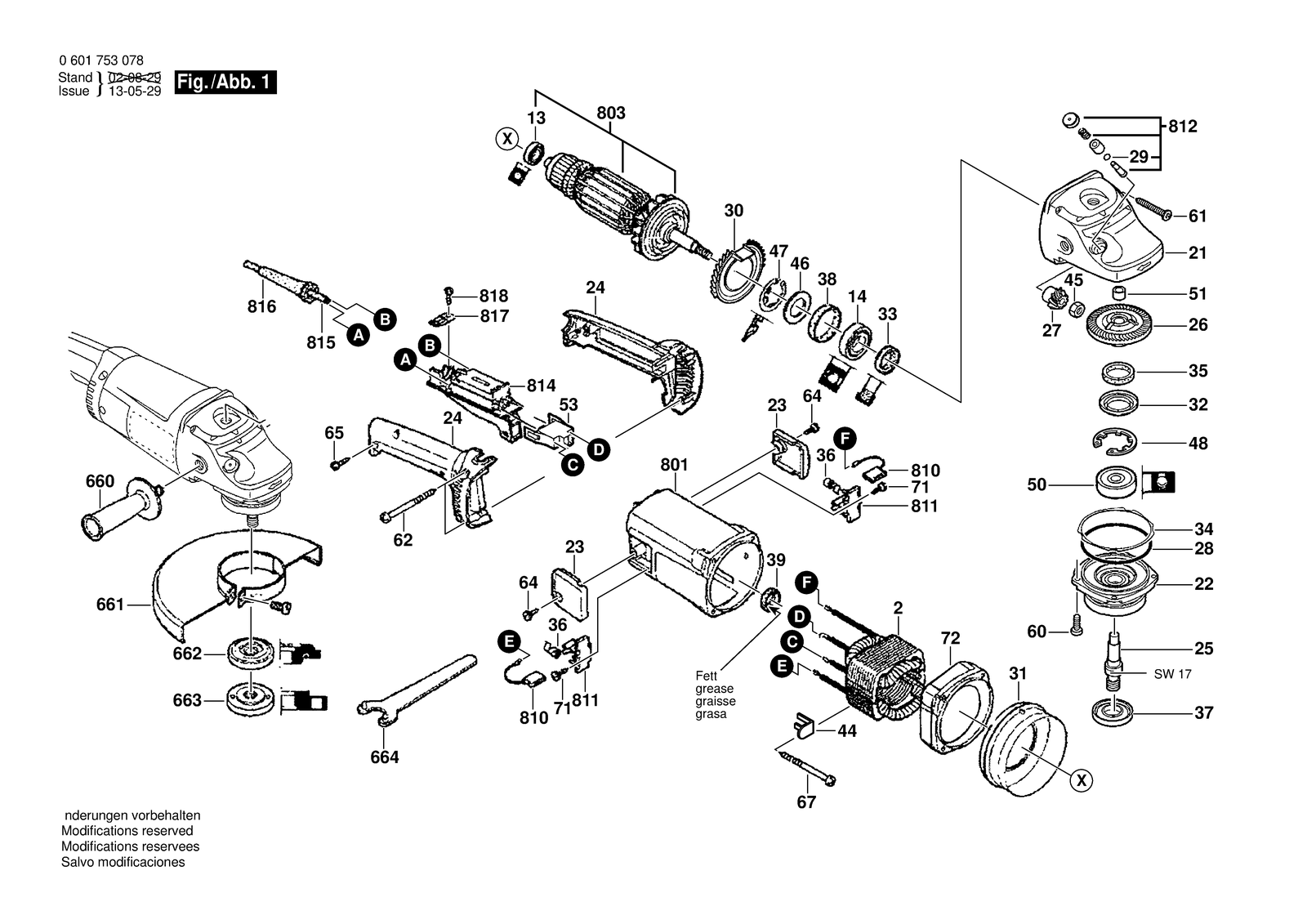

Bosch GWS 23-180 universal angle grinder: exploded parts diagram, 1 sheet, 57 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 23-180: 57 positions on 1 sheet
Bosch GWS 23-180 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 14 | 1600905023 | Groove ball bearing 10X35X11 |
| 22 | 1605805137 | Bearing Flange |
| 23 | F000600349 | Brush-Cover |
| 24 | F000603011 | Handle |
| 25 | 160312305U | Grinding Spindle |
| 26 | 1606333618 | Crown Gear Z=53 |
| 27 | 1606333237 | Bevel Gear Z=17 |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 30 | F000600350 | Splash Guard |
| 31 | F000604003 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 35 | 1600205034 | Felt Washer |
| 37 | 1600290036 | Seal Ring Black |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | F000616060 | Locating ring |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 47 | 1600119008 | Spring retaining ring |
| 48 | 1600119010 | Spring retaining ring |
| 50 | 3600905134 | Groove ball bearing |
| 51 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 53 | F000600567 | Roller Container |
| 60 | 9618086638 | Screw |
| 61 | F000600216 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 64 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 660 | 160202509Z | Auxiliary Handle |
| 661 | 1605510176 | Protective Cover Ø180 MM |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 663 | F000635152 | Round Nut |
| 664 | F000632033 | Pin-Type Face-Wrench |
| 67 | F000600215 | Tapping Screw |
| 71 | 9618089885 | Thread-forming tap. Screw |
| 72 | F000600222 | Bearing Flange |
| 801 | F000600546 | Motor Housing |
| 803 | F000605227 | Armature 220V |
| 803 | F000605228 | Armature 127V |
| 803 | F000607096 | Field 127V |
| 810 | F000611090 | Carbon-Brush Set E64 |
| 810 | F000611091 | Carbon-Brush Set E66 |
| 811 | 1604336047 | Brush Holder |
| 812 | 9618086834 | Pivot Pin |
| 814 | F000600221 | Switch 220V |
| 815 | F000609000 | Power supply cord |
| 815 | F000609269 | Power supply cord SAM 2,00M 2 X 2,50MM H07 Rnf |
| 815 | F000609270 | Power supply cord BR 2,00M 2 X 1,50MM H07 Rnf |
| 815 | F000609276 | Power supply cord SAM 2,00M 2 X 2,50MM H07 Rnf |
| 816 | 1600703023 | Grommet Ø 10,5-Ø11,0X100 MM |
| 817 | F000600243 | Fastening Clamp |
| 818 | F000600340 | Shoulder Screw |
