Bosch GWS 22-180

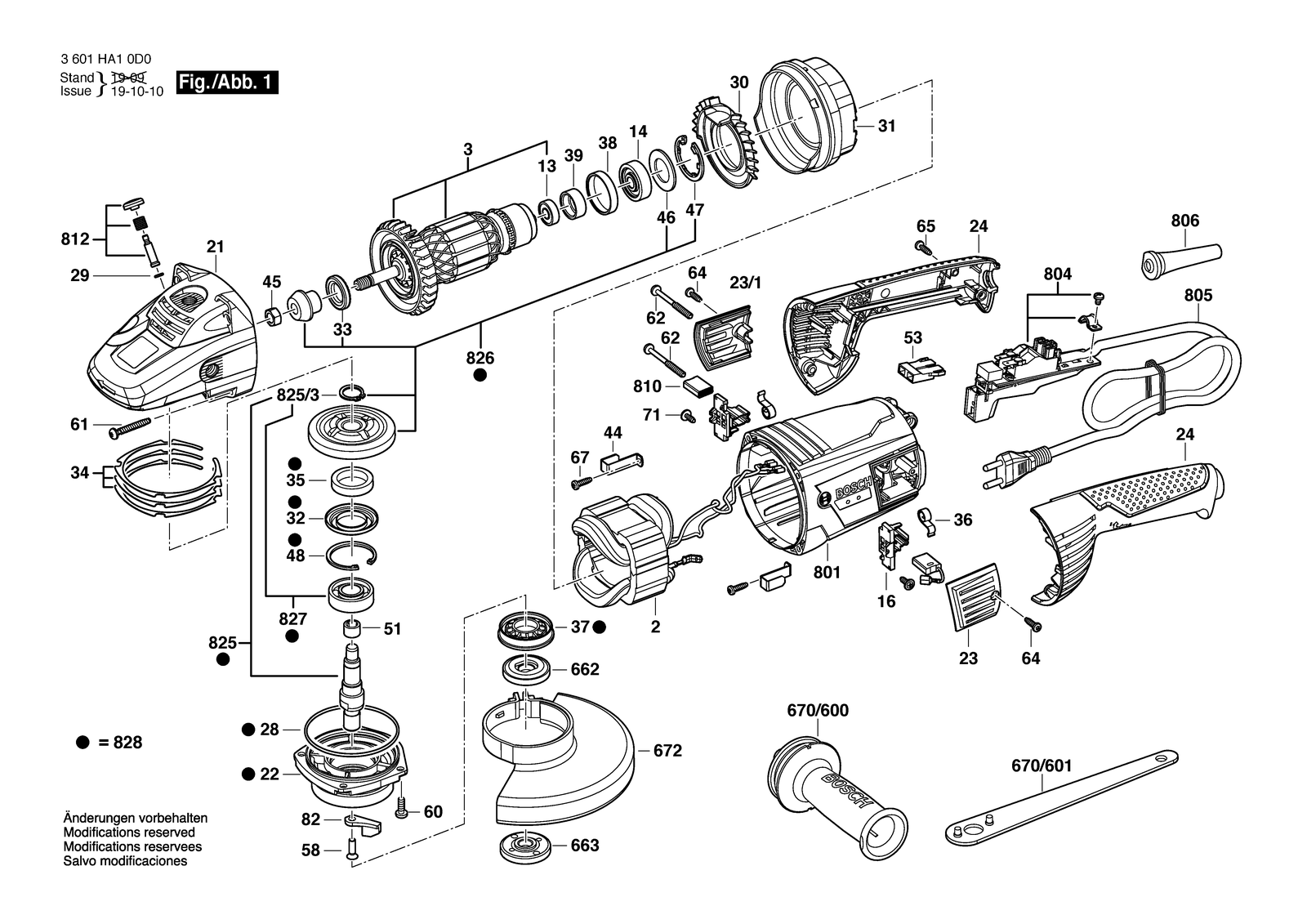

Bosch GWS 22-180 universal angle grinder: exploded parts diagram, 1 sheet, 401 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 22-180: 401 positions on 1 sheet
Bosch GWS 22-180 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 14 | 1600905028 | Groove ball bearing |
| 14 | 1600905023 | Groove ball bearing 10X35X11 |
| 14 | 1600905023 | Groove ball bearing 10X35X11 |
| 14 | 1600905023 | Groove ball bearing 10X35X11 |
| 14 | 1600905023 | Groove ball bearing 10X35X11 |
| 14 | 1600905023 | Groove ball bearing 10X35X11 |
| 16 | 1604336047 | Brush Holder |
| 16 | 1604336047 | Brush Holder |
| 16 | 1604336047 | Brush Holder |
| 16 | 1604336047 | Brush Holder |
| 16 | 1604336047 | Brush Holder |
| 16 | 1604336047 | Brush Holder |
| 2 | F000607097 | Field 220V |
| 2 | F000607098 | Field 127V |
| 2 | F000607097 | Field 220V |
| 2 | F000607098 | Field 127V |
| 2 | F000607093 | Field 220V |
| 2 | F000607094 | Field 127V |
| 2 | F000607093 | Field 220V |
| 2 | F000607094 | Field 127V |
| 2 | F000607095 | Field 220V |
| 2 | F000607096 | Field 127V |
| 2 | F000607095 | Field 220V |
| 2 | F000607096 | Field 127V |
| 21 | F000602168 | Gear Housing |
| 21 | F000602168 | Gear Housing |
| 21 | F000602168 | Gear Housing |
| 21 | F000602168 | Gear Housing |
| 21 | F000602168 | Gear Housing |
| 21 | F000602168 | Gear Housing |
| 22 | 1605805137 | Bearing Flange |
| 22 | 1605805138 | Bearing Flange |
| 22 | 1605805137 | Bearing Flange |
| 22 | 1605805138 | Bearing Flange |
| 22 | 1605805137 | Bearing Flange |
| 22 | 1605805138 | Bearing Flange |
| 23 | F000612061 | Brush-Cover |
| 23 | F000612061 | Brush-Cover |
| 23 | F000612061 | Brush-Cover |
| 23 | F000612061 | Brush-Cover |
| 23 | F000612061 | Brush-Cover |
| 23 | F000612061 | Brush-Cover |
| 23/1 | F000612062 | Brush-Cover |
| 23/1 | F000612062 | Brush-Cover |
| 23/1 | F000612062 | Brush-Cover |
| 23/1 | F000612062 | Brush-Cover |
| 23/1 | F000612062 | Brush-Cover |
| 23/1 | F000612062 | Brush-Cover |
| 24 | F000603096 | Handle |
| 24 | F000603096 | Handle |
| 24 | F000603096 | Handle |
| 24 | F000603096 | Handle |
| 24 | F000603096 | Handle |
| 24 | F000603096 | Handle |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 3 | 1604010BF0 | Armature |
| 3 | F000605229 | Armature 220V |
| 3 | 1604010BF0 | Armature |
| 3 | F000605229 | Armature 220V |
| 3 | F000605225 | Armature 220V |
| 3 | F000605226 | Armature 127V |
| 3 | F000605225 | Armature 220V |
| 3 | F000605226 | Armature 127V |
| 3 | F000605227 | Armature 220V |
| 3 | F000605228 | Armature 127V |
| 3 | F000605227 | Armature 220V |
| 3 | F000605228 | Armature 127V |
| 30 | F000600350 | Splash Guard |
| 30 | F000600350 | Splash Guard |
| 30 | F000600350 | Splash Guard |
| 30 | F000600350 | Splash Guard |
| 30 | F000600350 | Splash Guard |
| 30 | F000600350 | Splash Guard |
| 31 | F000604017 | Air-Deflector Ring |
| 31 | F000604017 | Air-Deflector Ring |
| 31 | F000604017 | Air-Deflector Ring |
| 31 | F000604017 | Air-Deflector Ring |
| 31 | F000604017 | Air-Deflector Ring |
| 31 | F000604017 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 36 | 1604652019 | Spiral Spring |
| 36 | 1604652019 | Spiral Spring |
| 36 | 1604652019 | Spiral Spring |
| 36 | 1604652019 | Spiral Spring |
| 36 | 1604652019 | Spiral Spring |
| 36 | 1604652019 | Spiral Spring |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | F000616060 | Locating ring |
| 39 | F000616060 | Locating ring |
| 39 | F000616060 | Locating ring |
| 39 | F000616060 | Locating ring |
| 39 | F000616060 | Locating ring |
| 39 | F000616060 | Locating ring |
| 44 | 1601334011 | Pickup Clip |
| 44 | 1601334011 | Pickup Clip |
| 44 | 1601334009 | Pickup Clip |
| 44 | 1601334009 | Pickup Clip |
| 44 | 1601334010 | Pickup Clip |
| 44 | 1601334010 | Pickup Clip |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 46 | 1600102018 | Retaining Washer Thick 1,8 MM |
| 47 | 1600119008 | Spring retaining ring |
| 47 | 1600119008 | Spring retaining ring |
| 47 | 1600119008 | Spring retaining ring |
| 47 | 1600119008 | Spring retaining ring |
| 47 | 1600119008 | Spring retaining ring |
| 47 | 1600119008 | Spring retaining ring |
| 48 | 1600119010 | Spring retaining ring |
| 48 | 1600119010 | Spring retaining ring |
| 48 | 1600119010 | Spring retaining ring |
| 48 | 1600119010 | Spring retaining ring |
| 48 | 1600119010 | Spring retaining ring |
| 48 | 1600119010 | Spring retaining ring |
| 51 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 51 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 51 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 51 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 51 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 51 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 53 | F000600567 | Roller Container |
| 53 | F000600567 | Roller Container |
| 53 | F000600567 | Roller Container |
| 53 | F000600567 | Roller Container |
| 53 | F000600567 | Roller Container |
| 53 | F000600567 | Roller Container |
| 58 | 1603435075 | Thread-forming tap. Screw |
| 58 | 1603435075 | Thread-forming tap. Screw |
| 58 | 1603435075 | Thread-forming tap. Screw |
| 58 | 1603435075 | Thread-forming tap. Screw |
| 58 | 1603435075 | Thread-forming tap. Screw |
| 58 | 1603435075 | Thread-forming tap. Screw |
| 60 | 9618086638 | Screw |
| 60 | 9618086638 | Screw |
| 60 | 9618086638 | Screw |
| 60 | 9618086638 | Screw |
| 60 | 9618086638 | Screw |
| 60 | 9618086638 | Screw |
| 61 | F000600217 | Tapping Screw |
| 61 | F000600217 | Tapping Screw |
| 61 | F000600217 | Tapping Screw |
| 61 | F000600217 | Tapping Screw |
| 61 | F000600217 | Tapping Screw |
| 61 | F000600217 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 62 | F000600216 | Tapping Screw |
| 64 | 9618087099 | Screw 4X16 MM |
| 64 | 9618087099 | Screw 4X16 MM |
| 64 | 9618087099 | Screw 4X16 MM |
| 64 | 9618087099 | Screw 4X16 MM |
| 64 | 9618087099 | Screw 4X16 MM |
| 64 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 662 | 1605703140 | Clamping-Flange |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 662 | 1605703140 | Clamping-Flange |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 662 | 1605703140 | Clamping-Flange |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 662 | 1605703140 | Clamping-Flange |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 662 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 663 | 1603345043 | Round Nut M14 |
| 663 | 9618089364 | Adjusting Nut |
| 663 | 1603345043 | Round Nut M14 |
| 663 | 9618089364 | Adjusting Nut |
| 663 | 1603345043 | Round Nut M14 |
| 663 | 9618089364 | Adjusting Nut |
| 663 | 1603345043 | Round Nut M14 |
| 663 | 9618089364 | Adjusting Nut |
| 663 | 1603345043 | Round Nut M14 |
| 663 | 1603345043 | Round Nut M14 |
| 67 | 9618087099 | Screw 4X16 MM |
| 67 | 9618087099 | Screw 4X16 MM |
| 67 | 9618087099 | Screw 4X16 MM |
| 67 | 9618087099 | Screw 4X16 MM |
| 67 | 9618087099 | Screw 4X16 MM |
| 67 | 9618087099 | Screw 4X16 MM |
| 670/600 | 160202509Z | Auxiliary Handle |
| 670/600 | 160202509Z | Auxiliary Handle |
| 670/600 | 160202509Z | Auxiliary Handle |
| 670/600 | 160202509Z | Auxiliary Handle |
| 670/600 | 160202509Z | Auxiliary Handle |
| 670/600 | 160202509Z | Auxiliary Handle |
| 670/601 | F000632033 | Pin-Type Face-Wrench |
| 670/601 | F000632033 | Pin-Type Face-Wrench |
| 670/601 | F000632033 | Pin-Type Face-Wrench |
| 670/601 | F000632033 | Pin-Type Face-Wrench |
| 670/601 | F000632033 | Pin-Type Face-Wrench |
| 670/601 | F000632033 | Pin-Type Face-Wrench |
| 672 | 1600A00XL9 | Protective Cover Ø180 MM |
| 672 | 1600A00XM0 | Protective Cover |
| 672 | 1600A00XL9 | Protective Cover Ø180 MM |
| 672 | 1600A00XM0 | Protective Cover |
| 672 | 1600A00XL9 | Protective Cover Ø180 MM |
| 672 | 1600A00XM0 | Protective Cover |
| 71 | 9618089885 | Thread-forming tap. Screw |
| 71 | 9618089885 | Thread-forming tap. Screw |
| 71 | 9618089885 | Thread-forming tap. Screw |
| 71 | 9618089885 | Thread-forming tap. Screw |
| 71 | 9618089885 | Thread-forming tap. Screw |
| 71 | 9618089885 | Thread-forming tap. Screw |
| 801 | F000601306 | Motor Housing |
| 801 | F000601306 | Motor Housing |
| 801 | F000601309 | Motor Housing |
| 801 | F000601309 | Motor Housing |
| 801 | F000601311 | Motor Housing |
| 801 | F000601311 | Motor Housing |
| 804 | F000600221 | Switch 220V |
| 804 | F000608035 | Switch |
| 804 | F000608328 | On-Off Switch |
| 804 | F000608329 | On-Off Switch 127V |
| 804 | F000600221 | Switch 220V |
| 804 | F000608035 | Switch |
| 804 | F000608328 | On-Off Switch |
| 804 | F000608329 | On-Off Switch 127V |
| 804 | F000600221 | Switch 220V |
| 804 | F000608035 | Switch |
| 804 | F000600221 | Switch 220V |
| 804 | F000608035 | Switch |
| 804 | F000600221 | Switch 220V |
| 804 | F000608035 | Switch |
| 804 | 160720034F | Switch |
| 804 | F000600221 | Switch 220V |
| 804 | F000608035 | Switch |
| 805 | F000609269 | Power supply cord SAM 2,00M 2 X 2,50MM H07 Rnf |
| 805 | F000609270 | Power supply cord BR 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609276 | Power supply cord SAM 2,00M 2 X 2,50MM H07 Rnf |
| 805 | F000609282 | Power supply cord AR 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609291 | Power supply cord SAM 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609269 | Power supply cord SAM 2,00M 2 X 2,50MM H07 Rnf |
| 805 | F000609270 | Power supply cord BR 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609276 | Power supply cord SAM 2,00M 2 X 2,50MM H07 Rnf |
| 805 | F000609282 | Power supply cord AR 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609291 | Power supply cord SAM 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609270 | Power supply cord BR 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609278 | Power supply cord SAM 4,00M 2 X 1,00MM H07 Rnf |
| 805 | F000609282 | Power supply cord AR 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609291 | Power supply cord SAM 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609270 | Power supply cord BR 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609278 | Power supply cord SAM 4,00M 2 X 1,00MM H07 Rnf |
| 805 | F000609282 | Power supply cord AR 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609291 | Power supply cord SAM 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609270 | Power supply cord BR 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609276 | Power supply cord SAM 2,00M 2 X 2,50MM H07 Rnf |
| 805 | 1604460126 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 805 | 1604460348 | Power supply cord GB 230V 4,15M 2 X 1,5MM H07 Rn-F |
| 805 | F000609270 | Power supply cord BR 2,00M 2 X 1,50MM H07 Rnf |
| 805 | F000609276 | Power supply cord SAM 2,00M 2 X 2,50MM H07 Rnf |
| 806 | 1600703037 | Grommet |
| 806 | F000603133 | Grommet |
| 806 | 1600703037 | Grommet |
| 806 | F000603133 | Grommet |
| 806 | 1600703037 | Grommet |
| 806 | F000603133 | Grommet |
| 806 | 1600703037 | Grommet |
| 806 | F000603133 | Grommet |
| 806 | 1600703037 | Grommet |
| 806 | F000603133 | Grommet |
| 806 | 1600703037 | Grommet |
| 806 | F000603133 | Grommet |
| 810 | F000611090 | Carbon-Brush Set E64 |
| 810 | F000611091 | Carbon-Brush Set E66 |
| 810 | F000611090 | Carbon-Brush Set E64 |
| 810 | F000611091 | Carbon-Brush Set E66 |
| 810 | F000611090 | Carbon-Brush Set E64 |
| 810 | F000611091 | Carbon-Brush Set E66 |
| 810 | F000611090 | Carbon-Brush Set E64 |
| 810 | F000611091 | Carbon-Brush Set E66 |
| 810 | F000611090 | Carbon-Brush Set E64 |
| 810 | F000611091 | Carbon-Brush Set E66 |
| 810 | F000611090 | Carbon-Brush Set E64 |
| 810 | F000611091 | Carbon-Brush Set E66 |
| 812 | F000601307 | Assembly Set |
| 812 | F000601307 | Assembly Set |
| 812 | F000601307 | Assembly Set |
| 812 | F000601307 | Assembly Set |
| 812 | F000601307 | Assembly Set |
| 812 | F000601307 | Assembly Set |
| 82 | 1602002014 | Stopper |
| 82 | 1602002014 | Stopper |
| 82 | 1602002014 | Stopper |
| 82 | 1602002014 | Stopper |
| 82 | 1602002014 | Stopper |
| 82 | 1602002014 | Stopper |
| 825 | 1600A01LX7 | Assembly Set |
| 825 | 1600A01LX8 | Assembly Set |
| 825 | 1600A01LX7 | Assembly Set |
| 825 | 1600A01LX8 | Assembly Set |
| 825 | 1600A01LX7 | Assembly Set |
| 825 | 1600A01LX8 | Assembly Set |
| 825 | 1600A01LX7 | Assembly Set |
| 825 | 1600A01LX8 | Assembly Set |
| 825 | 1600A01LX7 | Assembly Set |
| 825 | 1600A01LX7 | Assembly Set |
| 825/3 | 2916650905 | Spring retaining ring |
| 825/3 | 2916650905 | Spring retaining ring |
| 825/3 | 2916650905 | Spring retaining ring |
| 825/3 | 2916650905 | Spring retaining ring |
| 825/3 | 2916650905 | Spring retaining ring |
| 825/3 | 2916650905 | Spring retaining ring |
| 826 | 1607000C5F | Bevel Gear Set |
| 826 | 1607000C5G | Bevel Gear Set |
| 826 | 1607000C5F | Bevel Gear Set |
| 826 | 1607000C5G | Bevel Gear Set |
| 826 | 1607000C5F | Bevel Gear Set |
| 826 | 1607000C5G | Bevel Gear Set |
| 827 | 160090008N | Groove ball bearing |
| 827 | 160090008N | Groove ball bearing |
| 827 | 160090008N | Groove ball bearing |
| 827 | 160090008N | Groove ball bearing |
| 827 | 160090008N | Groove ball bearing |
| 827 | 160090008N | Groove ball bearing |
| 828 | 160580515E | Motor Housing |
| 828 | 160580809J | Bearing Flange |
| 828 | 160580515E | Motor Housing |
| 828 | 160580809J | Bearing Flange |
| 828 | 160580515E | Motor Housing |
| 828 | 160580809J | Bearing Flange |
Selected parts0
