Bosch GWS 20-180
Bosch GWS 20-180 angle grinder: exploded parts diagram, 2 sheets, 160 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

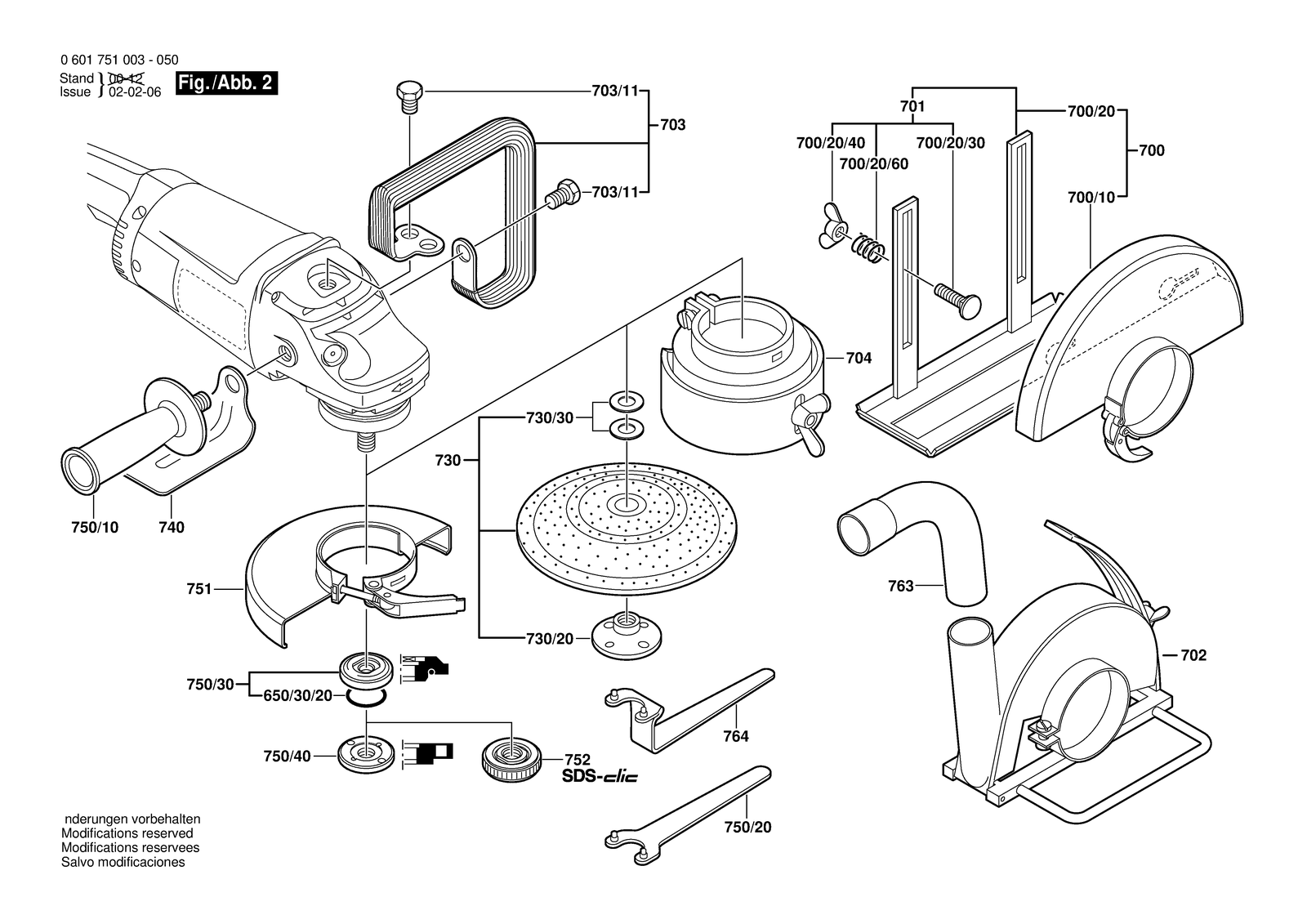

All parts of Bosch GWS 20-180: 160 positions on 2 sheets
Bosch GWS 20-180 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108275 | Motor Housing |
| 1 | 1605108275 | Motor Housing |
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 180 | 1601118800 | Reference Plate |
| 180 | 1611110855 | Sticker |
| 2 | 1604220380 | Field 220-240V |
| 2 | 160422057P | Field |
| 2 | 1604220380 | Field 220-240V |
| 23 | 1618B00802 | Sealing cap |
| 23 | 1618B00802 | Sealing cap |
| 24 | 1619P11545 | Handle |
| 24 | 1619P11545 | Handle |
| 25 | 160312305U | Grinding Spindle |
| 25 | 160312305U | Grinding Spindle |
| 26 | 1606333248 | Crown Gear Z=55 |
| 26 | 1606333618 | Crown Gear Z=53 |
| 26 | 1606333618 | Crown Gear Z=53 |
| 27 | 1606333237 | Bevel Gear Z=17 |
| 27 | 1606333246 | Bevel Gear Z=16 |
| 27 | 1606333237 | Bevel Gear Z=17 |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 3/50 | 1600A00J93 | Fan |
| 3/50 | 1600A00J93 | Fan |
| 30 | 1600591029 | Air Distributor |
| 30 | 1600591029 | Air Distributor |
| 31 | 1600591075 | Air-Deflector Ring |
| 31 | 1600591075 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 37 | 1600290036 | Seal Ring Black |
| 37 | 1600290036 | Seal Ring Black |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | 1600206030 | Rubber Ring |
| 39 | 1600206030 | Rubber Ring |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 5 | 1604460134 | Power supply cord J 4,2M 2 X 1,25MM Gummi |
| 5 | 1604460218 | Power supply cord SAM 2,65M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460219 | Power supply cord GB 110V 2,65M 2 X 2,5MM H07RN-F |
| 5 | 3604460047 | Power supply cord I 2,65M 2X1,0MM H07 Rn-F |
| 5 | 3604460071 | Power supply cord GB 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460255 | Power supply cord CN 4,15M 2 X 1,5MM H07 Rn-F |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 53 | 1605190068 | Socket Housing |
| 53 | 1605190068 | Socket Housing |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0X100 MM |
| 6 | 3600703003 | Grommet Ø12,8XØ13,5X100 MM |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0X100 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 62 | 1603435060 | Tapping Screw 4,8X55 |
| 62 | 1603435060 | Tapping Screw 4,8X55 |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 64 | 1603435042 | Plastic-Cutting Screw ST3,9X12 |
| 64 | 1603435042 | Plastic-Cutting Screw ST3,9X12 |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 650/30/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 650/30/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 68 | 1601006011 | Sealing Plate |
| 68 | 1601006011 | Sealing Plate |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302019 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 700 | 1607000250 | Parts Set Ø180 MM |
| 700 | 1607000250 | Parts Set Ø180 MM |
| 700/10 | 1605510222 | Protective Cover Ø180 MM |
| 700/10 | 1605510222 | Protective Cover Ø180 MM |
| 700/20 | 1608135003 | Guide Block |
| 700/20 | 1608135003 | Guide Block |
| 700/20/30 | 2910281244 | Round-Head Bolt DIN 603-M 8X25 |
| 700/20/30 | 2910281244 | Round-Head Bolt DIN 603-M 8X25 |
| 700/20/40 | 2915191007 | Wing Nut DIN 315-M8-GT-C |
| 700/20/40 | 2915191007 | Wing Nut DIN 315-M8-GT-C |
| 700/20/60 | 1604643003 | Compression Spring |
| 700/20/60 | 1604643003 | Compression Spring |
| 701 | 1608135003 | Guide Block |
| 701 | 1608135003 | Guide Block |
| 702 | 1605510179 | Suction Hood Ø180 MM |
| 702 | 1605510179 | Suction Hood Ø180 MM |
| 703 | 1607000247 | Strap-Shaped Handle |
| 703 | 1607000247 | Strap-Shaped Handle |
| 703/11 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 703/11 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 704 | 1605510181 | Protective Cover Ø110 MM |
| 704 | 1605510181 | Protective Cover Ø110 MM |
| 730 | 1608601006 | Backing Pad Ø180 MM |
| 730 | 1608601006 | Backing Pad Ø180 MM |
| 730/20 | 1603345004 | Round Nut M14 |
| 730/20 | 1603345004 | Round Nut M14 |
| 730/30 | 2916011022 | Plain Washer DIN 125-A15-ST |
| 730/30 | 2916011022 | Plain Washer DIN 125-A15-ST |
| 740 | 1601329013 | Protecting Cover |
| 740 | 1601329013 | Protecting Cover |
| 750/10 | 2602025075 | Auxiliary Handle Black M14X1,5 MM |
| 750/10 | 2602025075 | Auxiliary Handle Black M14X1,5 MM |
| 750/20 | 1607950048 | Pin-Type Face-Wrench |
| 750/20 | 1607950048 | Pin-Type Face-Wrench |
| 750/30 | 1605703099 | Clamping-Flange Ø22,2X42 MM |
| 750/30 | 2605703034 | Clamping-Flange Ø22 MM |
| 750/30 | 1605703099 | Clamping-Flange Ø22,2X42 MM |
| 750/40 | 1603340040 | Clamping Nut M14 |
| 750/40 | 1603340040 | Clamping Nut M14 |
| 751 | 1605510222 | Protective Cover Ø180 MM |
| 751 | 1605510222 | Protective Cover Ø180 MM |
| 752 | 1600A016PP | Fast Locking Flange |
| 752 | 1600A016PP | Fast Locking Flange |
| 763 | 1600793007 | Suction Bend Ø 35 MM |
| 763 | 1600793007 | Suction Bend Ø 35 MM |
| 764 | 1607950004 | Pin-Type Face-Wrench |
| 764 | 1607950004 | Pin-Type Face-Wrench |
| 803 | 1604011178 | Armature 100-120V |
| 803 | 1619P15296 | Armature |
| 803 | 1619P15296 | Armature |
| 804 | 1607000967 | Switch Black |
| 804 | 1607000971 | Switch Black |
| 804 | 1607000967 | Switch Black |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607014194 | Carbon-Brush Set |
| 810 | 1607014171 | Carbon-Brush Set |
| 814 | 1600905023 | Groove ball bearing 10X35X11 |
| 814 | 1600905023 | Groove ball bearing 10X35X11 |
| 816 | 1604336048 | Brush Holder |
| 816 | 1604336048 | Brush Holder |
| 821 | 1607000968 | Gear Housing |
| 821 | 1607000968 | Gear Housing |
| 822 | 1607000986 | Bearing Flange Ø180 MM |
| 822 | 1607000986 | Bearing Flange Ø180 MM |
| 840 | 1607000206 | Push-Button Black |
| 840 | 1607000206 | Push-Button Black |
| 846 | 1607000342 | Retaining Washer |
| 846 | 1607000342 | Retaining Washer |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 9 | 1601118679 | Manufacturer's nameplate |
| 9 | 1601118679 | Manufacturer's nameplate |
