Bosch GWS 19-230
Bosch GWS 19-230 angle grinder: exploded parts diagram, 2 sheets, 93 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

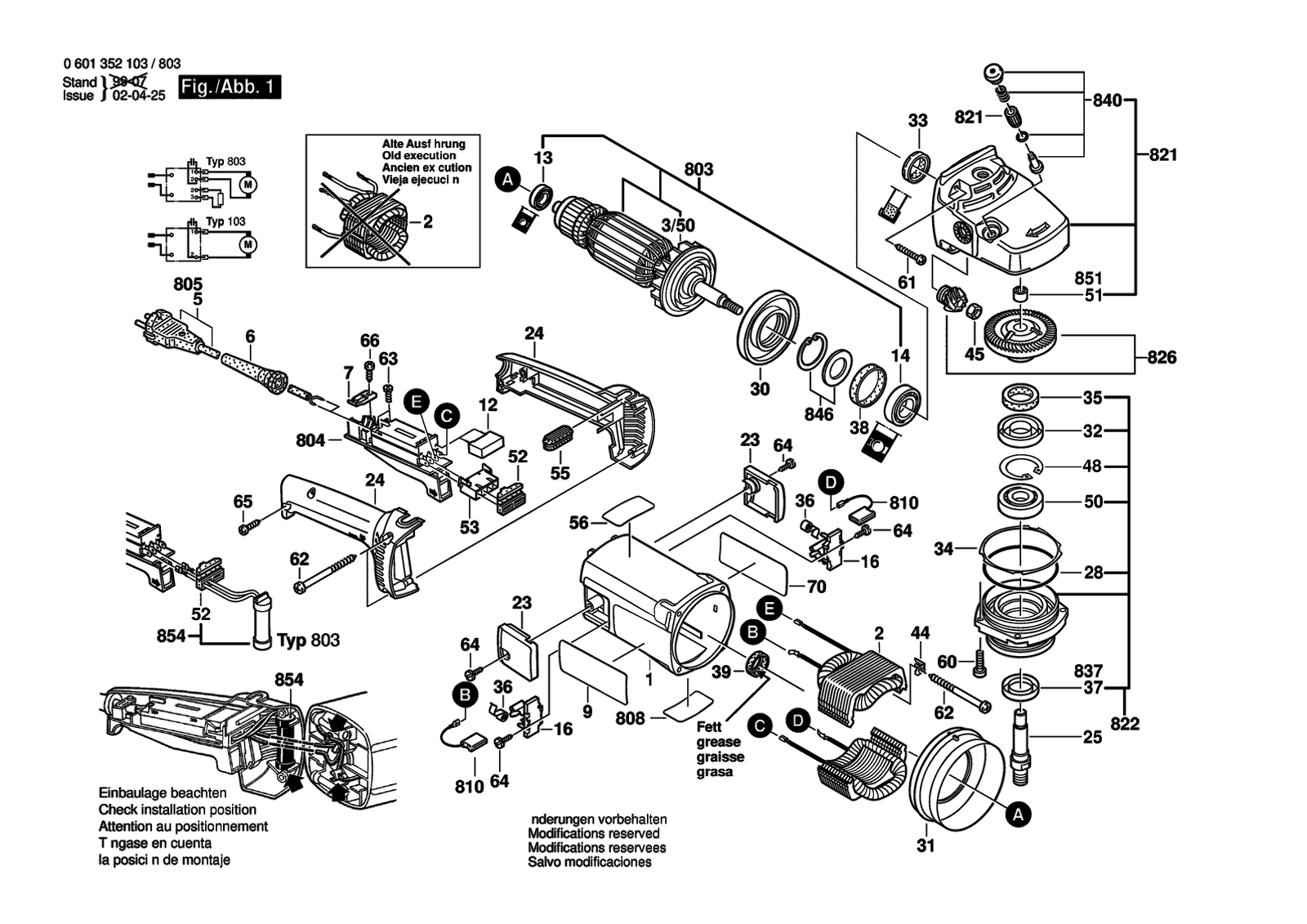

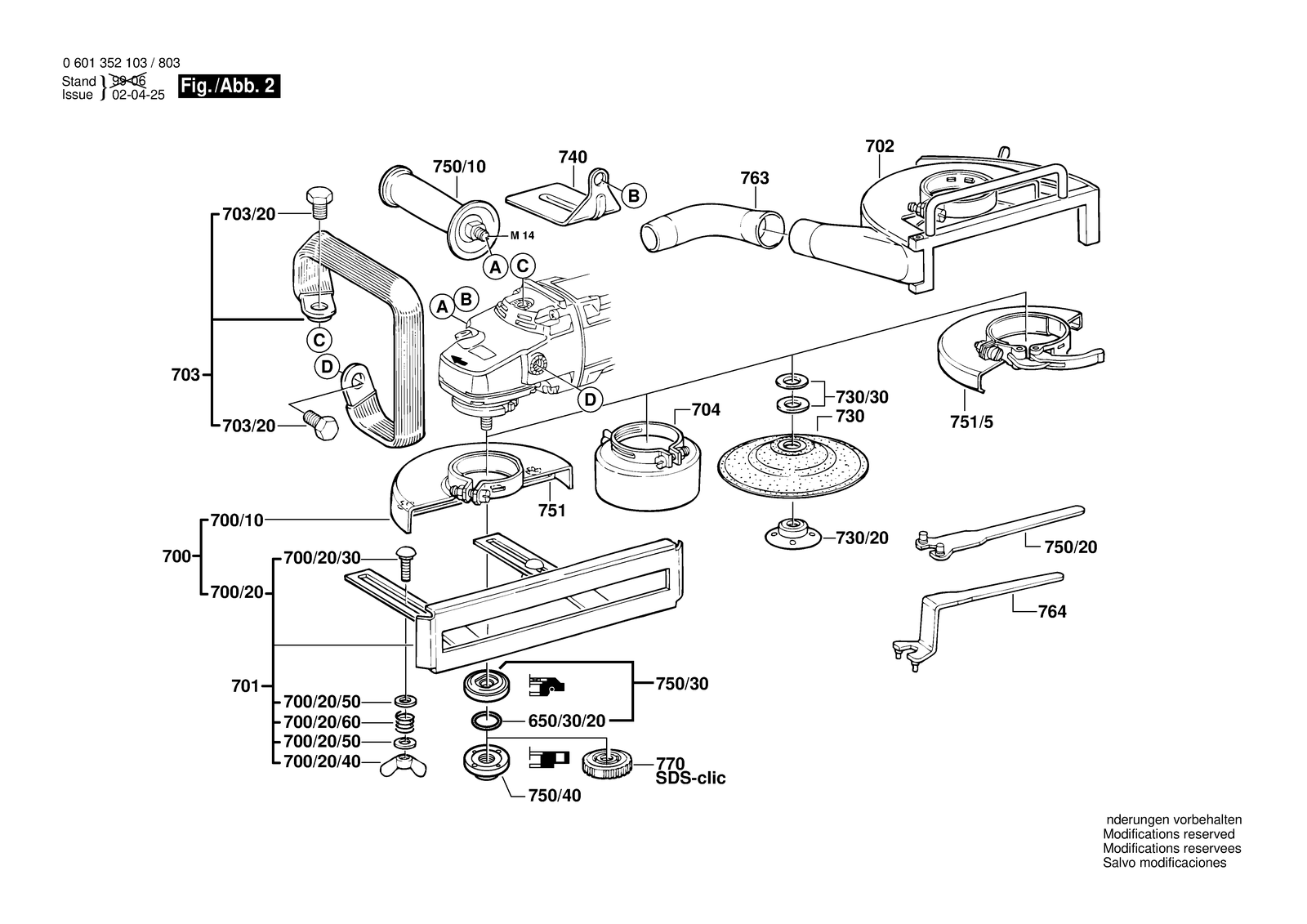

All parts of Bosch GWS 19-230: 93 positions on 2 sheets
Bosch GWS 19-230 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108144 | Motor Housing Blue |
| 12 | 1607328035 | Suppression Filter |
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 14 | 1600905025 | Groove ball bearing 10X35X11 |
| 16 | 1604336021 | Brush Holder |
| 2 | 1604220380 | Field 220-240V |
| 23 | 1605500150 | Sealing cap Black |
| 24 | 1605132117 | Handle Blue |
| 25 | 1603523100 | Grinding Spindle M14, SW17 |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 3/50 | 1606610127 | Fan |
| 30 | 1600591010 | Air-Deflector Ring |
| 31 | 1600591011 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 35 | 1600205034 | Felt Washer |
| 36 | 1604652015 | Spiral Spring |
| 37 | 1600290036 | Seal Ring Black |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | 1600206030 | Rubber Ring |
| 44 | 1601334008 | Holding Bracket |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 48 | 1600119010 | Spring retaining ring |
| 5 | 1604460440 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1614460039 | Power supply cord I 4,15M 2 X 1,0MM H07 Rn-F |
| 50 | 3600905134 | Groove ball bearing |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 52 | 1602388027 | Cable routing |
| 53 | 1605190038 | Socket Housing |
| 55 | 1602388029 | Storage Ledge Black |
| 56 | 1601110530 | Reference Plate |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0X100 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 62 | 1603435024 | Tapping Screw C4,8X63 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 64 | 1603435042 | Plastic-Cutting Screw ST3,9X12 |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 650/30/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 7 | 1601302018 | Fastening Clamp |
| 70 | 1601110984 | Manufacturer's nameplate Working Instructions |
| 700 | 1607000251 | Parts Set Ø230 MM |
| 700/10 | 1605510223 | Protective Cover Ø230 MM |
| 700/20 | 1608135003 | Guide Block |
| 700/20/30 | 2910281244 | Round-Head Bolt DIN 603-M 8X25 |
| 700/20/40 | 2915191007 | Wing Nut DIN 315-M8-GT-C |
| 700/20/50 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 700/20/60 | 1604643003 | Compression Spring |
| 701 | 1608135003 | Guide Block |
| 702 | 1605510180 | Protective Cover Ø230 MM |
| 703 | 1607000247 | Strap-Shaped Handle |
| 703/20 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 704 | 1605510181 | Protective Cover Ø110 MM |
| 730 | 1608601006 | Backing Pad Ø180 MM |
| 730/20 | 1603345004 | Round Nut M14 |
| 730/30 | 2916011022 | Plain Washer DIN 125-A15-ST |
| 740 | 1601329013 | Protecting Cover |
| 750/10 | 2602025075 | Auxiliary Handle Black M14X1,5 MM |
| 750/20 | 1607950048 | Pin-Type Face-Wrench |
| 750/30 | 1605703099 | Clamping-Flange Ø22,2X42 MM |
| 750/40 | 1603340040 | Clamping Nut M14 |
| 751 | 1605510223 | Protective Cover Ø230 MM |
| 751/5 | 1605510223 | Protective Cover Ø230 MM |
| 763 | 1600793007 | Suction Bend Ø 35 MM |
| 764 | 1607950004 | Pin-Type Face-Wrench |
| 770 | 1600A016PP | Fast Locking Flange |
| 803 | 1604011252 | Armature 220-240V |
| 804 | 1607200103 | Switch |
| 804 | 1607200104 | Switch |
| 804 | 1607200105 | Switch |
| 804 | 1607200109 | Switch |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014171 | Carbon-Brush Set |
| 821 | 1605805592 | Gear Housing |
| 822 | 1607000922 | Bearing Flange Silver Ø 230 MM |
| 822 | 1607000932 | Bearing Flange Black Ø230 MM |
| 822 | 1607000985 | Bearing Flange Ø230 MM |
| 826 | 1600A005BH | Assembly Of Service Parts |
| 837 | 1600290020 | Seal Ring |
| 840 | 1607000206 | Push-Button Black |
| 846 | 1607000C3E | Retaining Washer |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 854 | 1607000926 | Wirewound Resistor |
| 9 | 1601118321 | Manufacturer's nameplate |
| 9 | 1601118322 | Manufacturer's nameplate |
| 9 | 1601118323 | Manufacturer's nameplate |
| 9 | 1601118324 | Manufacturer's nameplate |
