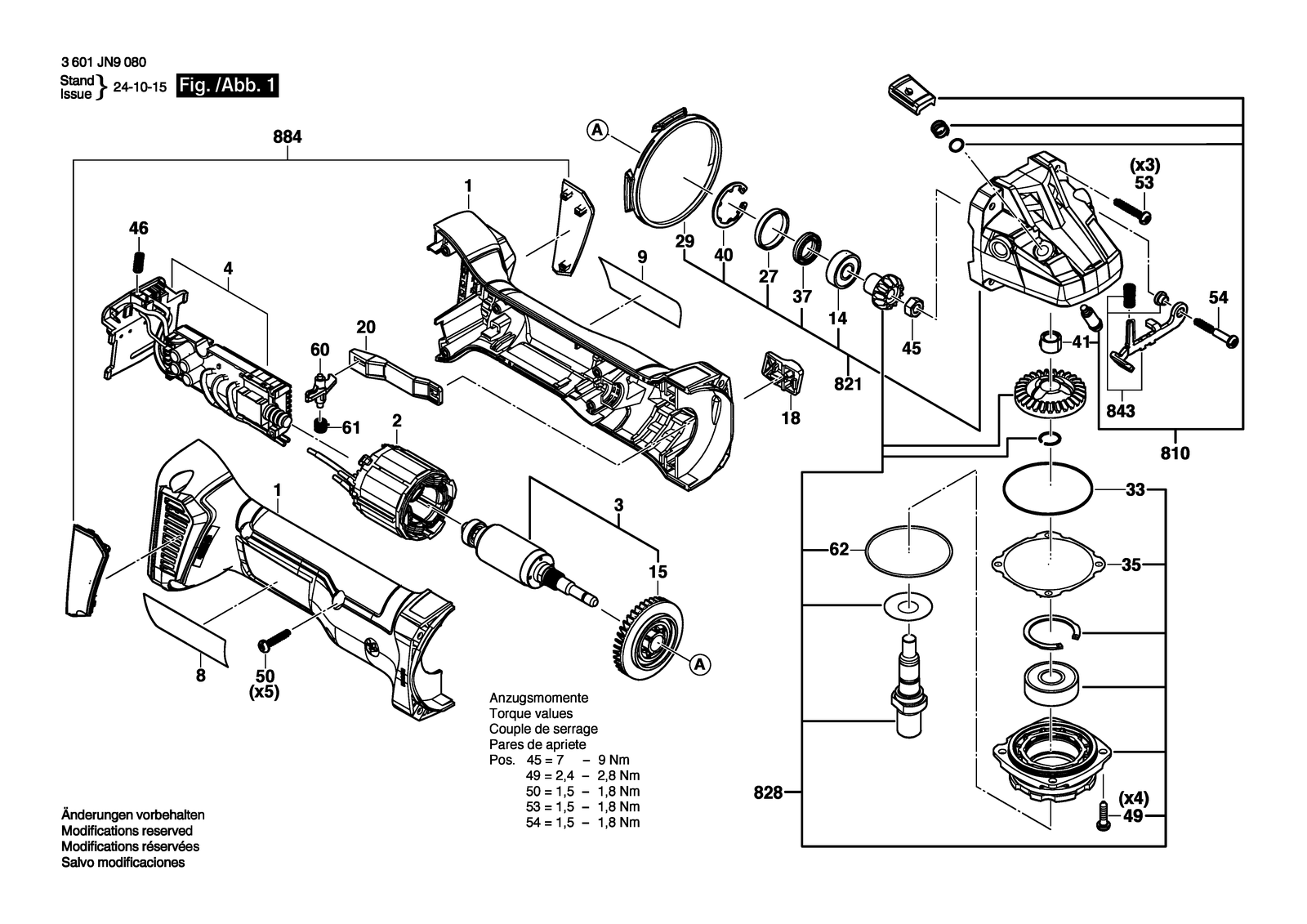

Bosch GWS 18V-8 cordless angle grinder: exploded parts diagram, 2 sheets, 68 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 18V-8: 68 positions on 2 sheets
Bosch GWS 18V-8 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PS1906 | Motor Housing |
| 14 | 1619P00455 | Ball Bearing |
| 15 | 1619PS1912 | Fan |
| 18 | 1600A016PW | Switch Handle |
| 2 | 1619PS1907 | Stator |
| 20 | 1619PS1913 | Adjusting Slide |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600A016U4 | Cover Ring |
| 3 | 1619PS1908 | Rotor |
| 33 | 1619P14427 | O-Ring |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 37 | 1600A00P17 | Holder |
| 4 | 1619PS1909 | Electronics Module |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600200029 | Plain bearing |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 46 | 1609280477 | Compression Spring |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 53 | 1619P01066 | Torx Oval-Head Screw 4X25 |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 60 | 1619P15795 | Reverse-Transfer Lever |
| 61 | 1619P15806 | Torsion Spring |
| 62 | 3600210109 | O-Ring 47,0X1,5 MM |
| 651 | 1600A00XK8 | Protective Cover 115 MM |
| 651 | 1600A00XK9 | Protective Cover |
| 651 | 1600A012JH | Protective Cover |
| 652 | 1600A021MG | Protective Cover |
| 652 | 1600A021MH | Protective Cover |
| 653 | 1603345043 | Round Nut M14 |
| 653 | 1619P14737 | Round Nut With 2 Holes |
| 654 | 1605703112 | Clamping-Flange Ø15/20 MM |
| 654 | 1605703115 | Clamping-Flange |
| 654 | 1619P12159 | Clamping-Flange Ø22,3XØ42 MM |
| 654 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 655 | 1619P16111 | Auxiliary Handle |
| 656 | 1600210055 | O-Ring 20,35X1,78 MM |
| 657 | 1607A3500K | Battery Pack Twn GBA 18V 5.0AH M-c |
| 657 | 1607A350AR | Battery Pack Jpn GBA 18V 8.0AH Procore Scm |
| 657 | 1607A350V9 | Battery Pack GBA 18V 4.0AH |
| 657 | 2607337081 | Battery Pack Bbs Mr-Xl, 18V, 5AH |
| 657 | 2607337085 | Battery Pack Bbs Mr-Xl, 18V, 5AH Korea |
| 658 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 658 | 2607225929 | Fast Charger Mex GAL 1880 CV 115/14,4-18V |
| 658 | 2607225931 | Charger J GAL 1880 CV 100/14,4-18V |
| 658 | 2607225933 | Charger Rok GAL 1880 CV 220V/14,4-18V |
| 658 | 2607225935 | Charger Br GAL 1880 CV 220V/14,4-18V |
| 658 | 2607225939 | Fast Charger Br GAL 1880 CV 127/14,4-18V |
| 658 | 2607225941 | Charger Ar GAL 1880 CV 220V/14,4-18V |
| 658 | 2607226251 | Fast Charger EU GAL 18V-40, 230V/10,8V – 18V |
| 658 | 2607226253 | Fast Charger Gb GAL 18V-40 |
| 658 | 2607226267 | Fast Charger Cn GAL 18V-40 |
| 658 | 2607226271 | Charger GAL 18V-40 4A |
| 658 | 2607226537 | Fast Charger Ind GAL 18V-40 220-240V / 4A |
| 8 | 1619PS1916 | Nameplate |
| 8 | 1619PS1918 | Nameplate |
| 8 | 1619PS1919 | Nameplate |
| 8 | 1619PS1920 | Nameplate |
| 8 | 1619PS1921 | Nameplate |
| 8 | 1619PS1922 | Nameplate |
| 810 | 1607000V41 | Push-Button |
| 821 | 1619PS1123 | Gear Housing |
| 828 | 1619PS1914 | Bearing Flange |
| 843 | 1607000742 | Catch Lever |
| 884 | 1619PS1128 | Filter |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 895 | 1605430003 | Grease Tube 225 Ml |
| 9 | 1619PS1911 | Manufacturer's nameplate |
