Bosch GWS 18V-7

Bosch GWS 18V-7 cordless angle grinder: exploded parts diagram, 2 sheets, 48 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 18V-7: 48 positions on 2 sheets

Bosch GWS 18V-7 parts list (2 sheets)

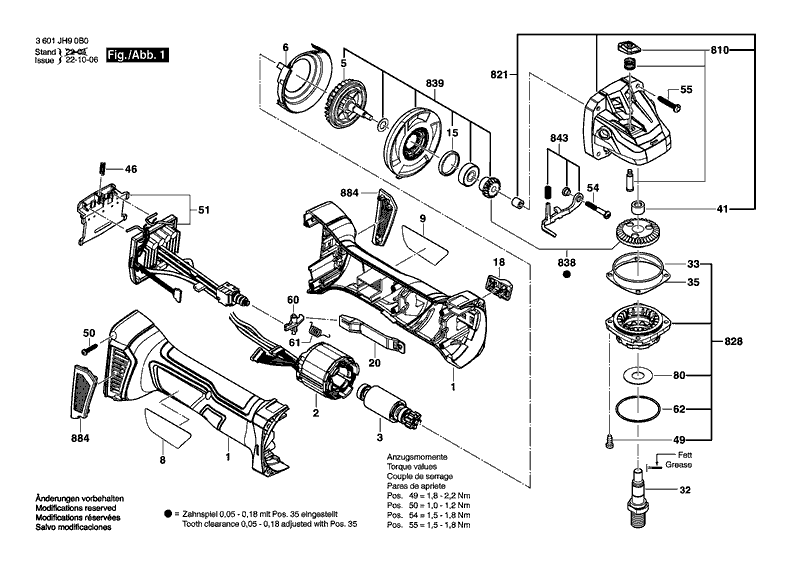

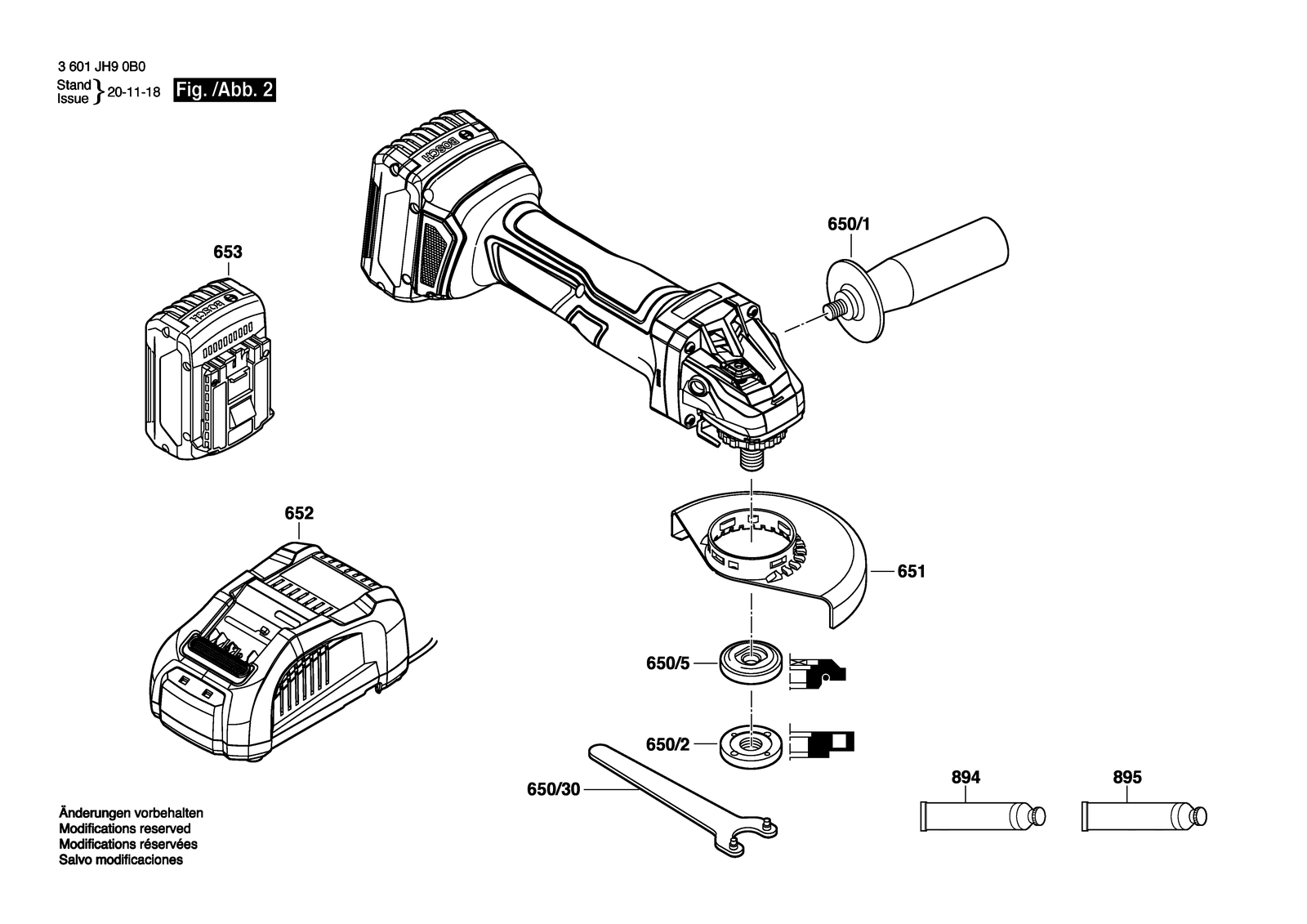

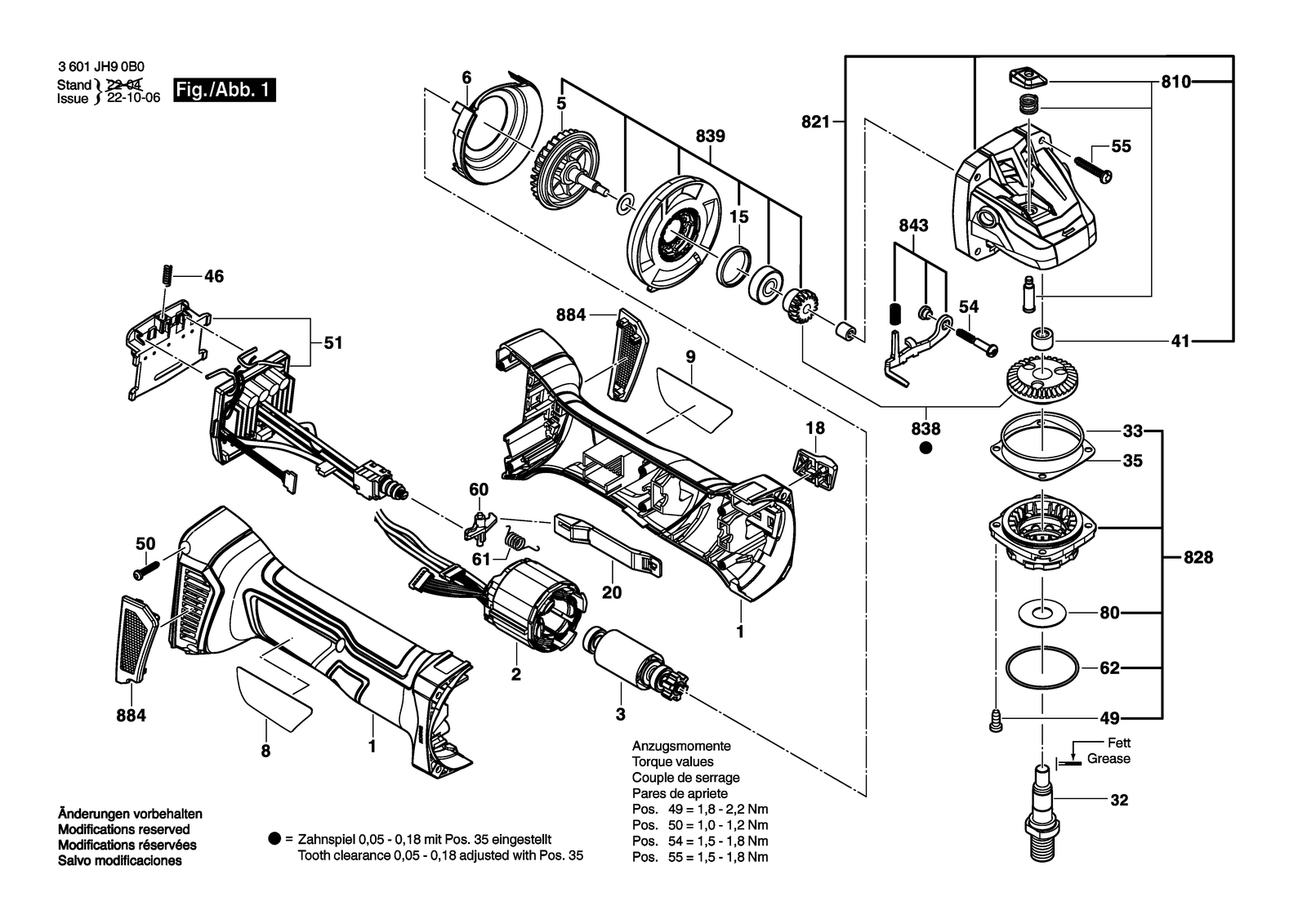

Bosch GWS 18V-7 parts diagram, sheet 1Bosch GWS 18V-7 parts diagram, sheet 2
No.Part numberPart name
11619P15044Motor Housing
151600206025Rubber Ring
181619P15338Switch Handle
21600A01A6NStator
201619P15050Adjusting Slide
31600A01A6SRotor
321603523111Grinding Spindle M10, SW12
331619P02820O-Ring 44,0X1,0 MM
351619P02821Shim 0,1 MM
351619P02822Shim 0,2 MM
411600200029Plain bearing
461609280477Compression Spring
491619P11118Thread-forming tap. Screw
51619P15054Fan
502609110201Torx Flat-Head Screw 3X16
511600A01NC3Electronics Module
542603490025Torx Oval-Head Screw 4X30
551619P01066Torx Oval-Head Screw 4X25
61619P16509Air-Deflector Ring
601619P15795Reverse-Transfer Lever
611619P15806Torsion Spring
621600210038O-Ring 38,0X1,5 MM
650/11619P10681Auxiliary Handle
650/11619P16111Auxiliary Handle
650/21619P09976Round Nut With 2 Holes
650/302609110015Pin-Type Face-Wrench
650/51605703112Clamping-Flange Ø15/20 MM
650/51605703115Clamping-Flange
6511619P14537Protective Cover
6522607225931Charger J GAL 1880 CV 100/14,4-18V
6522607225933Charger Rok GAL 1880 CV 220V/14,4-18V
6531607A350ARBattery Pack Jpn GBA 18V 8.0AH Procore Scm
6532607337081Battery Pack Bbs Mr-Xl, 18V, 5AH
6532607337085Battery Pack Bbs Mr-Xl, 18V, 5AH Korea
6532607337265Battery Pack GBA 18V 6,0AH M-c (j)
81619P15787Nameplate
81619P15788Nameplate
801619P09390Cover Disc
8101619P16236Push Button
8211619P16237Gear Housing
8281619P11094Bearing Flange
8381619P16240Gear Unit
8391619P16234Bevel Gear Shaft
8431619P11076Catch Lever
8841607000CA9Filter Unit
8941615430020Grease Tube 225 Ml
8951605430003Grease Tube 225 Ml
91619P15780Manufacturer's nameplate
