Bosch GWS 18V-180 PC
Bosch GWS 18V-180 PC cordless angle grinder: exploded parts diagram, 2 sheets, 89 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

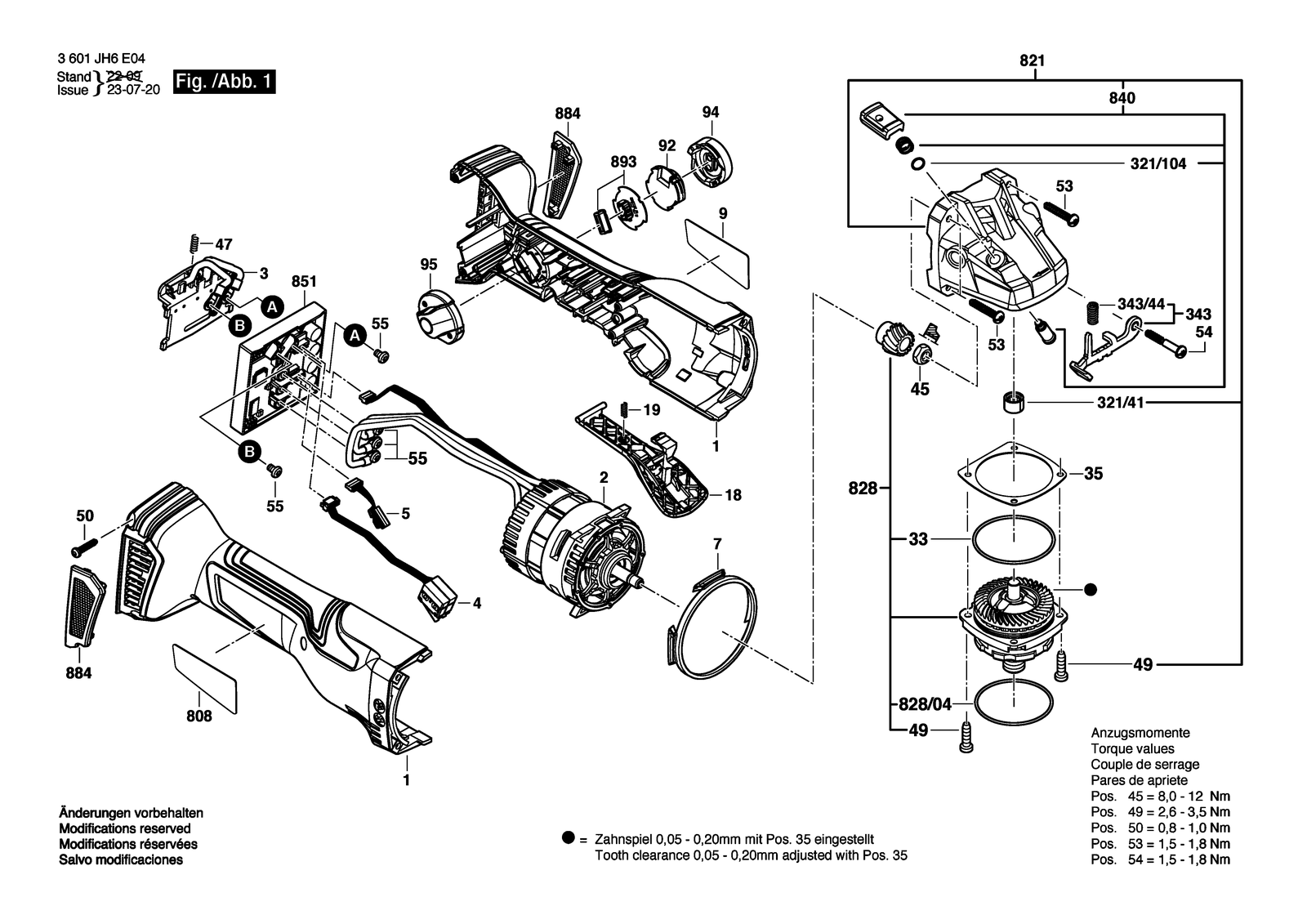

All parts of Bosch GWS 18V-180 PC: 89 positions on 2 sheets
Bosch GWS 18V-180 PC parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16051082PG | Motor Housing |
| 1 | 16051082PG | Motor Housing |
| 1 | 16051082UU | Motor Housing |
| 18 | 1600A025M2 | Switch-Pawl |
| 18 | 1600A025M2 | Switch-Pawl |
| 19 | 160461203M | Compression Spring |
| 19 | 160461203M | Compression Spring |
| 2 | 1607022661 | DC motor |
| 2 | 1607022661 | DC motor |
| 3 | 1600A024C4 | Contact Plate |
| 3 | 1600A024C4 | Contact Plate |
| 321/104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 321/104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 321/41 | 1600200029 | Plain bearing |
| 321/41 | 1600200029 | Plain bearing |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 343 | 1607000742 | Catch Lever |
| 343 | 1607000742 | Catch Lever |
| 343/44 | 1604611042 | Compression Spring |
| 343/44 | 1604611042 | Compression Spring |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 4 | 1600A016JC | Switch Unit |
| 4 | 1600A016JC | Switch Unit |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 1609280477 | Compression Spring |
| 47 | 1609280477 | Compression Spring |
| 49 | 160343508X | Thread-forming tap. Screw M4X16-ST W/ Precote 85-3 |
| 49 | 160343508X | Thread-forming tap. Screw M4X16-ST W/ Precote 85-3 |
| 5 | 1600A018Z2 | Ribbon cable |
| 5 | 1600A018Z2 | Ribbon cable |
| 50 | 1603435071 | Thread-forming tap. Screw |
| 50 | 1603435071 | Thread-forming tap. Screw |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 55 | 160343003T | Screw |
| 55 | 160343003T | Screw |
| 650 | 1607000E8B | Auxiliary Handle |
| 650 | 1607000E8B | Auxiliary Handle |
| 650/2 | 1603345043 | Round Nut M14 |
| 650/2 | 1603345043 | Round Nut M14 |
| 650/3 | 1607950052 | Pin-Type Face-Wrench |
| 650/3 | 1607950052 | Pin-Type Face-Wrench |
| 650/5 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/5 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/5/2 | 1600210055 | O-Ring 20,35X1,78 MM |
| 650/5/2 | 1600210055 | O-Ring 20,35X1,78 MM |
| 651 | 1600A0284A | Protective Cover |
| 651 | 1600A0284A | Protective Cover |
| 656 | 1619P16650 | Guard |
| 656 | 1619P16650 | Guard |
| 7 | 1600A016U4 | Cover Ring |
| 7 | 1600A016U4 | Cover Ring |
| 808 | 160111A8YR | Nameplate |
| 808 | 160111A8YS | Nameplate |
| 808 | 160111A9W3 | Nameplate |
| 821 | 1607000D80 | Gear Housing |
| 821 | 1607000D80 | Gear Housing |
| 828 | 1607000EB8 | Bearing Flange |
| 828 | 1607000EB8 | Bearing Flange |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 840 | 1607000V41 | Push-Button |
| 840 | 1607000V41 | Push-Button |
| 851 | 1607000EB7 | Electronic Module |
| 851 | 1607000EB7 | Electronic Module |
| 884 | 1607000CA9 | Filter Unit |
| 884 | 1607000CA9 | Filter Unit |
| 893 | 1607000D91 | Electronics Module |
| 893 | 1607000D91 | Electronics Module |
| 9 | 160111C4K0 | Manufacturer's nameplate |
| 9 | 160111C4K0 | Manufacturer's nameplate |
| 92 | 1600A013WF | Electronics Module |
| 92 | 1600A013WF | Electronics Module |
| 92 | 1600A01ZE2 | Electronics Module |
| 94 | 16055002FA | Cover |
| 94 | 16055002FA | Cover |
| 95 | 1600A019TY | Dust-Protection Cover |
| 95 | 1600A019TY | Dust-Protection Cover |
