Bosch GWS 18V-10
Bosch GWS 18V-10 cordless angle grinder: exploded parts diagram, 2 sheets, 120 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

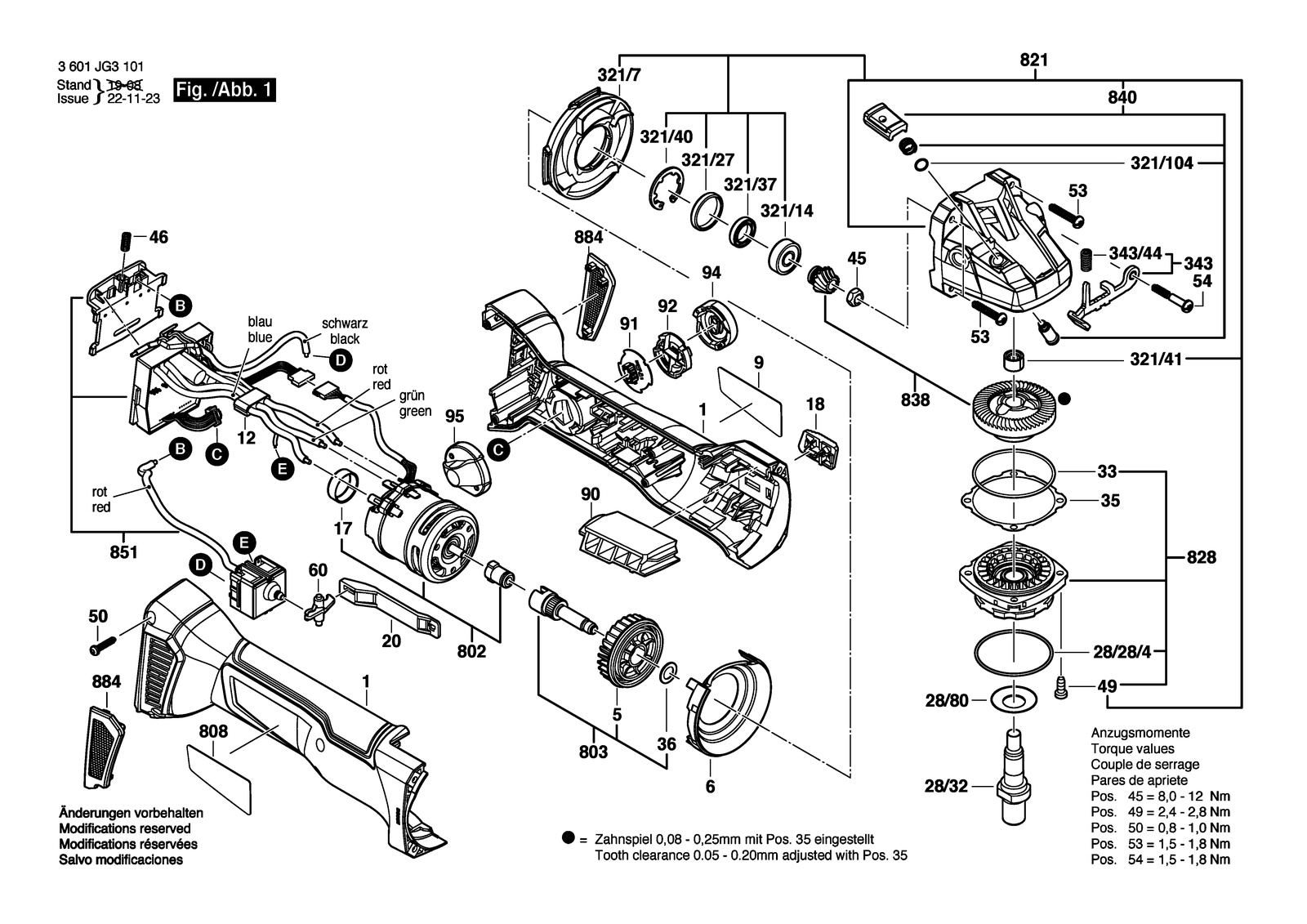

All parts of Bosch GWS 18V-10: 120 positions on 2 sheets
Bosch GWS 18V-10 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16051082DU | Motor Housing |
| 1 | 16051082DU | Motor Housing |
| 12 | 1600A00RK2 | Ferrite |
| 12 | 1600A00RK2 | Ferrite |
| 17 | 1600100P12 | Cover |
| 17 | 1600100P12 | Cover |
| 18 | 1600A00P2P | Switch Handle |
| 18 | 1600A00P2P | Switch Handle |
| 20 | 1600A00P14 | Adjusting Slide |
| 20 | 1600A00P14 | Adjusting Slide |
| 28/28/4 | 3600210109 | O-Ring 47,0X1,5 MM |
| 28/28/4 | 3600210109 | O-Ring 47,0X1,5 MM |
| 28/32 | 1607000D6A | Grinding Spindle |
| 28/32 | 1607000D6A | Grinding Spindle |
| 28/80 | 1619P09390 | Cover Disc |
| 28/80 | 1619P09390 | Cover Disc |
| 321/104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 321/104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 321/14 | 1600905032 | Groove ball bearing 8X22X7 |
| 321/14 | 1600905032 | Groove ball bearing 8X22X7 |
| 321/27 | 1600206025 | Rubber Ring |
| 321/27 | 1600206025 | Rubber Ring |
| 321/37 | 1600A00P17 | Holder |
| 321/37 | 1600A00P17 | Holder |
| 321/40 | 1600119011 | Retaining clip |
| 321/40 | 1600119011 | Retaining clip |
| 321/41 | 1600200029 | Plain bearing |
| 321/41 | 1600200029 | Plain bearing |
| 321/7 | 160059105N | Air Distributor |
| 321/7 | 160059105N | Air Distributor |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 343 | 1607000742 | Catch Lever |
| 343 | 1607000742 | Catch Lever |
| 343/44 | 1604611042 | Compression Spring |
| 343/44 | 1604611042 | Compression Spring |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 36 | 1610100023 | Washer |
| 36 | 1610100023 | Washer |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 46 | 1609280477 | Compression Spring |
| 46 | 1609280477 | Compression Spring |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 5 | 160661016E | Fan |
| 5 | 160661016E | Fan |
| 50 | 1603435071 | Thread-forming tap. Screw |
| 50 | 1603435071 | Thread-forming tap. Screw |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 6 | 1600591065 | Air-Deflector Ring |
| 6 | 1600591065 | Air-Deflector Ring |
| 60 | 1600A00P18 | Reverse-Transfer Lever |
| 60 | 1600A00P18 | Reverse-Transfer Lever |
| 650/1 | 16020250A0 | Auxiliary Handle |
| 650/1 | 16020250A0 | Auxiliary Handle |
| 650/2 | 1600A016DN | Quick Acting Flange |
| 650/2 | 1619P09976 | Round Nut With 2 Holes |
| 650/5 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/5 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/5/2 | 1600210055 | O-Ring 20,35X1,78 MM |
| 650/5/2 | 1600210055 | O-Ring 20,35X1,78 MM |
| 651 | 1600A025XR | Protective Cover |
| 651 | 1600A00XK8 | Protective Cover 115 MM |
| 652 | 2607225929 | Fast Charger Mex GAL 1880 CV 115/14,4-18V |
| 652 | 2607225935 | Charger Br GAL 1880 CV 220V/14,4-18V |
| 652 | 2607225941 | Charger Ar GAL 1880 CV 220V/14,4-18V |
| 652 | 2607226317 | Fast Charger EU GAL 18V-160 C 230 |
| 652 | 2607226317 | Fast Charger EU GAL 18V-160 C 230 |
| 653 | 1607A350AT | Battery Pack GBA 18V 8.0AH Procore Scm |
| 653 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 653 | 2607337263 | Battery Pack GBA 18V 6.0 Ah |
| 653 | 1607A350AT | Battery Pack GBA 18V 8.0AH Procore Scm |
| 653 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 653 | 2607337263 | Battery Pack GBA 18V 6.0 Ah |
| 802 | 1607000CA4 | Motor |
| 802 | 1607000CA4 | Motor |
| 803 | 1607000CA5 | Bevel Gear Shaft |
| 803 | 1607000CA5 | Bevel Gear Shaft |
| 808 | 160111A62M | Nameplate |
| 808 | 160111A635 | Nameplate |
| 808 | 160111A62S | Nameplate |
| 821 | 1607000CA6 | Gear Housing |
| 821 | 1607000CA6 | Gear Housing |
| 828 | 1607000D6D | Bearing Flange |
| 828 | 1607000D6D | Bearing Flange |
| 838 | 1607000CA8 | Gear Unit |
| 838 | 1607000CA8 | Gear Unit |
| 840 | 1607000V41 | Push-Button |
| 840 | 1607000V41 | Push-Button |
| 851 | 1607000D5V | Electronics Module |
| 851 | 1607000D5V | Electronics Module |
| 884 | 1607000CA9 | Filter Unit |
| 884 | 1607000CA9 | Filter Unit |
| 891 | 160202509T | Auxiliary Handle |
| 891 | 160202509T | Auxiliary Handle |
| 893 | 1607950052 | Pin-Type Face-Wrench |
| 893 | 1607950052 | Pin-Type Face-Wrench |
| 9 | 160111C2MT | Manufacturer's nameplate |
| 9 | 160111C2MT | Manufacturer's nameplate |
| 90 | 1600A00P2N | Cover |
| 90 | 1600A00P2N | Cover |
| 91 | 1607503438 | Electronics Module |
| 91 | 1607503438 | Electronics Module |
| 92 | 1600A00M53 | Cover Panel |
| 92 | 1600A00M53 | Cover Panel |
| 94 | 16055002BV | Cover |
| 94 | 16055002BV | Cover |
| 95 | 1600A00P1B | Cover |
| 95 | 1600A00P1B | Cover |
