Bosch GWS 18 V-LI cordless angle grinder: exploded parts diagram, 2 sheets, 37 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 18 V-LI: 37 positions on 2 sheets

Bosch GWS 18 V-LI parts list (2 sheets)

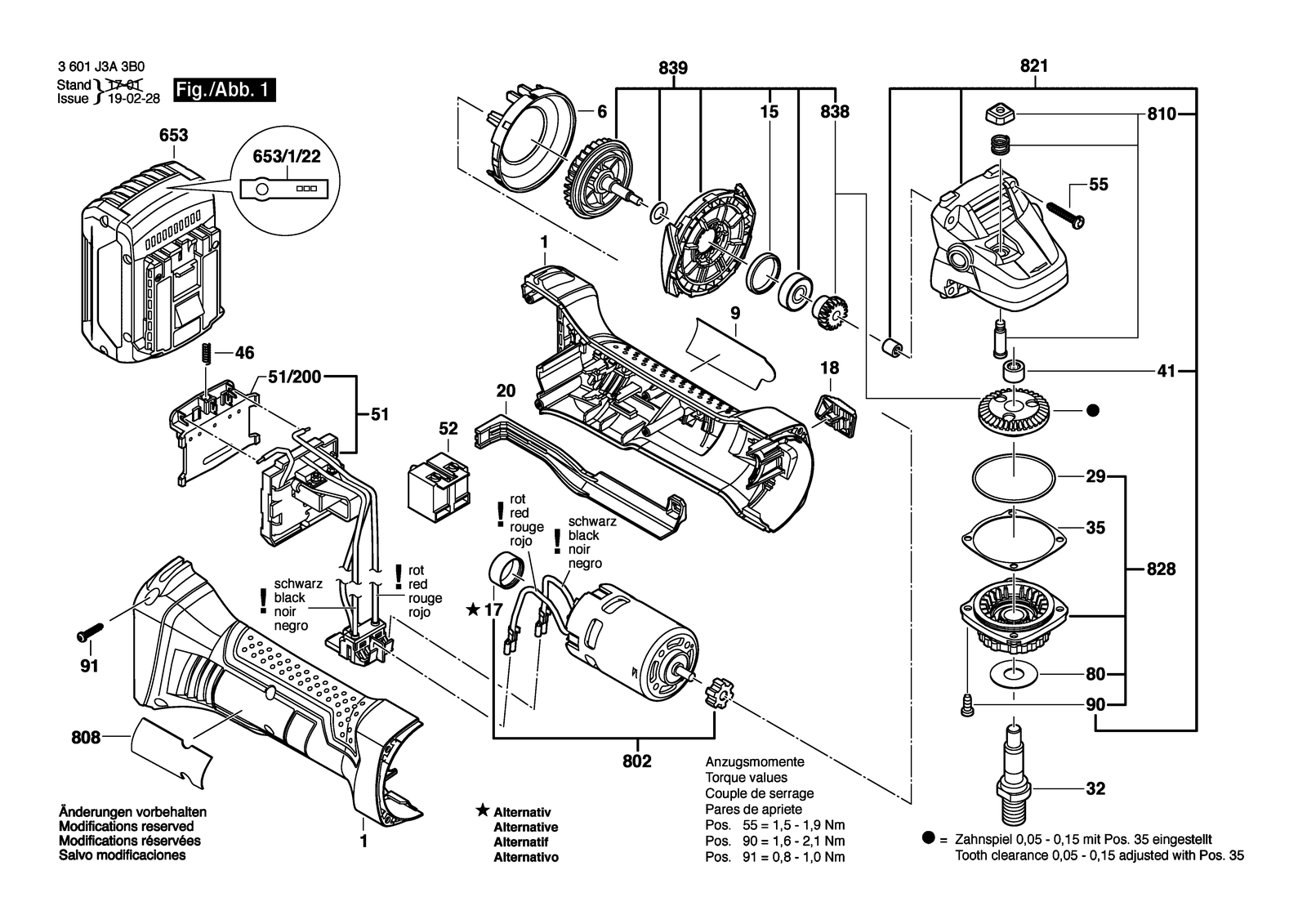

Bosch GWS 18 V-LI parts diagram, sheet 1Bosch GWS 18 V-LI parts diagram, sheet 2
No.Part numberPart name
11605108282Housing Section Blue
1311619P01598Hex Screw Driver 4X95
151600206025Rubber Ring
171600A001PYCover
181619P10838Switch Button
201602319023Adjusting Slide
291619P02820O-Ring 44,0X1,0 MM
321603523111Grinding Spindle M10, SW12
351619P02821Shim 0,1 MM
351619P02822Shim 0,2 MM
411600200029Plain bearing
461609280477Compression Spring
511607233340Electronics Module
51/2001609280478Contact retainer
522607202071On-Off Switch
552603490024Torx Oval-Head Screw 4X25
61600591046Air-Deflector Ring
6511600A00XU5Protective Cover Silver Ø100 MM
6522607225933Charger Rok GAL 1880 CV 220V/14,4-18V
6531607A350M0Battery Pack GBA 18V 4.0AH
653/1/222601115537Sticker
801619P09390Cover Disc
80216170006B0DC motor 18V
808160111A4AVNameplate
81016170006B1Push Button
82116170006B2Gear Housing
82816170006B3Bearing Flange
8381600A00M8FSet Of Gearwheels
8391600A00M8JSet Of Gearwheels
891160202509TAuxiliary Handle
8921619P09976Round Nut With 2 Holes
8932609110015Pin-Type Face-Wrench
8951605703113Clamping-Flange M10, 16-20 MM
8971605703112Clamping-Flange Ø15/20 MM
91619P31072Manufacturer's nameplate
901603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
911603435071Thread-forming tap. Screw
