All parts of Bosch GWS 18 V-LI: 92 positions on 2 sheets

Bosch GWS 18 V-LI parts list (2 sheets)

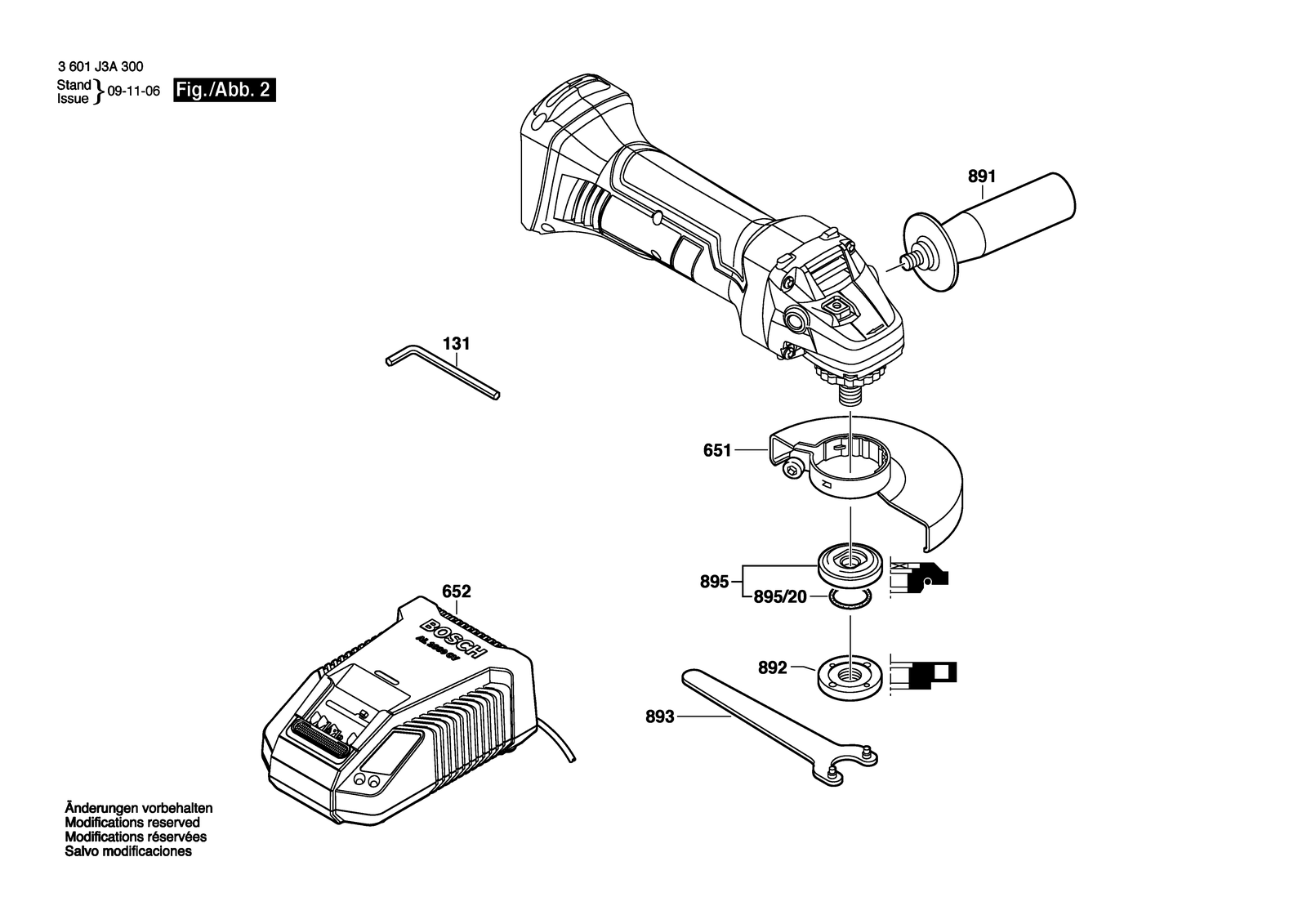

Bosch GWS 18 V-LI parts diagram, sheet 1Bosch GWS 18 V-LI parts diagram, sheet 2
No.Part numberPart name
11605108282Housing Section Blue
11605108282Housing Section Blue
1311619P01598Hex Screw Driver 4X95
1311619P01598Hex Screw Driver 4X95
151600206025Rubber Ring
151600206025Rubber Ring
171600A001PYCover
171600A001PYCover
181619P02812Switch Button
181619P02812Switch Button
201602319023Adjusting Slide
201602319023Adjusting Slide
291619P02820O-Ring 44,0X1,0 MM
291619P02820O-Ring 44,0X1,0 MM
321607000D6AGrinding Spindle
321607000D6AGrinding Spindle
351619P02821Shim 0,1 MM
351619P02822Shim 0,2 MM
351619P02821Shim 0,1 MM
351619P02822Shim 0,2 MM
411600200029Plain bearing
411600200029Plain bearing
461609280477Compression Spring
461609280477Compression Spring
511607233340Electronics Module
511607233340Electronics Module
51/2001609280478Contact retainer
51/2001609280478Contact retainer
522607202071On-Off Switch
522607202071On-Off Switch
552603490024Torx Oval-Head Screw 4X25
552603490024Torx Oval-Head Screw 4X25
61600591046Air-Deflector Ring
61600591046Air-Deflector Ring
6511600A00XU6Protective Cover Silver Ø115 MM
6511600A00XU7Protective Cover Silver Ø125 MM
6522607225321Charger EU 230/14,4-18V, 30 40 S
6522607225325Fast Charger AUS 230/10,8-18V, 30 Min
6522607225329Fast Charger LAM 120/10,8-18V, 30 Min
6522607225715Charger ARG 230V/14,4-18V, 30 Min
6522607225921Charger EU GAL 1880 CV 230/14,4-18V
6522607225923Charger GB 230/10,8-18V, 30 42 S
6522607225925Charger Aus GAL 1880 CV 230/14,4-18V
6522607225935Charger Br GAL 1880 CV 220V/14,4-18V
6522607226281Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A
6522607225325Fast Charger AUS 230/10,8-18V, 30 Min
6522607225921Charger EU GAL 1880 CV 230/14,4-18V
6522607225923Charger GB 230/10,8-18V, 30 42 S
6522607225925Charger Aus GAL 1880 CV 230/14,4-18V
6522607226251Fast Charger EU GAL 18V-40, 230V/10,8V – 18V
6522607226281Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A
6531607A350B2Battery Pack 18V 3.0AH LI Scm
6531607A350M0Battery Pack GBA 18V 4.0AH
6532607337069Battery Pack Bbs Mr, 18V, 5,0 AH 48 S
6531607A350B2Battery Pack 18V 3.0AH LI Scm
6531607A350M0Battery Pack GBA 18V 4.0AH
6532607337069Battery Pack Bbs Mr, 18V, 5,0 AH 48 S
653/1/222601115537Sticker
653/1/222601115537Sticker
801619P09390Cover Disc
801619P09390Cover Disc
80216170006B0DC motor 18V
80216170006B0DC motor 18V
808160111A4AXNameplate
808160111A7PSNameplate
808160111A7PRNameplate
81016170006B1Push Button
81016170006B1Push Button
82116170006B2Gear Housing
82116170006B2Gear Housing
82816170006B3Bearing Flange
82816170006B3Bearing Flange
8381600A00M8FSet Of Gearwheels
8381600A00M8FSet Of Gearwheels
8391600A00M8JSet Of Gearwheels
8391600A00M8JSet Of Gearwheels
891160202509TAuxiliary Handle
891160202509TAuxiliary Handle
8921603345043Round Nut M14
8921603345043Round Nut M14
8931607950052Pin-Type Face-Wrench
8931607950052Pin-Type Face-Wrench
8952605703014Clamping Flange Ø22,3XØ42 MM
8952605703014Clamping Flange Ø22,3XØ42 MM
895/201600210039O-Ring 20,35X1,78 MM
895/201600210039O-Ring 20,35X1,78 MM
91619P31072Manufacturer's nameplate
9160111C00RManufacturer's nameplate
901603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
901603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
911603435071Thread-forming tap. Screw
911603435071Thread-forming tap. Screw
