Bosch GWS 18-180

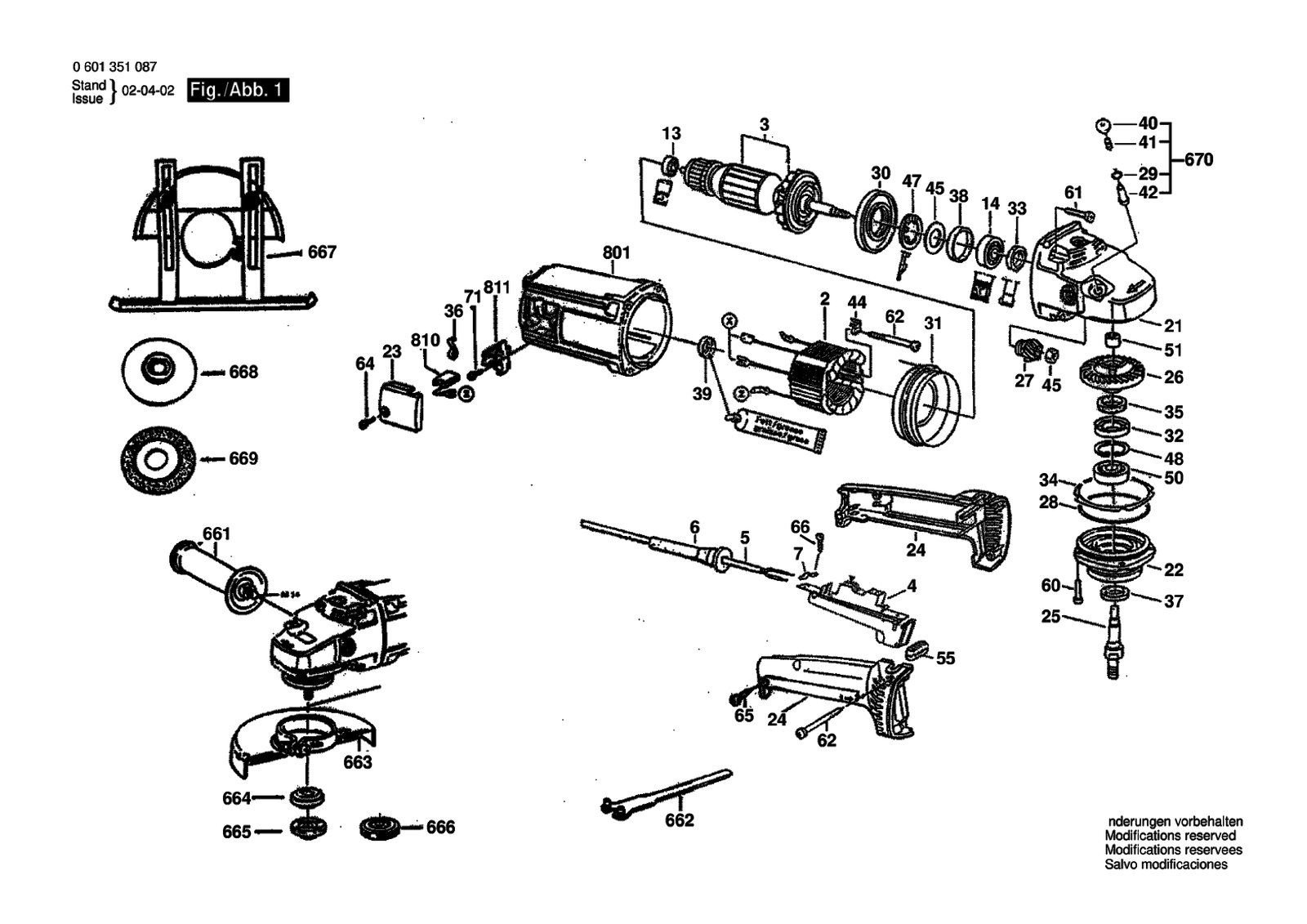

Bosch GWS 18-180 angle grinder: exploded parts diagram, 1 sheet, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 18-180: 65 positions on 1 sheet
Bosch GWS 18-180 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 14 | 1600905023 | Groove ball bearing 10X35X11 |
| 2 | 1604220258 | Field 220V |
| 2 | 9618086634 | Pole Shoe 127V |
| 21 | F000600532 | Gear Housing |
| 22 | 1605805063 | Bearing Flange Ø 180 MM |
| 23 | 1605500150 | Sealing cap Black |
| 24 | 1605132119 | Handle Black |
| 25 | F000600150 | Grinding Spindle |
| 26 | 1606333618 | Crown Gear Z=53 |
| 27 | 1606333237 | Bevel Gear Z=17 |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 3 | 1604011141 | Armature 220V |
| 3 | 9618086633 | Armature With Fan 127V |
| 30 | 1600591010 | Air-Deflector Ring |
| 31 | 1600591011 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 35 | 1600205034 | Felt Washer |
| 36 | 1604652015 | Spiral Spring |
| 37 | 1600290026 | Seal Ring |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | 1600206030 | Rubber Ring |
| 4 | 9618086632 | Switch |
| 40 | 1603231012 | Push-Button |
| 41 | 1604611024 | Compression Spring |
| 42 | 1603123032 | Detent Pin |
| 44 | 1601334008 | Holding Bracket |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 47 | 1600119008 | Spring retaining ring |
| 48 | 1600119010 | Spring retaining ring |
| 5 | 9618089008 | Power supply cord |
| 5 | F000600297 | Power supply cord AR 2,00M 2 X 1,0MM H07 Rn-F |
| 5 | F000600373 | Power supply cord |
| 50 | 3600905134 | Groove ball bearing |
| 51 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 55 | 1602388029 | Storage Ledge Black |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0X100 MM |
| 60 | 9618086638 | Screw |
| 61 | F000600217 | Tapping Screw |
| 62 | F000600218 | Tapping Screw |
| 64 | 9618087099 | Screw 4X16 MM |
| 65 | 9618087099 | Screw 4X16 MM |
| 66 | 2910022116 | Socket head cap screw |
| 661 | 160202509Z | Auxiliary Handle |
| 661 | 16020250A1 | Auxiliary Handle |
| 662 | 1607950061 | Pin-Type Face-Wrench |
| 663 | 1605510176 | Protective Cover Ø180 MM |
| 664 | F000613004 | Clamping-Flange |
| 665 | 1603345043 | Round Nut M14 |
| 666 | 1600A016PP | Fast Locking Flange |
| 667 | 1607000250 | Parts Set Ø180 MM |
| 668 | 1605703028 | Clamping-Flange |
| 669 | 1600114021 | Conical Spring Washer |
| 670 | 9618086834 | Pivot Pin |
| 7 | 1601302013 | Fastening Clamp |
| 7 | F000600566 | Fastening Clamp |
| 71 | 9618089885 | Thread-forming tap. Screw |
| 801 | 9618086830 | Motor Housing |
| 810 | 1607014171 | Carbon-Brush Set |
| 811 | 1604336021 | Brush Holder |
