Bosch GWS 18-125 SL

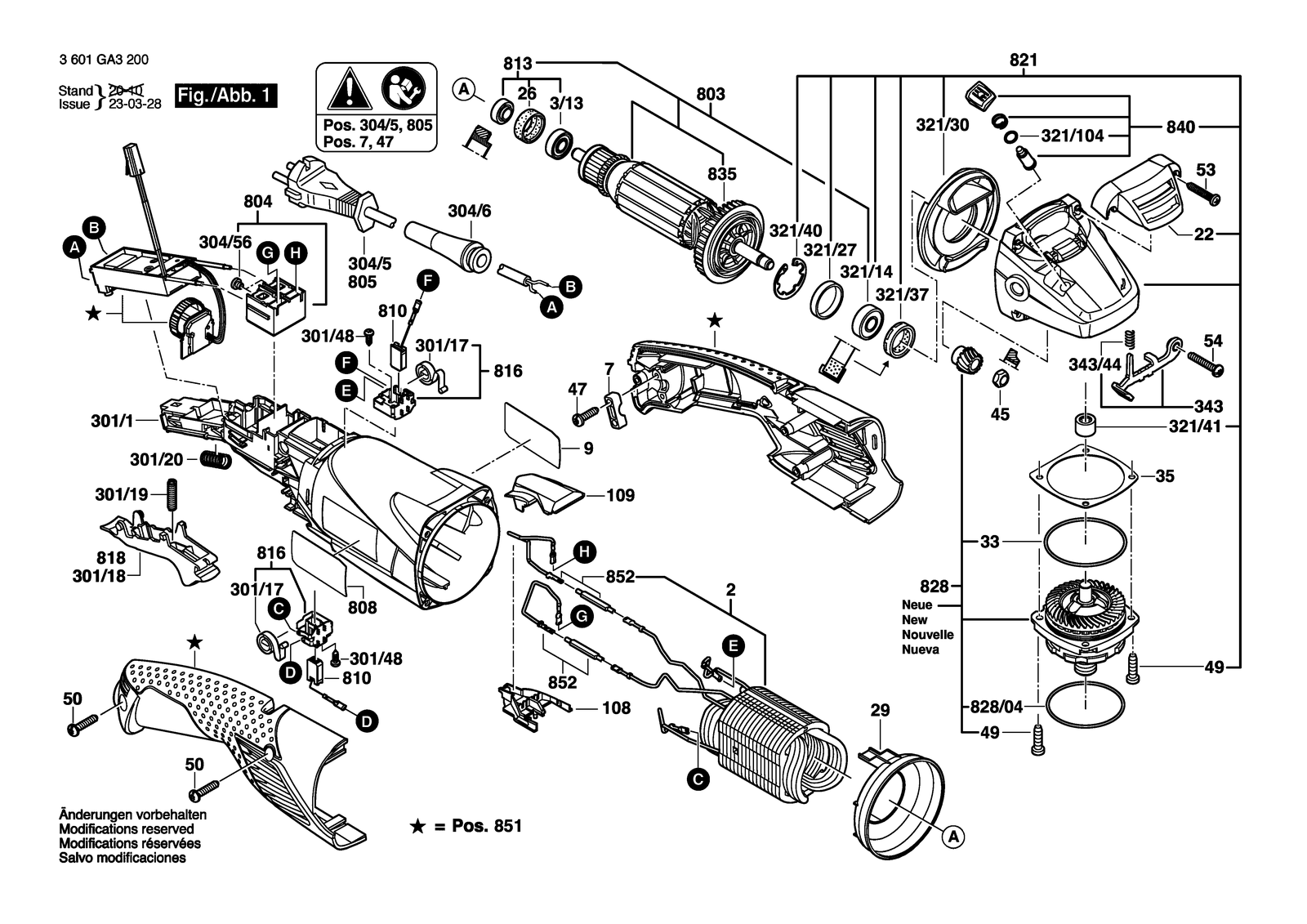

Bosch GWS 18-125 SL angle grinder: exploded parts diagram, 2 sheets, 118 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 18-125 SL: 118 positions on 2 sheets
Bosch GWS 18-125 SL parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 108 | 1600A00XC4 | Cover |
| 108 | 1600A00XC4 | Cover |
| 109 | 1605500263 | Cover Black |
| 109 | 1605500263 | Cover Black |
| 2 | 160422056P | Field |
| 2 | 160422056P | Field |
| 22 | 1605500260 | Covering hood |
| 22 | 1605500260 | Covering hood |
| 26 | 1600206036 | Rubber Ring |
| 26 | 1600206036 | Rubber Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 3/13 | 2600905032 | Ball Bearing 7X19X6 |
| 3/13 | 2600905032 | Ball Bearing 7X19X6 |
| 301/1 | 1605108255 | Motor Housing Blue |
| 301/1 | 16051082F0 | Motor Housing |
| 301/17 | 1604652013 | Spiral Spring |
| 301/17 | 1604652013 | Spiral Spring |
| 301/18 | 1600A00XC7 | Adjusting Slide |
| 301/18 | 1602319024 | Adjusting Slide |
| 301/19 | 1604611041 | Compression Spring |
| 301/19 | 1604611041 | Compression Spring |
| 301/20 | 3604611039 | Compression Spring |
| 301/20 | 3604611039 | Compression Spring |
| 301/48 | 1613435034 | Lens Head Screw 3X10 St |
| 301/48 | 1613435034 | Lens Head Screw 3X10 St |
| 304/56 | 1603415004 | Lens Head Screw |
| 304/56 | 1603415004 | Lens Head Screw |
| 304/6 | 1600703040 | Grommet |
| 304/6 | 1600703040 | Grommet |
| 321/104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 321/104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 321/14 | 1600905032 | Groove ball bearing 8X22X7 |
| 321/14 | 1600905032 | Groove ball bearing 8X22X7 |
| 321/27 | 1600206025 | Rubber Ring |
| 321/27 | 1600206025 | Rubber Ring |
| 321/30 | 1600591014 | Air-Deflector Ring |
| 321/30 | 1600591014 | Air-Deflector Ring |
| 321/37 | 1600290016 | Rotary shaft lip seal |
| 321/37 | 1600290016 | Rotary shaft lip seal |
| 321/40 | 1600119011 | Retaining clip |
| 321/40 | 1600119011 | Retaining clip |
| 321/41 | 1600200029 | Plain bearing |
| 321/41 | 1600200029 | Plain bearing |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 343 | 1607000742 | Catch Lever |
| 343 | 1607000742 | Catch Lever |
| 343/44 | 1604611042 | Compression Spring |
| 343/44 | 1604611042 | Compression Spring |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2603490022 | Screw 4X16 |
| 47 | 2603490022 | Screw 4X16 |
| 49 | 160343508X | Thread-forming tap. Screw M4X16-ST W/ Precote 85-3 |
| 49 | 160343508X | Thread-forming tap. Screw M4X16-ST W/ Precote 85-3 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 651 | 1600A025XR | Protective Cover |
| 651 | 1600A025XR | Protective Cover |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 803 | 1604010A52 | Armature With Fan 230V |
| 803 | 1604010A52 | Armature With Fan 230V |
| 804 | 1607000A85 | On-Off Switch |
| 804 | 1607000A85 | On-Off Switch |
| 805 | 1607000391 | Power supply cord |
| 805 | 1607000391 | Power supply cord |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1604321186 | Carbon Brush |
| 810 | 1604321186 | Carbon Brush |
| 813 | 1607000378 | Parts Set |
| 813 | 1607000378 | Parts Set |
| 816 | 1607000V54 | Brush Holder |
| 816 | 1607000V54 | Brush Holder |
| 821 | 1607000D1F | Gear Housing |
| 821 | 1607000D1F | Gear Housing |
| 828 | 1607000D62 | Bearing Flange |
| 828 | 1607000D62 | Bearing Flange |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 835 | 1606610132 | Fan |
| 835 | 1606610132 | Fan |
| 840 | 1603231032 | Push-Button |
| 840 | 1603231032 | Push-Button |
| 851 | 1607000E54 | Electronic Assembly |
| 851 | 1607000E54 | Electronic Assembly |
| 852 | 1604448025 | Connecting Cable |
| 852 | 1604448025 | Connecting Cable |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 891 | 160202509T | Auxiliary Handle |
| 891 | 16020250A0 | Auxiliary Handle |
| 891 | 160202509T | Auxiliary Handle |
| 891 | 16020250A0 | Auxiliary Handle |
| 892 | 1603345043 | Round Nut M14 |
| 892 | 1603345043 | Round Nut M14 |
| 893 | 1607950052 | Pin-Type Face-Wrench |
| 893 | 1607950052 | Pin-Type Face-Wrench |
| 895 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 895 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 896 | 1600A016PP | Fast Locking Flange |
| 896 | 1600A016PP | Fast Locking Flange |
| 9 | 160111C2EN | Manufacturer's nameplate |
| 9 | 160111C2EP | Manufacturer's nameplate |
