Bosch GWS 15-125 CIP

Bosch GWS 15-125 CIP angle grinder: exploded parts diagram, 2 sheets, 116 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 15-125 CIP: 116 positions on 2 sheets

Bosch GWS 15-125 CIP parts list (2 sheets)

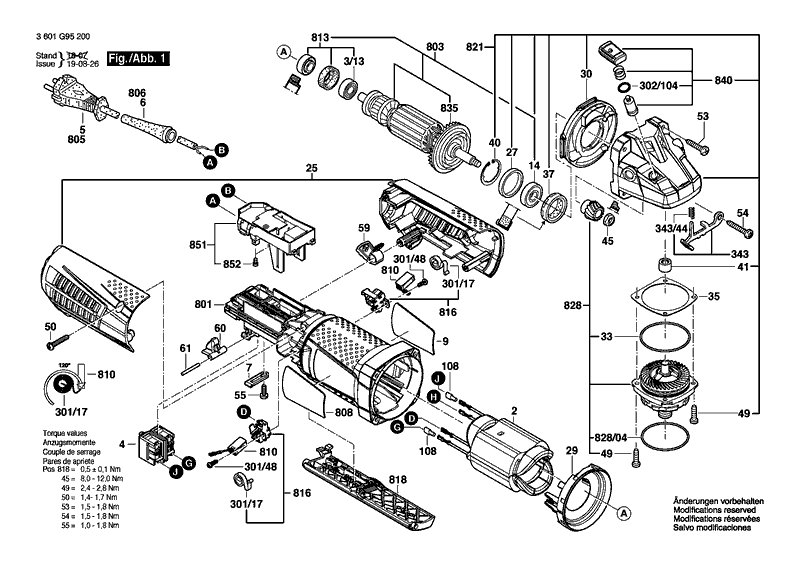

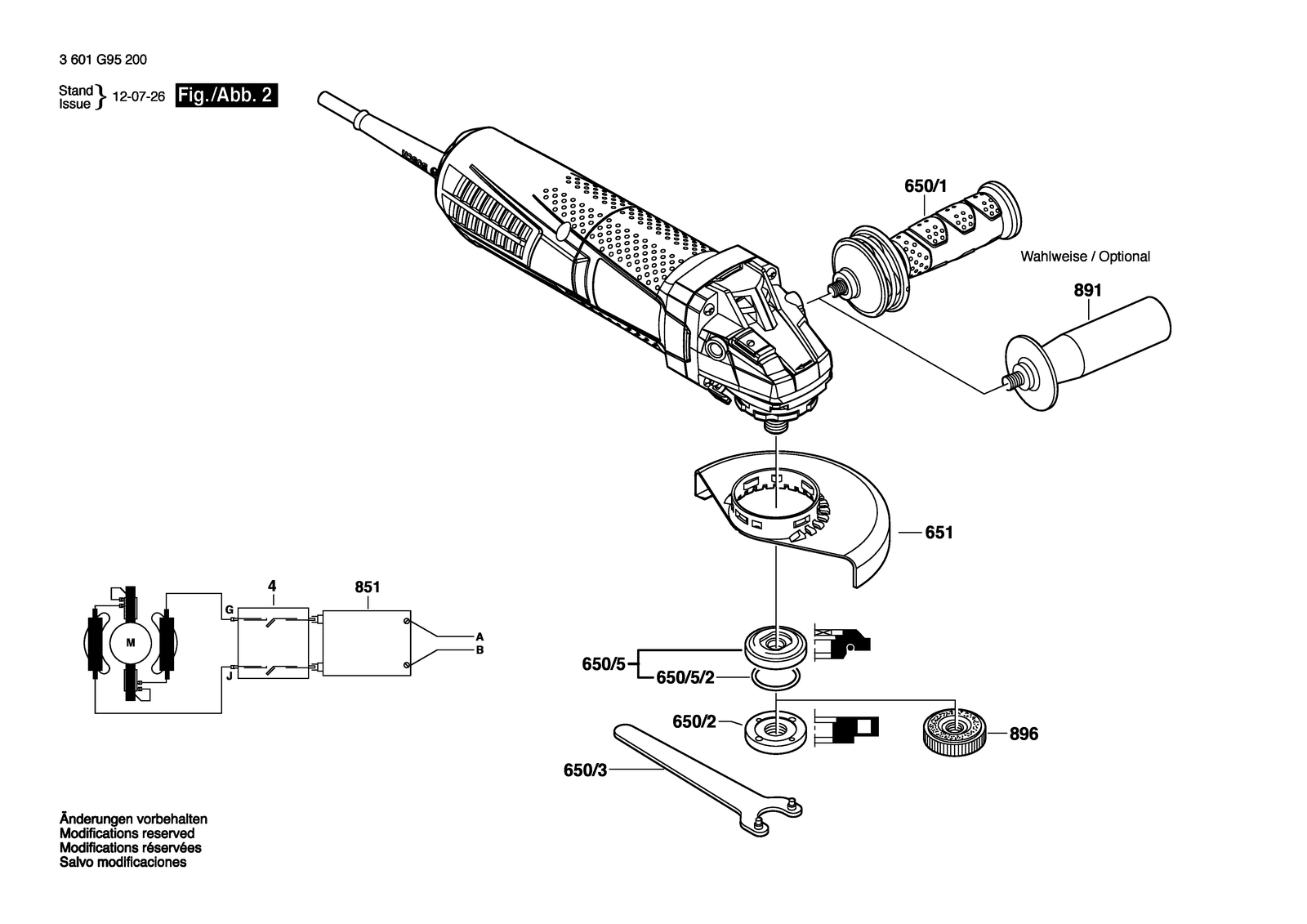

Bosch GWS 15-125 CIP parts diagram, sheet 1Bosch GWS 15-125 CIP parts diagram, sheet 2
No.Part numberPart name
1081600712030Insulating Part
1081600712030Insulating Part
141600905032Groove ball bearing 8X22X7
141600905032Groove ball bearing 8X22X7
21607000F0BField
21607000F0BField
25160510829AHousing Section
25160510829AHousing Section
271600206025Rubber Ring
271600206025Rubber Ring
291600591047Air-Deflector Ring
291600591047Air-Deflector Ring
3/132600905032Ball Bearing 7X19X6
3/132600905032Ball Bearing 7X19X6
301600591048Air Distributor
301600591048Air Distributor
301/171604652021Spiral Spring
301/171604652021Spiral Spring
301/481613435034Lens Head Screw 3X10 St
301/481613435034Lens Head Screw 3X10 St
302/1041600210044O-Ring Blue 4,5X1,0 MM
302/1041600210044O-Ring Blue 4,5X1,0 MM
331600210035O-Ring 46,0X1,1 MM
331600210035O-Ring 46,0X1,1 MM
3431607000742Catch Lever
3431607000742Catch Lever
343/441604611042Compression Spring
343/441604611042Compression Spring
351600136013Shim Thick 0,1 MM
351600136014Shim Thick 0,2 MM
351600136015Shim Thick 0,3 MM
351600136020Shim Thick 0,15 MM
351600136013Shim Thick 0,1 MM
351600136014Shim Thick 0,2 MM
351600136015Shim Thick 0,3 MM
351600136020Shim Thick 0,15 MM
371600290016Rotary shaft lip seal
371600290016Rotary shaft lip seal
4160720035ASwitch
4160720035ASwitch
401600119011Retaining clip
401600119011Retaining clip
411600200029Plain bearing
411600200029Plain bearing
451603300016Hex Nut M7, SW10
451603300016Hex Nut M7, SW10
492914491410Thread-forming tap. Screw M4X16
492914491410Thread-forming tap. Screw M4X16
52604460244Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F
501603435078Torx Oval-Head Screw
501603435078Torx Oval-Head Screw
531603435078Torx Oval-Head Screw
531603435078Torx Oval-Head Screw
541603414026Torx Oval-Head Screw 4X30
541603414026Torx Oval-Head Screw 4X30
552603490021Torx Oval-Head Screw 4X12
552603490021Torx Oval-Head Screw 4X12
591600591054Plug
591600591054Plug
61600703042Grommet
61600703043Grommet
61600703043Grommet
601602026095Reverse-Transfer Lever
601602026095Reverse-Transfer Lever
611600A00X5AStraight Pin
611600A00X5AStraight Pin
650/116020250A0Auxiliary Handle
650/116020250A0Auxiliary Handle
650/21603345043Round Nut M14
650/21603345043Round Nut M14
650/31607950052Pin-Type Face-Wrench
650/31607950052Pin-Type Face-Wrench
650/52605703014Clamping Flange Ø22,3XØ42 MM
650/52605703014Clamping Flange Ø22,3XØ42 MM
650/5/21600210055O-Ring 20,35X1,78 MM
650/5/21600210055O-Ring 20,35X1,78 MM
6511600A025XRProtective Cover
6511600A025XTProtective Cover
71601302017Fastening Clamp
71601302017Fastening Clamp
8011607000D99Motor Housing
8011607000D99Motor Housing
8031607000V35Armature With Fan 230V
8031607000V36Armature With Fan 230V
8051607000392Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
8051607000392Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
808160111A3HKNameplate
808160111A3HKNameplate
8101607000V37Carbon-Brush Set
8101607000V37Carbon-Brush Set
8131607000V38Groove ball bearing
8131607000V38Groove ball bearing
8161607000V43Brush Holder
8161607000V43Brush Holder
8181607000504Switch-Pawl
8181607000504Switch-Pawl
8211607000V40Gear Housing
8211607000V40Gear Housing
8281607000D62Bearing Flange
8281607000D63Bearing Flange
828/043600210109O-Ring 47,0X1,5 MM
828/043600210109O-Ring 47,0X1,5 MM
8351606610132Fan
8351606610132Fan
8401607000V41Push-Button
8401607000V41Push-Button
8511607000DA3Speed governor
8511607000DA3Speed governor
8521607000V42Pan head screw
8521607000V42Pan head screw
891160202509TAuxiliary Handle
891160202509TAuxiliary Handle
8961600A016PPFast Locking Flange
8961600A016PPFast Locking Flange
9160111C00BManufacturer's nameplate GWS 15-125 Cip
9160111C00DManufacturer's nameplate GWS 15-150 Cip
