Bosch GWS 14-180

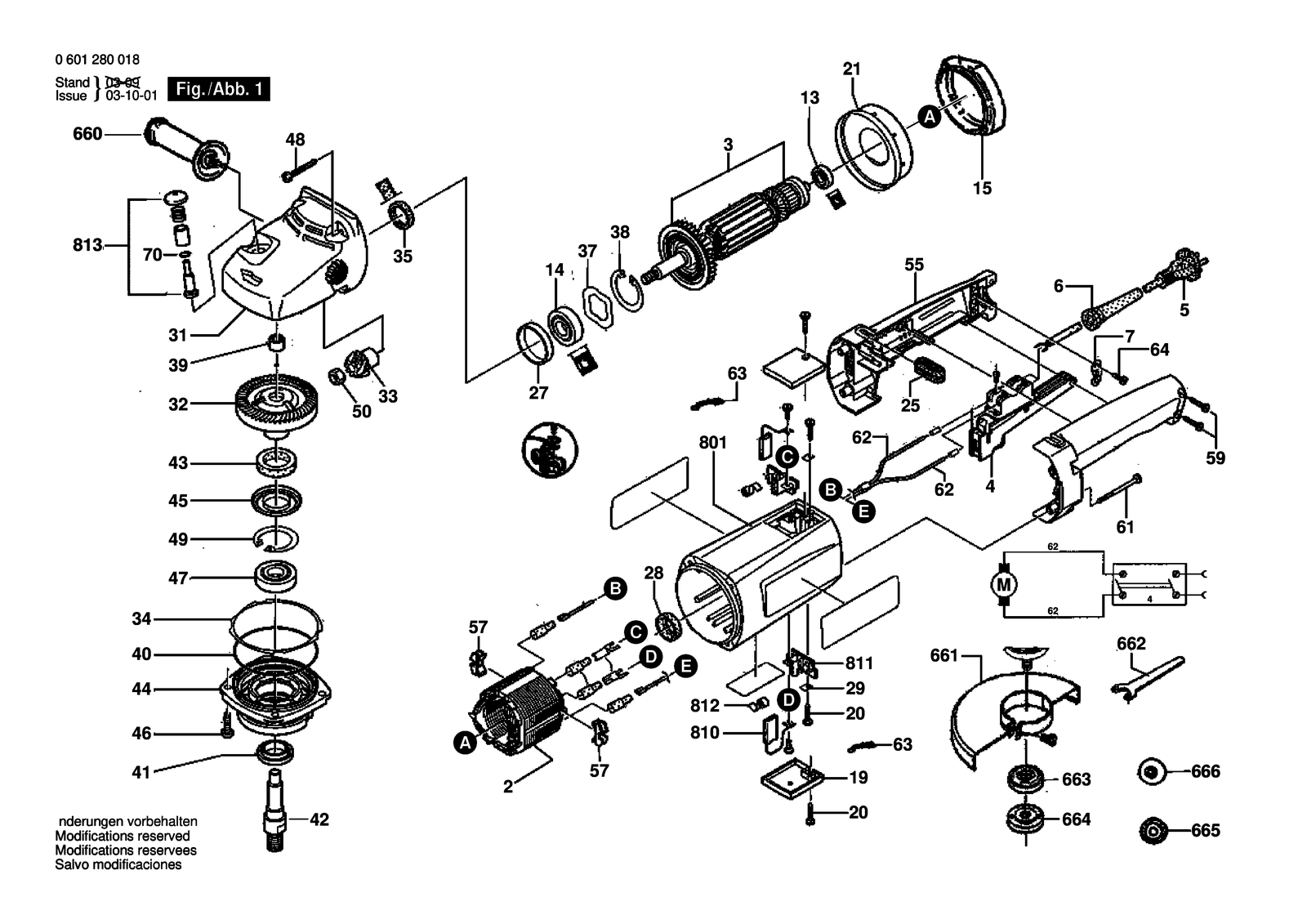

Bosch GWS 14-180 combi-angle grinder: exploded parts diagram, 1 sheet, 62 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 14-180: 62 positions on 1 sheet
Bosch GWS 14-180 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1600900024 | Groove ball bearing DIN 607-2Z-C3 |
| 14 | 1900905025 | Ball Bearing 9X26X8 |
| 15 | 9618086661 | Intermediate Flange |
| 19 | 1605500089 | Sealing cap Blue |
| 2 | F000607062 | Field 127 V |
| 2 | F000607063 | Field 220 V |
| 20 | 9618087099 | Screw 4X16 MM |
| 21 | F000600528 | Air-Deflector Ring |
| 25 | 1602388029 | Storage Ledge Black |
| 27 | 1600206026 | Intermediate Ring |
| 28 | 1600502011 | Intermediate Ring |
| 29 | 1601030022 | Tab Washer |
| 3 | F000605108 | Armature With Fan 220 V |
| 3 | F000605109 | Armature With Fan 127 V |
| 31 | F000602166 | Gear Housing |
| 32 | 1606333626 | Crown Gear Z=53 |
| 33 | F000600542 | Pinion |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 35 | 1600290018 | Rotary shaft lip seal |
| 37 | F000616014 | Conical Spring Washer |
| 38 | 2916660012 | Spring retaining ring 30X1,2MM, DIN 472 |
| 39 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 4 | 9618086632 | Switch |
| 40 | 1600210033 | O-Ring 79,0X1,78 MM |
| 41 | 1600290036 | Seal Ring Black |
| 42 | F000600150 | Grinding Spindle |
| 43 | 1600205034 | Felt Washer |
| 44 | 1605805137 | Bearing Flange |
| 45 | 1600290019 | Retaining snap ring |
| 46 | 9618086638 | Screw |
| 47 | 1900905203 | Groove ball bearing 17X40X12 |
| 48 | F000600216 | Tapping Screw |
| 49 | 1600119010 | Spring retaining ring |
| 5 | F000600297 | Power supply cord AR 2,00M 2 X 1,0MM H07 Rn-F |
| 5 | F000609060 | Power supply cord BR 2,00M 2 X 1,00MM H07 Rnf |
| 5 | F000609126 | Power supply cord MEX 2,00M 2 X 1,50MM H07 Rnf |
| 5 | F000609215 | Power supply cord SAM 2,00M 2 X 1,50MM H07 Rnf |
| 50 | 1613300008 | Hex Nut DIN 936-M8X1-8 |
| 55 | 9618086678 | Handle |
| 57 | 3601025003 | Wire Guide |
| 59 | 9618087100 | Tapping Screw 4X20 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 61 | F000600217 | Tapping Screw |
| 62 | 9618089758 | Connecting Cable |
| 63 | 1604477001 | Blade terminal |
| 64 | 2910021115 | Socket head cap screw DIN 84-AM4X5-8.8 |
| 660 | F000635276 | Auxiliary Handle |
| 661 | 1605510176 | Protective Cover Ø180 MM |
| 662 | 1607950056 | Pin-Type Face-Wrench 35X6 |
| 663 | F000632033 | Pin-Type Face-Wrench |
| 664 | F000613004 | Clamping-Flange |
| 665 | 1600114021 | Conical Spring Washer |
| 666 | 1605703028 | Clamping-Flange |
| 7 | 1601302013 | Fastening Clamp |
| 70 | 1600210034 | O-Ring 4,0X1,0 MM |
| 801 | F000601106 | Motor Housing |
| 810 | 9618086921 | Carbon-Brush Set |
| 811 | F000600113 | Brush Holder |
| 812 | 1604652006 | Spiral Spring |
| 813 | 9618086834 | Pivot Pin |
