Bosch GWS 14-125 CE

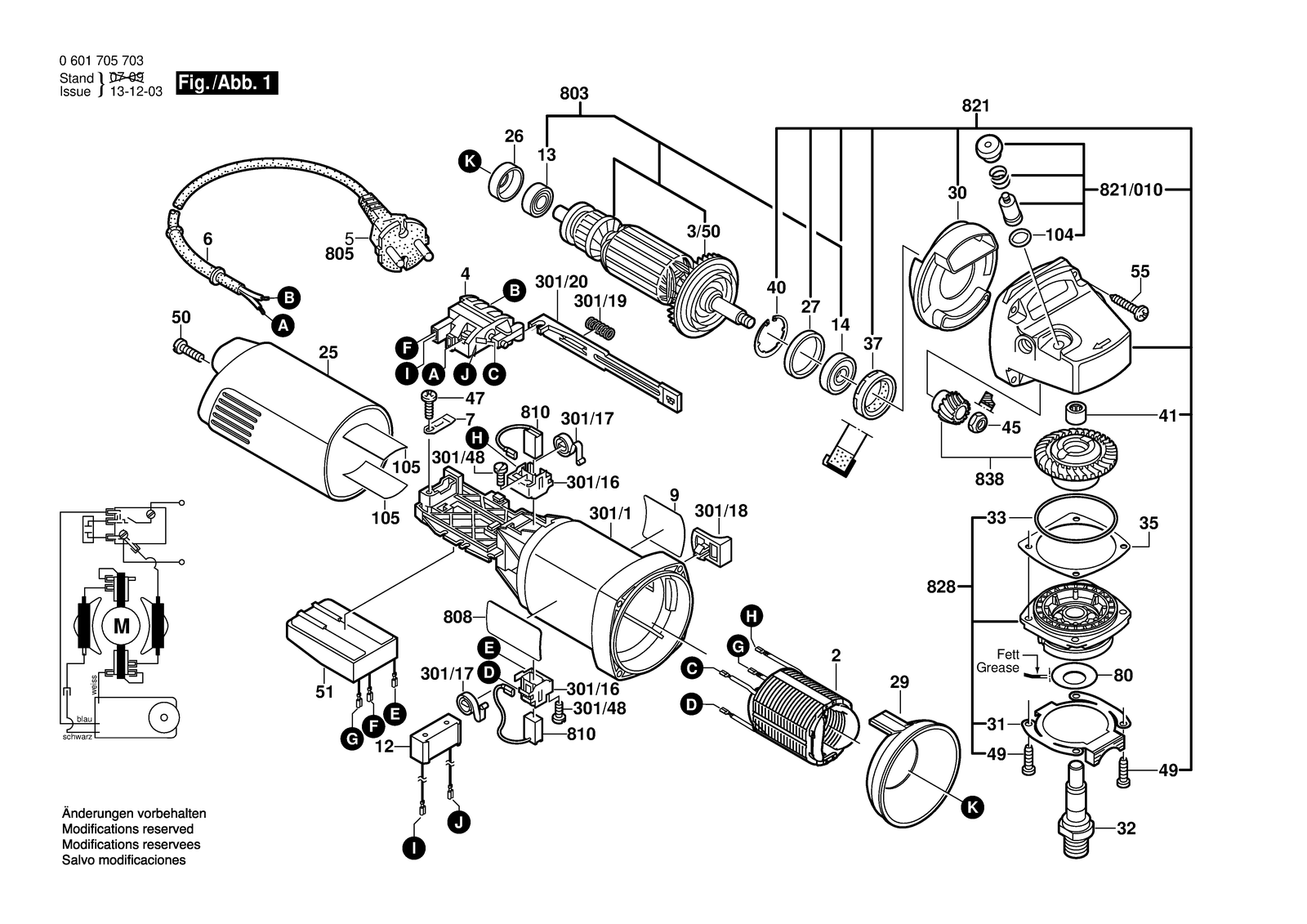

Bosch GWS 14-125 CE angle grinder: exploded parts diagram, 2 sheets, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GWS 14-125 CE: 63 positions on 2 sheets
Bosch GWS 14-125 CE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 105 | 1601008005 | Insulating Plate |
| 12 | 1607328042 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 2 | 1607000F0S | Field |
| 25 | 1600508016 | Housing Cover Blue |
| 26 | 1600206036 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 3/50 | 1606610132 | Fan |
| 30 | 1600591014 | Air-Deflector Ring |
| 301/1 | 1605108208 | Motor Housing Blue |
| 301/16 | 1601323025 | Brush Holder |
| 301/17 | 1604652013 | Spiral Spring |
| 301/18 | 1602026057 | Switch Handle Black |
| 301/19 | 1604611026 | Compression Spring |
| 301/20 | 1602319011 | Adjusting Slide |
| 301/48 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 31 | 1601290007 | Clamping Spring |
| 32 | 1607000D6A | Grinding Spindle |
| 33 | 3600210124 | O-Ring Red 46,0X1,1 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 37 | 1600290016 | Rotary shaft lip seal |
| 4 | 1607200137 | Switch |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 49 | 1603435026 | Thread-forming tap. Screw |
| 5 | 1604460236 | Power supply cord AR 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 3604460062 | Power supply cord I 4,15M 2 X 1,0MM H05 Rn-F |
| 50 | 2912401420 | Tapping Screw DIN7981-ST3,9X19-F-Z |
| 51 | 1607233110 | Speed governor 220-240V |
| 55 | 1603415005 | Oval-Head Screw |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 650/50/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 7 | 1601302017 | Fastening Clamp |
| 750/10 | 160202509T | Auxiliary Handle |
| 750/20 | 1603340040 | Clamping Nut M14 |
| 750/30 | 1607950043 | Pin-Type Face-Wrench |
| 750/50 | 1605703099 | Clamping-Flange Ø22,2X42 MM |
| 751 | 2605510101 | Protective Cover Ø 125MM |
| 752 | 1600A016PP | Fast Locking Flange |
| 753 | 1605438100 | Carrying Case |
| 80 | 1619P09390 | Cover Disc |
| 803 | 1604010650 | Armature With Fan 220-240V |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 3604460058 | Power supply cord AUS 4,15M 2 X 0,75MM Pvc |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014176 | Carbon-Brush Set |
| 821 | 1605806451 | Gear Housing |
| 821/010 | 1607000253 | Push-Button Black |
| 828 | 1605805079 | Bearing Flange Black |
| 838 | 1607000D4Y | Gear Unit |
| 9 | 1601118A77 | Manufacturer's nameplate |
